Overview & suitability

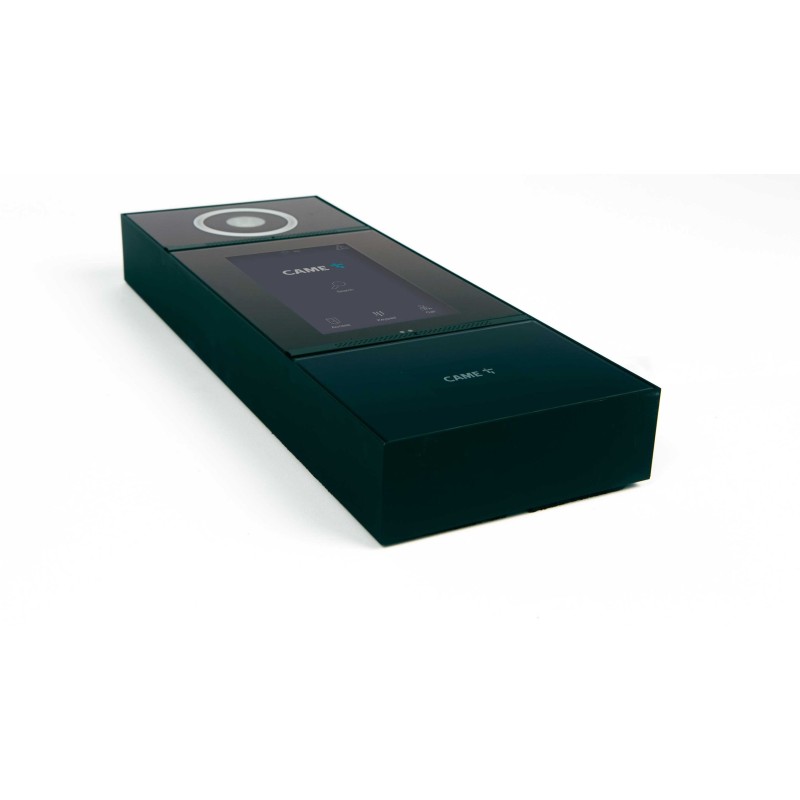

BPT XVP S IP TOUCH SCREEN VIDEO INTERCOM KIT - 840AA-0030
Surface mounted
XVP S is the touch screen video door entry panel with 7" display, ideal for large prestigious contexts with IP360 systems.
Main Features
- Full touch screen 7˝ display with Optical Bonding technology
- 1.3 Mpx Camera
- Display brightness 800 Nits
- Tempered glass thickness 5 mm
- IK08 shock protection rating
- Water and dust protection IP55
- Resistance to temperatures between -40°C and + 50°C
- Aluminum profiles corrosion resistance with 20 micron deep anodizing
- RTSP protocol to allow 24/7 video streaming
- Different access management modes
- Access control via RFID reader (also from third parties)
- Access control via Bluetooth with smartphone app
BPT XVP S IP TOUCH SCREEN VIDEO INTERCOM KIT - 840AA-0030
- Entry panel for IP360 system with touch-screen display
- Constructed from 5mm thick tempered shatterproof glass for durability
- Certified IK08 impact resistance for added protection
- High brightness 7" anti-glare capacitive TFT touch screen
- Optical Bonding technology for enhanced display clarity
- 1024 x 600 pixels resolution for clear visuals
- Customizable multilingual graphic interface
- Video camera sensor with HD 1280x720 resolution and HDR technology
- "Ultra wide eye" wide-angle lens with 130° horizontal and 95° vertical aperture
- Even illumination with 30 high-efficiency white LEDs and anti-glare diffuser
- RTSP protocol for continuous viewing of camera video stream on CCTV systems
- Access control via Bluetooth App for smartphones or RFID badge/tag
- Option to house MTMRFID access control module for RFID access
- Local 12V control for electric lock and auxiliary contact
- Inputs for door lock release button and door status indication
- Output for activation of outdoor cameras
- RJ45 port for network connection
- Power supply options: PoE (IEEE 802.3at POE+) or local 12-24V DC
- Presence sensors to wake up device when approached
- Brightness sensor for automatic display brightness adjustment
- On-board web server for configuration and firmware updates
- Manual configuration of device parameters from graphic interface
- IP55 rating against water and dust for outdoor use
Elevate your exclusive buildings with top-tier entry panels. Leveraging over six decades of expertise, CAME laboratories proudly present XVP, our pinnacle IP solution yet. Seamlessly merging state-of-the-art technology with exquisite Italian design, XVP stands as the ultimate choice for residential and commercial properties alike.

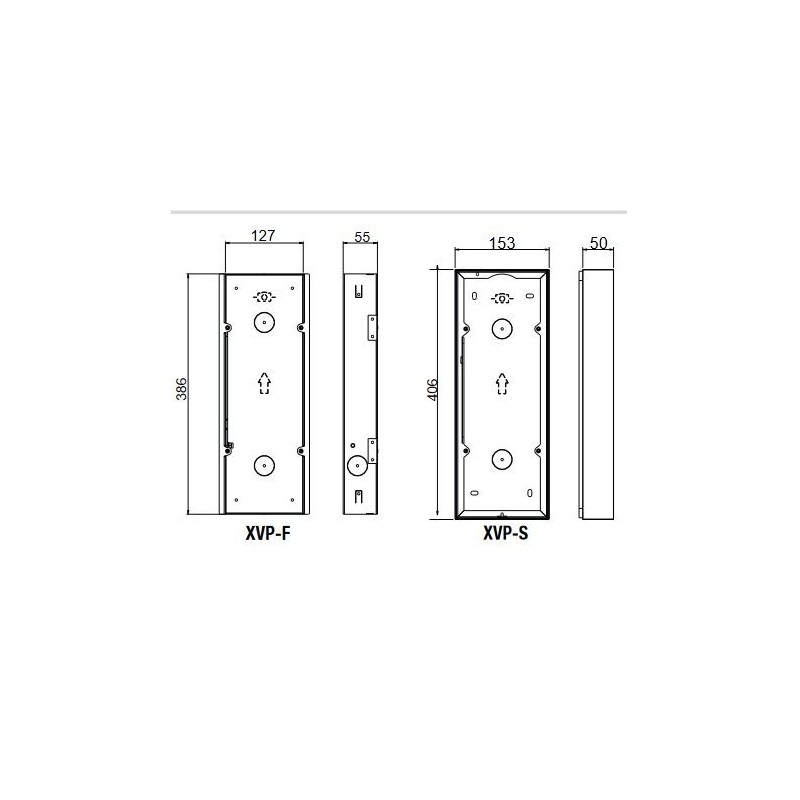

Crafted with a refined panel boasting a discreet black finish and a generous 7” touch screen display, XVP comes complete with a tailor-made steel mounting box, ensuring both security and longevity for recessed or wall-mounted installations.
- CAME BPT XVP
- THE NEW GENERATION OF IP DOOR ENTRY PANELS

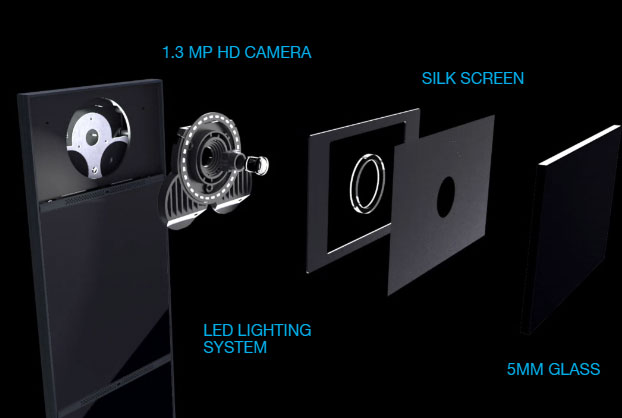

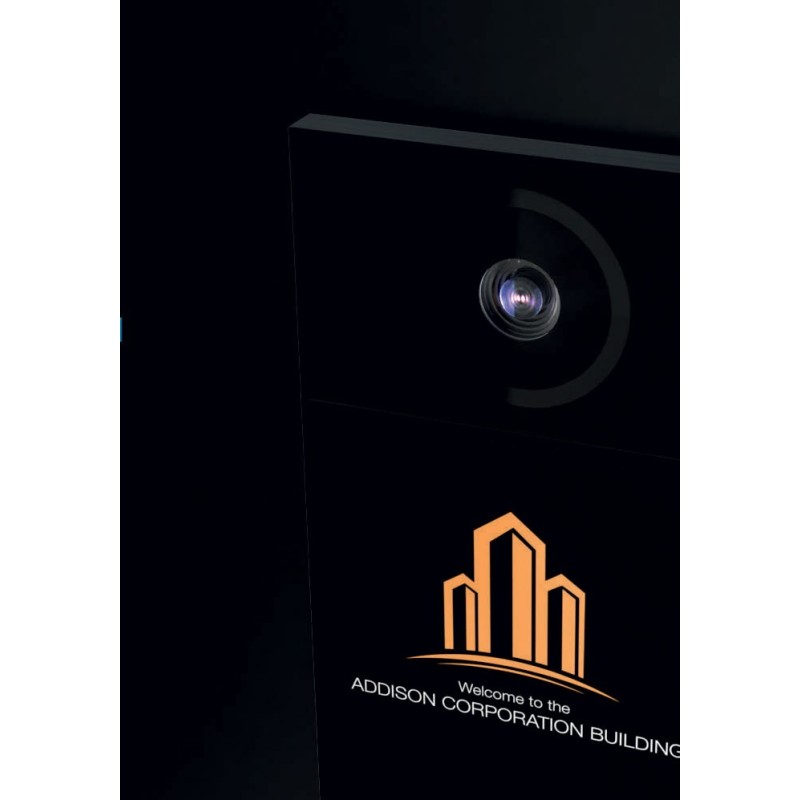

- HIGH PERFORMANCE CAMERA
- 1.3 MP camera with wide viewing angle.

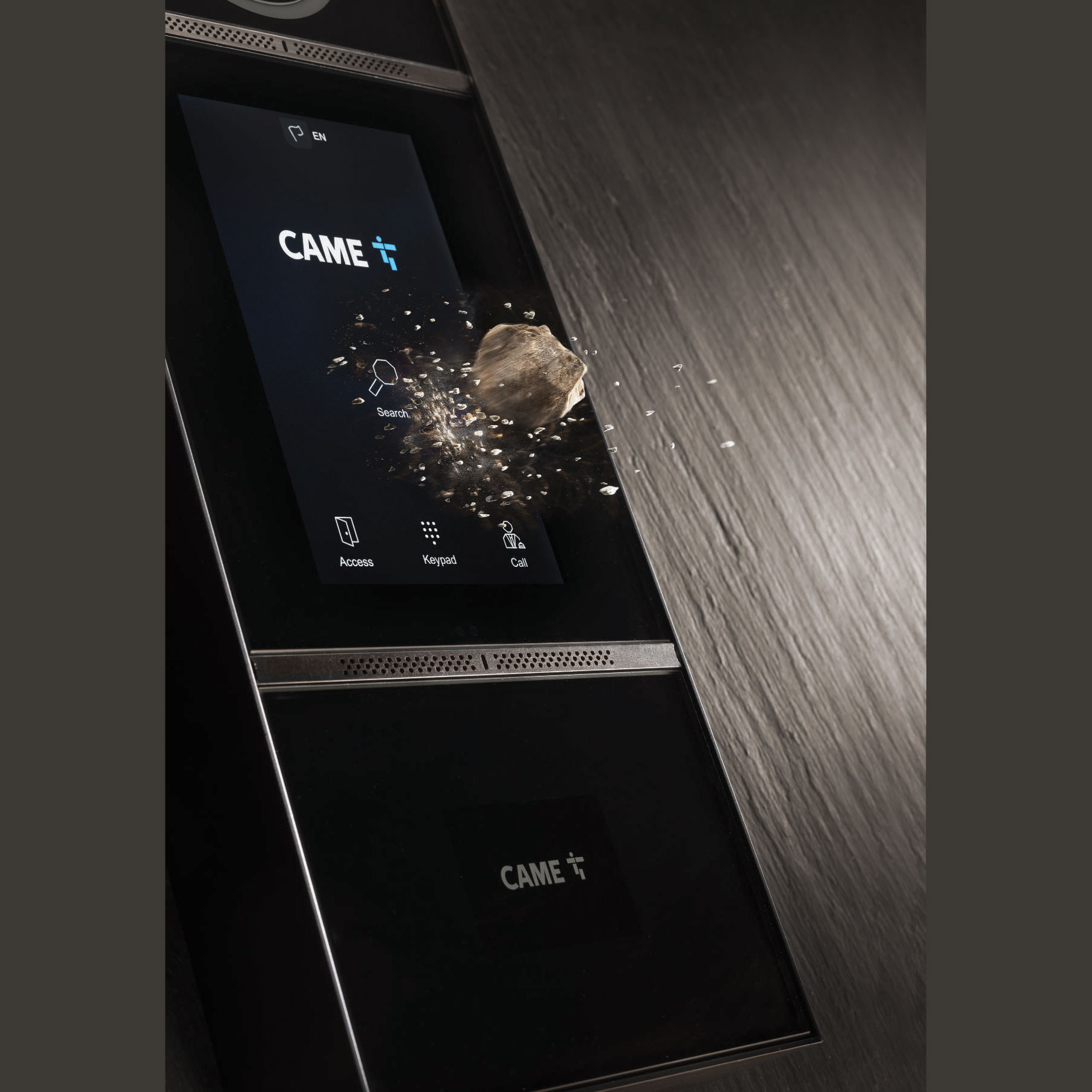

- CERTIFIED RESISTANCE FOR ULTRA DURABILITY
- Entirely out of aluminium and stainless steel, with 5 mm tempered glass cover and double shock-absorption system.

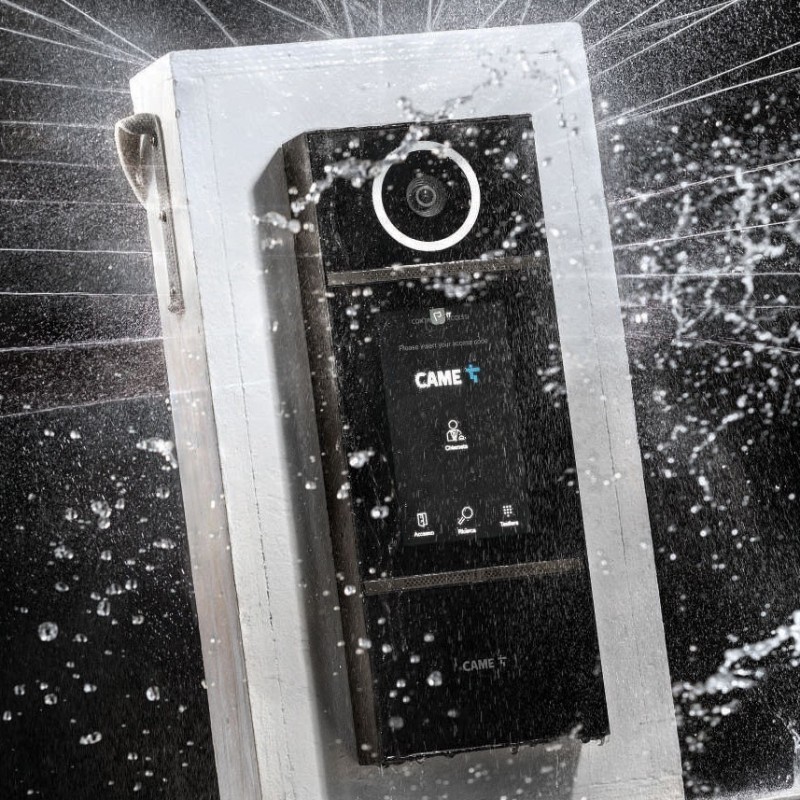

- IP 55 Rating & IK 08 Rating

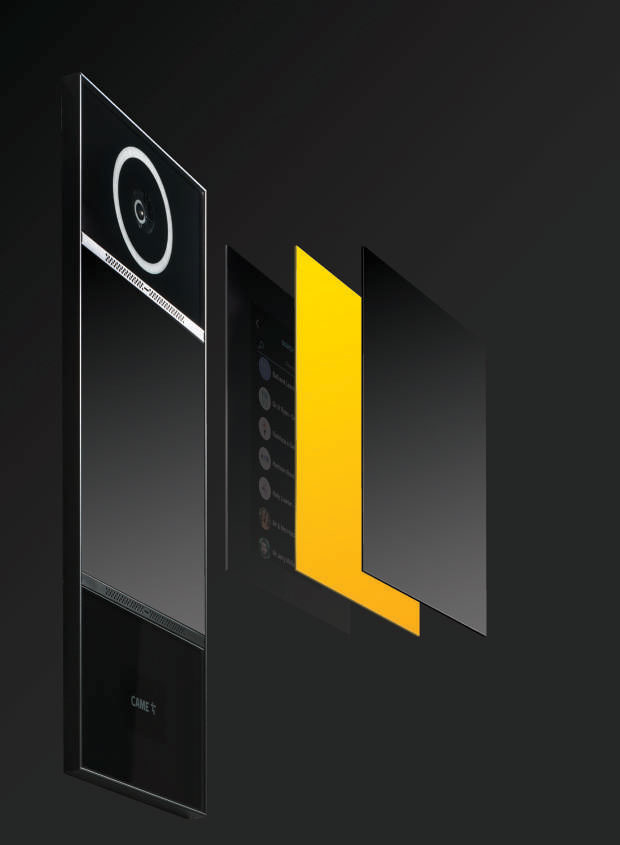

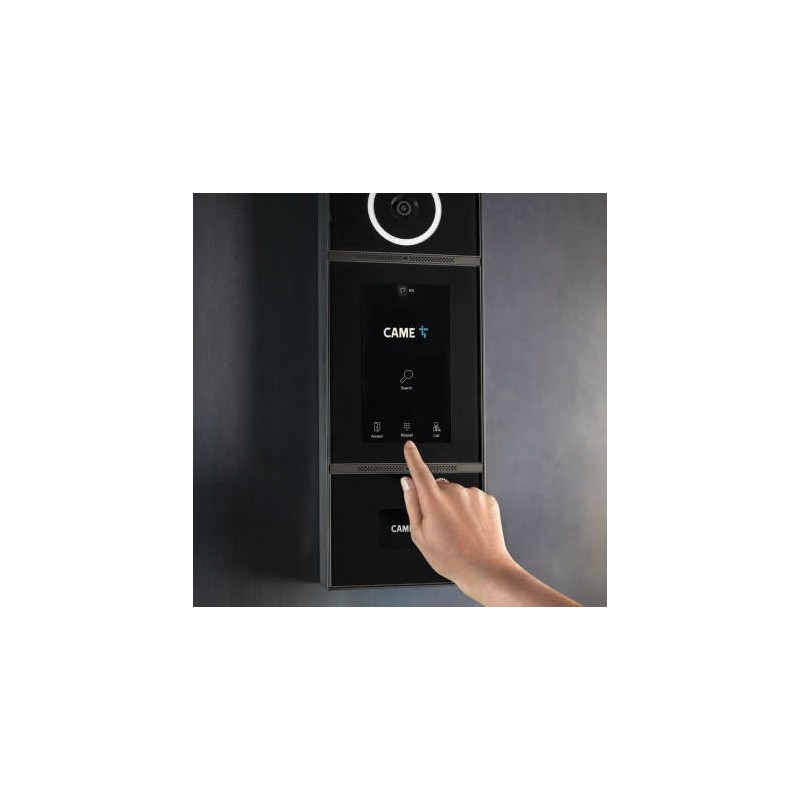

- 7” TOUCH SCREEN WITH OPTICAL BONDING
- Less reflection, no fog, more resistance and brightness sensor for perfect readability.
- 800 NITS
- The brightest display on the market!

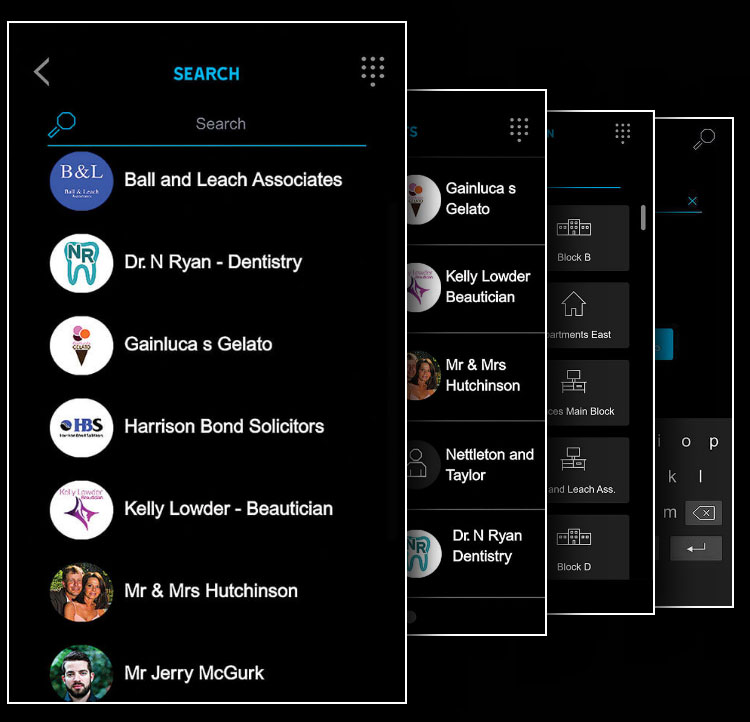

- CUSTOMIZED CALL TO EXTENSION

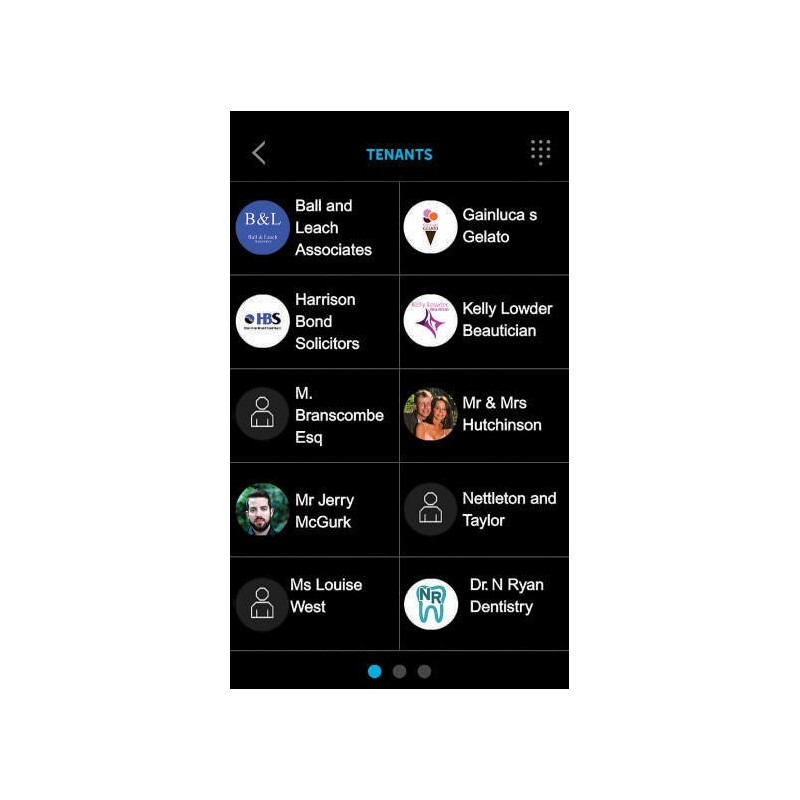

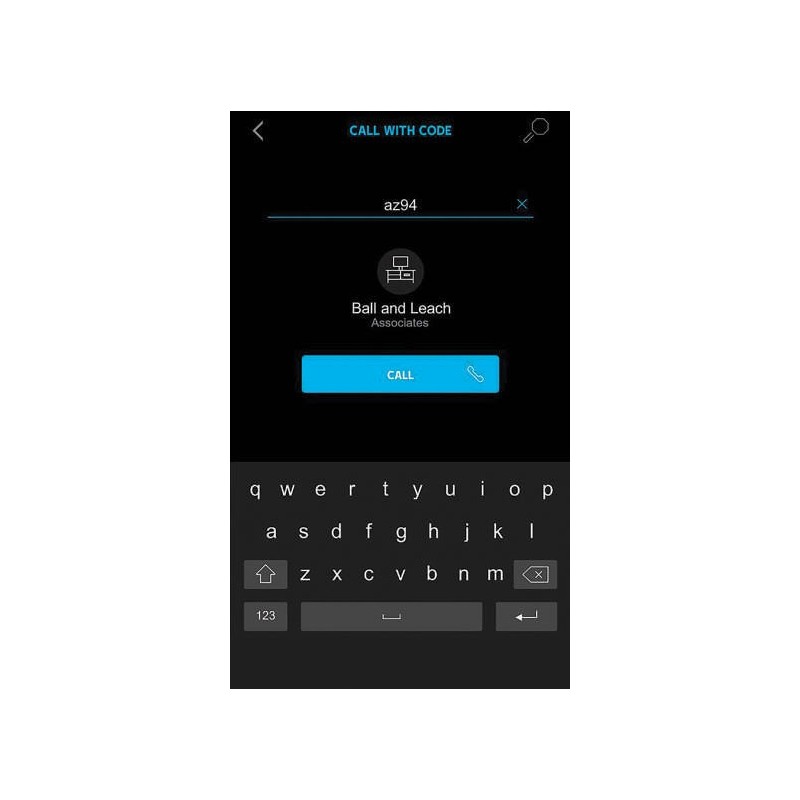

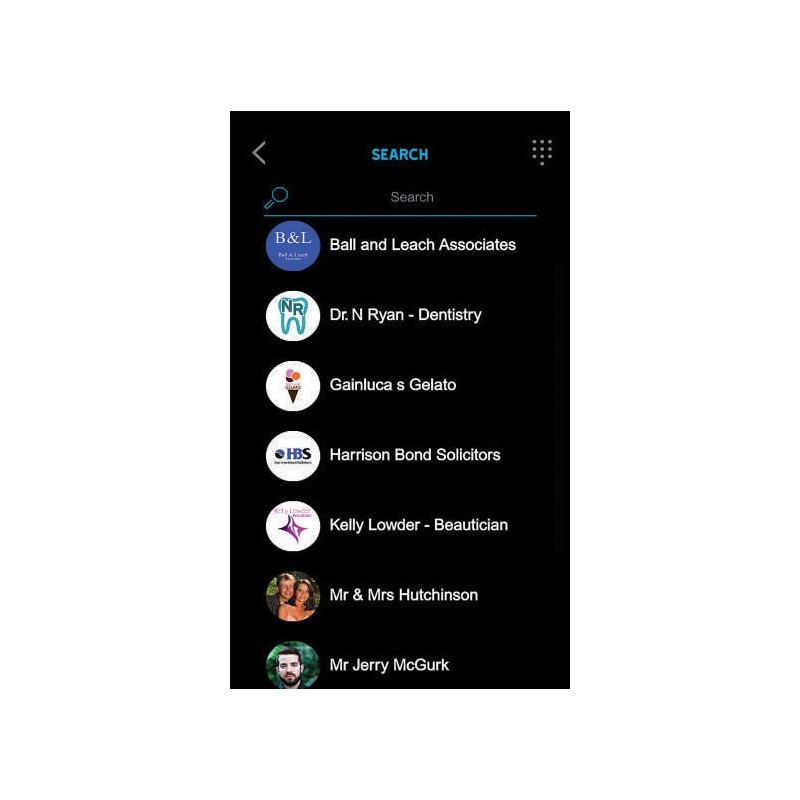

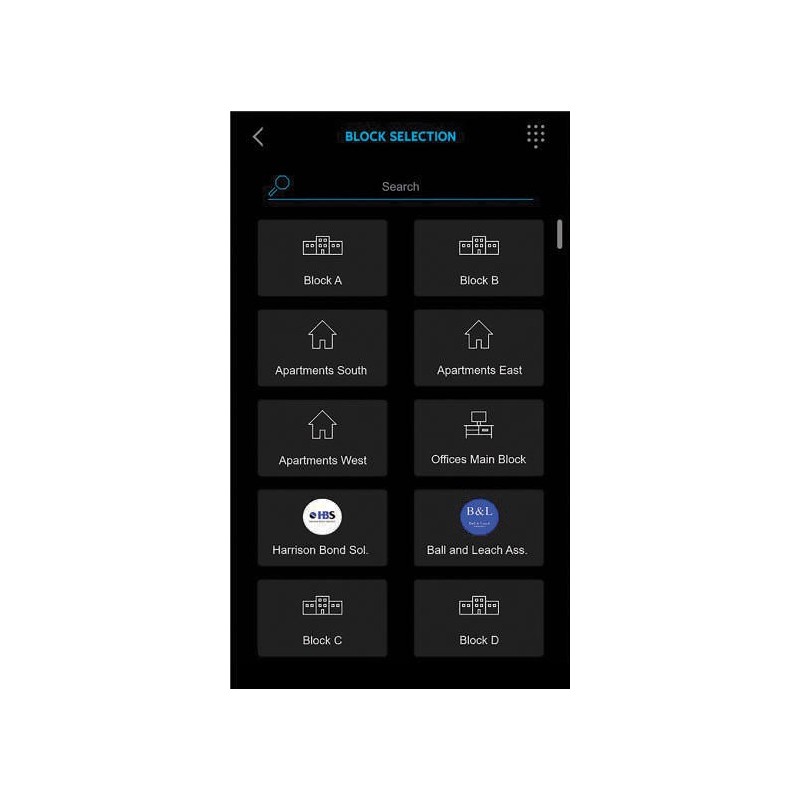

- Scrolling by Name, Virtual Buttons, Blocks Mode and Call with Code.

Technical specifications
| Shipping Index | 1 |
|---|---|
| Audio or Video | Video |
| Fitting | Surface |
| Product Type | Intercom |
| Access Control Feature | Bluetooth Reader |
| Connection Type | Wired (POE) |
Manuals & downloads
CAME BPT XVP Brouchure
