Surface-mounted gate locks for timber gates

Need a lock for a timber gate without cutting a pocket into it? A surface-mounted lock sits on the gate face, although its fixings may still need drilled holes through the gate. Choose whether you want to open it by key or mechanical code, then measure the sound fixing area, gate thickness and gap to the post. For a composite gate, tell us about its construction so we can help check the fixing method.

Browse keyed bolts, code-operated latches and quick-exit options below. The range also includes keeps, plates, an extension kit and spare keys, so choose the complete lock or the matching part you need.

Filter products

Product Type

There are 14 products.
Showing 1-12 of 14 item(s)

Which surface-mounted lock suits your gate?

Choose a wooden-gate lock by how it works
What you wantStart withHow it works
Lock the gate with a key from both sidesGatemaster GLB locking boltTurn the key to move the bolt into its keep. Measure the gate thickness and bolt reach for the version you choose.
Open by code without wiringGatemaster SLDS SuperlatchA mechanical keypad opens an auto-latching gate. If the gate is thicker than the standard fixing allows, there is a separately listed extension kit.
Leave without entering a key or codeSurface-fixed quick-exit lockEnter a mechanical code on the outside and use the push pad on the inside. Choose the left- or right-handed version for your gate; see the quick-exit range for other outside-entry choices.

What should I measure on a wooden gate?

Measure the gate thickness where the lock will sit, the clear face available for its fixings, and the gap to the post when the gate is closed. Look at the gate's swing and where the bolt or latch will meet the keep. The fittings should go into a sound part of the gate, not just thin decorative cladding.

For the GLB, Gatemaster specifies 53 mm bolt movement and offers versions with 24 mm or 60 mm cylinder projection. Choose the projection to suit your gate thickness and fixing arrangement. Send us a photograph and measurements if you want help matching a lock and keep.

Do you need a single- or double-sided keypad?

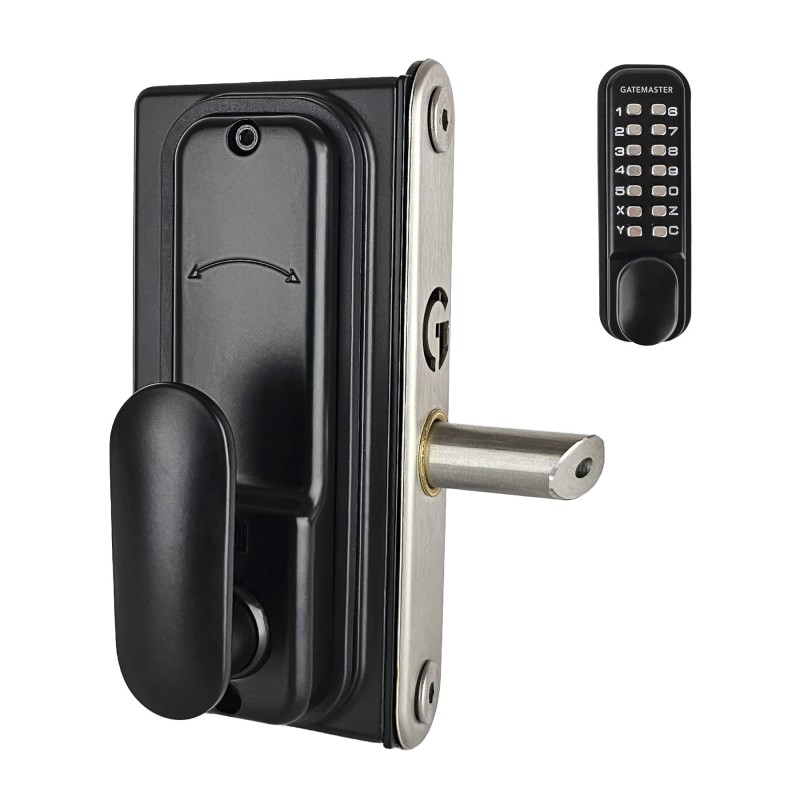

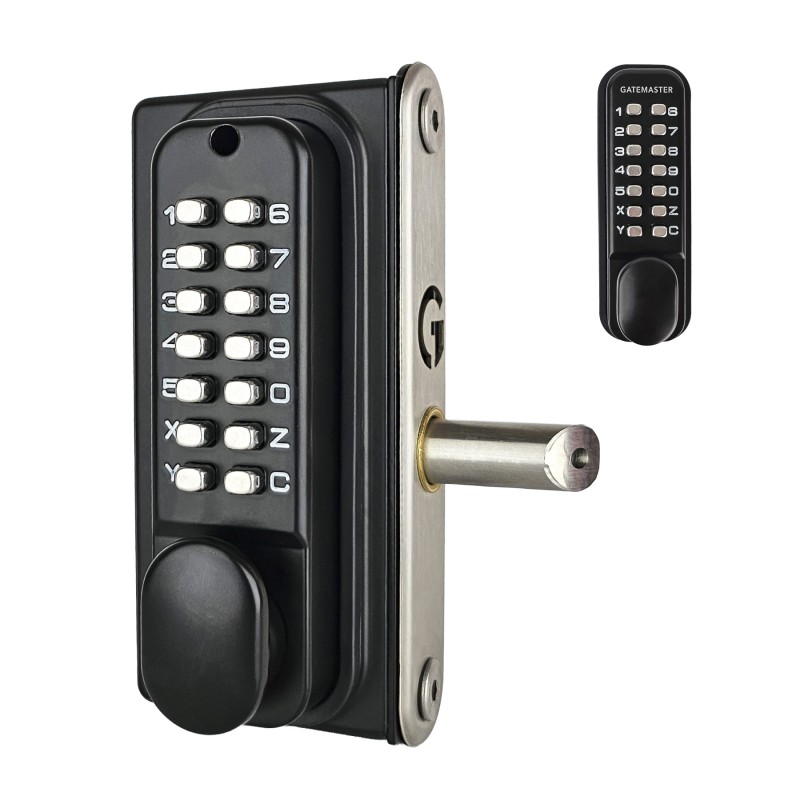

Decide how people should open the gate from each side. The current range includes double-sided BDGW and single-sided BDGSW listings, as well as the SLDS latch. For a new lock, tell us whether you want a code, key or free inside operation; we can help narrow down the right model and handed version.

Is this a complete lock or a matching part?

Keeps, lockplates, spare keys and the SLDS extension kit appear beside complete locks in this range. If you already have a lock and only need a part, send us its full reference and a photograph of the fitted lock and receiving post. We can help identify the matching part without replacing a sound lock.

Would another fitting suit better?

If the lock bolts through a metal gate frame, browse bolt-on gate locks. If the lock body needs to sit inside a prepared pocket, see mortice locks. For the full key, code and electric choice, start with our gate-lock guide.
