BPT LHS to XTS White 7 Inch Video Intercom Kits 1 to 4 buttons LHX7W

Reference LHX7W1

Quick Overview

A secure video intercom kit with 1-4 call buttons, WiFi-enabled 7” monitor, and wide-angle camera for modern, remote-access control.

Regular price: £1,316.40
Reduced price: £987.30 Save 25%
Tax included
Reduced price: £987.30
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Call Buttons
Reduced price: £987.30
Tax included

Share on

Product Description

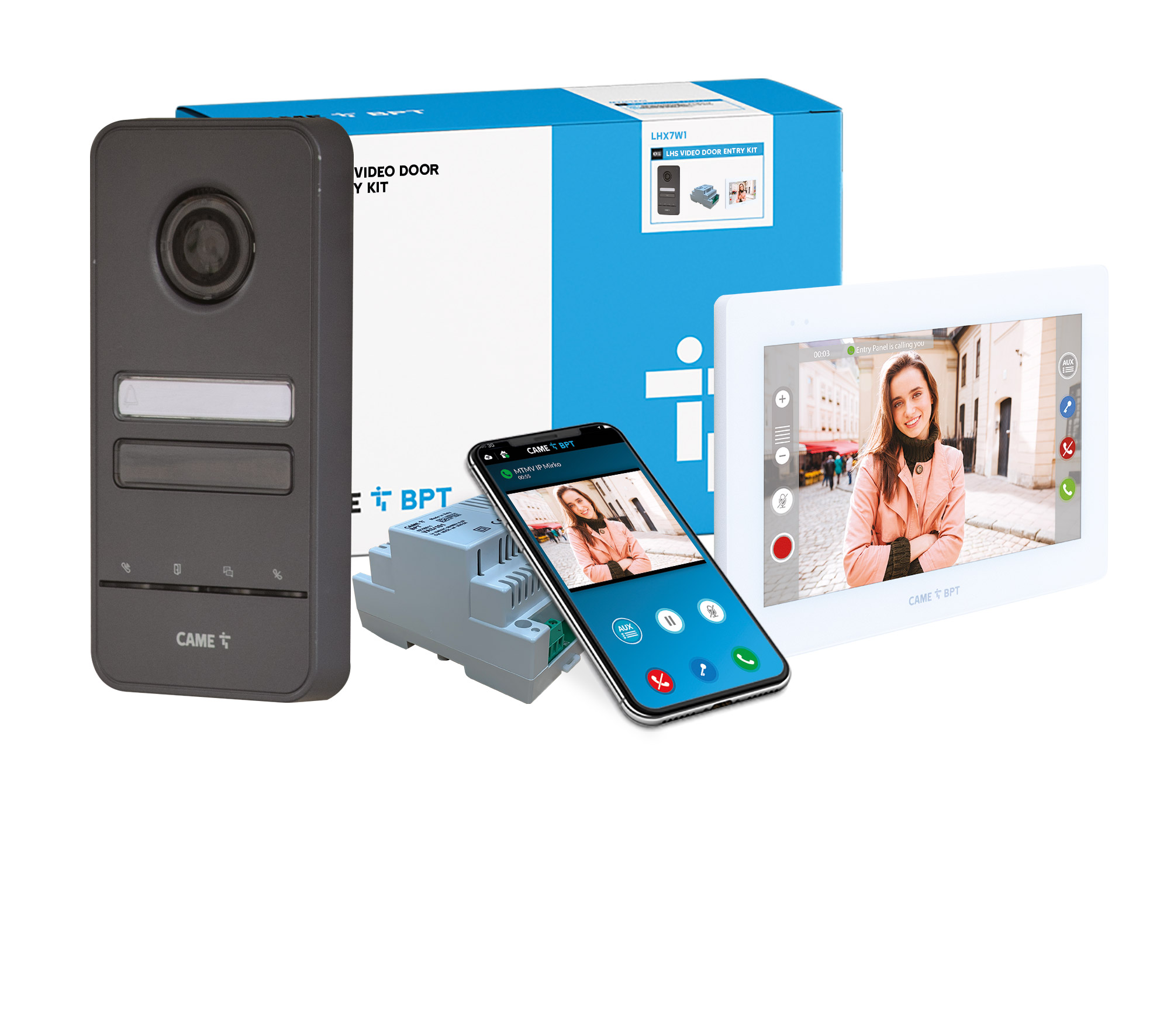

LHS Video Intercom Kit with 1-4 Buttons and XTS 7 Hands-Free Video Monitor LHX7W1 to LHX7W4

The LHS Video Intercom Kit with the XTS 7 Hands-Free Video Monitor is a sophisticated and reliable entry system designed for residential and small apartment blocks. Configurable with 1 to 4 call buttons, it offers advanced video communication, seamless WiFi integration, and modern design.

Key Features:

1. LHS Video Entry Panel

  • Configurable Call Buttons:
    Available with 1 to 4 call buttons, making it ideal for single homes or small multi-unit properties.
  • Wide-Angle Camera:
    Provides a 98° viewing angle with clear visuals, enhancing security and visitor identification.
  • Vandal-Resistant Construction:
    Built with a die-cast Zamak body, rated IK09 for impact resistance and IP54 for weatherproofing.
  • Compact and Flexible Mounting:
    Options for surface mounting (64mm profile) or flush mounting (13mm profile) with optional rain covers or back boxes.
  • LED Indicators:
    Discreet LED lights provide clear system status updates for visitors and residents.

2. XTS 7 Hands-Free Video Monitor

A state-of-the-art video monitor with a sleek, full-touch 7” display.

  • 7” TFT Touchscreen Display:
    Features Optical Bonding anti-glare technology, ensuring excellent readability in all lighting conditions.
  • WiFi Connectivity for Remote Access:
    Allows video calls and remote control via a dedicated app, compatible with up to 4 mobile devices.
  • Customizable User Interface:
    Adjust display brightness, ringtone types, volumes, and background themes for a personalized experience.
  • Advanced Video Features:
    Includes a video answering service, storing up to 100 video/audio messages (10 seconds each) and live video feeds from connected IP cameras.
  • Intercom and Call Management:
    Enables intercom calls between monitors or to smartphones, with options for contact and favorite lists.
  • Additional Functionality:
    Features a “panic” button for emergency alerts, automatic door-opening schedules, and auxiliary controls for external systems.

System Specifications

  • Cable Distance: Supports up to 100 meters with stable audio-video performance using the X1 system.
  • Operating Temperature: Functions reliably between 0°C and +40°C.
  • Power Supply: Operates via 14-18V DC, with low standby consumption.
  • Dimensions:
    • LHS Panel: 205mm x 97mm x 64mm (surface mount)
    • XTS 7 Monitor: 185mm x 129mm x 24mm

Why Choose This Kit?

  1. Modern Video Communication: Combines wide-angle video capture and a sleek 7” monitor for secure, high-quality interaction.
  2. Remote Access: WiFi-enabled app support allows you to manage calls and monitor the system from anywhere.
  3. Durable Design: Built to withstand vandalism and harsh weather conditions with IK09 and IP54 ratings.
  4. Flexible Configurations: Scalable to 1-4 call buttons, making it perfect for single homes or small apartment blocks.

Specifications at a Glance

  • Video System: X1 compatibility
  • Protection Ratings: IK09 (impact resistance), IP54 (weatherproof)
  • Mounting Options: Surface or flush mounting
  • Display: 7” full-touch TFT screen with H.264 video codec
  • Viewing Angle: 98°

This intercom kit is ideal for properties seeking a durable, stylish, and technologically advanced video entry system.

Product Details

Reference LHX7W1 Category All Intercom Kits Brand BPT
BPT

Product Specifics

Shipping Index 2
Wired or wireless Wired
Audio or Video Video
Fitting Surface
Product Type Intercom
Warranty 3
Connection Type Wired (Bus Connection)
Features Receive Video Calls on Mobile
