BFT ELI 250 N KIT

ELI 250 N KIT
  • Swing Gate Kit
  • Twin gate kit
  • 230v Semi-intensive
  • 3500mm or 300kg Max each leaf
  • Underground Motor
  • 120 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 28 seconds 90 Degrees
Quantity
Choose Options



Security policy



Delivery & Return policy



Warranty

Average votes for this product
5.0 / 5
Average : 5.0 / 5
Based on 2 customer reviews.

BFT ELI 250 N KIT

Complete kit for a pair of residential or multi-residence swing gates up to a maximum of 3.5m in width or 300kg in weight each leaf.

Ultimate Choice in Aesthetical Appearance

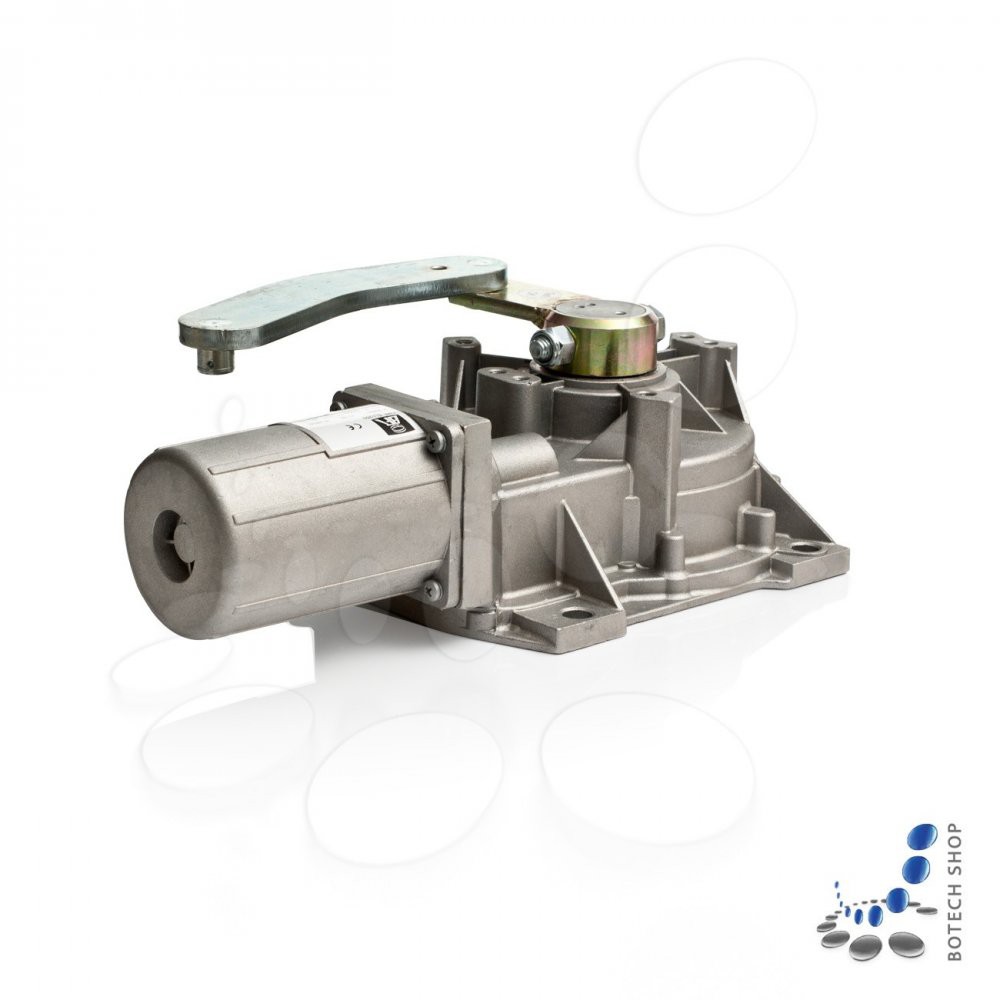

This underground equipment is specifically designed so that the motor is concealed in a load bearing foundation box beneath the pivot point of your hinged swing gates. Giving you the very best in aesthetics while further reducing hazards by removing more trapping points above ground level.

Manual Release from outside

Manual release from outside the property in the event of a power failure or fault. Particularly useful when the gate is the only means of access to the property.

Integrated Open & Close Limits

This equipment features adjustable open and close limits. This allows you to set the gates limits of travel without the need for a physical stop in the ground. This feature has some limitiations and may not function correctly on wider gates. For gates where each leaf is over 2.5m we reccomend a physical stop in the open and close positions.

LCD Display

Control Panel with LCD display for simplified programming.

This product has been replaced by BFT ELI AC A40 KIT

Click here to view product
What comes in the box
QuantityItem
2BFT ELI 250 N 230v Motor's

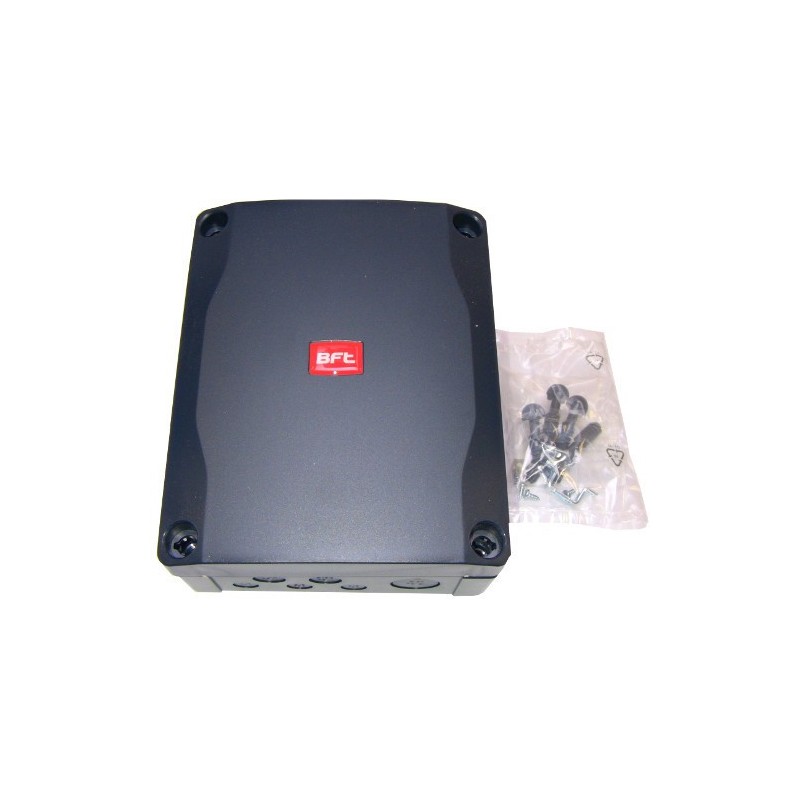

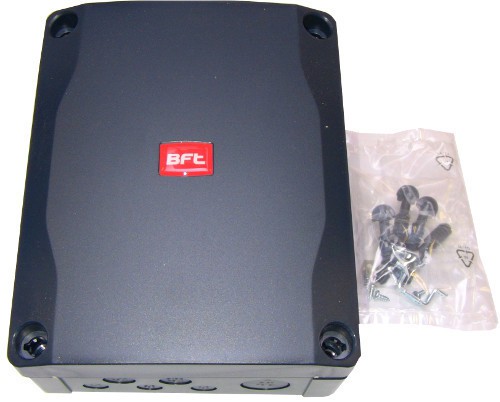

1BFT RIGEL 6 Control Panel

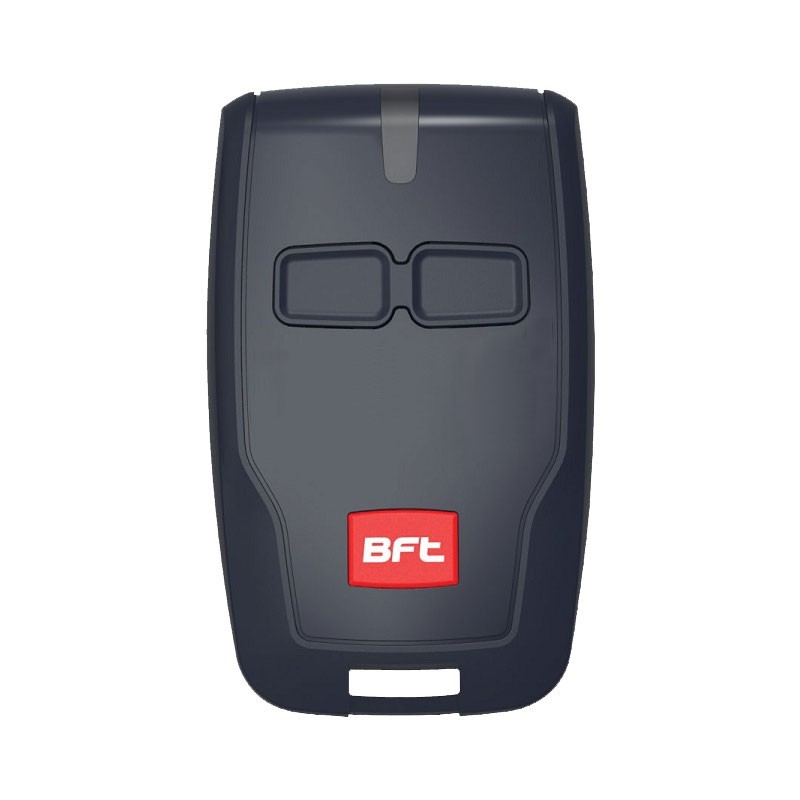

2BFT Mitto RB 2 Button Transmitter's

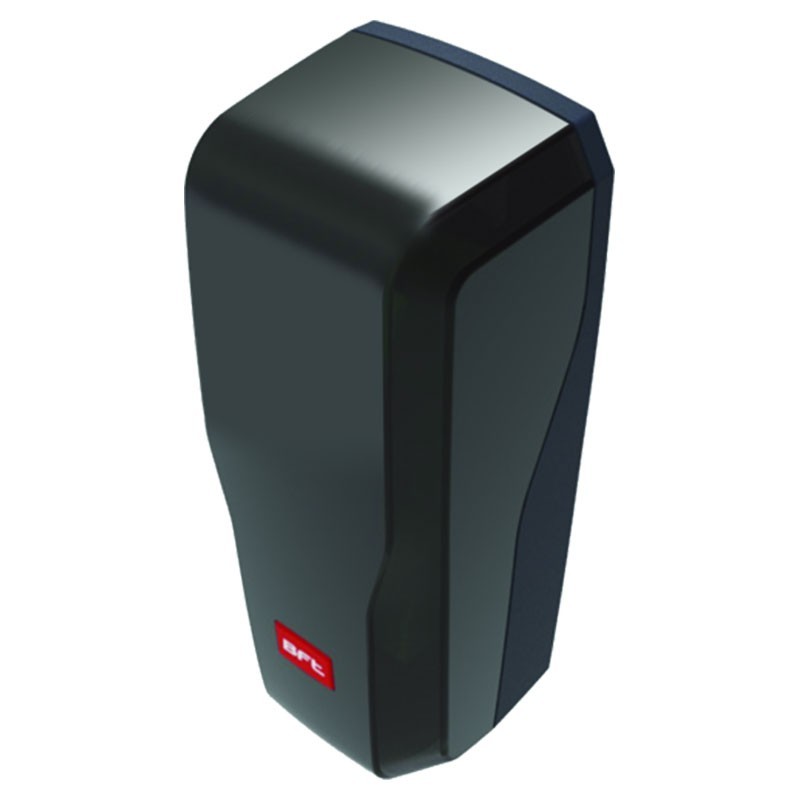

1BFT Compacta Pair of safety photocells

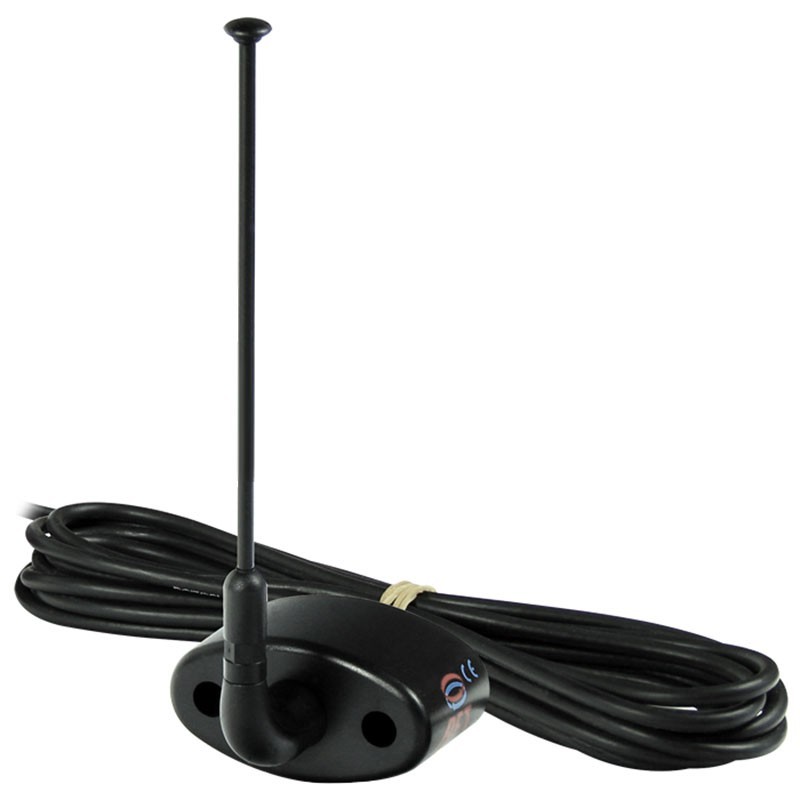

1BFT Antenna
2BFT ZZELI25 Internal Stop Pack's

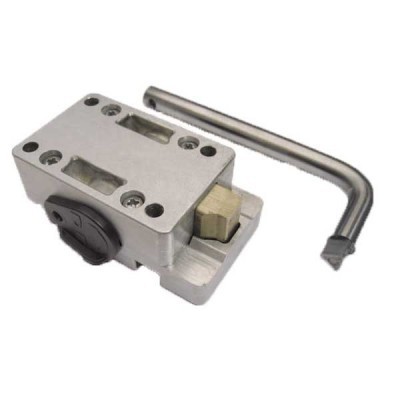

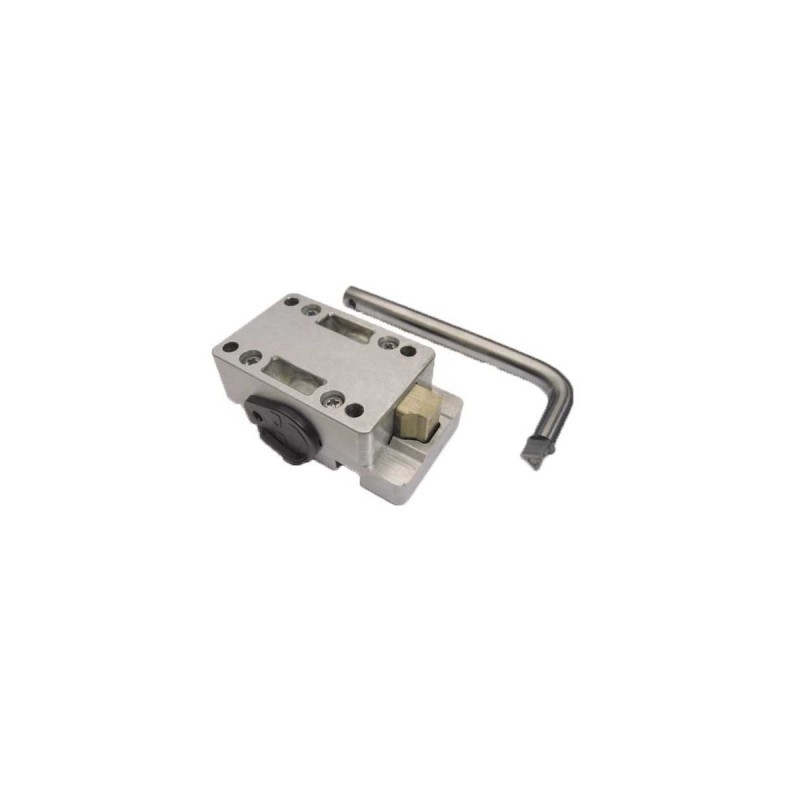

2BFT ZZELI28 SCC Release Mechanism's

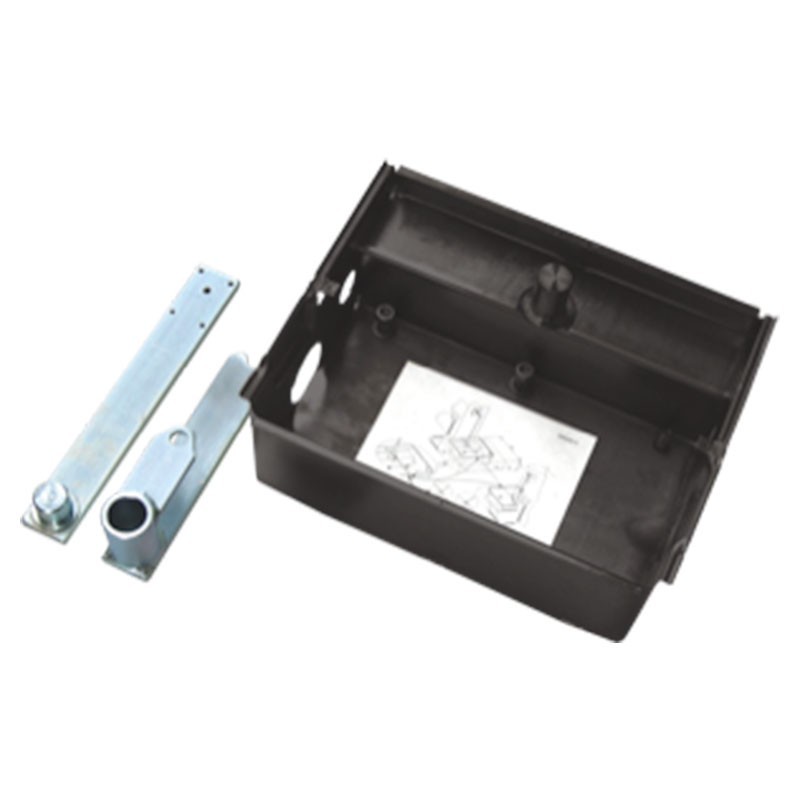

2BFT BTCF Foundation Box's
Motor ModelMains Power SupplyMotor VoltageMax Weight per GateMax Length per GateLocking MethodGate SpeedMax Opening AngleNotesKITSINGLE KIT
BFT ELI 250 N230v230v300kg3500mmMechanically locking motor28 seconds 90 Degrees120 DegreesBFT ELI 250 N KITBFT ELI 250 N KIT S
BFT ELI 250 N V230v230v150kg2000mmMechanically locking motor15 seconds 90 Degrees120 DegreesFast motorBFT ELI 250 N V KITBFT ELI 250 N V KIT S
BFT ELI 250 N BT230v24v400kg3500mmMechanically locking motor14 seconds 90 Degrees120 DegreesBFT ELI 250 N BT KITBFT ELI 250 N BT KIT S
BFT ELI AC A40 MOTOR230v230v500kg4000mmMechanically locking motor13 seconds120 DegreesBFT ELI AC A40 KITBFT ELI AC A40 KIT S
BFT ELI BT A40 MOTOR230v24v500kg4000mmMechanically locking motor14 seconds (with slowdown)120 DegreesBFT ELI BT A40 KITBFT ELI BT A40 KIT S
BFT ELI BT A35 V FAST MOTOR230v24v200kg3500mmMechanically locking motor10 seconds (with slowdown)120 DegreesFast motorBFT ELI BT A35 V FAST KITBFT ELI BT A35 V FAST KIT S
BFT ELI AC A35 V FAST MOTOR230v230v200kg3500mmMechanically locking motor10 seconds120 DegreesFast motorBFT ELI AC A35 V FAST KITBFT ELI AC A35 V FAST KIT S
ELI 250 N KIT

Data sheet

Power Input
300w
Discontinued
Discontinued
Gate type
Swing gate
Single or twin kit
Twin gate kit
Gate Style
Barred|Boarded
Max weight per gate
300kg
Max length per gate
3500mm
Post Configuration
back hung|side hung|front hung|corner hung
Above or underground
Underground
Max opening angle
120 Degrees
Motor
Electromechanical
Locking method
Mechanically locking motor
Power Supply Voltage
230v
Motor voltage
230v
Gate Speed
28 seconds 90 Degrees
Duty Cycle
Semi-intensive
Stops Required
neither|open|closed
Protection Rating
IP 67
Motor Range
ELI
Category
Swing Gate Kit

Download

bft btcf manual

Download (1.06M)

bft eli 250 product sheet

Download (4.85M)

bft eli example

Download (1.78M)
