Gatemaster Superlatch Digital Combination Gate Latch with RapidReset (SLDSRR)
Buy now pay later
Quick Overview
Marine grade keypad with RapidReset Stainless steel latch and shroud Simple to install, drill only three holes Perfect for metal, timber, composite and vinyl Please note – for anything over 75mm (3") thickness you will need to order the extension kit, product code SLDSE140. Please contact us sales@metalines.com
Reduced price:
£186.14
Save 8.13%
Tax included
Reduced price:
£186.14
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Volume discounts
| Quantity | Unit price | You Save |
|---|---|---|
| 2 | £172.22 | £60.78 |
Reduced price:
£186.14
Tax included
Share on
Product Description

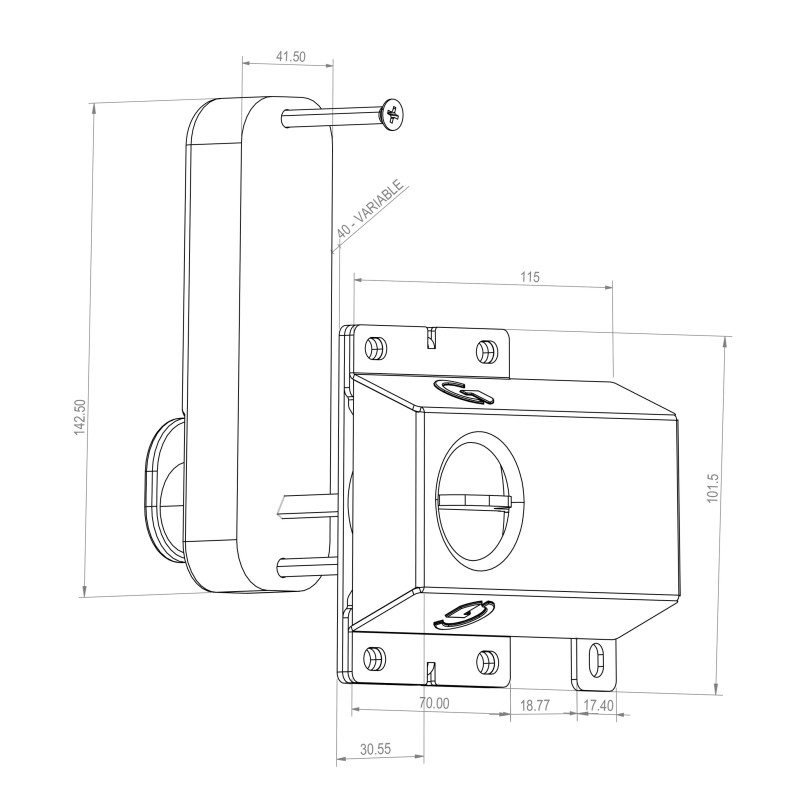

GATEMASTER SUPERLATCH DIGITAL SLDS
A brand new innovative design from GATEMASTER UK allows this lock to be very easily installed on any gate without the need for any special tooling. All you need is to drill three holes and bolt the lock on. Check out the manual for fitting instructions.
Why Choose RapidReset?
Traditional keypad gate locks require the lock to be removed from the gate to change the code. With RapidReset, you can:
Change the code in seconds using the built-in keypad without removing the lock.
Adapt quickly to changing security needs.
Maintain convenience and security without tools or disassembly.

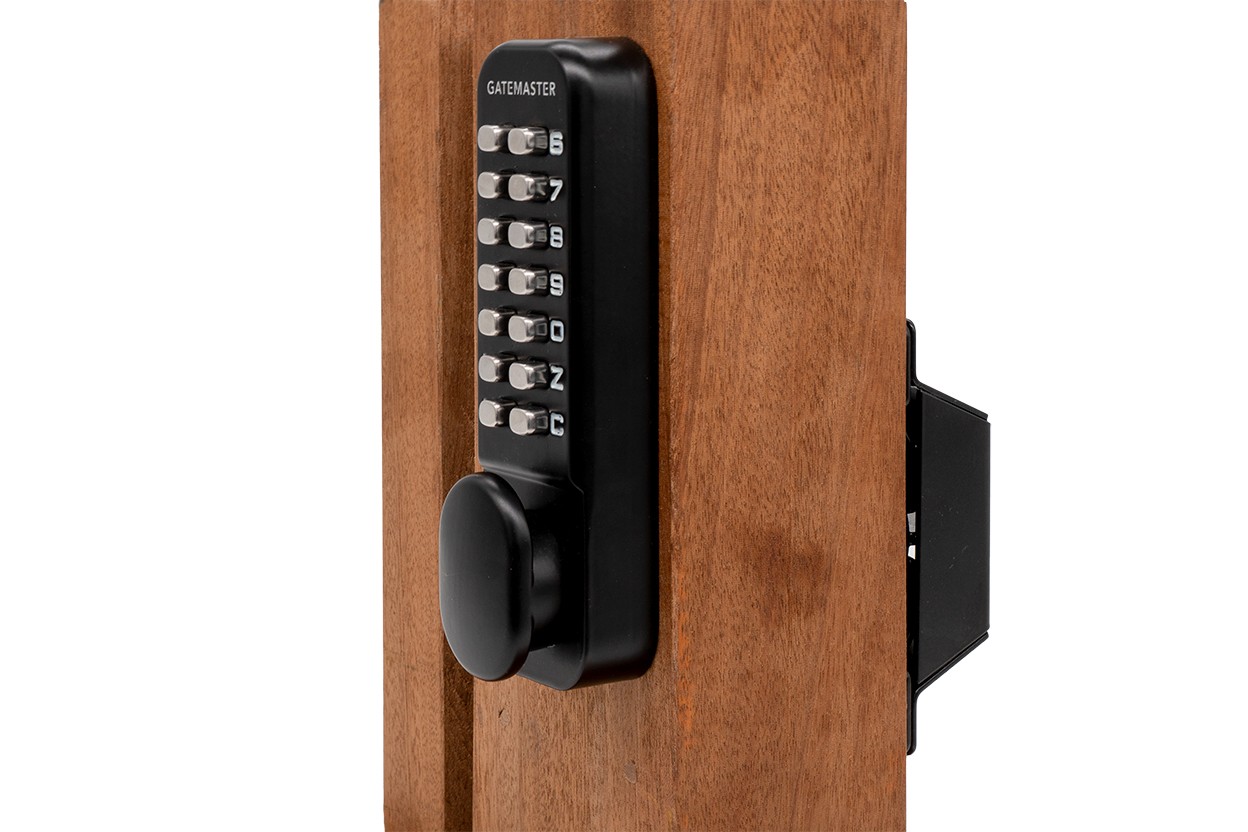

- A marine grade digital keypad with simple and reliable stainless steel mechanism from inside the gate.

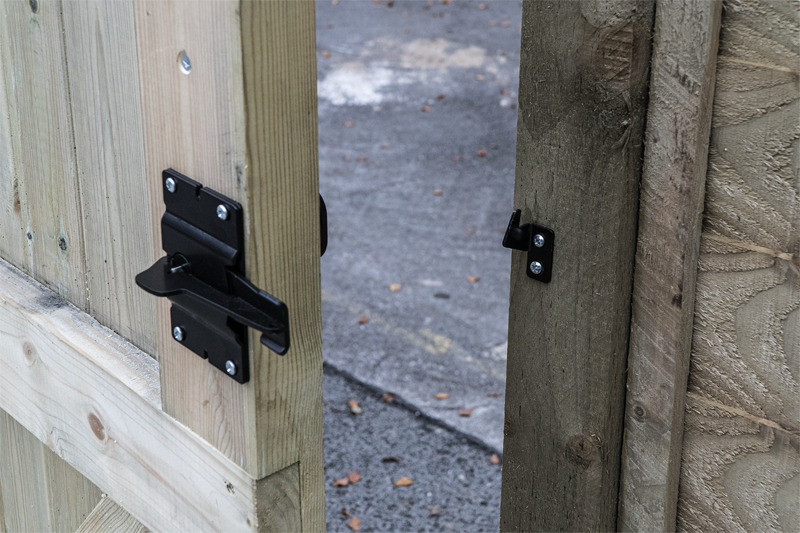

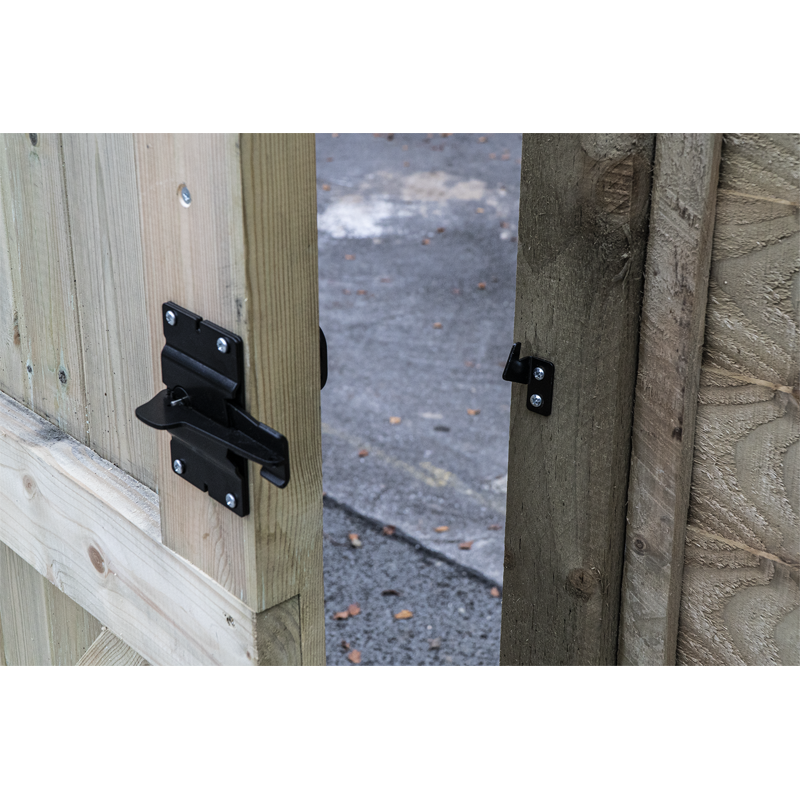

- Auto-latching – close the gate and the latch catches onto the strike plate.

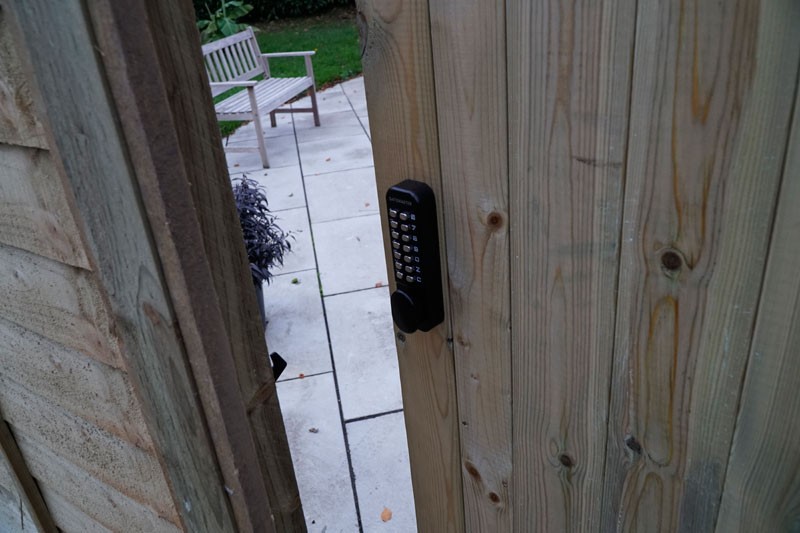

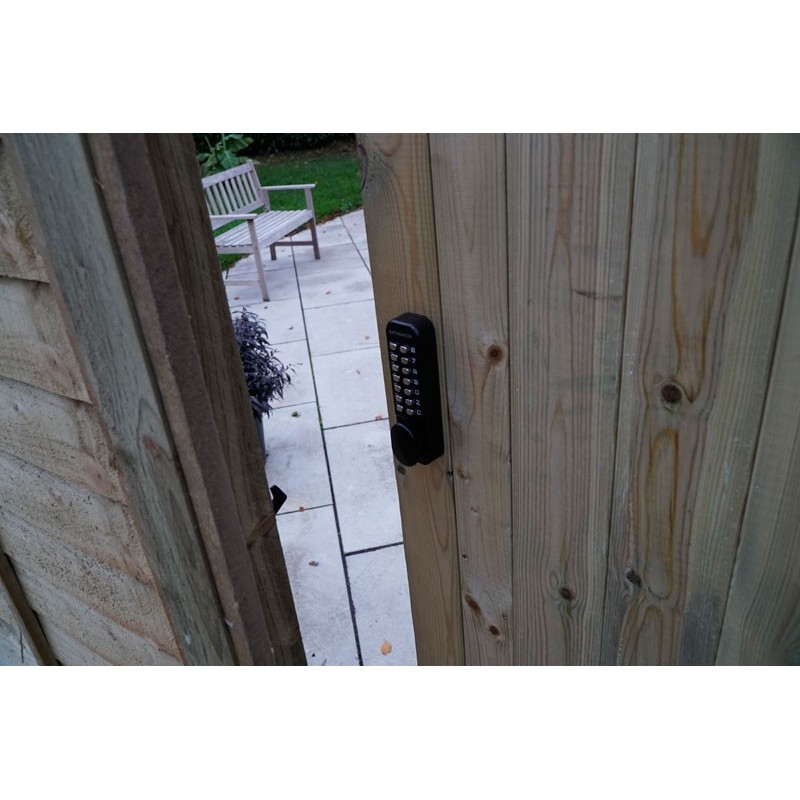

- To open the gate - from outside enter the code and turn the handle, from inside simply twist the latch.
- No power needed – High quality digital keypad ensure long lasting durability.
- Internal mechanism is easily reversible for left and right hand gates.
| What comes in the box | |
|---|---|
| Quantity | Item |
| 1 | SLDS GATE LOCK |
| 1 | Strike Plate |
| 1 | Instructions |
INSTALLATION

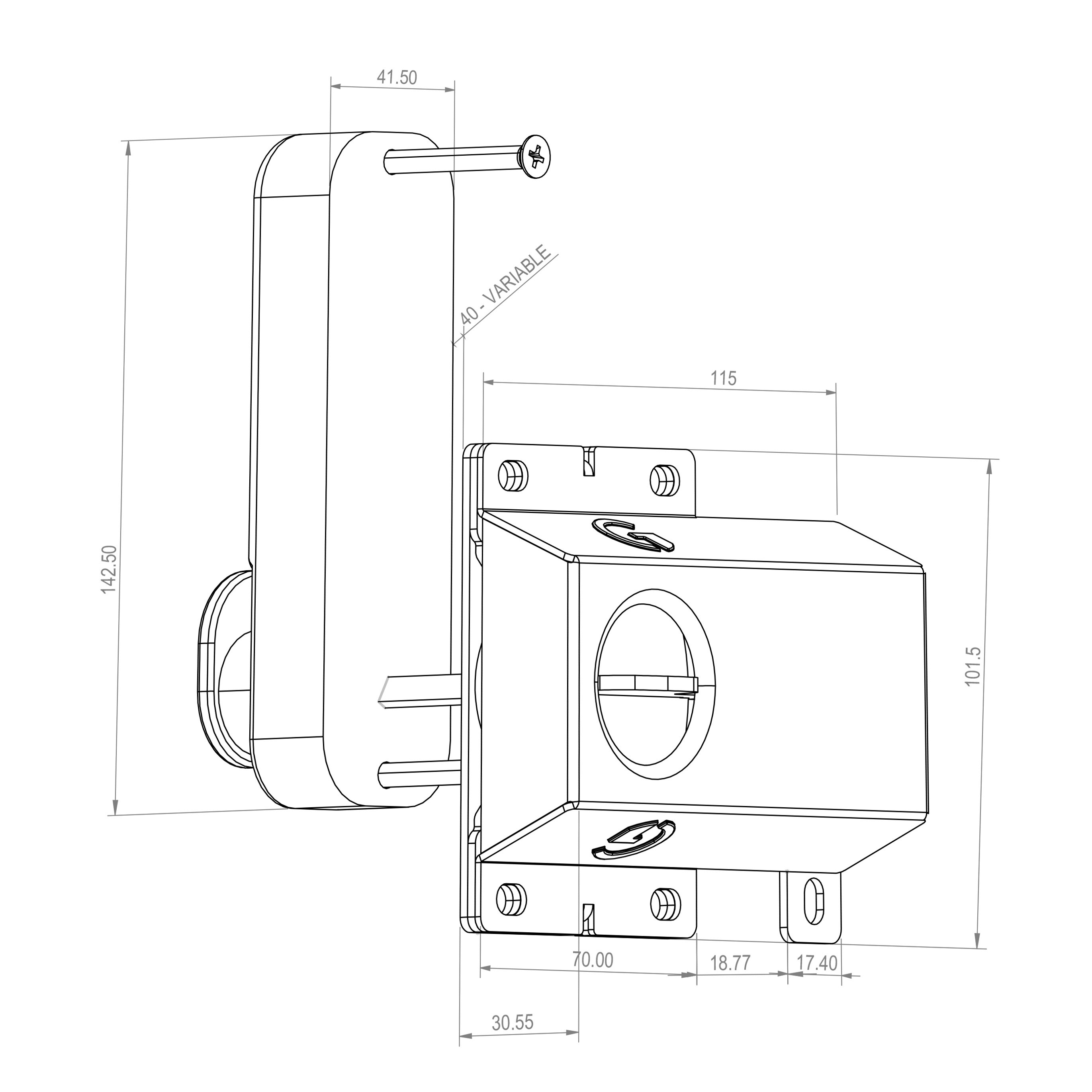

1. Drill 2 x 5mm diameter holes at 130mm centres in a vertical line 50mm from the edge of the gate.
2. Drill a 3rd hole 12mm diameter, 18mm up from the bottom hole.
3. Fix the outside keypad using 2 x M5 countersunk screws.

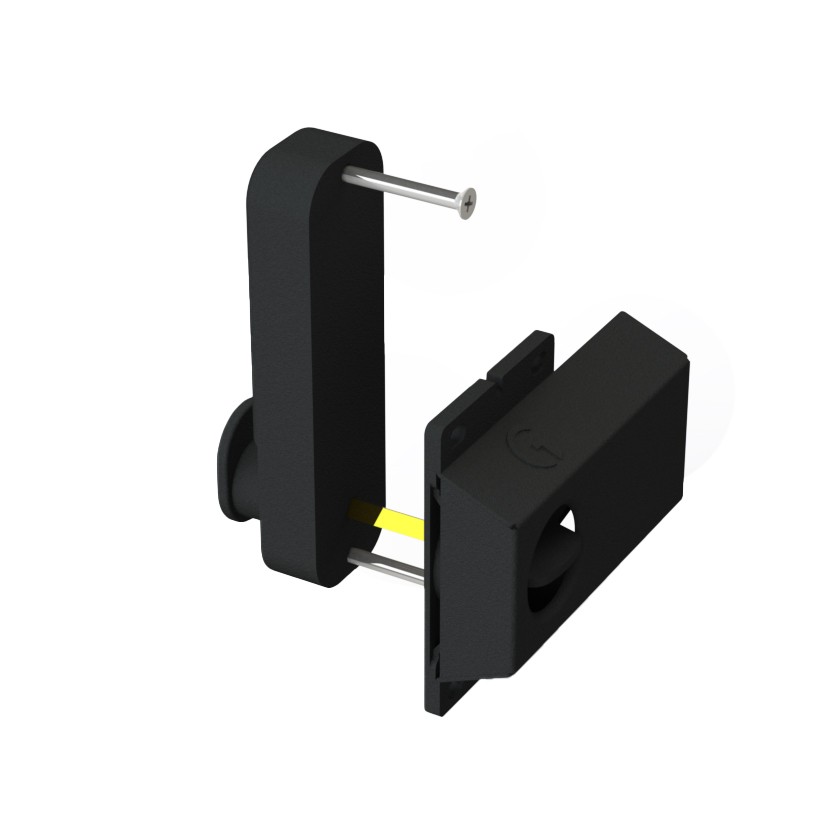

4. Insert the rectangular spindle though the gate and fully into the keypad. Cut the spindle so it projects 13mm from the inside face of the gate.

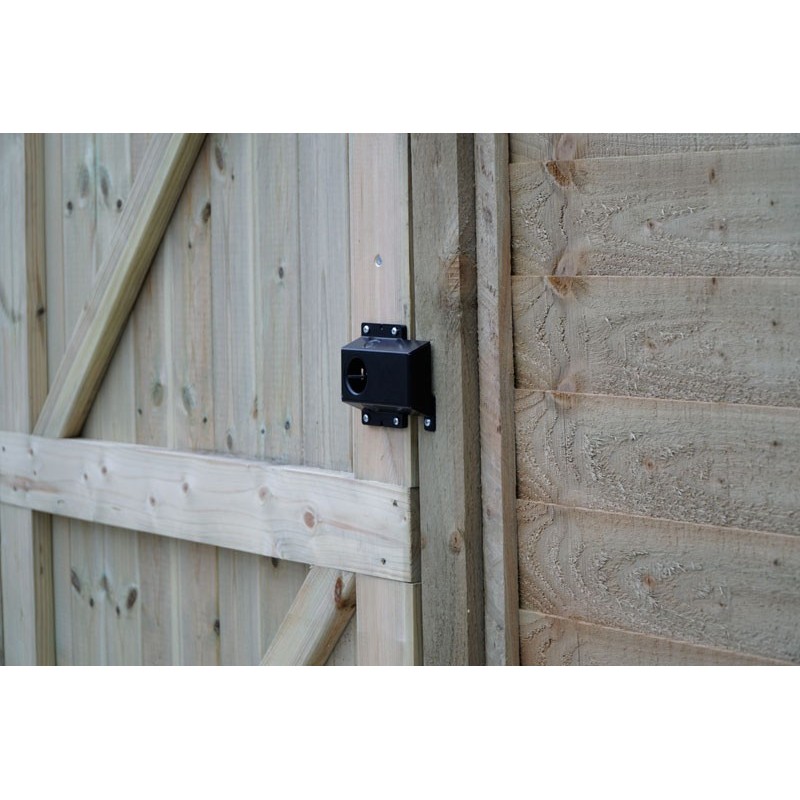

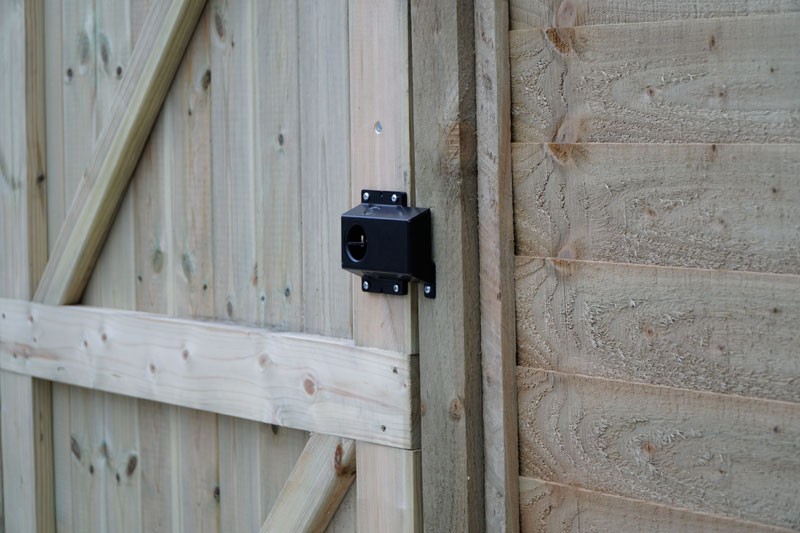

5. Locate the Superlatch backing plate, latch plate and shroud over the spindle and fix with 4 screws.
6. Fix the keep plate to the gate post so it engages with the latch.
7. MAINTENANCE Lubricate with light oil periodically.
