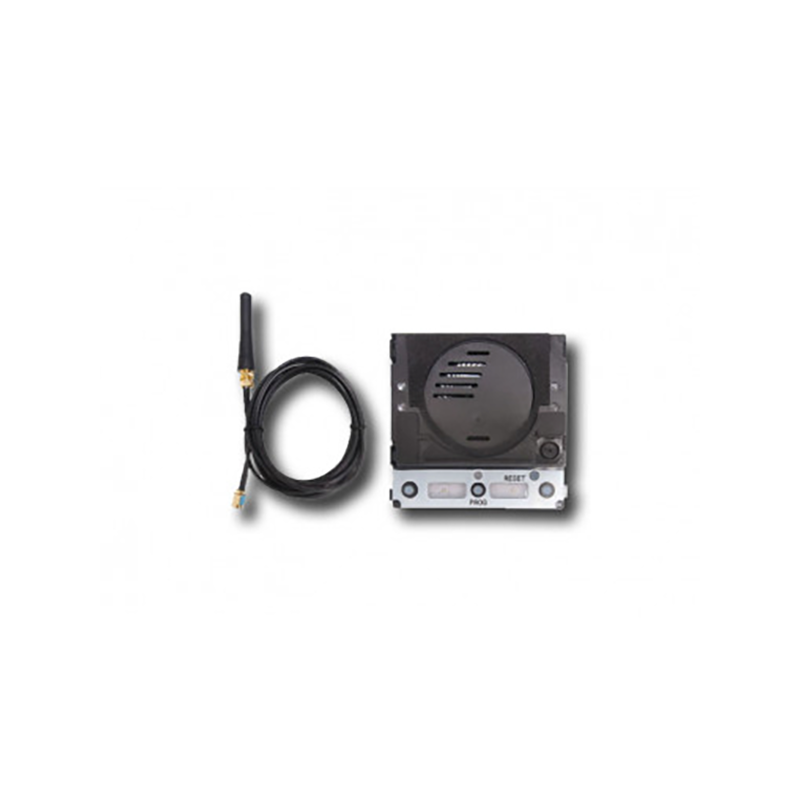

CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems

Reference MTMA/CONNECT
Rating:
(0)
CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems
CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems
CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems
CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems

Quick Overview

Intercom module for 4G LTE systems that can place audio calls to fixed and mobile numbers via call buttons or MTMKB keypad codes. Allows door/AUX activation from the phone, supports CONNECT SetUp app, CAME Key, and can connect & control up to 2 CAME operators (gateway function).

Regular price: £570.00
Reduced price: £456.00 Save 20%
Tax included
Reduced price: £456.00
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £456.00
Tax included
Add to basket
Buy Now
1-2 Business Days *Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Product Description

CAME BPT MTMA/CONNECT Intercom Module — 4G LTE systems

  • Makes audio calls in loudspeaker mode to telephone numbers (fixed/mobile) by pressing the module’s call buttons or entering codes on MTMKB keypads.

  • From the phone you can open the door or activate the AUX relay (DTMF during the call or dial-to-open).

  • Configuration/management via the CONNECT SetUp app; compatible with CAME Key.

  • Can connect and control up to 2 CAME operators and act as a gateway; supports sending commands to entry panels/operators via the Automation app.

  • 2 call buttons, LED pictograms (door opening, active communication, call in progress, system busy), adjustable speaker/microphone/electric lock, and dual blue/white backlit name tags with brightness setting.

⚙ Technical Data

  • Phonebook capacity: up to 3000 numbers

  • On-board controls: electric lock + auxiliary (1 A, 30 V max)

  • Ingress protection: IP54 (water/dust)

  • Power supply: 14–24 V AC/DC

  • Current draw: 180 mA (active), 65 mA (standby)

  • Operating temp: −25 °C to +55 °C; Storage: −25 °C to +70 °C

  • Radio: GSM 900 MHz 33 dBm, DCS 1800 MHz 30 dBm; LTE 23 dBm, bands B1/B3/B7/B8/B20

  • Interface: MiniUSB on front panel for firmware update/programming

  • Dimensions: 86.5 × 36.9 × 86.5 mm (as shown)

Product Details

Reference MTMA/CONNECT Category BPT Parts Brand CAME
CAME

Product Specifics

Shipping Index 1
Wired or wireless Wired
Fitting Surface
Product Type Tag Reader
