BPT MTM8C 8-Call Module — Backlit Call Buttons (Blue/White)

Reference MTM8C
Rating:
(0)
BPT MTM8C 8-Call Module — Backlit Call Buttons (Blue/White)
BPT MTM8C 8-Call Module — Backlit Call Buttons (Blue/White)

Quick Overview

An 8-call module with blue or white backlighting for name tags, compatible with various front panels. Adjustable for different numbers of calls (8, 4, 3, or 2) and offers IP54 protection.

Regular price: £54.84
Reduced price: £46.61 Save 15%
Tax included
Reduced price: £46.61
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £46.61
Tax included
Add to basket
Buy Now
*Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Product Description

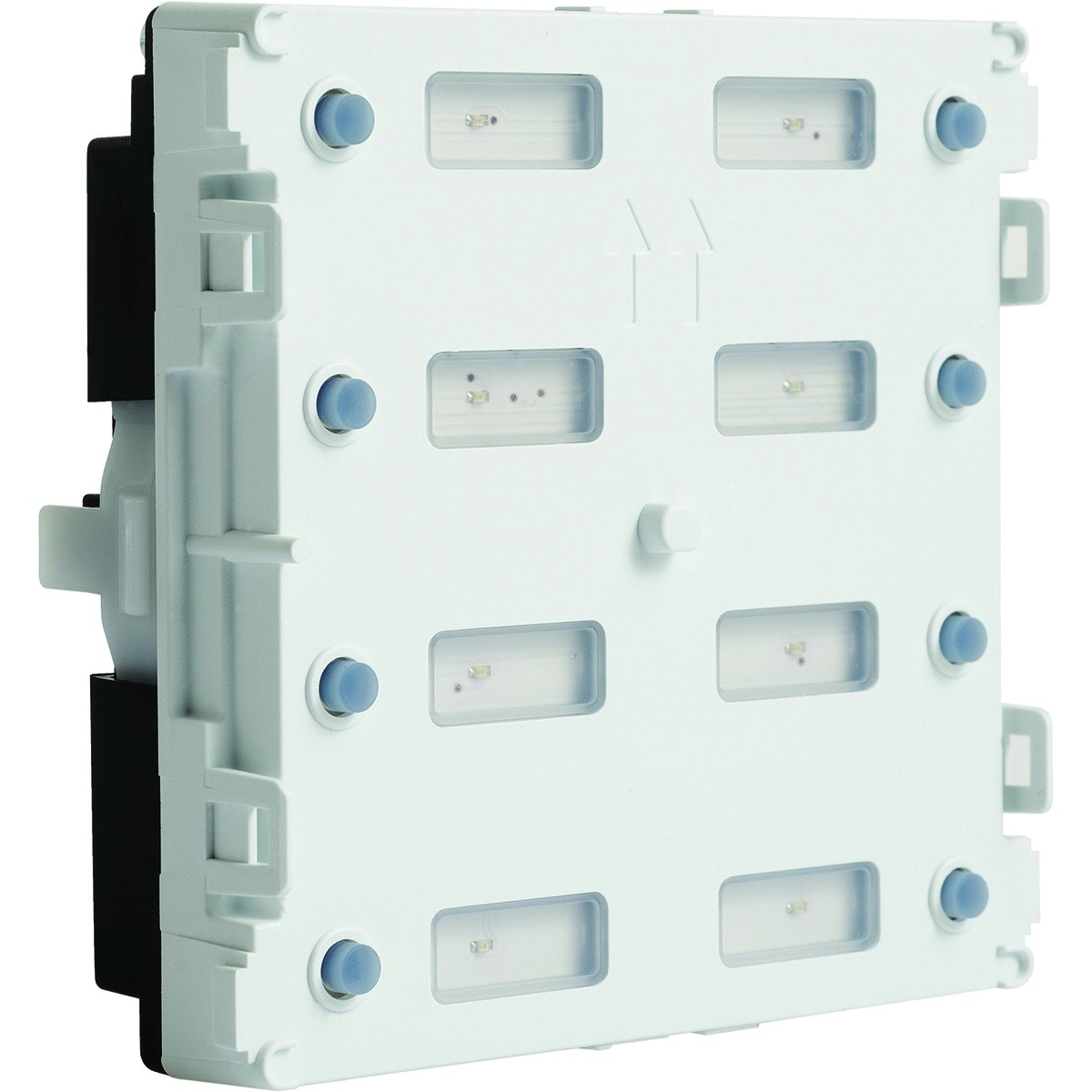

The MTM8C is an electronic module equipped with 8 call buttons and 16 LEDs which provide dual blue or white backlight to backlit name-tags. The module has adjustable LED colour and brightness, using settings on the main module.

It is supplied with a techno-polymer body, and, when fitted behind the appropriate front-plate, guarantees IP54 protection against dust and water. The MTM8C can also be manually programmed to work with fewer calls (8, 4, 3 or 2) if required.

⚙ Technical Data

Specification Detail
Number of calls Up to 8 calls per module; can be reduced to 4, 3 or 2 manually
LEDs / backlight 16 LEDs; dual blue or white backlight; brightness adjustable
Power supply 10.7-18 V DC
Current draw (max) 25 mA
Dimensions (module) 85 × 85 × 35 mm
Operating temperature −25 °C to +55 °C
Protection rating IP54 (when properly mounted with front-plate)

✅ Features

  • 8 call buttons + 16 LEDs for dual colour backlit name tags

  • Backlight colour selectable: blue or white

  • Brightness adjustable via main module settings

  • Can be manually reprogrammed to 8, 4, 3 or 2 calls

  • Compact dimensions; weather and dust protected (IP54) with front plate

Product Details

Reference MTM8C Category BPT Parts Brand BPT
BPT

Product Specifics

Shipping Index 1
Product Type Call Button Module
Bpt MTM8C
