CAME BPT MTMA/IP Audio Module — IP360 Entrance System, 2-Call, SIP & PoE

Reference MTMA/IP

Quick Overview

A 2-call audio module for the IP360 intercom system. Offers SIP protocol support, PoE or DC power, web configuration, and expansion to many more calls. Built-in electric lock control, auxiliary output, status LEDs, and backlit name tags.

Regular price: £360.00
Reduced price: £288.00 Save 20%
Tax included
Reduced price: £288.00
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £288.00
Tax included

Share on

Product Description

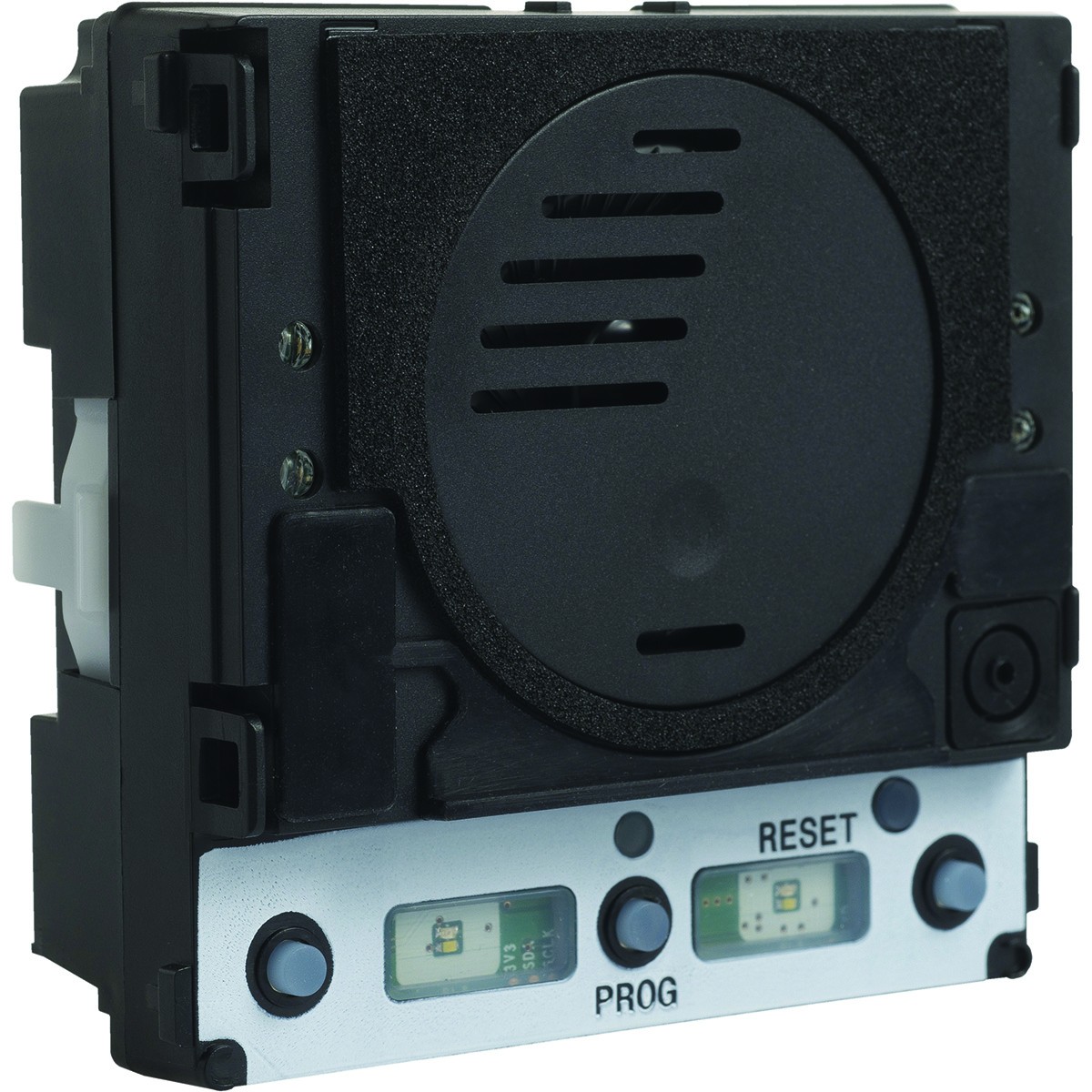

CAME BPT MTMA/IP Audio Module — IP360 Entrance System, 2-Call, SIP & PoE

The MTMA/IP is an audio module designed for the IP360 system. It comes with 2 call buttons, each with dual blue or white backlighting for namecard illumination. The module includes local controls for electric lock operation and an auxiliary contact (1A, 30V). It also features inputs for a door-lock release button and door‐status indication, plus an output for activating outdoor cameras (all programmable I/O).

It connects via RJ45 for network use and supports Power over Ethernet (PoE) or local 16-18 V DC supply. It includes an onboard web server for configuration, firmware updates, and adjustment of speaker, microphone, and electric lock parameters from a PC. The module supports the SIP protocol, H.264 video codec, and G.711 audio codec.

When combined with a compatible front panel, the MTMA/IP attains IP54 for water and dust protection.


⚙ Technical Data

Specification Detail
Number of call buttons 2
Name-tag backlight Dual blue or white, adjustable brightness
Electric lock control Yes, local control
Auxiliary contact/output 1A, 30V max
I/O Inputs Door lock release; door status indication; programmable I/O
Camera activation output Programmable I/O
Network / Protocols RJ45 connection; supports SIP; H.264 video; G.711 audio
Configuration Onboard web server; firmware updates; PC-configurable speaker/mic/lock
Power supply 16-18 V DC or PoE
Standby current 70 mA
Maximum current draw 220 mA
Protection rating IP54 (when used with matching front panel)
Operating temperature −25 °C to +55 °C
Dimensions 85 × 85 × 35 mm
Packaging dimensions 156 × 57 × 110 mm


✅ Features

  • 2-call audio module for IP360 system with dual-colour name-card backlighting

  • Electric lock & auxiliary control built in (1A, 30V)

  • Camera activation, door release, and door status inputs/outputs (programmable)

  • Supports SIP, H.264 video, G.711 audio codecs

  • Web-interface for configuration + firmware updates

  • Multiple power options: PoE or 16-18 V DC local supply

  • LED status pictograms: door opening, active communication, call in progress, busy

  • Expandable to 98 button calls via MTMKB module + unlimited digital calls

  • IP54 protection when matched with front panel

Product Details

Reference MTMA/IP Category BPT Parts Brand CAME
CAME

Product Specifics

Shipping Index 1
Wired or wireless Wired
Fitting Surface
Product Type Tag Reader
