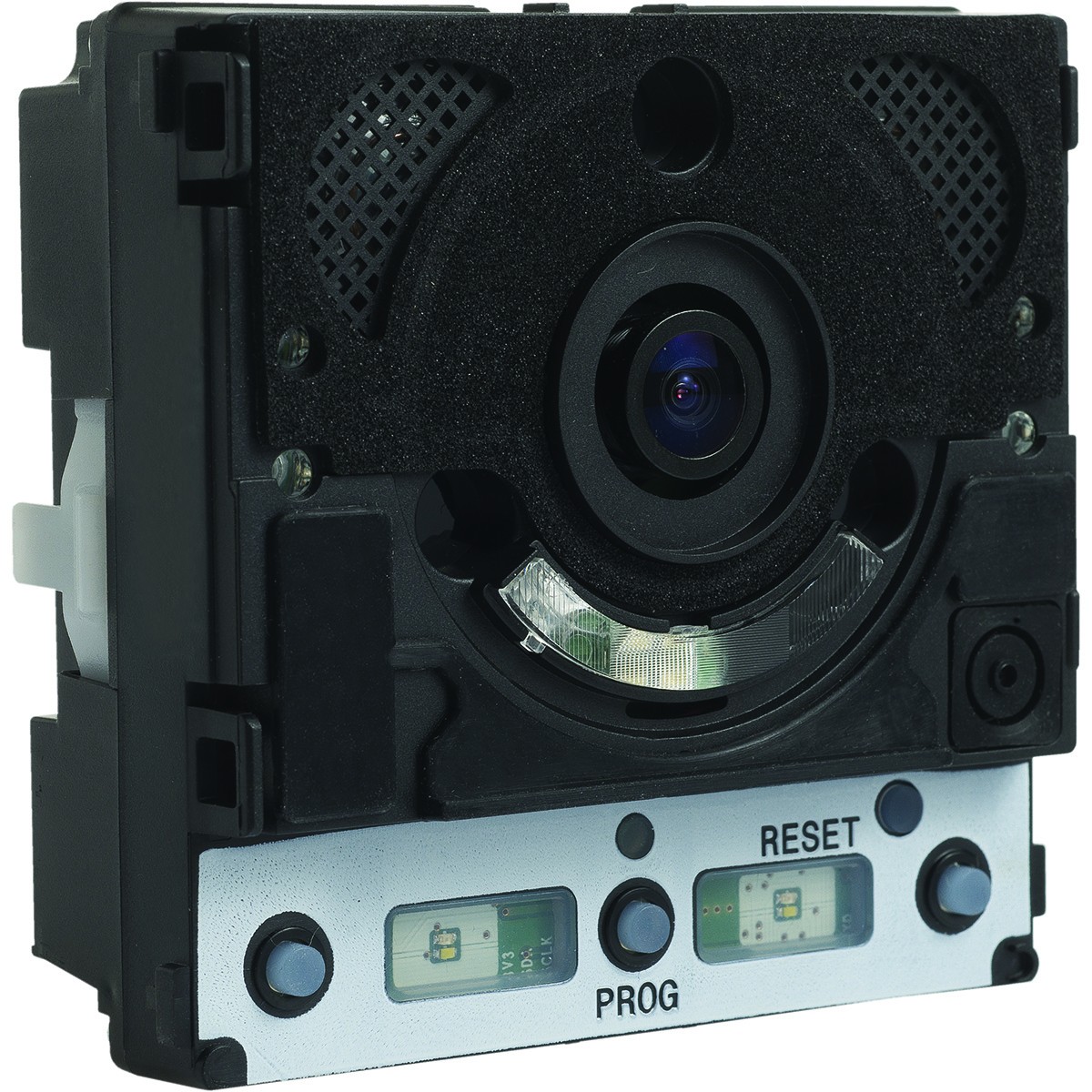

CAME BPT MTMV/01 Video Intercom Module — 2-Call, Wide-Eye Lens, IP54

Reference MTMV/01

Quick Overview

2-call video intercom module for X1 systems. Features PAL/NTSC camera, wide-eye lens, dual blue/white backlit name tags, IP54 protection with matching front panel. Includes electric lock & auxiliary control, programmable inputs/outputs, and front-panel USB programming.

Regular price: £400.80
Reduced price: £320.64 Save 20%
Tax included
Reduced price: £320.64
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £320.64
Tax included

Share on

Product Description

CAME BPT MTMV/01 Video Intercom Module — 2-Call, Wide-Eye Lens, IP54

  • Intercom video module designed for X1 systems

  • Equipped with 2 call buttons and name tags that are backlit in blue or white; backlight brightness adjustable.

  • Camera is PAL/NTSC format with a 680 × 512 pixel sensor. Wide-eye lens provides ~100° horizontal × ~82° vertical viewing angle. Includes “even illumination” via 2 high-efficiency white LEDs and an anti-glare diffuser.

  • Built-in controls: electric lock output, auxiliary contact (1 A, 30 V max), inputs for door-lock release button and door status indication; also output for activating outdoor cameras (all programmable I/O).

  • Status LEDs/pictograms on front for door opening, active communication, call in progress, system busy. Those, plus speaker/microphone volume and electric lock activation time, are adjustable. Programming / firmware updates via Mini USB connector on the front panel.


⚙ Technical Data

Specification Detail
Model MTMV/01
System compatibility X1 systems
Call buttons 2
Video resolution 680 × 512 pixels
Lens field of view 100° (horizontal), 82° (vertical)
Illumination 2 white LEDs + anti-glare diffuser; “wide-eye” lens
Power supply 16–18 V DC
Standby current draw 70 mA
Max current draw 220 mA
Operating temperature −25 °C to +55 °C
Protection rating IP54 (with corresponding front panel)
Dimensions 85 × 85 × 35 mm
Packaging dimensions 156 × 57 × 110 mm


✅ Features

  • Dual-call video module for X1 intercom systems

  • Wide-eye lens + LED illumination for clear video in various lighting conditions

  • Adjustable name-tag backlighting, speaker/mic volume, lock-timing etc.

  • Electric lock + auxiliary contact; programmable I/Os for lock release, door status, camera activation

  • Status LEDs for busy, incoming call etc.

  • Firmware / settings adjustable via front-USB

  • IP54 rating when used with suitable front panel


Product Details

Reference MTMV/01 Category BPT Parts Brand CAME
CAME

Product Specifics

Shipping Index 1
Product Type Video module
