CAME BPT MTMV/IP Video Intercom Module — 2-Call, SIP / IP, PoE / DC Power

Reference MTMV/IP

Quick Overview

Dual-call video module for IP intercom systems. Supports video streaming via SIP or IP, powered via PoE or local DC, with wide viewing angle, dual-colour name-tag backlight, programmable I/Os, and front-USB for firmware/configuration. Rated IP54 when used with suitable front panel.

Regular price: £622.80
Reduced price: £498.24 Save 20%
Tax included
Reduced price: £498.24
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £498.24
Tax included

Share on

Product Description

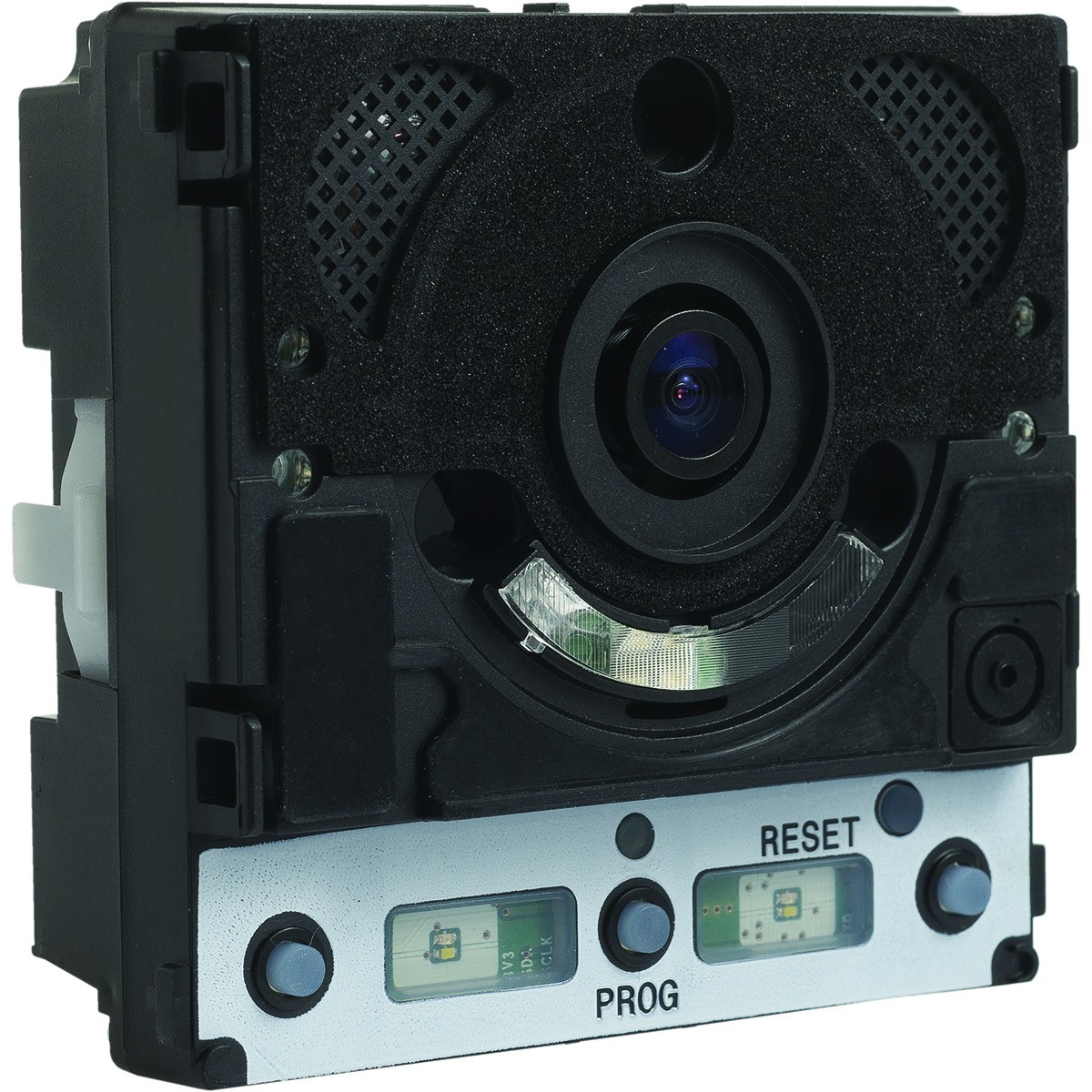

CAME BPT MTMV/IP Video Intercom Module — 2-Call, SIP / IP, PoE / DC Power

  • The MTMV/IP module is designed for IP-based intercom installations. It has 2 call buttons with dual blue/white backlit name tags, with brightness adjustable.

  • Video sensor supports PAL / NTSC, has wide-eye lens (~100° H × ~82° V), with even illumination via white LEDs + anti-glare diffuser.

  • Includes local controls for electric lock, auxiliary contact (1 A / 30 V max), inputs for a lock-release button and door status, and an output for activating external cameras; all I/Os are programmable.

  • Status pictograms / LEDs indicate door opening, communication in progress, call in progress, system busy. Speaker/microphone volume and electric lock release time are adjustable.

  • Firmware and parameters programmable via Mini-USB connector on the front panel.


⚙ Technical Data

Specification Detail
Number of call buttons 2
Power supply options PoE or 16-18 V DC local supply
Standby current draw ~70 mA
Maximum current draw ~220 mA
Video resolution / lens 680 × 512 pixels, wide-eye lens with ~100° × ~82° angle
Illumination White LEDs with anti-glare diffuser
Protection rating IP54 when paired with matching front panel
Operating temperature −25° C to +55° C
Dimensions 85 × 85 × 35 mm


✅ Features

  • 2 call buttons + dual-colour backlit name tags (blue/white)

  • Wide-eye camera + LED illumination + anti-glare diffuser

  • Supports SIP / IP intercom deployments (via PoE or DC power)

  • Electric lock & auxiliary contact; programmable I/O including lock status, camera output etc.

  • Adjustable speaker/mic volume & lock release timing

  • Status LED/pictograms for system status + Mini-USB programming interface

  • IP54 protection when used with the correct front panel

Product Details

Reference MTMV/IP Category BPT Parts Brand CAME
CAME

Product Specifics

Shipping Index 1
Product Type Video module
