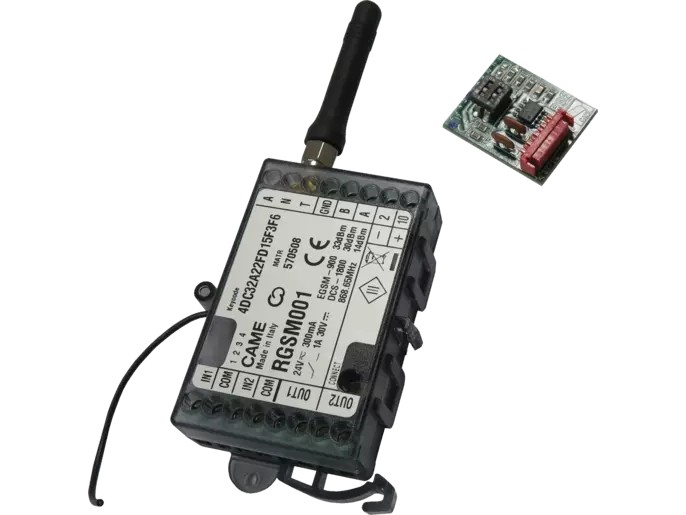

CAME RGSM001AC GSM Gateway Module for Access Control (806SA-0170)

Reference 806SA-0210

Quick Overview

GSM gateway module with integrated radio for remote management of access-control systems via CAME CONNECT. Designed for use with RBE Plus and other CAME access-control units. Supports up to five slave modules, includes 002RSE interface module, and offers reliable 4G/RS-485 connectivity in a compact DIN-rail enclosure.

Price: £214.80
Tax included
Price: £214.80
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £214.80
Tax included

Share on

Product Description

CAME RGSM001AC GSM Gateway Module for Access Control (806SA-0170)

The CAME RGSM001AC (806SA-0170) is a dedicated GSM gateway for access-control systems, designed to enable secure cloud connectivity through CAME CONNECT.

Equipped with an integrated 869.5 MHz radio and a 002RSE module, it allows installers and administrators to remotely manage and monitor access points, transmitters, and relays across multiple control modules. The device can manage up to five slave modules for coordinated multi-entrance setups.

Engineered for use with RBE Plus and other CAME access-control products, the RGSM001AC provides straightforward DIN-rail installation and long-distance connectivity (up to 1,000 m on RS-485). Its polycarbonate housing ensures reliable operation in harsh environments, with a wide −20 °C to +70 °C temperature range and low-power operation from 12–30 V AC/DC.


✅ Key Features

  • GSM gateway with integrated 869.5 MHz radio

  • Designed for access-control systems such as RBE Plus

  • Enables remote management via CAME CONNECT Cloud

  • Controls up to five slave modules over RS-485

  • 002RSE interface module included

  • DIN-rail mounted for easy cabinet installation

  • 12–30 V AC/DC power supply, low consumption (3 W)

  • 1 A relay output, 30 V max

  • Two digital inputs (24 V DC max)

  • RS-485 connection length: up to 1,000 m

  • Relay output cable length: up to 100 m

  • Operating range: −20 °C to +70 °C

  • Polycarbonate compound housing for durability

  • Ideal for multi-entrance or large-scale access-control networks


⚙ Technical Data

Specification Detail
Model / SKU RGSM001AC
Part code 806SA-0170
Power supply 12 – 30 V AC/DC
Frequency 869.5 MHz (integrated radio)
Radio power 14 dBm
Power consumption 3 W
Max current draw 200 mA
Relay contact rating 1 A @ 30 V max
Digital inputs 2 × 24 V DC max
RS-485 output length Up to 1,000 m
Relay output cable length Up to 100 m
Operating temperature −20 °C to +70 °C
Storage temperature −25 °C to +70 °C
Material Polycarbonate compound
Mounting DIN-rail
Slave modules supported Up to 5
Included module 002RSE
Average life 100,000 cycles (typical)
Compatibility CAME CONNECT / RBE Plus / CAME Access Control

Product Details

Reference 806SA-0210 Category CAME AXI Range Brand CAME
CAME

Product Specifics

Product Type Control Board Cards
