BPT VA/01 Power Supply Unit — Entry Panel Power Module

Reference VA/01

Quick Overview

A DIN-rail mounting power supply unit for intercom systems. Provides 18-20 V DC for video entry panels and riser line, with protection against overload and short circuits. Includes AUX outputs and a USB programming interface.

Regular price: £384.00
Reduced price: £314.88 Save 18%
Tax included
Reduced price: £314.88
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £314.88
Tax included

Share on

Product Description

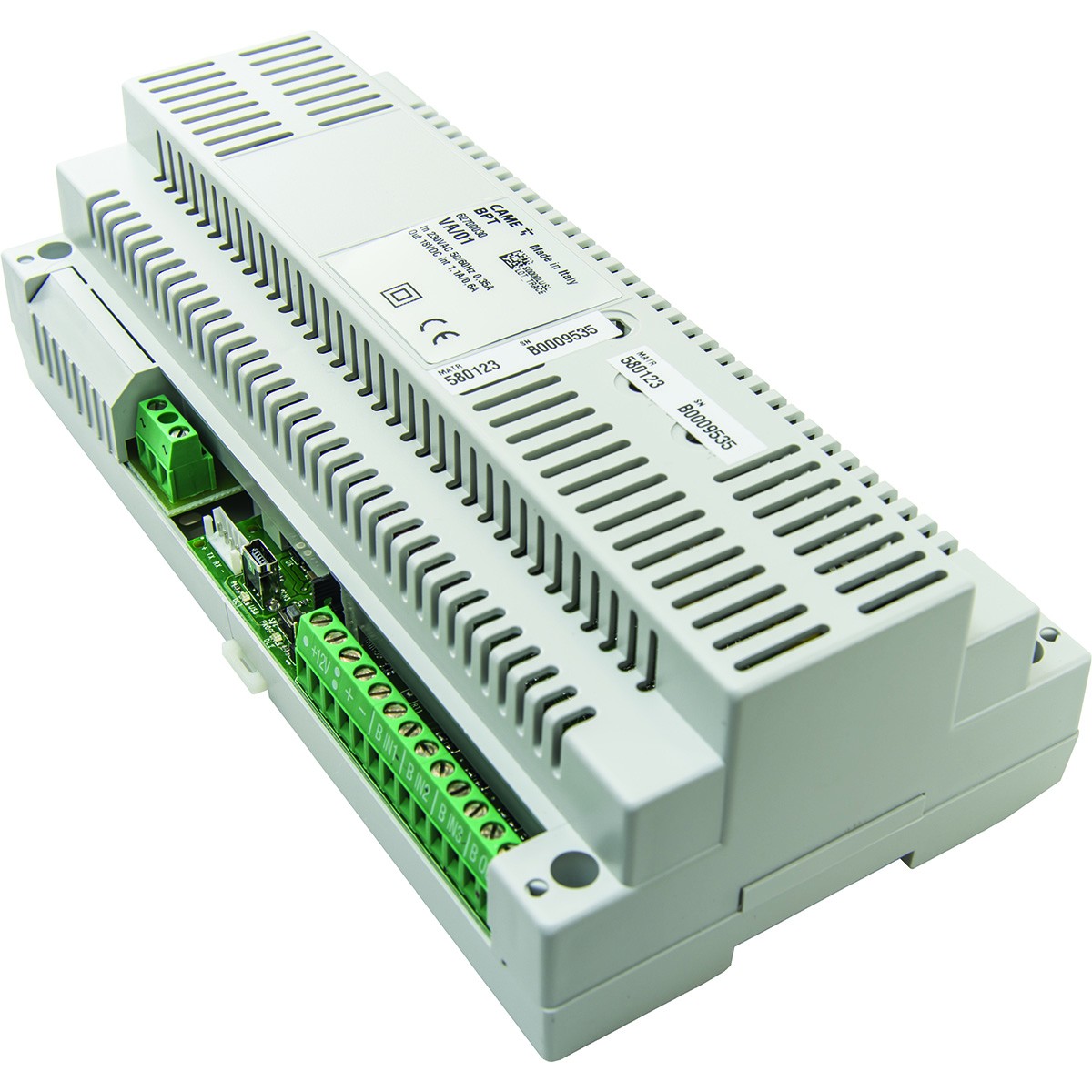

The VA/01 is a compact power supply board designed for video intercom entry systems. It supports both the power needs of entry panels and the “riser” (bus/riser line). It features electronic protection (overload / short circuit), an intercom selector, open-collector AUX1 & AUX2 outputs, and manual or PC programming via mini-USB. A jumper allows configuration for access control devices.

It is powered from 230 V AC (50/60 Hz) and delivers multiple DC outputs: one for entry panels and another for the riser or bus line. The device is built to mount on switchboards using EN50022 standard rails, with dimensions corresponding to 12 low DIN modules, and meets IP30 protection rating.


✅ Features

  • 230 V AC input from mains (50/60 Hz)

  • Provides 18 V DC supply for video entry panels (steady and peak)

  • Supplies 20 V DC for riser / bus line

  • Protection: overload and short-circuit protection built in

  • AUX1 & AUX2 open collector outputs for auxiliary functions

  • Intercom selector built in

  • PC or manual programming via Mini-USB connector

  • Jumper input for access control device programming

  • DIN-rail (EN50022) mounting; housing suitable for switchboard installation


⚙ Technical Data

Specification Value
AC Power Input 230 V AC, 50/60 Hz
Max current draw at AC 350 mA
Max dissipated power 25 W
DC output for entry panels 18 V DC
Current steady for entry panels 600 mA
Peak current for entry panels 1.1 A
DC output for riser 20 V DC
Current draw on riser (1 unit) 800 mA
Current draw on riser (3 units) 200 mA
Mounting EN50022 DIN rail, 12 low DIN module size
Operating temperature 0 °C to +35 °C
Storage temperature −25 °C to +70 °C
Protection rating IP30
Dimensions Approx 210 × 64.5 mm (other dimensions given: 145, 106 mm in datasheet)

Product Details

Reference VA/01 Category Relays & Power Supplies Brand BPT
BPT

Product Specifics

Shipping Index 1
Product Type Power Supply
