BPT VA/08 Power Supply Unit — EN50022 DIN Module (12-slot)

Reference VA/08

Quick Overview

Plastic-cased DIN-rail power supply providing 18 V DC for entry panels and 20 V DC for riser/main intercom buses. Supports up to 4 entry panels. Features overload and short-circuit protection, AUX open-collector outputs, USB programming, and gateway connectivity. Rated IP30.

Regular price: £553.20
Reduced price: £453.62 Save 18%
Tax included
Reduced price: £453.62
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £453.62
Tax included

Share on

Product Description

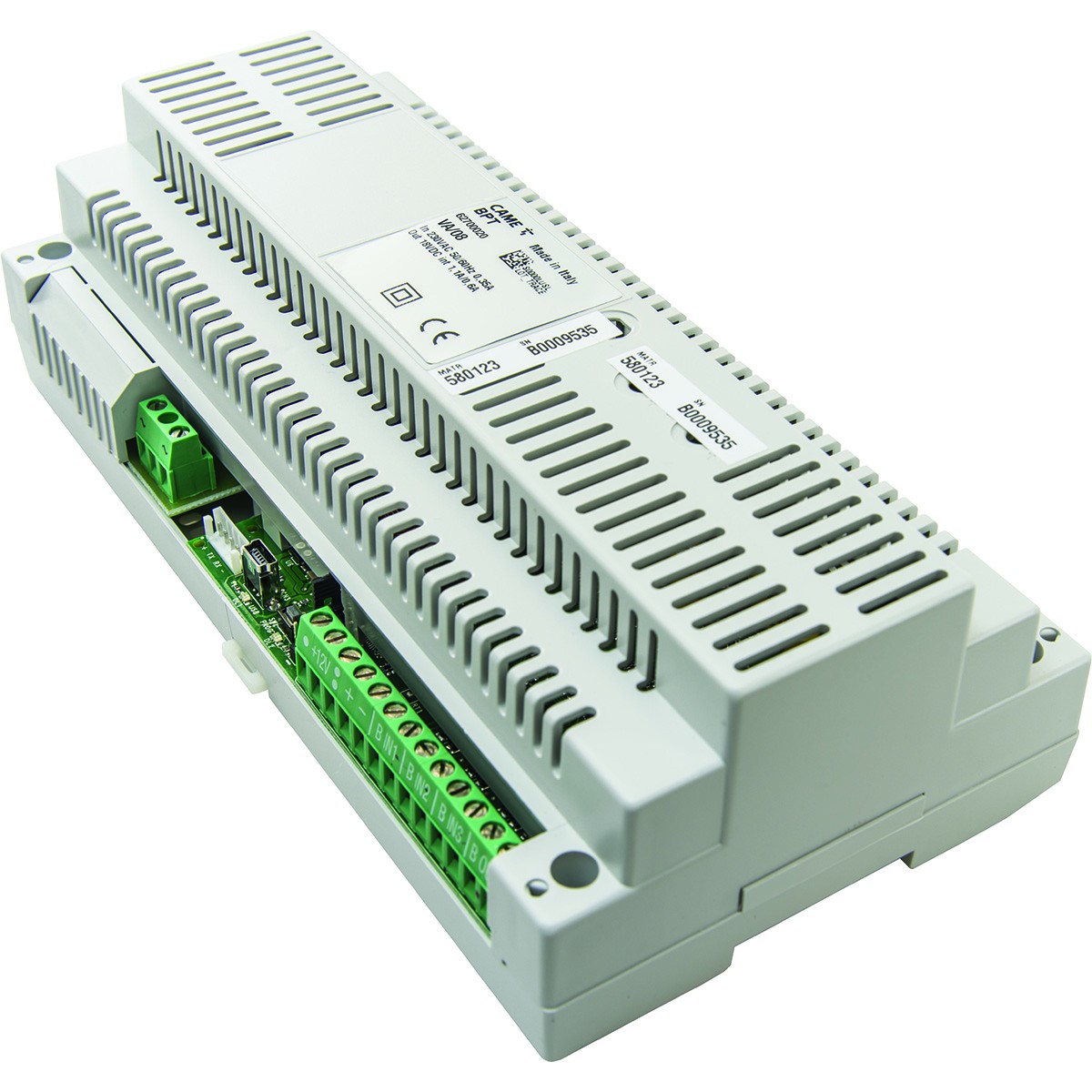

The VA/08 is a control board power module designed for intercom systems. It’s housed in a plastic casing for installation in EN50022 control panels, taking up 12 low DIN module slots.

It delivers 18 V DC, 1100 mA peak supply for entry panels, and 20 V DC, up to 800 mA for the main intercom/riser line. It includes electronic overload and short-circuit protection.

This unit has terminals for four entry panels, open-collector outputs for auxiliary functions (AUX1, AUX2), and a serial connector for ETI/XIP gateway. It supports manual or PC programming via Mini-USB, as well as a jumper for configuring access control devices.

Powered from 230 V AC (50/60 Hz), the VA/08 operates in ambient temperatures from 0 °C to +35 °C, and stores safely between −25 °C and +70 °C. Protection rating is IP30.


✅ Features

  • EN50022-DIN mounting, 12 low DIN module width

  • Supplies: 18 V DC for entry panels, 20 V DC for riser/main intercom line

  • High peak current capability (18 V DC @ 1.1 A) for entry panels

  • Terminals for up to 4 entry panels

  • AUX1 and AUX2 open-collector outputs

  • Gateway interface via ETI/XIP serial connection

  • Program-via Mini-USB or manually via jumper

  • Electronic overload and short-circuit protection

  • IP30 rating; indoor use


⚙ Technical Data

Specification Detail
AC input 230 V AC, 50/60 Hz
Max AC current draw 350 mA
Max power dissipation 25 W
Rated DC output to entry panels 18 V DC, 600 mA
Peak DC output to entry panels 18 V DC, 1.1 A
Riser DC output 20 V DC
Riser current draw 800 mA (1 panel) / 200 mA (3 panels)
Mounting EN50022 DIN rail (12 low DIN modules)
Operating temp 0 °C to +35 °C
Storage temp −25 °C to +70 °C
Protection rating IP30
Dimensions (mm) 210 × 64.5 × 145 × 106 (as given in datasheet)
