CAIS CANTILEVER SLIDING GATE FRAME 4m opening x 1.1m

Reference CONNECT 60 - 4.0 / 1.1

Quick Overview

CAIS CONNECT 60 - 40. / 1.1 A Cantilever Gate Frame in a box! Assemble on site in 60 minutes Max opening 4m Height 1.1m High Quality Galvanised Finish

£2,603.64
Tax included
Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
£2,603.64
Tax included
Free Pallet Delivery 142kg

Share on

Catalogues

View Product In Catalogue
Cais_Catalogue_2019.pdf - Page 1

Product Description

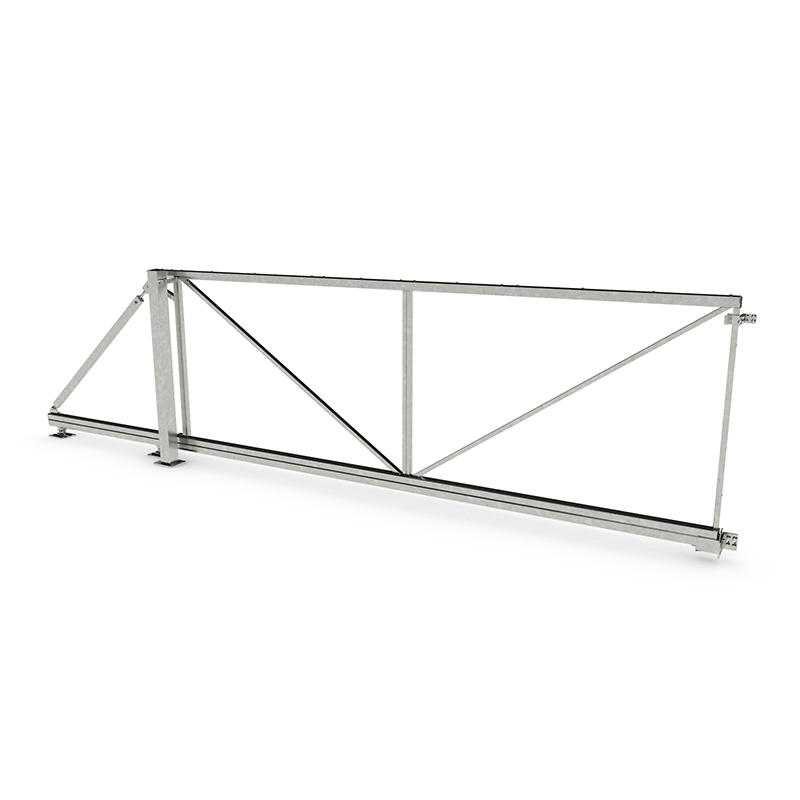

CAIS CONNECT 60 - 4.0 / 1.1m Cantilever Sliding Gate Frame

Introducing an exceptional product from our gate hardware supplier CAIS

This is a cantilever gate frame that comes in a box to be assembled on site

  • Max opening 4m

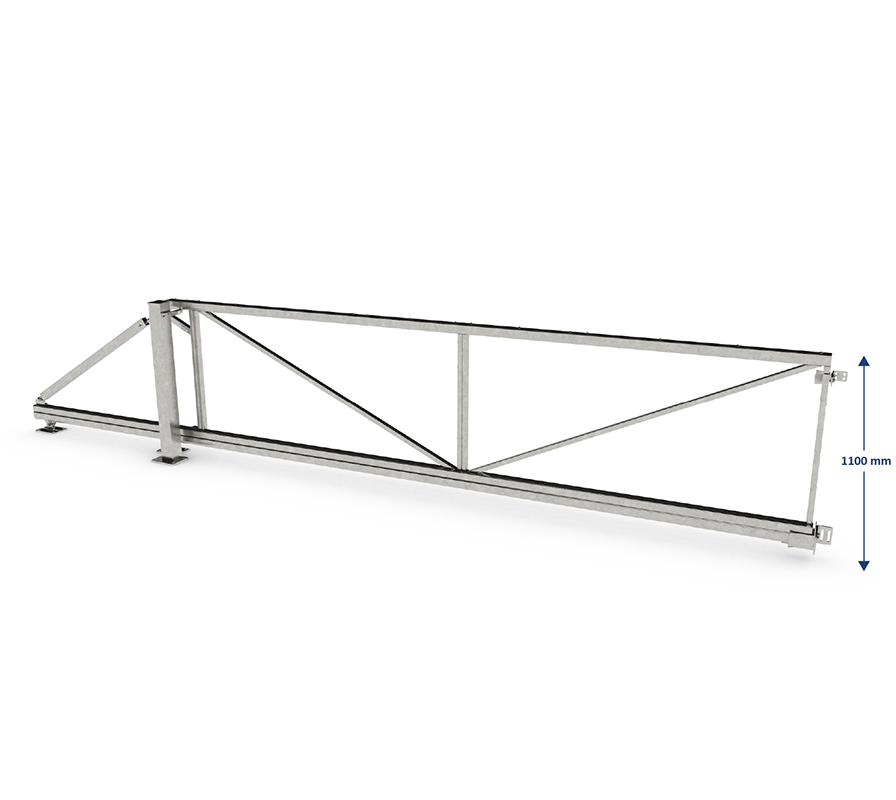

  • Height 1.1m
  • Can be completely assembled on site!
  • High Quality product with Galvanised Finish
  • Maximum Load on gate frame 125kg

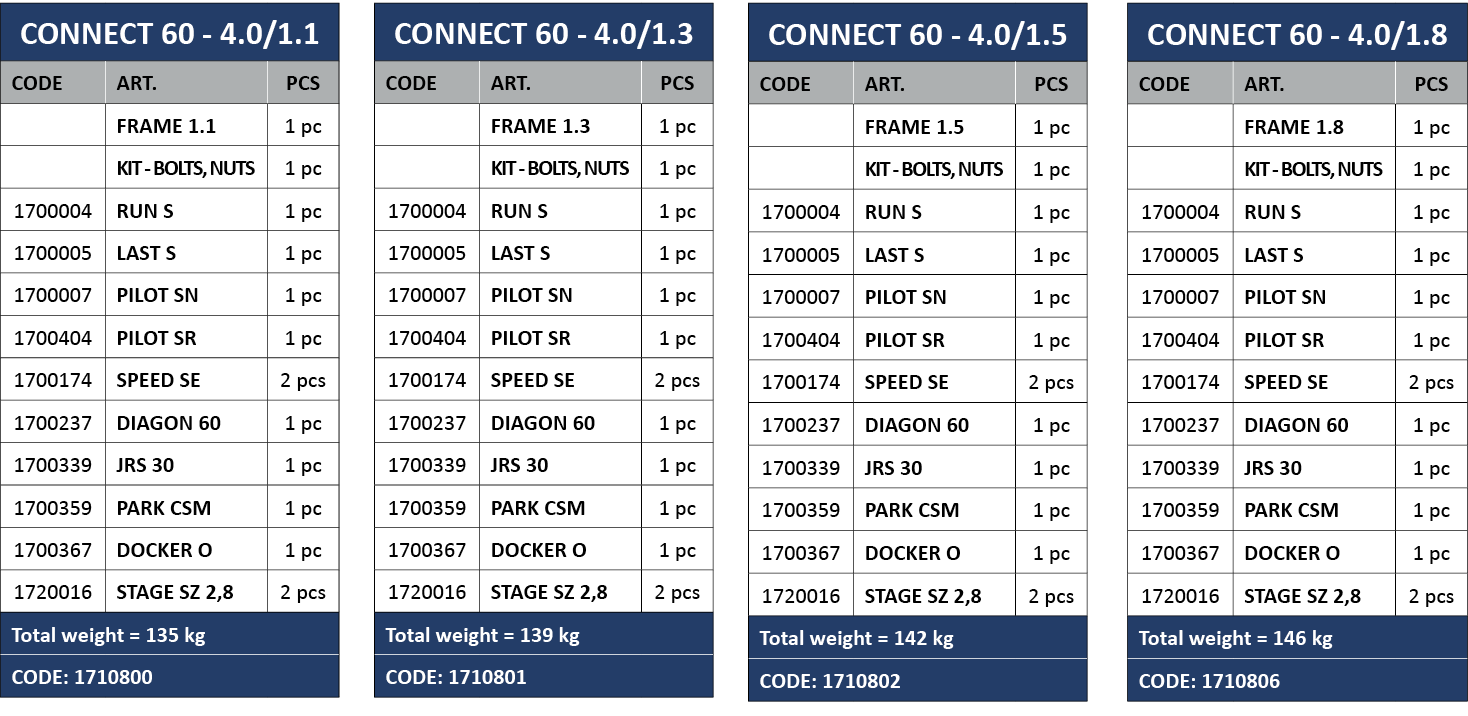

This product includes:

  • Gate Frames
  • Gate Post
  • Cantilever Track
  • Cantilever Gate Wheels/Rollers
  • Support Rollers
  • Track Guide and Rollers
  • Gate Ends
  • All fixings excluding concrete bolts

CONNECT 60 – 4.0 METER OPENING WIDTH

FULLY TESTED & CERTIFIED CANTILEVER STEEL GATE FRAME SET, READY FOR YOUR INFILL

BUILD ON SITE IN JUST 60 MINUTES

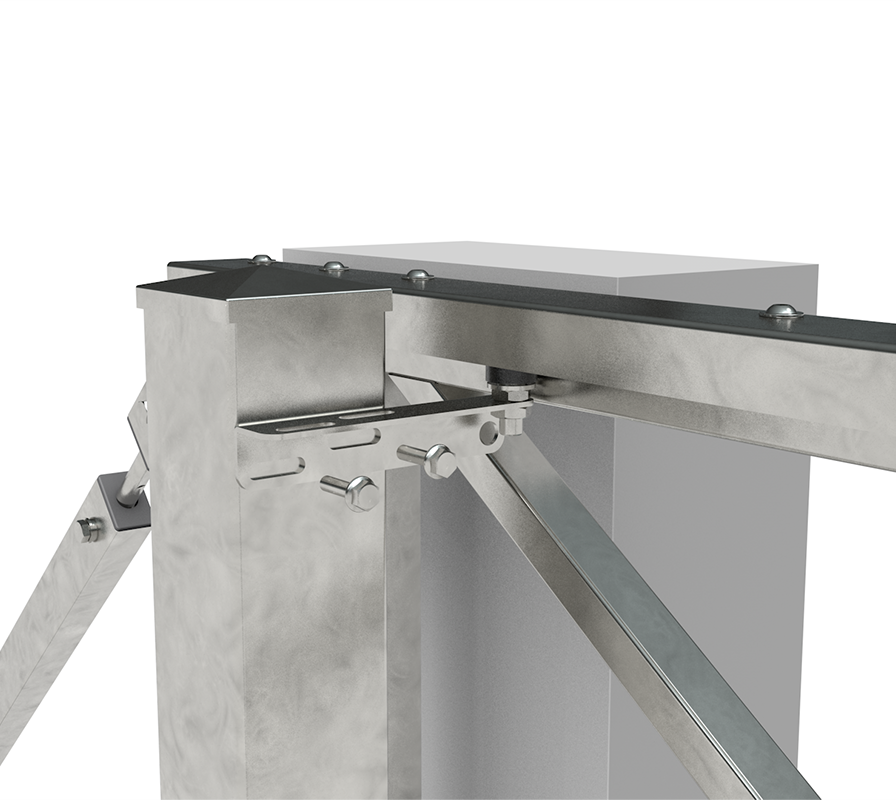

The CAIS CONNECT 60 SET has made it incredibly easy for gate fabricators and installers to produce their own cantilever sliding gates by supplying them not only the cantilever hardware with parts, but also a frame to fix your desired infill to. The CONNECT 60 SET includes an upper guide roller to guide the gate along and a support bracket to attach the end stop to a brick pillar for when the gate is in the closed position. All the bolts are included for fixing the whole product together.

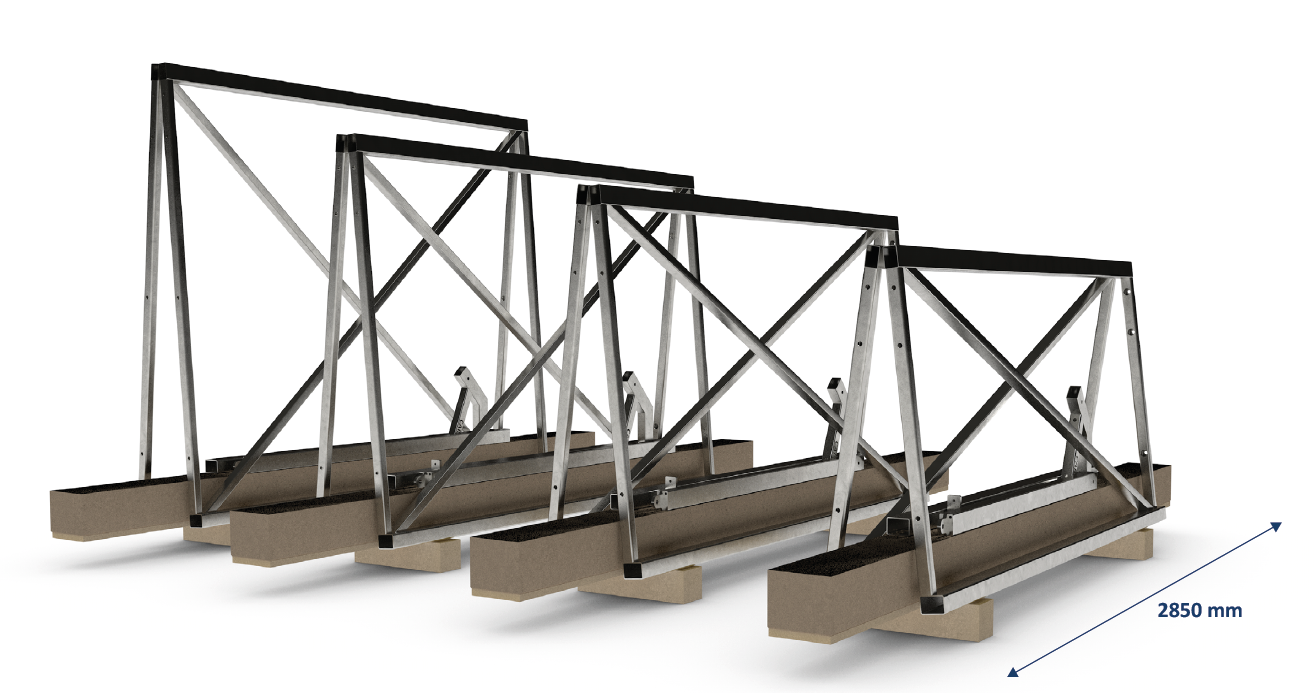

COMPACT PACKAGING 2.85 METERS

For a gate with a 4 meter opening width, the total gate length is 5.85 meters, but the parcel length is only 2.85 meters. All the components are supplied on a single pallet.

4 METER OPENING WIDTH – WIDE RANGE OF HIGHTS

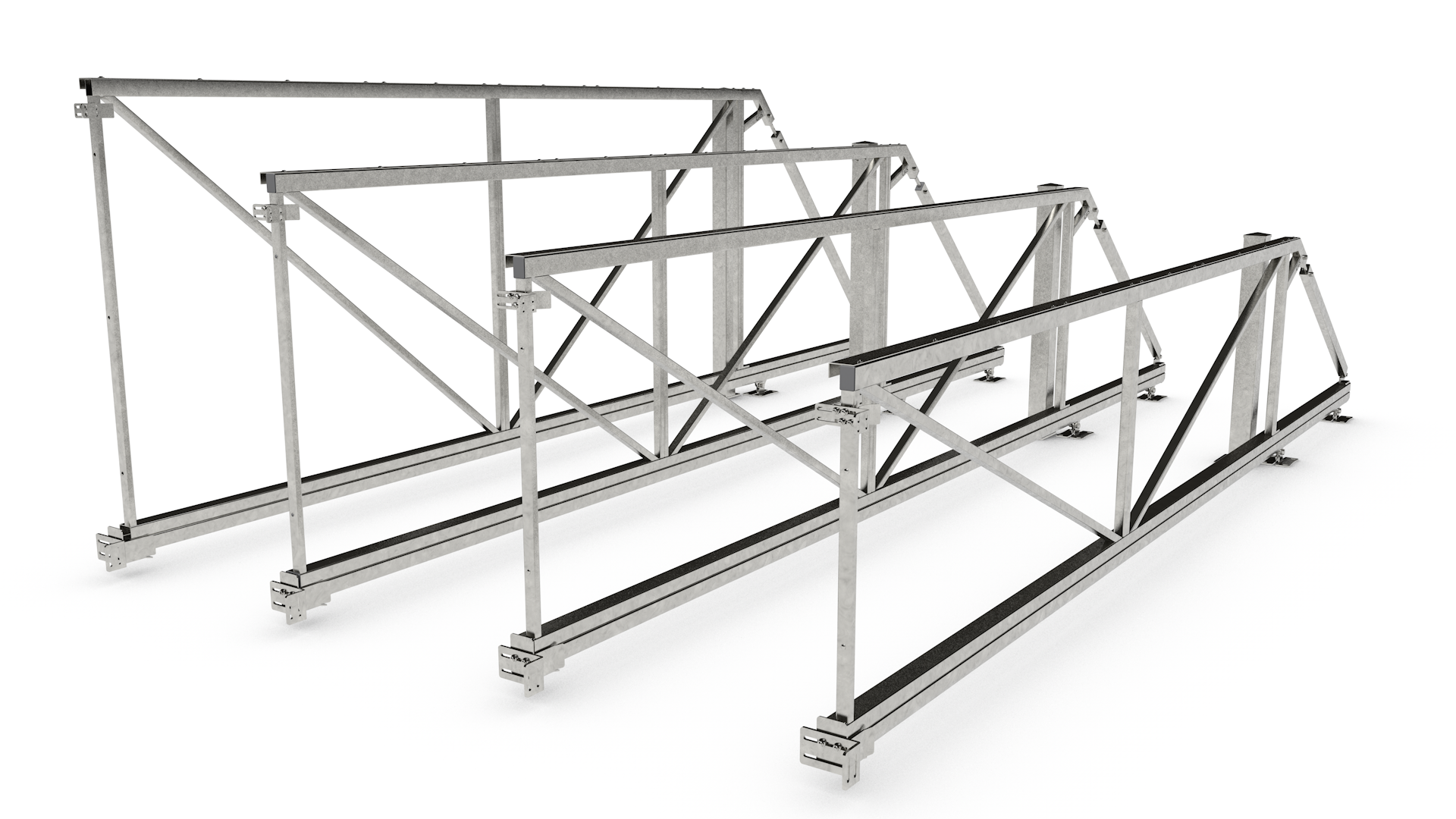

CONNECT 60 SET is available with an opening width of 4 meters and in heights of 1100, 1300, 1500 and 1800 millimetres.

CERTIFIED FOR WIDE RANGE OF INFILLS

You can clad the gate frames in a choice of fencing mesh, WPC composite boards, aluminium gate infill boards or a material of your choice e.g. timber, ornamental steel, steel sheet, v-mesh infill, prison mesh infill, palisade slats, steel bars, any infill of your choice up to 125kg in weight.

TOWER – STEEL GATE SUPPORT POST – WIDE RANGE OF HIGHTS

The TOWER, our steel gate support post for the CONNECT 60 SET can be supplied in heights of 1100, 1300, 1500 and 1800mm.

BUILD ON SITE IN JUST 60 MINUTES NO WELDING REQUIRED.

Gate fabricators can screw the various segments and parts together themselves without having to do any welding.

All screw holes are pre-drilled with clear assembly VIDEO and DRAWINGS provided. In addition, all parts are already galvanised. The gate fabricator only needs to have the gate coated in a colour if they wish to. CONNECT 60 SET can stay galv-only too. CONNECT 60 SET is supplied complete, out of the box and ready to install. All fixings (other than concrete bolts) are included in the SET with everything ready to bolt/screw together on site.

Product Details

Reference CONNECT 60 - 4.0 / 1.1 Category Cantilever Sliding Gates Brand CAIS Hardware

Product Specifics

Shipping Index 1
Category Cantilever Gate Frame
Catalogue Cais_Catalogue_2019.pdf
Page 1

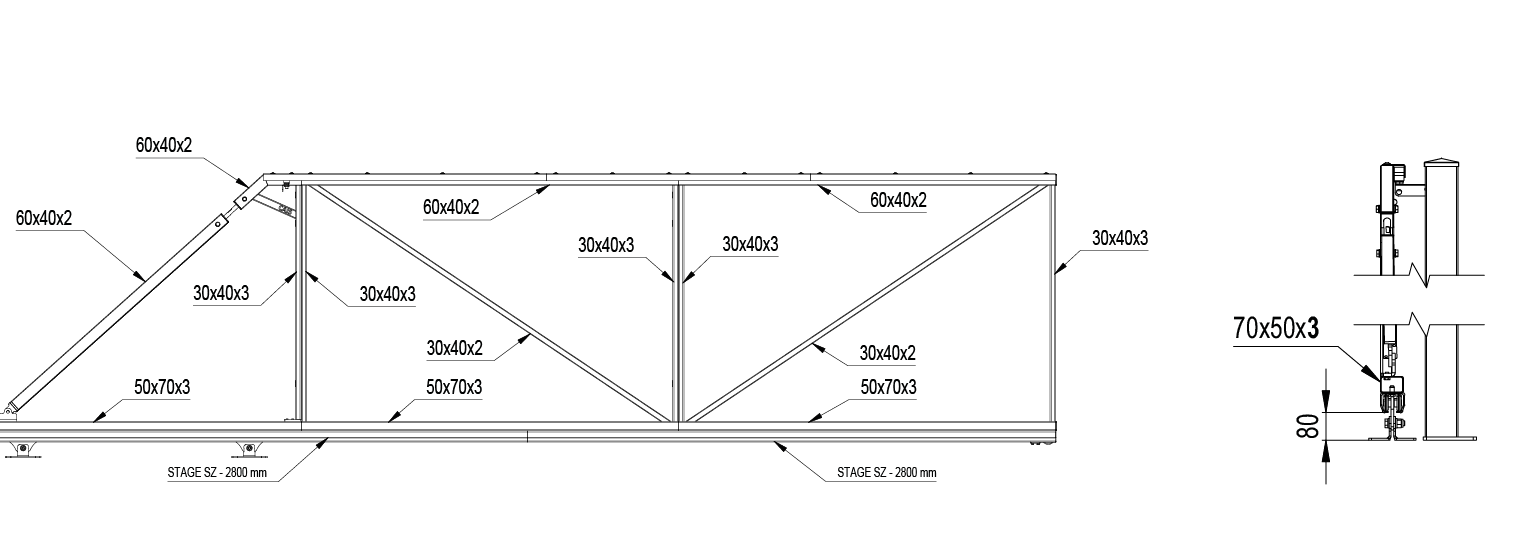

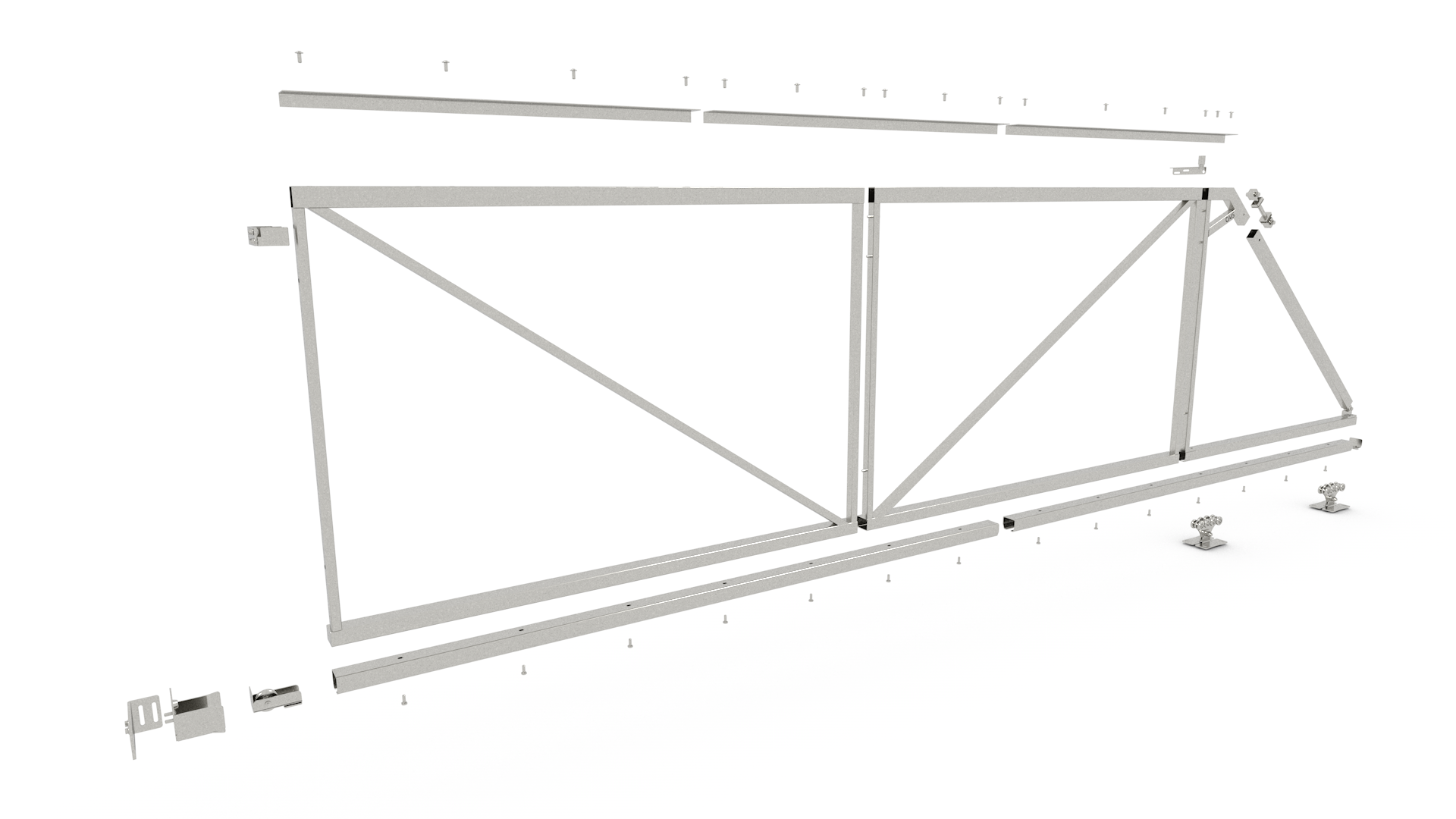

Frame Materials (connect 60)

Shows the layout and materials used in the CAIS Connect 60 Cantilever Gate Frames

3900mm Site Plan (Connect 60)

Shows a side view of a typical site plan for the installation of CAIS Connect 60 with a 3.9m opening

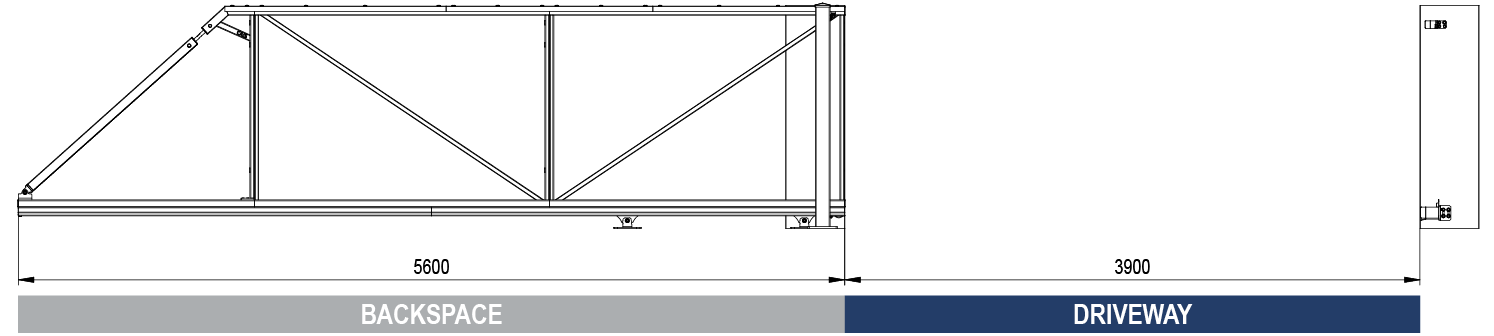

3900mm Opening Overall Length

Illustrates the total required space for the installation of the CAIS Connect 60

4m Overall Length Diagram

Illustrates the total required space for the installation of the CAIS Connect 60
