Quick Overview

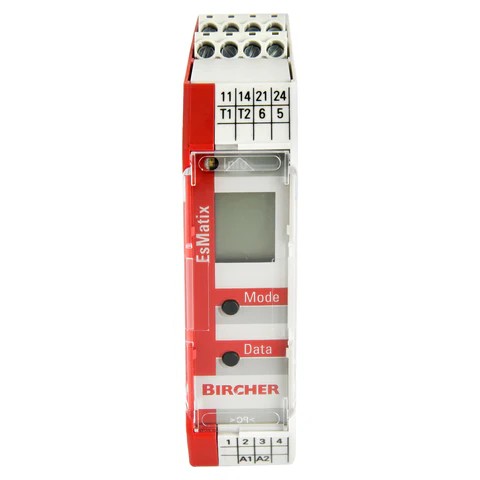

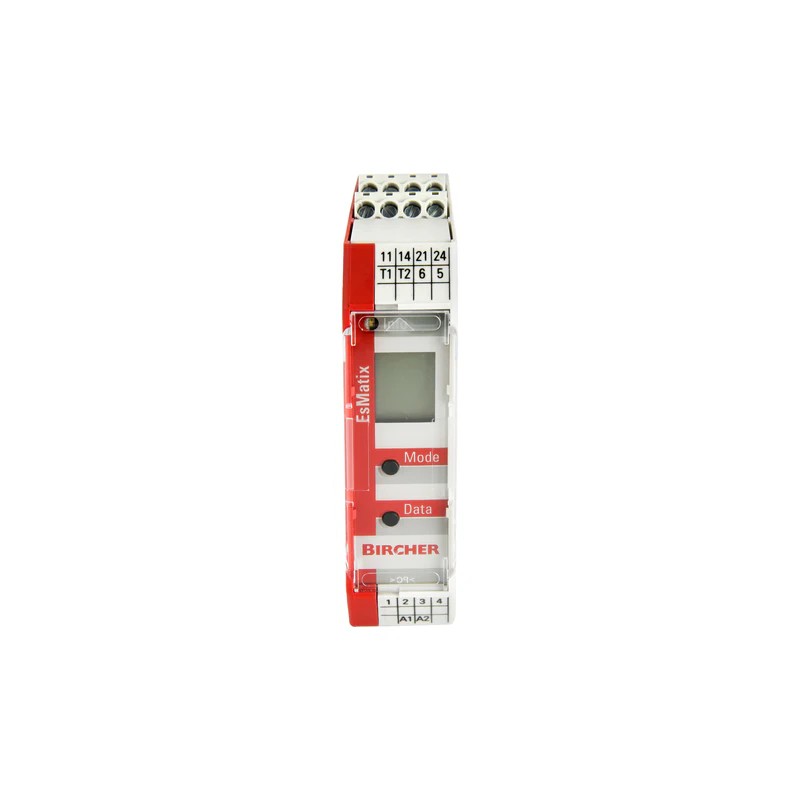

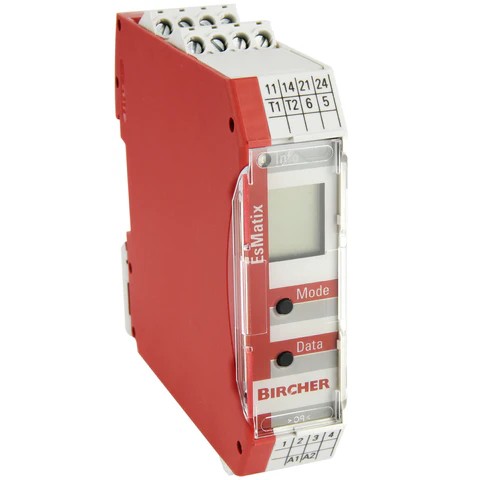

The Bircher EsMatix 3 is a safety switching device for protecting hazardous areas on machinery and plant when used with contact mats and safety edges. It features category 3 (PLe) safety rating and a short response time.

Price: £242.38
Tax included
Price: £242.38
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...

Volume discounts

Quantity Unit price You Save
5 £230.26 £60.59
Price: £242.38
Tax included
Add to basket
Buy Now
1-2 Business Days *Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Product Description

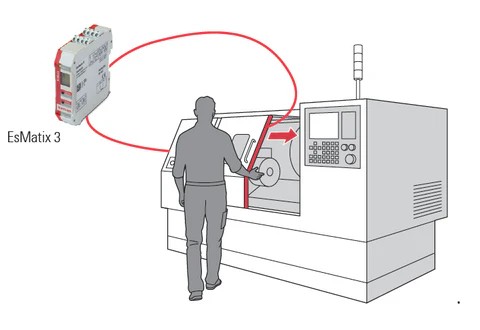

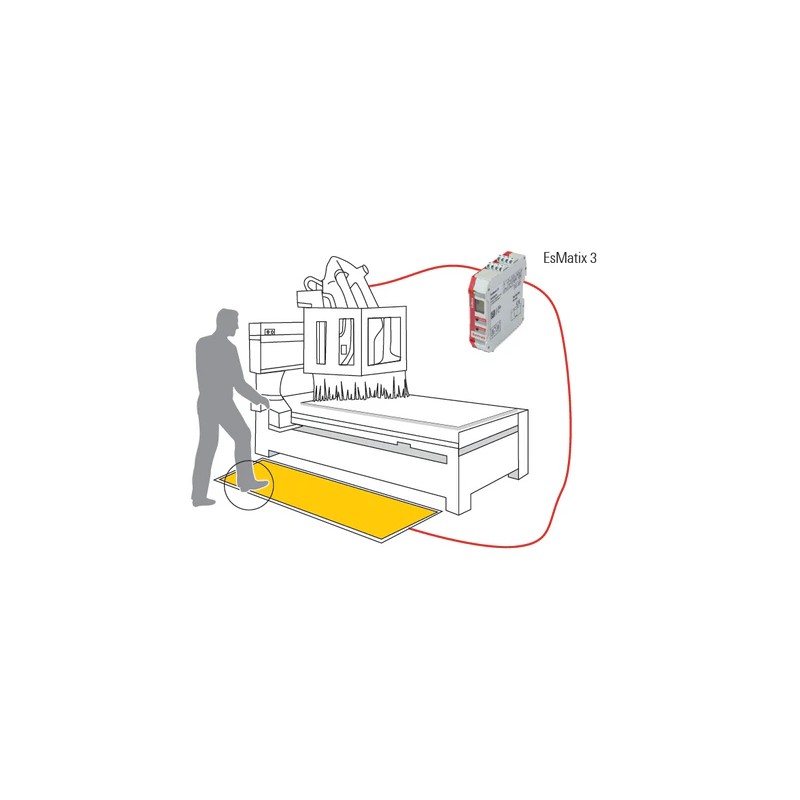

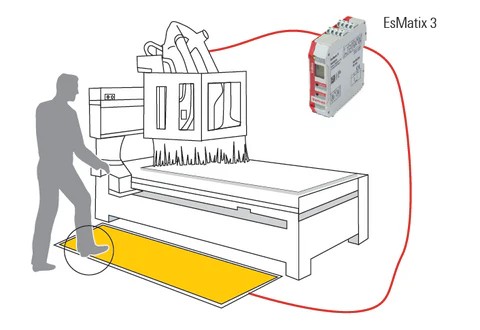

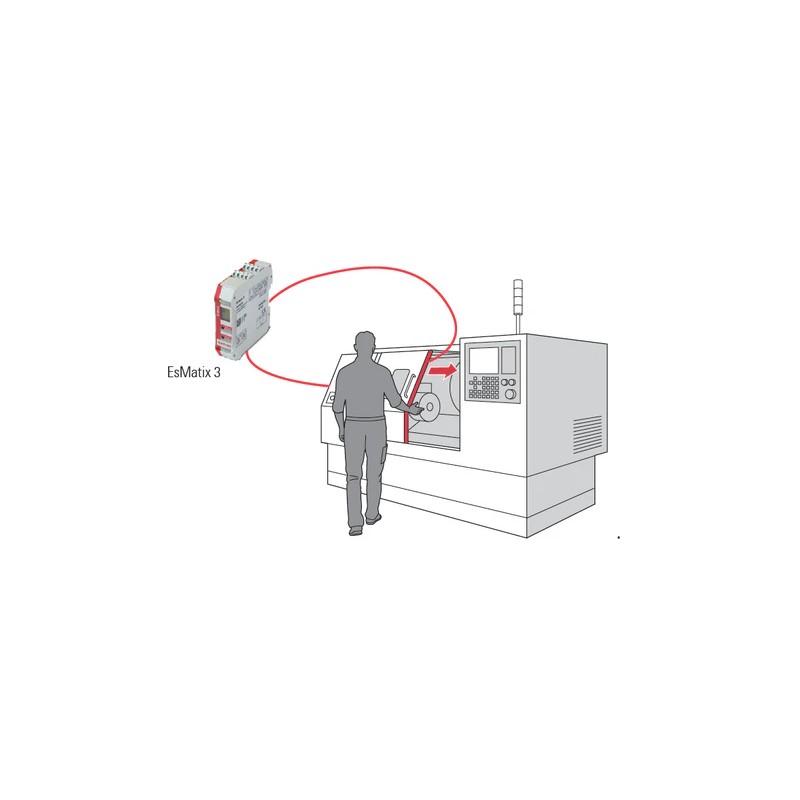

EsMatix 3 is designed for machine safety applications, providing protection of hazardous areas near machinery when using contact mats, and protection from moving machinery parts when using safety edges. Solid-state relays (SSRs) are used for the safety outputs, supporting fast response times and system reliability.

The device supports connection of 1 or 2 sensors with 8.2 kOhm termination and includes external device monitoring (EDM) and a program & diagnostic display.

Ordering information in the brochure also lists EsMatix 3.D (Article no. 364284) as a variant with inverted status output.

✅ Key Features

  • Category 3 (PLe) safety rating

  • Short response time

  • EDM – external device monitoring

  • Program & diagnostic display

  • For use with contact mats and safety edges

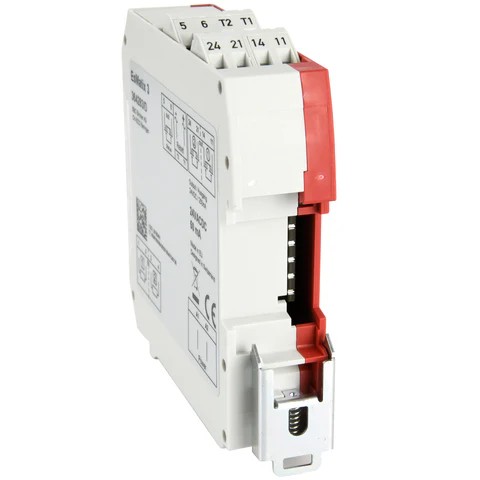

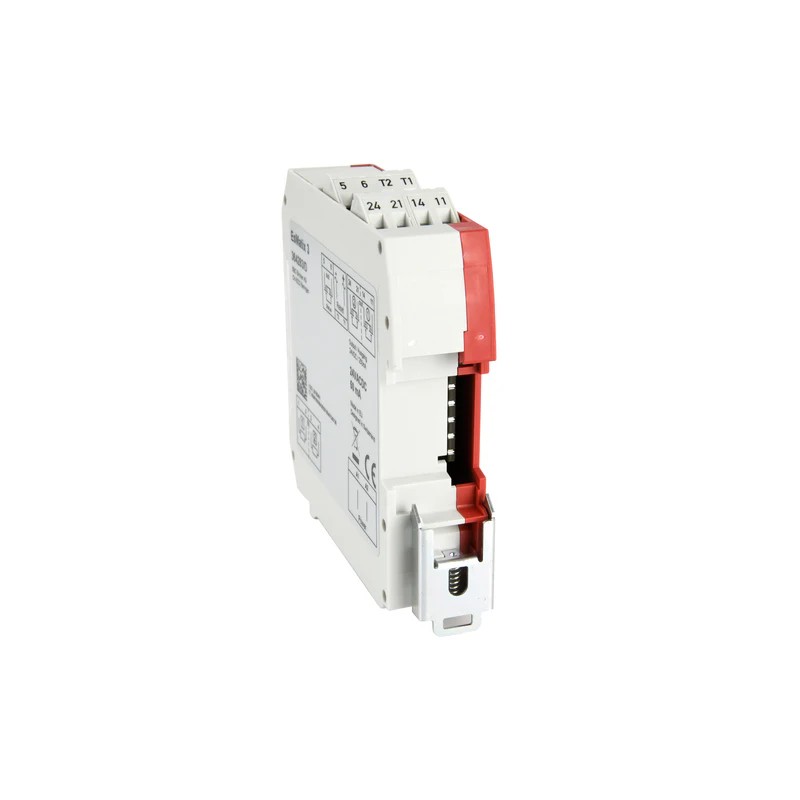

  • Compact housing with direct DIN rail mounting

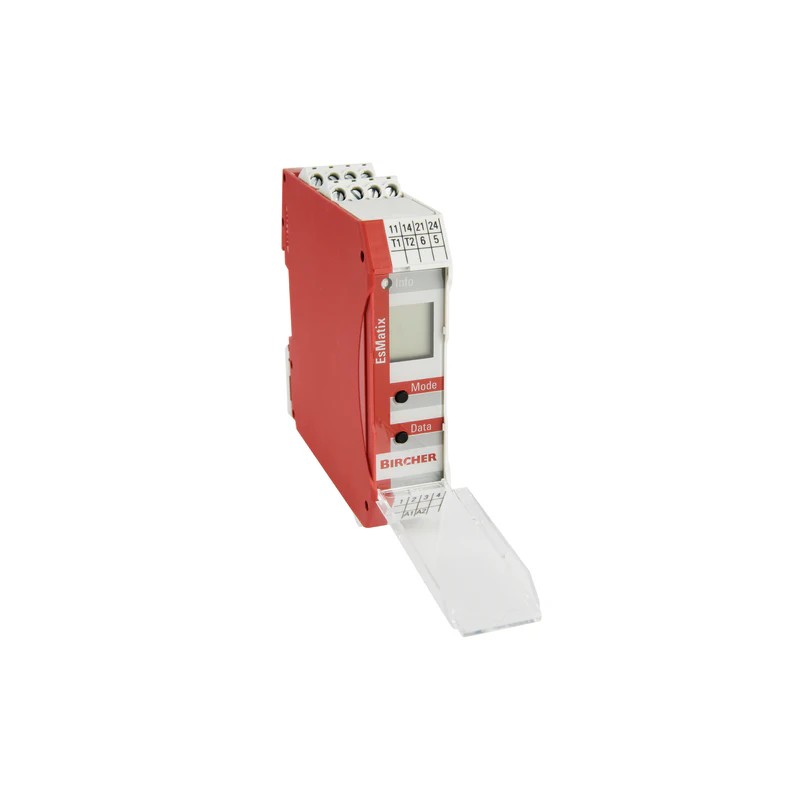

  • LCD display with simple push button programming

  • Error history with last five errors logged

  • Debouncing input signal option

Parameter Value
Material Polyamide red-grey
Dimensions 22.5 × 92 × 85 mm (W × H × D)
Weight 150 g
Connection type Plug terminals
Mounting DIN rail
Supply voltage 24 VDC –20% to +20% / 24 VAC –20% to +10%
Power consumption Max. 3 VA
Inputs For 1 or 2 sensors with 8.2 kOhm termination
Reset input 24 VACDC
Safety outputs SSR, max. On resistance 2 Ohm, 24 VDC, max. 250 mA, internally protected with 300 mA fuse
Status output 24 VACDC, max. 250 mA
Response time (actuation) < 5 ms
Recovery time < 30 ms (reset after actuation)
Switch-on time < 300 ms
External reset pulse (required) > 100 ms
Displays – Operation Green
Displays – Safety shutdown Orange
Displays – Fault (interruption) Red
Reset (confirmation) Automatic (automatic start) / Manual (pushbutton) / Manual (external)
Fall-delay time Between 0 and 1000 ms (5 levels)
Input delay 0, 15, 30 or 45 ms
Relay status (EsMatix 3) Error signal output
Protection class of switching device IP30
Operating temperature –20° C to +60°C
Storage temperature –40° C to +70°C
Air humidity < 95% (non-condensing)
Approvals EN ISO 13849-1 (PLe, cat.3)

Product Details

Reference 364283 Category Controllers Brand BIRCHER
BIRCHER

Product Specifics

Shipping Index 1
Product Type Controller
Bircher EsMatrix Brochure
