GATEMASTER LOCKING DROP BOLT LDBSS

Reference LDBSS

Quick Overview

Secure Locking Drop Bolt When Gates are closed the drop bolt cannot be lifted Easy to fit Robust Innovative design Stainless Steel Model

Price: £56.09
Tax included
Price: £56.09
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £56.09
Tax included

Share on

Product Description

Gatemaster Secure Locking Gate Drop Bolt LDB in Stainless Steel

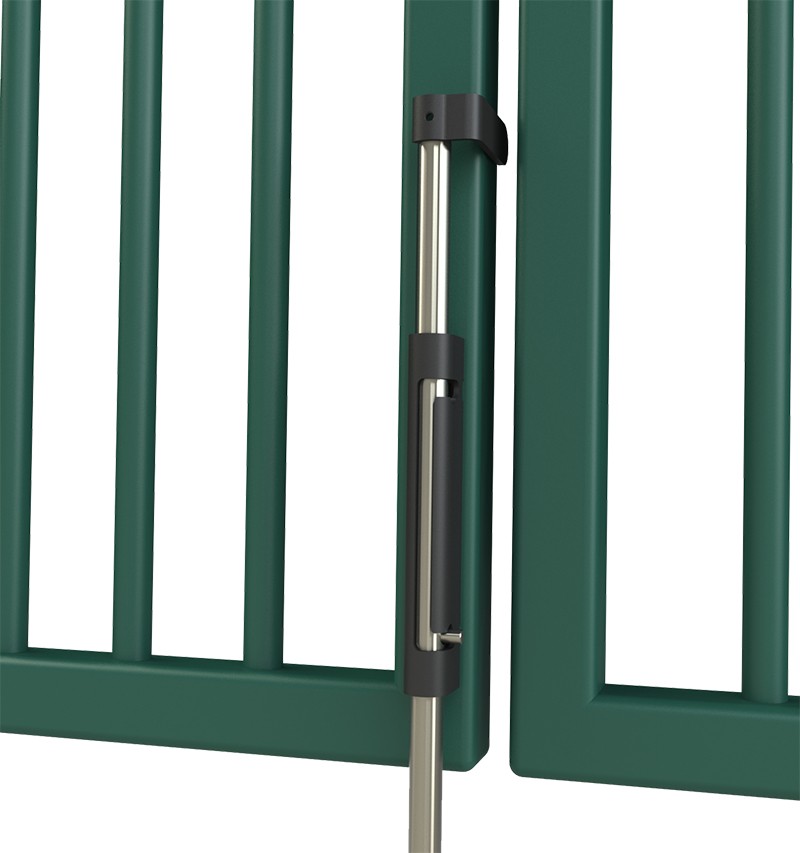

An easy to install and secure locking swing gate drop bolt thanks to its innovative design. Gatemaster have provided a method of securing the gates to the floor and while the gates are closed the drop bolt cannot be lifted. Works amazingly with a Gatemaster Lock.

  • Robust – Strongly constructed from galvanised steel, also available with a stainless steel bolt.
  • Easy to fit – Needs just two 15mm holes in the gate and fixed with the expanding fasteners provided.
  • Adaptable – Fits left and right hand gates
  • Innovative and secure – Once the dropbolt is lowered and rotated, closing the second gate prevents the dropbolt being unlocked.
  • 19mm bolt that has 140mm movement.

Product Codes

  • LDB – Aluminium drop bolt & powder coated stainless steel hardware
  • LDBSS – Stainless steel drop bolt & powder coated stainless steel hardware

Installation:

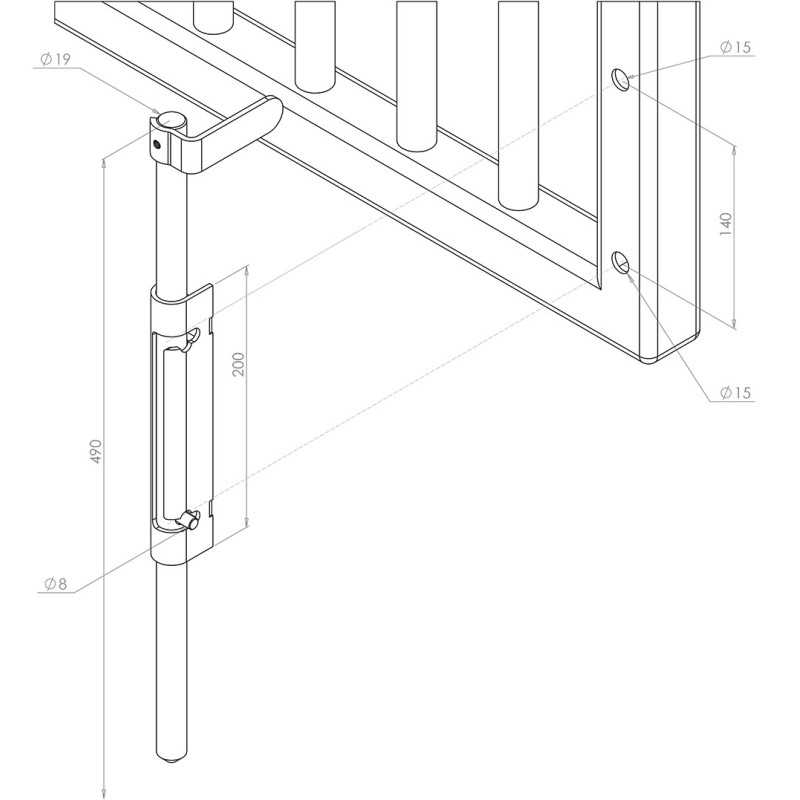

1. Drill 2x 15mm holes, 20mm from the leading edge of the gate at 140mm centres, and fix the dropbolt guide to the gate with the 2 expanding fasteners supplied.

2. Fit the small location pin into the most suitable of the 3 location holes with the smaller screw provided.

3. Slide the dropbolt into the dropbolt guide, with the location pin facing into the back corner and then twist into position.

4. Fix the lift plate to the dropbolt in the correct position with the screw provided.

What comes in the box
QuantityItem
1 Gatemaster LDB

Product Details

Reference LDBSS Category Drop Bolts Brand GATEMASTER
GATEMASTER

Product Specifics

Shipping Index 1
Gatemaster LDB Drop Bolt Manual

Manual & Datasheet
