GATEMASTER Auto-Locking Drop Bolt ADBS (Screw on)

Reference ADBS

Quick Overview

Secure Automatic Locking Drop Bolt Easy to fit Robust Innovative design Screw on model

Price: £66.29
Tax included
Price: £66.29
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £66.29
Tax included

Share on

Product Description

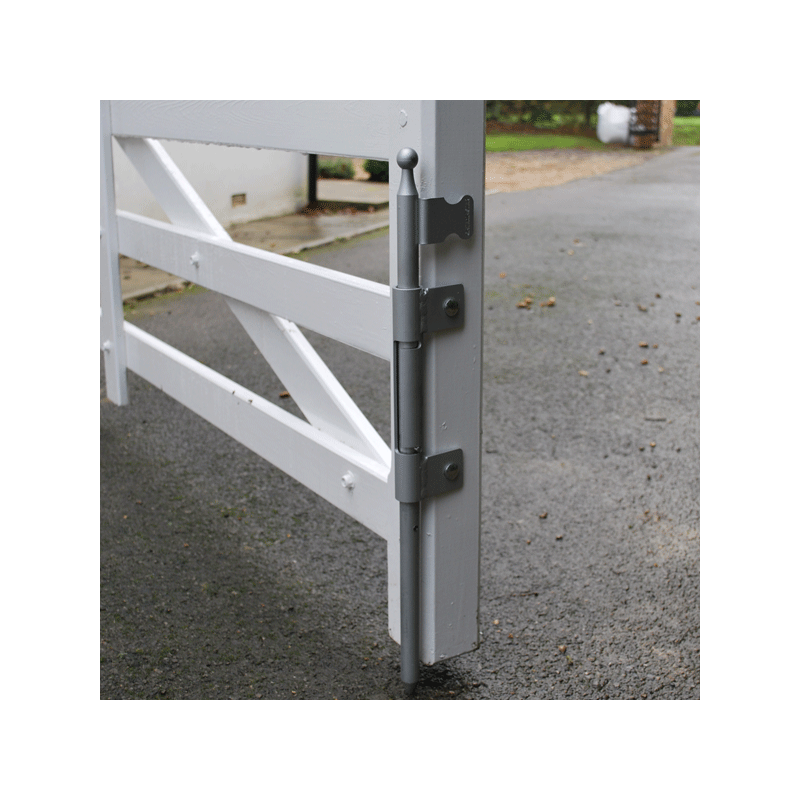

Gatemaster Secure Automatic Locking Gate Drop Bolt ADBS

An easy to install and secure automatic locking swing gate drop bolt thanks to its innovative design. Gatemaster have provided a method of securing the gates to the floor and while the gates are closed the drop bolt cannot be lifted. Works amazingly with a Gatemaster Lock.

  • Robust – Made of solid steel
  • Easy to fit
  • Adaptable – Fits left and right hand gates
  • Innovative and secure – Once the dropbolt is lowered and rotated, closing the second gate prevents the dropbolt being unlocked.

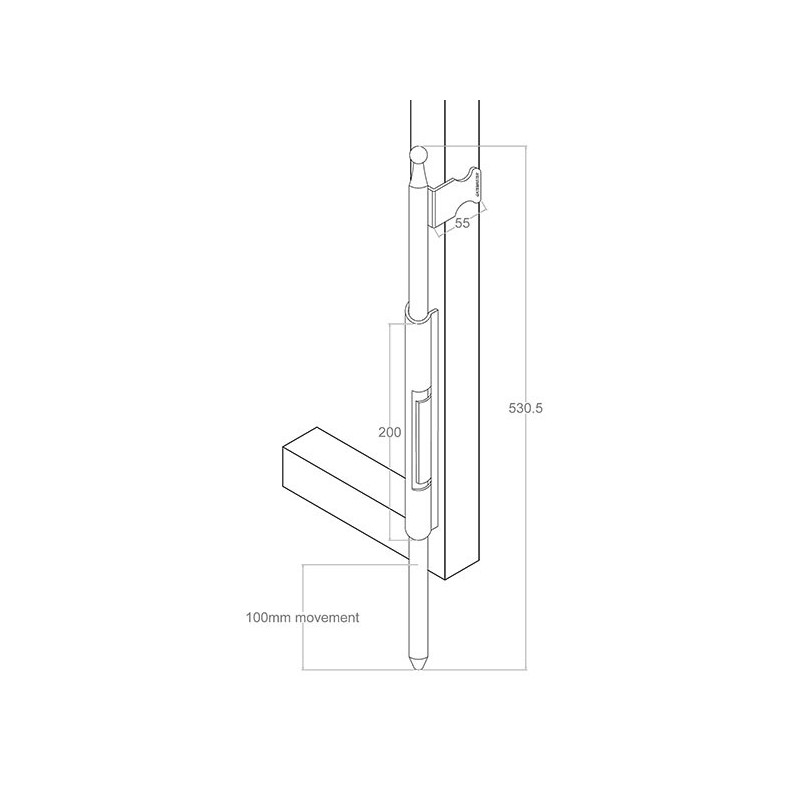

  • 19mm bolt that has 100mm movement.

Product Codes

  • ADB – Weld on
  • ADBS – Screw fixed

Installation:

1. Fix the lift plate to the dropbolt with screws provided - left hand or right hand as required.

2. Remove the galvanising from the weld area and weld the locating tube to the first gate to be closed at 15mm from the centre of the tube to the edge of the gate. Ensure that the horizontal slots are towards the edge of the gate.

3. Slide the dropbolt into the tube and fix the lifting plates so that when the dropbolt is rotated, the lifting plate will fold flat against the edge of the gate.

4. Determine the required vertical position of the dropbolt and drive the steel pin into one of the three holes provided.

What comes in the box
QuantityItem
1 Gatemaster ADB

Product Details

Reference ADBS Category Drop Bolts Brand GATEMASTER
