FAAC 400 CBA KIT S ELECTRIC GATE KIT
Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.
Overview & suitability
- Swing Gate Kit
- Single gate kit
- 230v Intensive
- 2200mm or 590kg Max each leaf
- Above ground Motor
- 115 Degrees Max opening angle
- Opening hydraulic lock
- Speed 20 seconds 90 Degrees
FAAC 400 CBA KIT S
Complete kit for a single residential condominium or industrial swing gate up to a maximum of 2.2m each leaf with Opening Hydraulic Lock.
Strong & Durable Hydraulic Motor
Most powerful motor for the largest gates. More durable with fewer moving parts. Can easily be repaired by replacing the seals and the oil. Motor can be back in service for years to come.
LCD Display
Control Panel with LCD display for simplified programming.
Quick & Easy Installation
Equipment designed for the quick & easy installation to existing hinged swing gates.
| What comes in the box | |
|---|---|
| Quantity | Item |

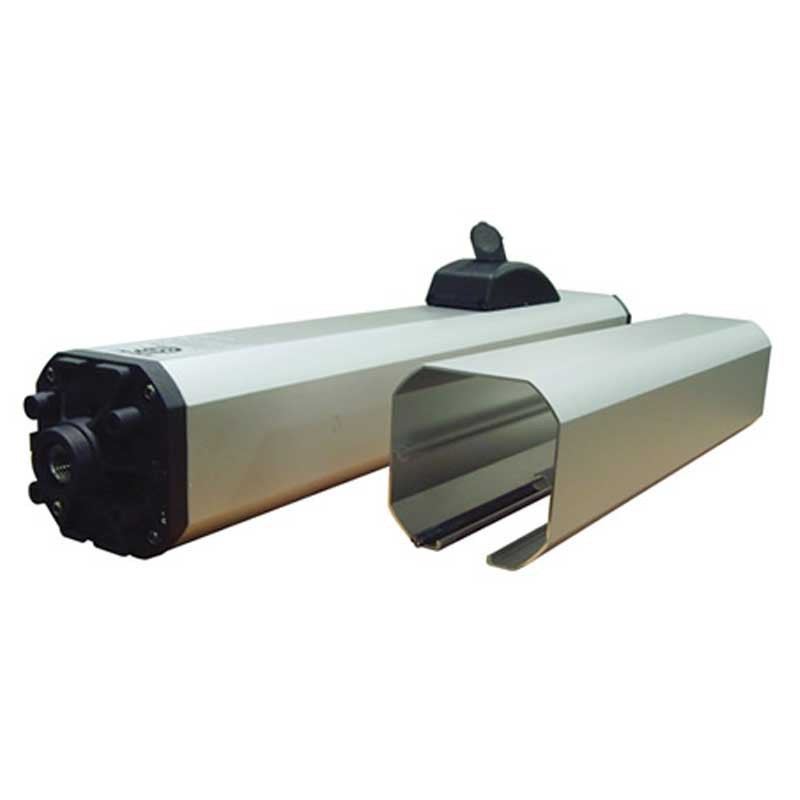

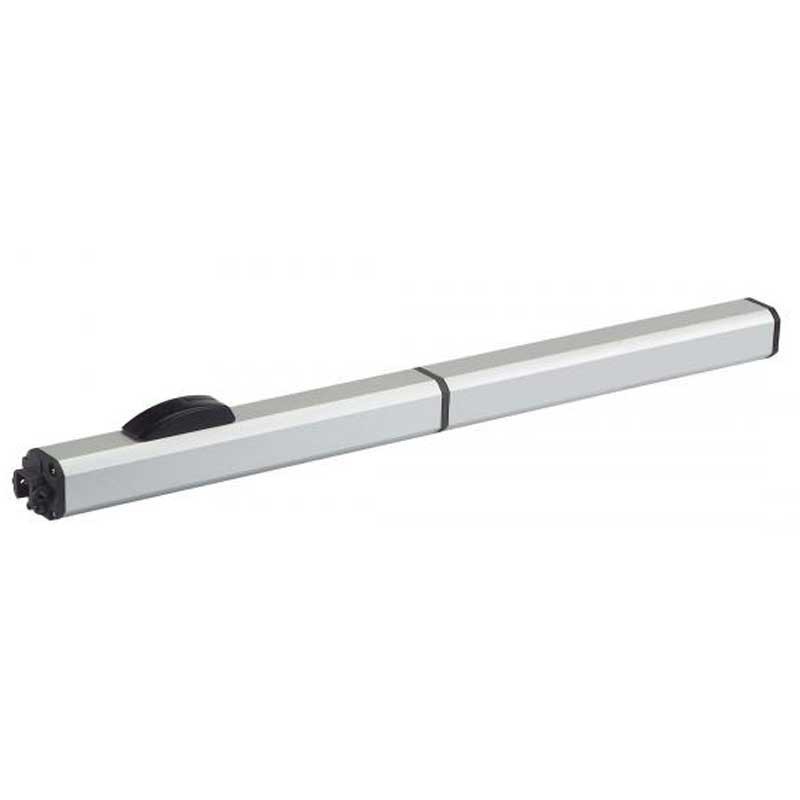

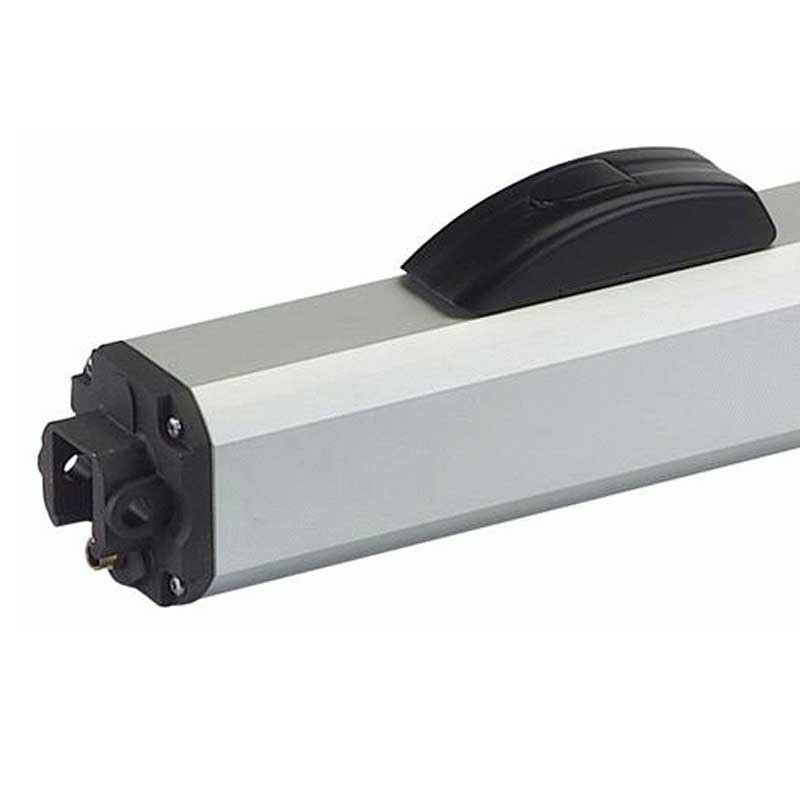

| 1 | FAAC 400 CBA 230v Operator |
| 1 | FAAC 455D Control Board |
| 1 | FAAC Control Board Housing |
| 1 | FAAC 868 SLH Plug in receiver/decoder |

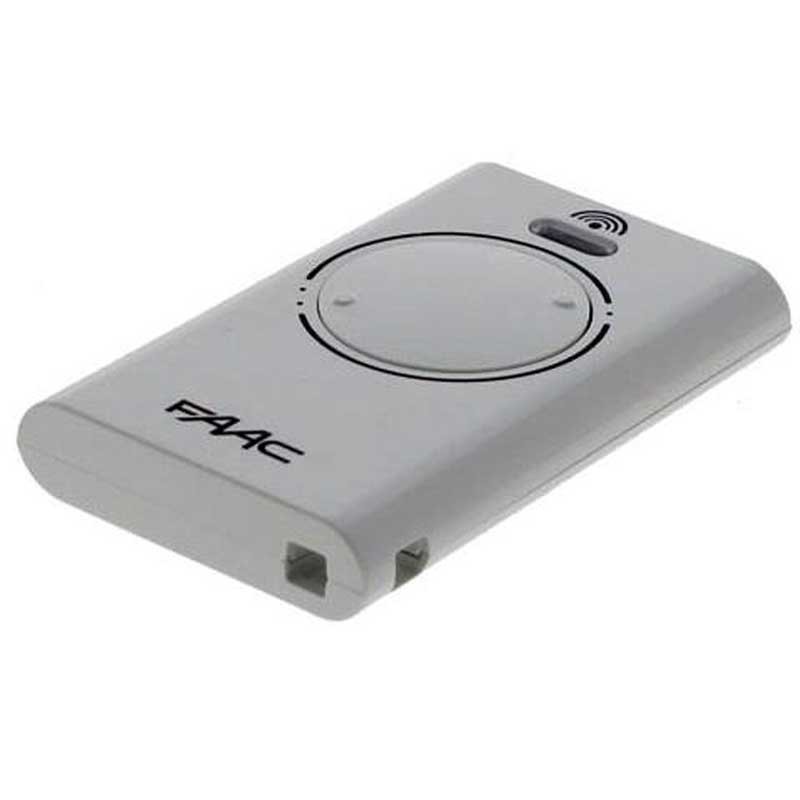

| 2 | FAAC 868 SLH 2 Channel Transmitter's |

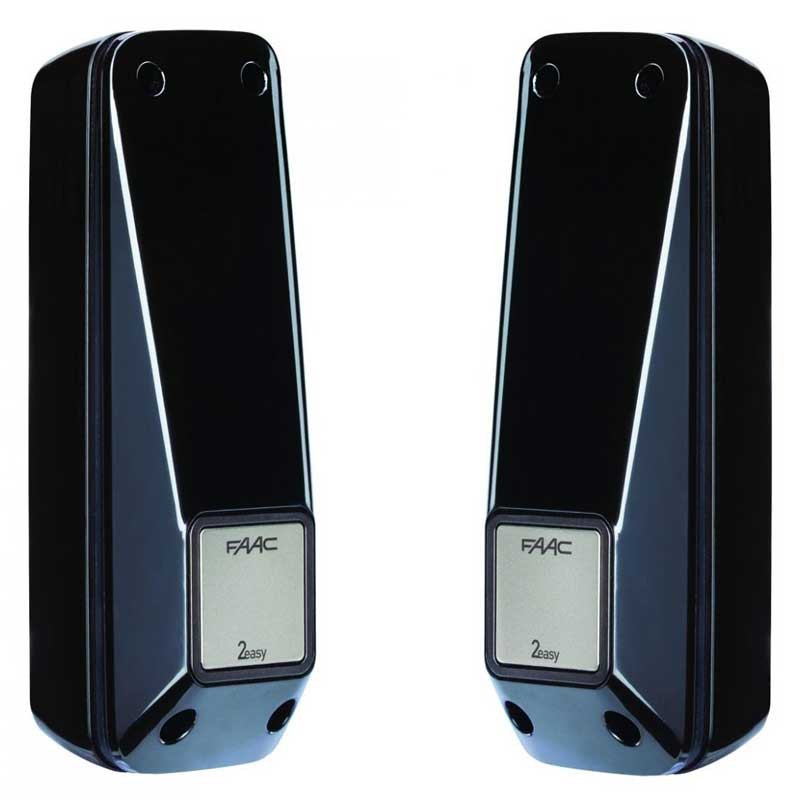

| 1 | FAAC XP 20 D Pair of Photocells |
| Motor Model | Mains Power Supply | Motor Voltage | Max Weight per Gate | Max Length per Gate | Locking Method | Motor | Gate Speed | Duty Cycle | Notes | KIT | SINGLE KIT |
| FAAC 400 CBA 104215 | 230v | 230v | 590kg | 2200mm | Opening hydraulic lock | Hydraulic | 20 seconds 90 Degrees | Intensive | FAAC 400 CBA KIT | FAAC 400 CBA KIT S | |
| FAAC 400 CBAC 104201 | 230v | 230v | 590kg | 2200mm | Opening and closing hydraulic lock | Hydraulic | 20 seconds 90 Degrees | Intensive | FAAC 400 UK KIT-CBAC | FAAC 400 UK KIT S-CBAC | |
| FAAC 400 CBAC LONG 104202 | 230v | 230v | 650kg | 2200mm | Requires solenoid lock | Hydraulic | 18 seconds 90 Degrees | Semi-intensive | Long Stroke. | FAAC 400 CBAC LONG KIT | FAAC 400 CBAC LONG KIT S |
| FAAC 400 CBACR 104207 | 230v | 230v | 410kg | 2200mm | Opening and closing hydraulic lock | Hydraulic | 14 seconds 90 Degrees | Intensive | Fast Motor. | FAAC 400 CBACR KIT | FAAC 400 CBACR KIT S |
| FAAC 400 CBC 104205 | 230v | 230v | 590kg | 2200mm | Closing hydraulic lock | Hydraulic | 20 seconds 90 Degrees | Intensive | FAAC 400 CBC KIT | FAAC 400 CBC KIT S | |
| FAAC 400 SB 104206 | 230v | 230v | 590kg | 4000mm | Requires solenoid lock | Hydraulic | 20 seconds 90 Degrees | Intensive | FAAC 400 SB KIT | FAAC 400 SB KIT S | |
| FAAC 400 SB LONG 104204 | 230v | 230v | 650kg | 2500mm | Requires solenoid lock | Hydraulic | 18 seconds 90 Degrees | Semi-intensive | Long Stroke. | FAAC 400 SB LONG KIT | FAAC 400 SB LONG KIT S |
| FAAC 400 SBS 104203 | 230v | 230v | 590kg | 5000mm | Requires solenoid lock | Hydraulic | 28 seconds 90 Degrees | Intensive | More Torque for Heavy or Pannelled Leaves. | FAAC 400 SBS KIT | FAAC 400 SBS KIT S |
| FAAC 400 SBS LONG 104220 | 230v | 230v | 650kg | 7000mm | Requires solenoid lock | Hydraulic | 24 seconds 90 Degrees | Semi-intensive | Long Stroke. More Torque for Heavy or Pannelled Leaves. | FAAC 400 SBS LONG KIT | FAAC 400 SBS LONG KIT S |
Technical specifications
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Single or twin kit | Single gate kit |
| Max weight per gate | 590 |
| Max length per gate | 2200 |
| Above or underground | Above ground |
| Max opening angle | 115 Degrees |
| Motor | Hydraulic |
| Locking method | Opening hydraulic lock |
| Power Supply Voltage | 230v |
| Motor voltage | 230v |
| Gate Speed | 20 seconds 90 Degrees |
| Duty Cycle | Intensive |
| Protection Rating | IP 55 |
| Motor Range | 400 |
| Product Type | Swing Gate Kit |
