CAME BKV1500P SLIDING GATE KIT 8K01MS-0630

Reference BKV1500P-KIT 8K01MS-0630

Quick Overview

Sliding gate kit. 36v. Max 1500kg. Per gate. Encoder. EN Tested. Sliding Gate Kit 36v Continuous Use 1500kg Max leaf weight Electromechanical Speed 12 m/min

Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
Regular price: £1,502.40
Reduced price: £991.58 Save 34%
Tax included
Reduced price: £991.58
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Kit Remote Options (required)
Reduced price: £991.58
Tax included
Came Connect Available

Share on

Product Description

CAME BKV1500P SLIDING GATE KIT 8K01MS-0630

Complete Sliding Gate Kit for Residential and Apartment Block Settings up to a Maximum of 1500kg in weight each leaf. CAME Connect. RIO Connect.

Battery Backup Available

Battery backup is available for this motor for in the event of a mains power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.

Slow Down on Open and Close

With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.

Intensive Use

The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.

Built in obstacle detection

This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.

3 Year Warranty

To support our confidence in CAME we offer a 3 year warranty on all CAME electrical components.

CAME Cloud Technology

Enjoy all the functionality of your CAME devices using a cloud based service. Monitor your video entry system from wherever you are via the internet. On smartphone you can receive audio/video calls from your entry panel and open your gate remotely using the XIP mobile app. Available on the App Store and Google Play.

CAME RIO Total Wireless Safety

RIO System needs no hard wiring between the control unit and safety accessories speeding up installation time.This is ideal for bringing any existing system up to code. The control unit is linked to the operators control panel while the other modules communicate with the unit via radio.

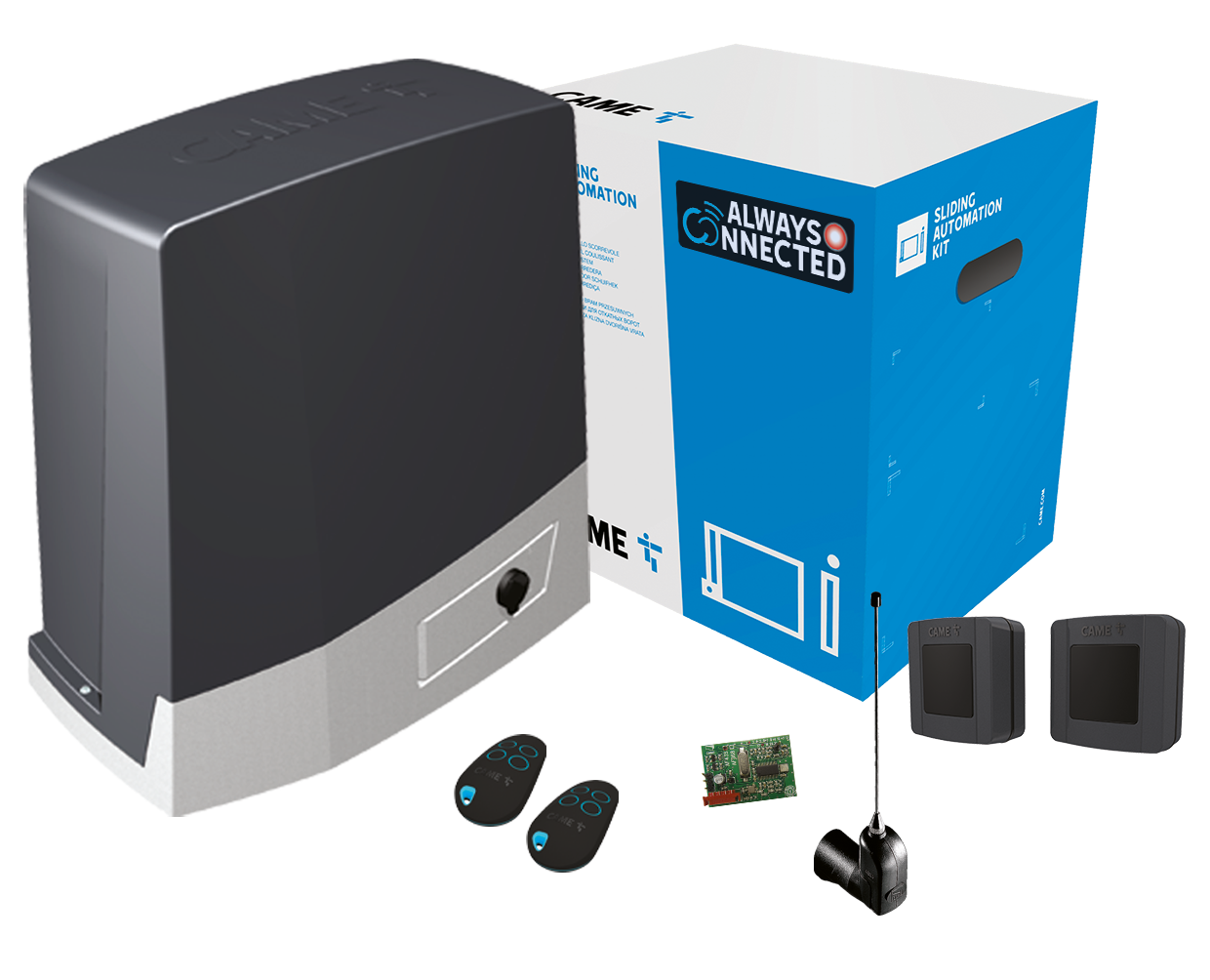

What comes in the box
QuantityItem
1 CAME BKV15AGE 36v motor
1 CAME AF43S Frequency Card
1 CAME Pair of Safety Photocells
2 CAME Four Channel Black Radio Remote's
1 CAME TOP-A433N Antenna
Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Motor Gate Speed Duty Cycle Notes KIT SINGLE KIT
CAME BKV15AGE - 801MS-0350 230v 36v 1500kg Mechanically locking motor Electromechanical 12 m/min Continuous Continuous Use CAME BKV1500P-KIT
CAME BKV20AGE - 801MS-0360 230v 36v 2000kg Mechanically locking motor Electromechanical 12 m/min Continuous Continuous Use CAME BKV2000P-KIT
CAME BKV25AGE - 801MS-0370 230v 36v 2500kg Mechanically locking motor Electromechanical 12 m/min Continuous Continuous Use CAME BKV2500P-KIT

Accessories & Related Products

-35%

BPT MTM GSM AUDIO INTERCOM KIT

£825.36 £536.48

Product Details

Reference BKV1500P-KIT 8K01MS-0630 Category Electric Gate Kits Brand CAME
CAME

Product Specifics

Shipping Index 1
Gate type Sliding gate
Single or twin kit Single gate kit
Max weight per gate 1500
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 36v
Gate Speed 12 m/min
Duty Cycle Intensive continuous
Protection Rating IP 54
Category Sliding Gate Kit
