Product Description
FAAC 412 UK KIT
Complete kit for a pair of residential swing gates up to a maximum of 1.8m each leaf.
*NEW 2024 Updated kit*
+Benefits of the E145S
Compatible with both Simply Connect and FDS technologies
The BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.
Safety edges can be wired directly on to dedicated terminals, with either one or two resistive edges working in each direction.
There are two configurable outputs which allow detailed control of accessories, such as a locks or traffic lights.
This smart board has onboard diagnostic, which will speed up fault finding by having access to both error and alarm codes.
The configuration file of all the setting can be downloaded, saved and uploaded. This is possible either via a USB stick or through Simply Connect, saving time when installing similar systems on multiple gates.
+Benefits of the FDS Transmitters
Bidirectionality The FDS BD transmitter provides haptic feedback to confirm the open command was received and it is also possible to check if the gate is closed by holding down the button and checking the colour of the remotes LED.
Bidirectional transmitters are equipped with a built in TAG compatible with FAAC XTR B readers
+Benefits of the BUS Photocells
Simplified wiring and the BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.
Integrated Open & Close Limits
This equipment features adjustable open and close limits. This allows you to set the gates limits of travel without the need for a physical stop in the ground. This feature has some limitiations and may not function correctly on wider gates. If your gates are over 1.8m in width it is advisable to talk to us before ordering if this feature is critical to your installation.
LCD Display
Control Panel with LCD display for simplified programming.
Quick & Easy Installation

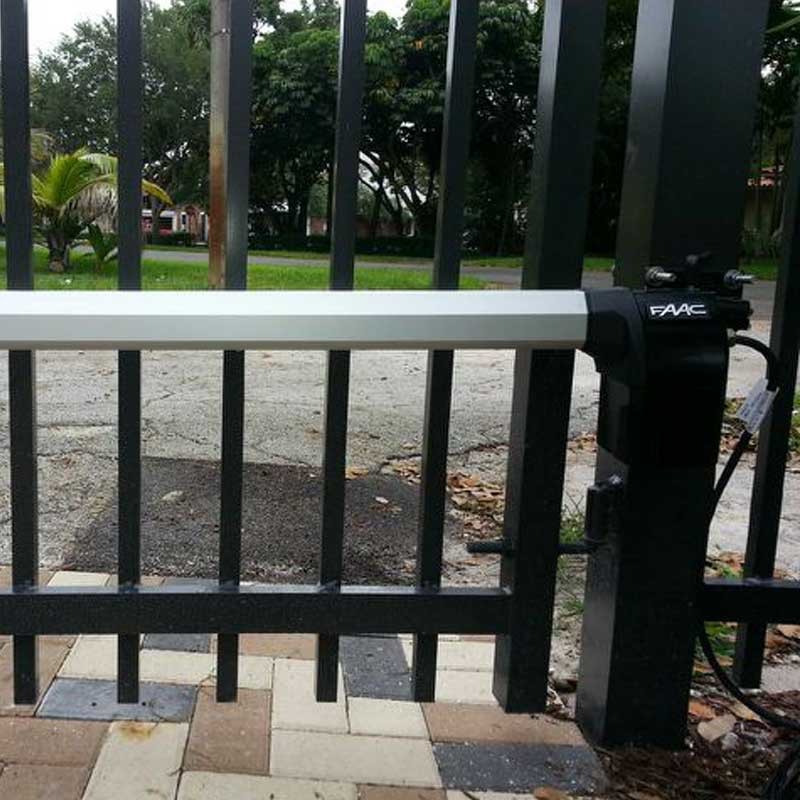

Equipment designed for the quick & easy installation to existing hinged swing gates.
| What comes in the box | |
|---|---|
| Quantity | Item |

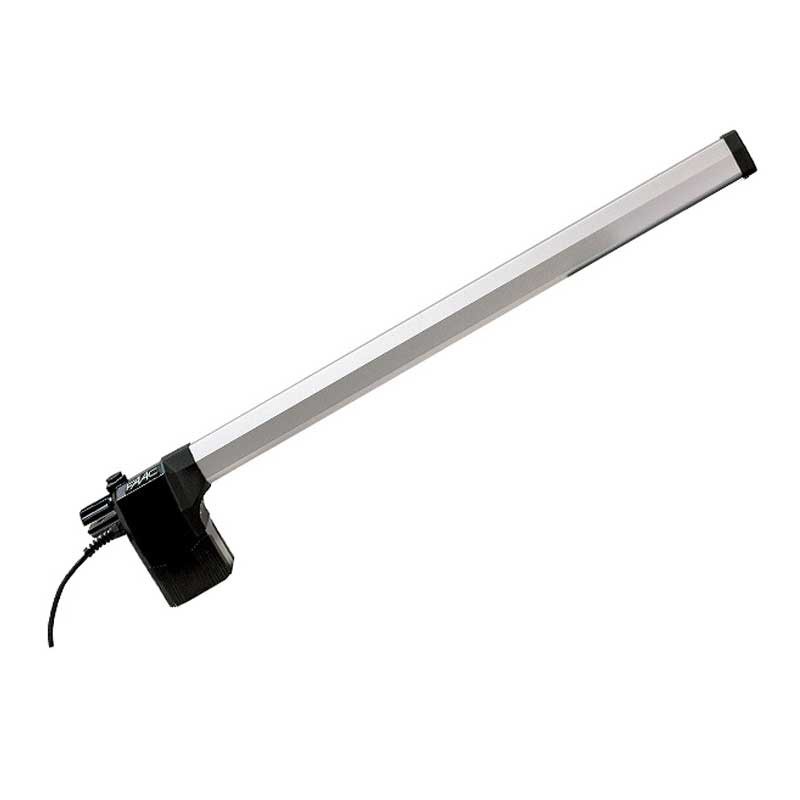

| 1 | FAAC 412 RH 230v Operator |

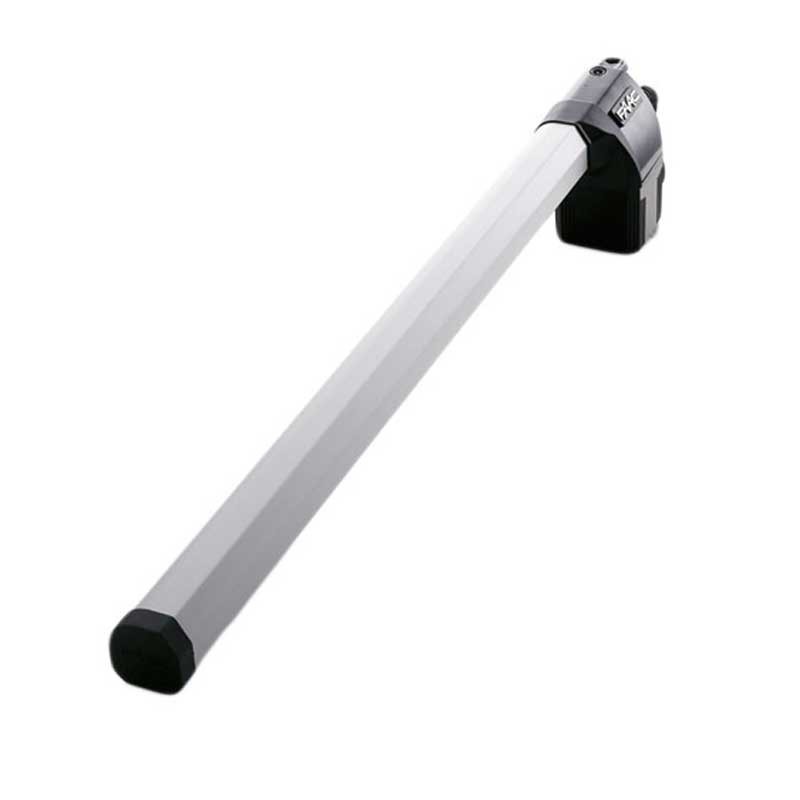

| 1 | FAAC 412 LH 230v Operator |
| 1 | FAAC E145S Control Board |

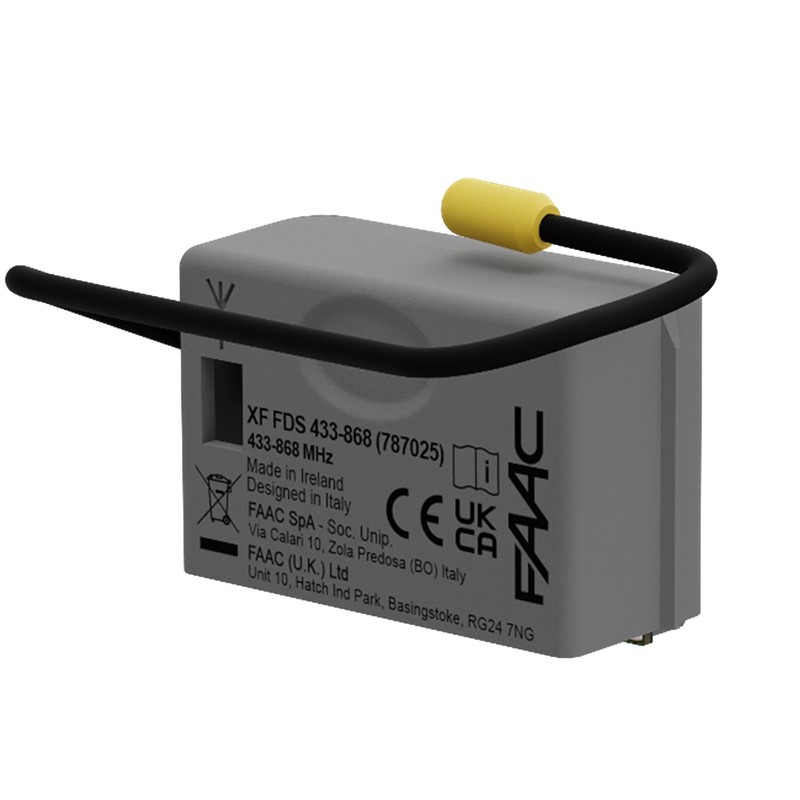

| 1 | FAAC XF FDS Plug in receiver/decoder |
| 2 | FAAC 868 FDS 2 Channel Transmitter's |

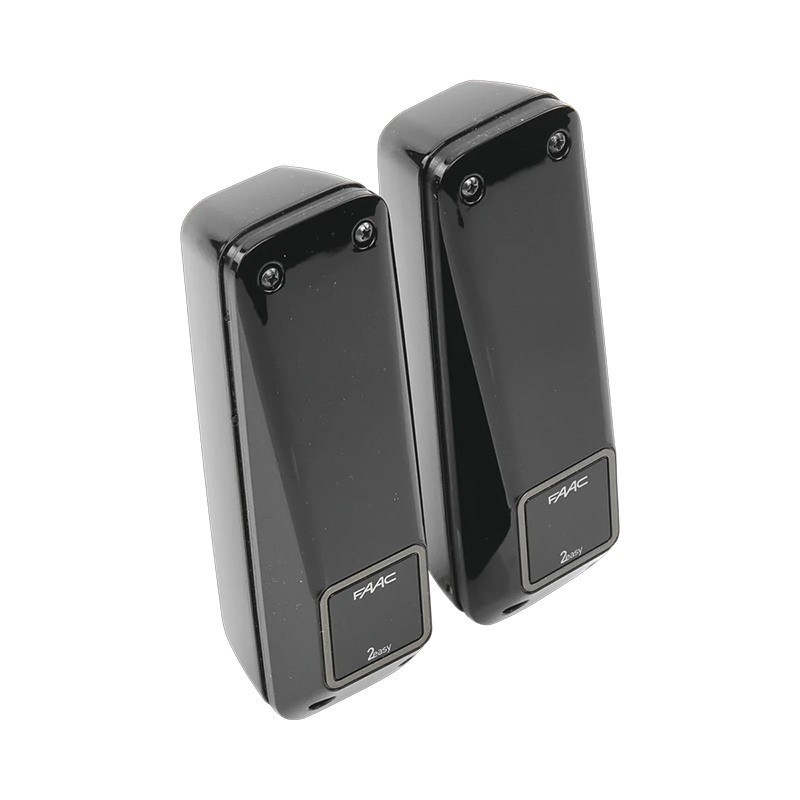

| 1 | FAAC XP 20B D Pair of Photocells |
| Motor Model | Mains Power Supply | Motor Voltage | Max Weight per Gate | Max Length per Gate | Locking Method | Motor | Gate Speed | Duty Cycle | Notes | KIT | SINGLE KIT |
| FAAC 412 DX 104470 | 230v | 230v | 225kg | 1800mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | 18 cycles/hour | FAAC 412 UK KIT | ||
| FAAC 412 SX 104471 | 230v | 230v | 225kg | 1800mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | 18 cycles/hour | FAAC 412 UK KIT |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Single or twin kit | Twin gate kit |
| Max weight per gate | 225 |
| Max length per gate | 1800 |
| Above or underground | Above ground |
| Max opening angle | 110 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Power Supply Voltage | 230v |
| Motor voltage | 230v |
| Gate Speed | 15 seconds 90 Degrees |
| Duty Cycle | 18 cycles/hour |
| Protection Rating | IP 44 |
| Motor Range | 412 |
| Product Type | Swing Gate Kit |
| Catalogue | Faac_Price_List_FEB_23.pdf |
| Page | 23 |
