Product Description
BFT Kustos Ultra BT B40 24c Electric Gate Kit Single - Mpro
Complete kit for a single residential or multi-residence swing gate up to a maximum of 4m in width or 700kg in weight each leaf.
MPRO BUNDLE: Upgrade remotes to 4 button Mitto Styles and includes Boltable brackets SFR-BL
Battery Backup Available
Battery backup is available for this motor for in the event of a mains power failure. Electric gates make it particularly difficult to gain access to a property if the mains power fails.
Slow Down on Open and Close
With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.
Integrated Open & Close Limits
This equipment features adjustable open and close limits. This allows you to set the gates limits of travel without the need for a physical stop in the ground. This feature has some limitiations and may not function correctly on wider gates. For gates where each leaf is over 2.5m we reccomend a physical stop in the open and close positions.
LCD Display
Control Panel with LCD display for simplified programming.
Intensive Use
The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.
Built in obstacle detection
This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person or a vehicle or an object or even wind obstructing the path of the gate. Although this safety feature can be very effective it is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.
Quick & Easy Installation
Equipment designed for the quick & easy installation to existing hinged swing gates. Can be easily fitted to gates and pillars with minimal excavation needed for the supply of mains power to the control board & low voltage cabling to the motors.
Solar Ready
This equipment can be solar powered. Whether you are looking for a low cost eco-friendly installation or want to cut down the cost of installation by removing the need to excavate for mains power or you simply cant get mains power to the gate for whatever reason. This equipment is the ideal choice.

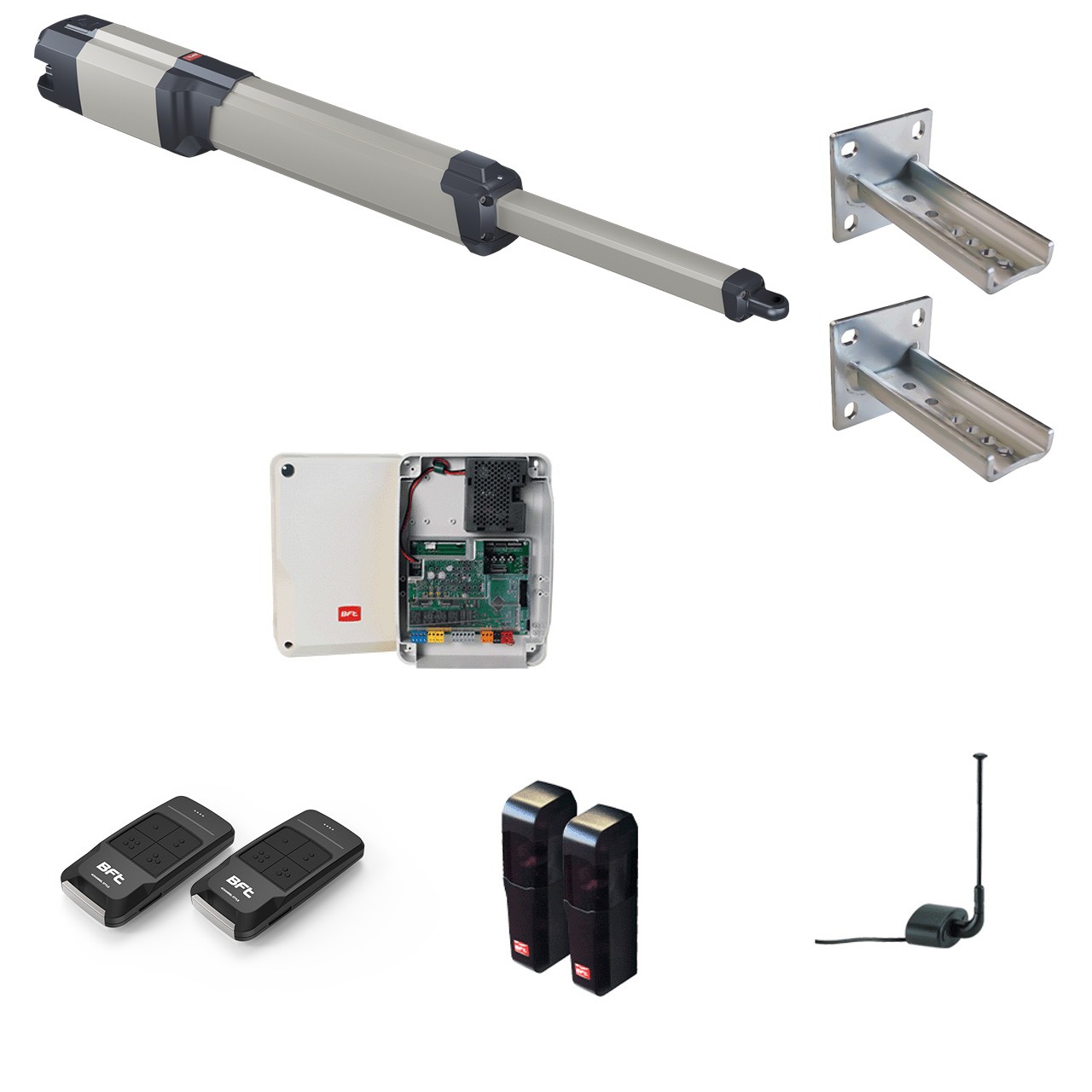

| What comes in the box | |
|---|---|
| Quantity | Item |

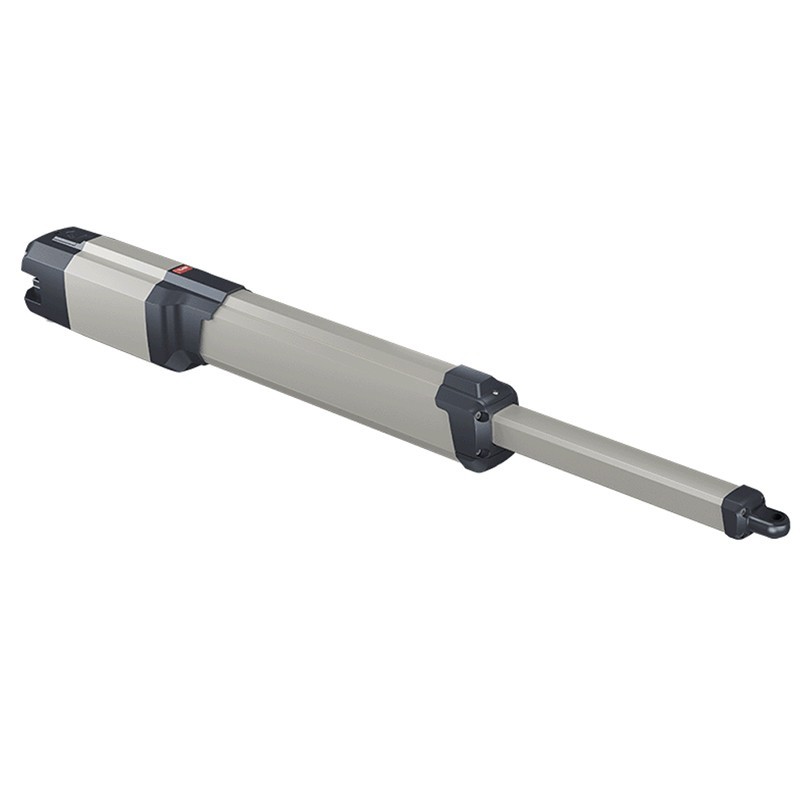

| 1 | BFT KUSTOS ULTRA BT B40 24v Motor |

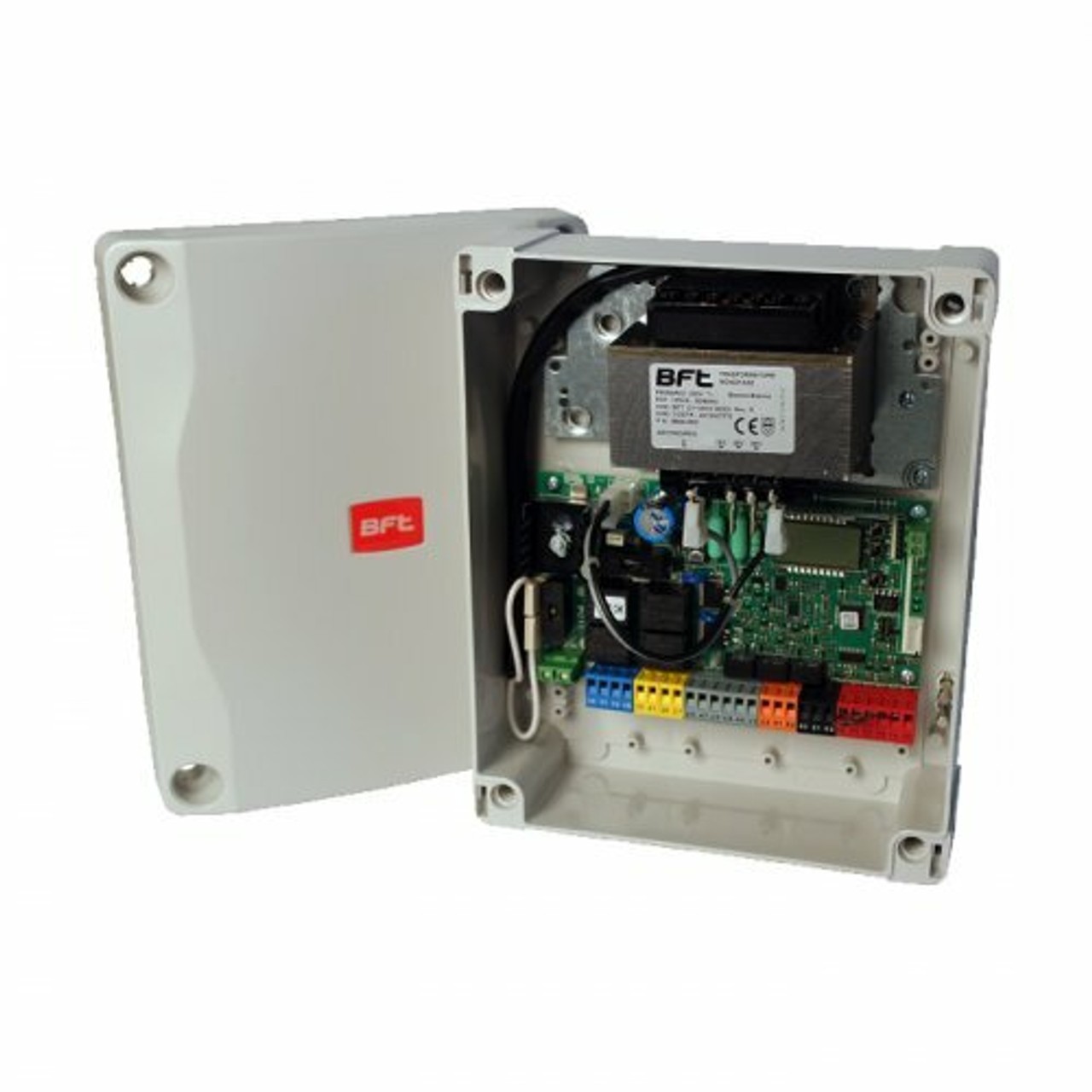

| 1 | BFT THALIA BT A80 Control Panel |

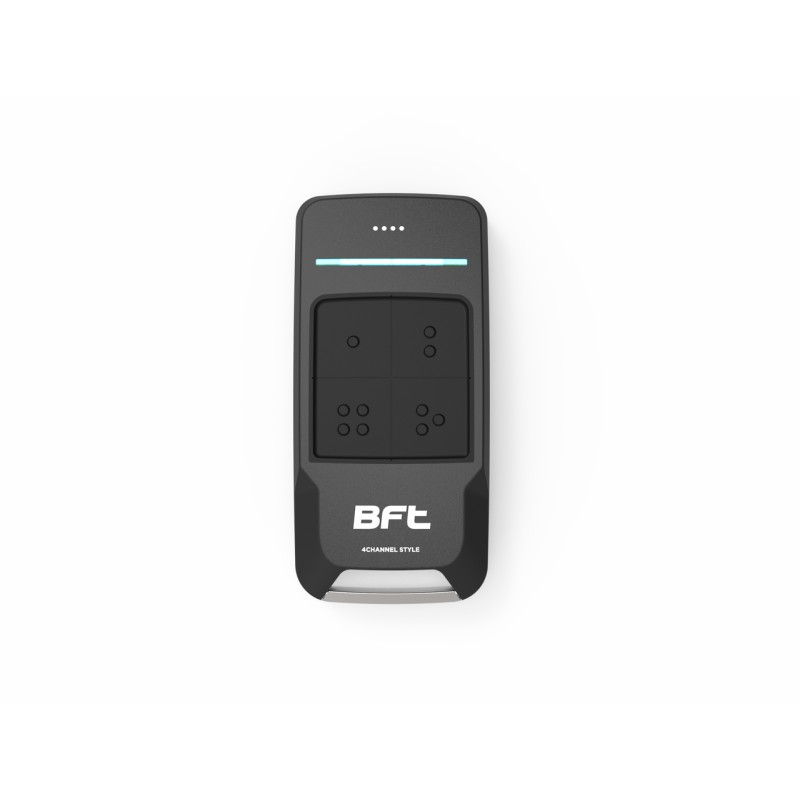

| 2 | BFT Mitto Style 4 Button Transmitter's |

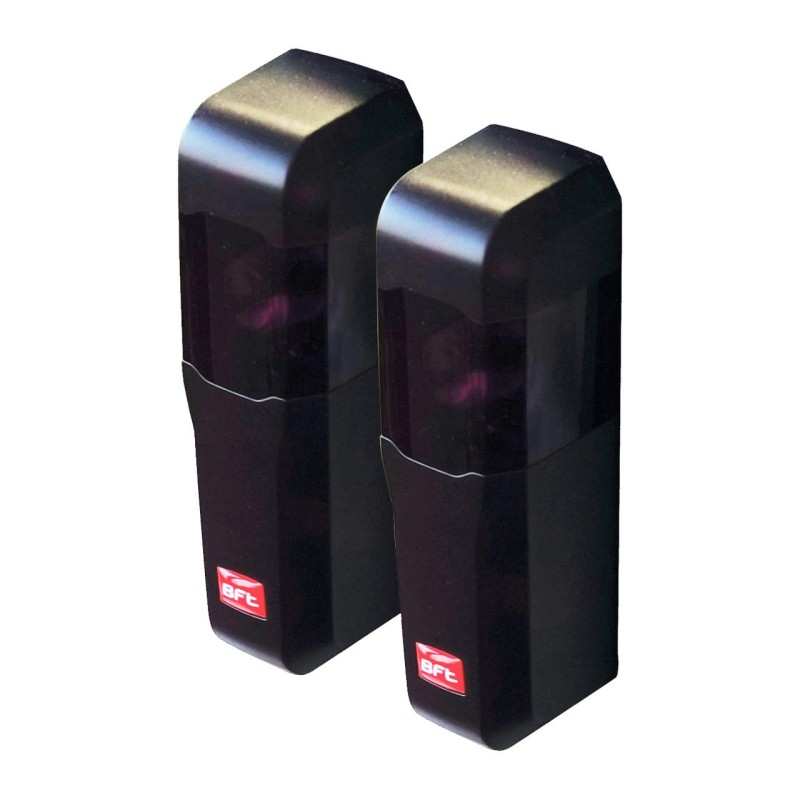

| 1 | BFT Compacta Pair of safety photocells |

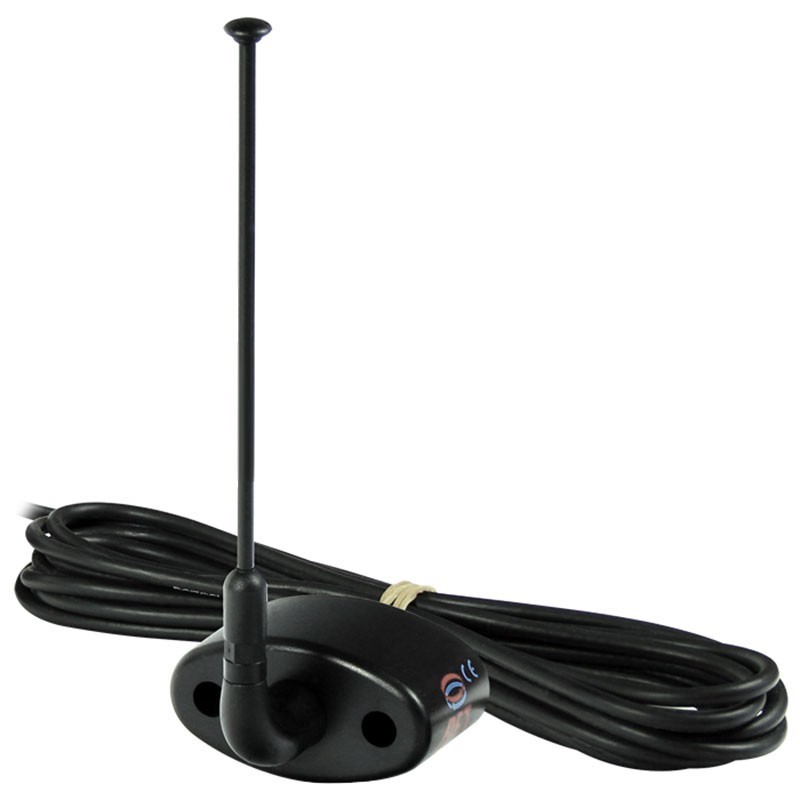

| 1 | BFT Antenna |
| 1 | BFT SFR-BL Boltable Brackets |
| Motor Model | Mains Power Supply | Motor Voltage | Max Weight per Gate | Max Length per Gate | Locking Method | Gate Speed | Max Opening Angle | Notes | KIT | SINGLE KIT |
| BFT KUSTOS ULTRA BT A40 24V | 230v | 24v | 400kg | 5000mm | Mechanically locking motor | 17 seconds 90 Degrees | 126 Degrees | BFT KUSTOS ULTRA BT A40 24V KIT | BFT KUSTOS ULTRA BT A40 24V KIT S | |
| BFT KUSTOS ULTRA BT A25 24V | 230v | 24v | 400kg | 2500mm | Mechanically locking motor | 13 seconds 90 Degrees | 118 Degrees | |||
| BFT KUSTOS ULTRA BT B25 24V | 230v | 24v | 400kg | 2000mm | Mechanically locking motor | 13 seconds 90 Degrees | 118 Degrees | 2024 Model | ||
| BFT KUSTOS ULTRA BT B40 24V | 230v | 24v | 700kg | 4000mm | Mechanically locking motor | 17 seconds 90 Degrees | 126 Degrees | 2024 Model |
Accessories & Related Products
-40%
BFT MITTO B RCB 2 BLUE TRANSMITTER
-35%
BFT ECB DX 12V GATE LOCK RIGHT HAND
-35%
PROCON LD 102 24V 1 CHANNEL LOOP DETECTOR
-35%
BFT PHP PAIR OF PHOTOCELL COLUMNS
-12.5%
VIDEX 4000 SERIES GSM PRO INTERCOM KIT 4G (GSM4K) (PROX)
-35%
BFT COMPACTA PHOTOCELLS
BFT SFR-B-L LONG STROKE POST BRACKET
£90.94
-35.01%
BFT RADIUS LED BT A R1 24v
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Power Input | 40w |
| Gate type | Swing gate |
| Single or twin kit | Single gate kit |
| Gate Style | Barred |
| Max weight per gate | 700 |
| Max length per gate | 4000 |
| Max C Dimension | 130 |
| Post Configuration | corner hung front hung side hung |
| Above or underground | Above ground |
| Max opening angle | 126 Degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Power Supply Voltage | 230v |
| Motor voltage | 24v |
| Gate Speed | 17 seconds 90 Degrees |
| Duty Cycle | Intensive |
| Stops Required | closed neither open |
| Obstacle Detection | Built-In Obstacle Detection |
| Protection Rating | IP 44 |
| Motor Range | Kustos |
| Product Type | Swing Gate Kit |
