FAAC 740 UK KIT ELECTRIC GATE KIT
Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.
Overview & suitability
Sliding gate kit. 230v. Max 500kg. Per gate.
- Sliding Gate Kit
- 230v Semi-intensive Use
- 500kg Max leaf weight
- Electromechanical
- Speed 12 m/min
- Built-In Obstacle Detection
FAAC 740 UK KIT
Complete kit for a residential sliding gate up to a maximum of 500kg in weight each leaf.
Slow Down on Open and Close
With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.
LCD Display
Control Panel with LCD display for simplified programming.
Built in obstacle detection
This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person a vehicle an object or even wind obstructing the path of the gate. Although this safety feature can be very effective. It is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.
| What comes in the box | |
|---|---|
| Quantity | Item |

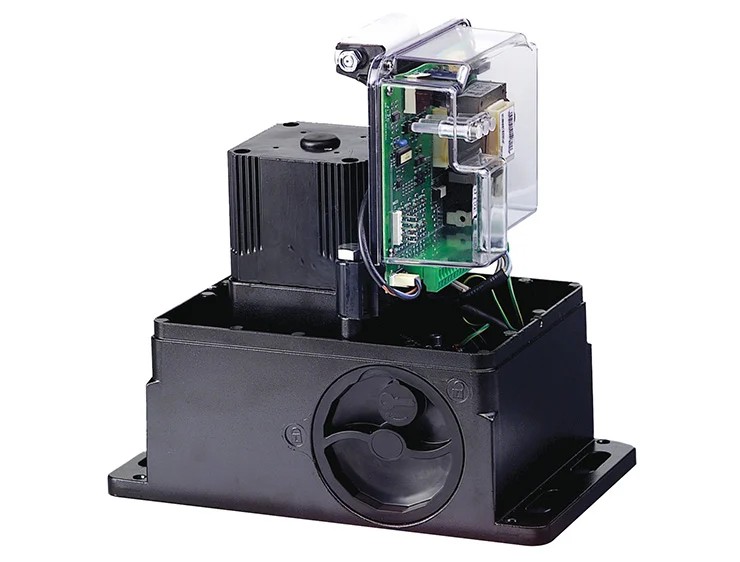

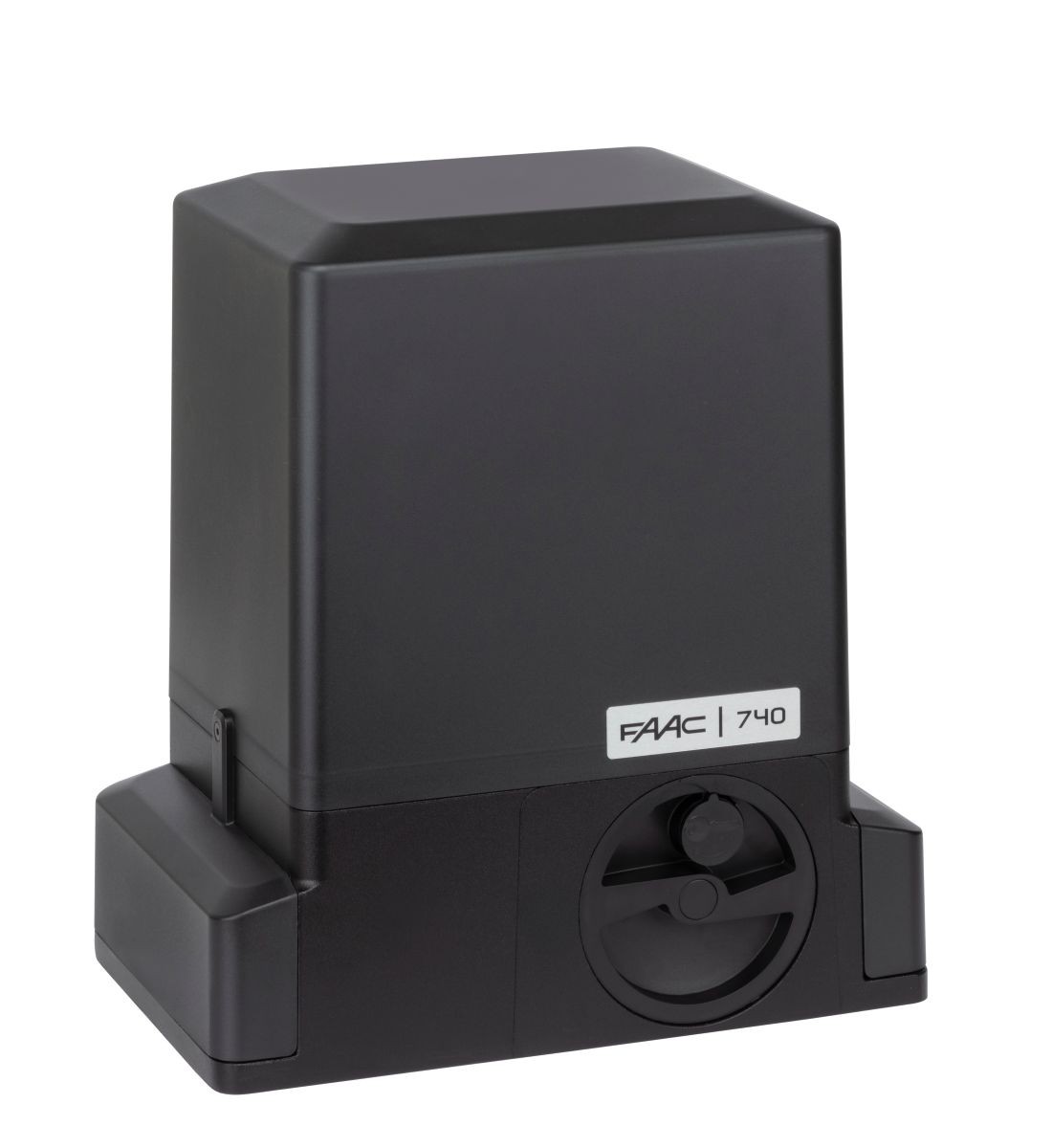

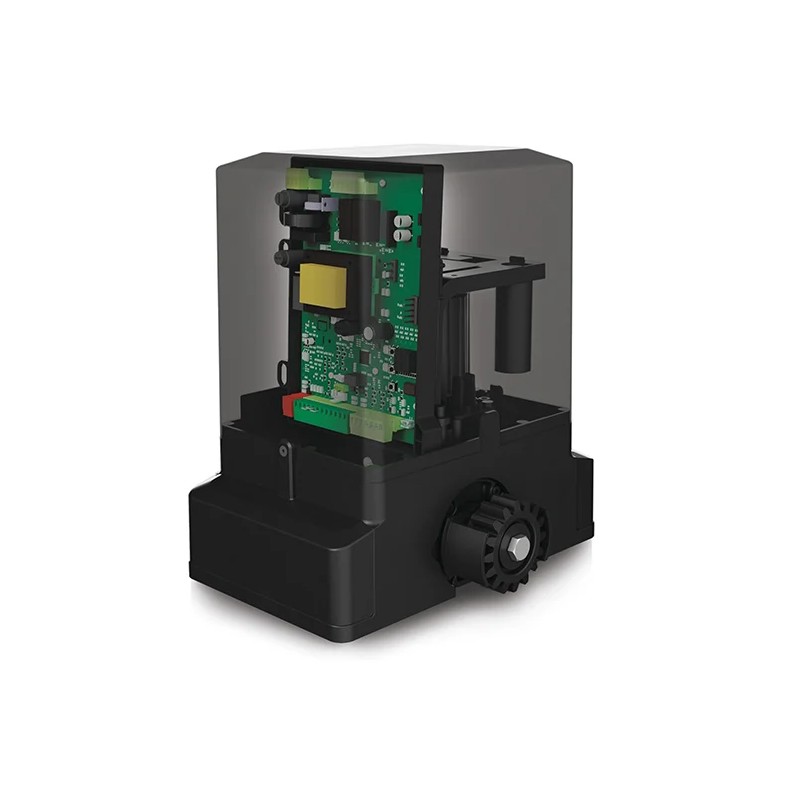

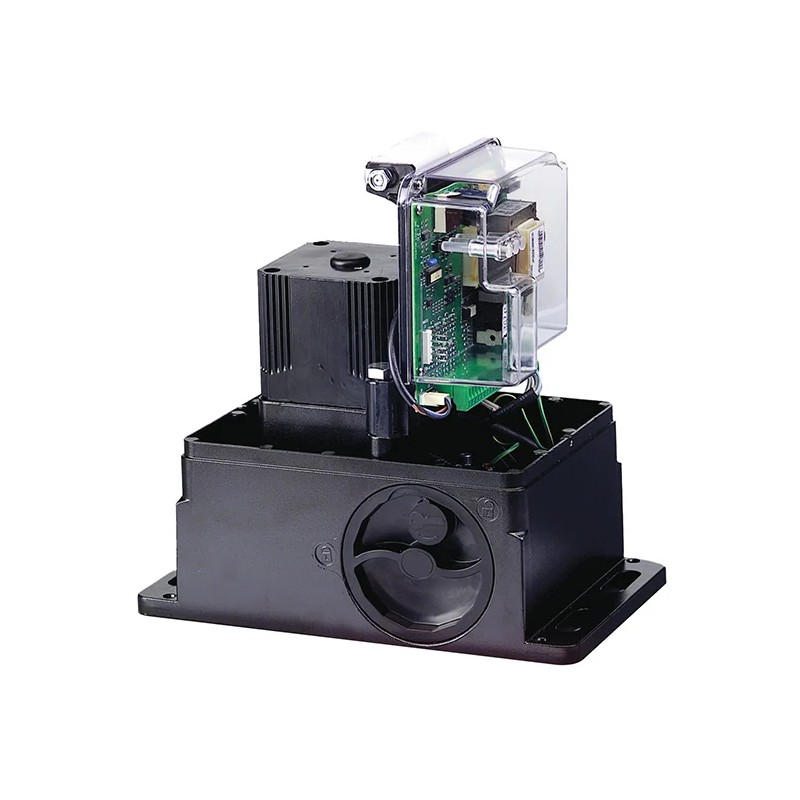

| 1 | FAAC 740 E Z16 230v Sliding Operator with E781S LC 230V Control Board |
| 1 | FAAC 868 SLH Plug in receiver/decoder |
| 2 | FAAC 868 SLH 2 Channel Transmitter's |
| 1 | FAAC XP 20 D Pair of Photocells |
| Motor Model | Mains Power Supply | Motor Voltage | Max Weight per Gate | Max Length per Gate | Locking Method | Motor | Gate Speed | Duty Cycle | Notes | KIT | SINGLE KIT |
| FAAC 740 E Z16 1097805 | 230v | 230v | 500kg | 15000mm | Mechanically locking motor | Electromechanical | 12 m/min | Semi-intensive | FAAC 740 UK KIT | ||
| FAAC 741 E Z16 1097815 | 230v | 230v | 900kg | 15000mm | Mechanically locking motor | Electromechanical | 12 m/min | Semi-intensive | FAAC 741 UK KIT |
Technical specifications
| Shipping Index | 1 |
|---|---|
| Gate type | Sliding gate |
| Single or twin kit | Single gate kit |
| Max weight per gate | 500 |
| Max length per gate | 15000 |
| Above or underground | Above ground |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Power Supply Voltage | 230v |
| Motor voltage | 230v |
| Gate Speed | 12 m/min |
| Duty Cycle | Semi-intensive |
| Obstacle Detection | Built-In Obstacle Detection |
| Protection Rating | IP 44 |
| Motor Range | 740 |
| Product Type | Sliding Gate Kit |
