LOCINOX ELECTRADROP DROP BOLT ELECTRADROP-SET-9005
Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.
Overview & suitability
- Set including drop bolt, ground stop and 24V power supply
- For gate profiles: 40 mm or more
- Throw: 115 mm
- Drop bolt diameter: 20 mm
- 5 m cable included

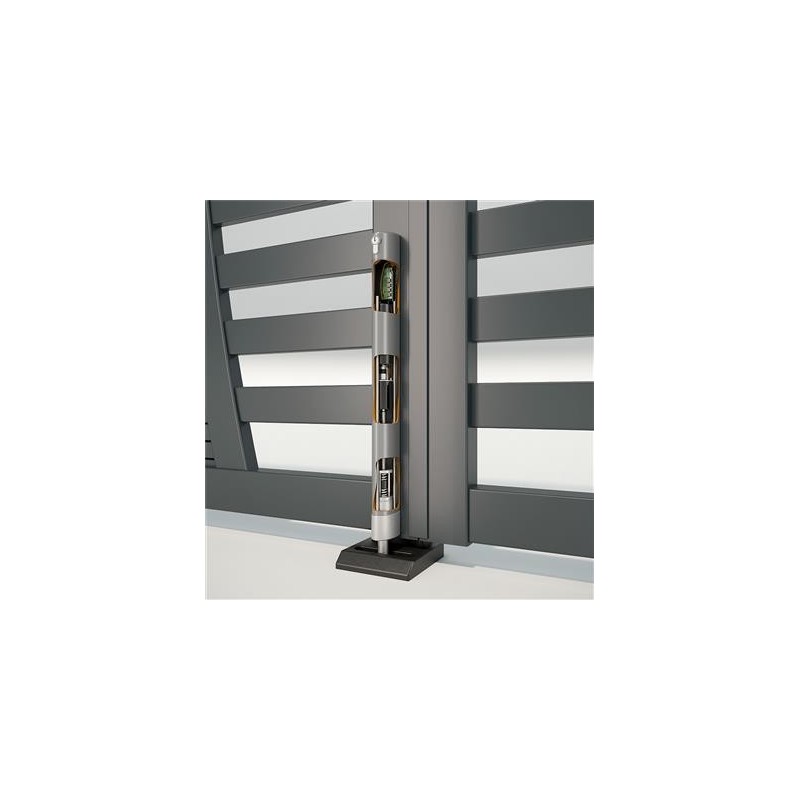

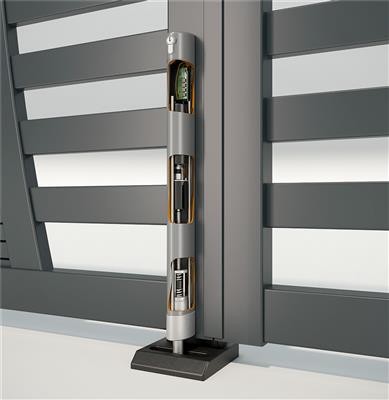

Locinox Electradrop 24v Electric Drop Lock (Electradrop-set-9005)
This dedicated ELECTRADROP kit combines every product for the best possible drop bolt protection of your double-leafe gate automation. Powered by the DC-POWER-24V-25W, the ELECTRADROP motorized drop bolt fits perfectly in the bolt-on ground stop SABO.
- Vandal-proof, powder coated aluminium housing
- To be connected to the warning light on automated gates (min 3 sec prewarning signal) or directly on the gate automation
- Automatic detection and memorisation of the continuous or pulse signal
- Mechanical release possible (by key) in case of emergency
- The integrated obstacle detection will automatically stop the drop bolt movement in case of overpressure to avoid injuries.
- Throw: 115 mm
- Drop bolt diameter: 20 mm
- For gate profiles: 40 mm or more
- Power consumption: Normal: 25 W / Peak: 48W / Standby: 0,2 W
- 5 m cable included
- Included: 3012-37-STD cylinder
- To connect to a Locinox PowerStone 60W
| What comes in the box | |
|---|---|
| Quantity | Item |
| 1 | Electradrop-9005 24v Electric Drop Lock |
| 1 | Powerstone-60w Power Supply |
| 1 | Bolt Down Ground Stop (SABO) |
Technical specifications
| Shipping Index | 1 |
|---|---|
| Locking method | Mechanical latch with electronic release |
| Power Supply Voltage | 24v |
| Product Type | Electric Lock |
