GATEMASTER SUPERHINGE 25MM SH25

Reference SH25
Previous
Next

Quick Overview

Super Hinge Low Friction Features Grease Point Tested to 500,000 openings Includes Anti-Tamper Snap Nut Ideal For Electric Gates M25 16MM - SH16 20MM - SH20 25MM - SH25 30MM - SH30

£55.80
£41.85 Save 25%
VAT included
Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...

Volume discounts

Quantity Unit price You Save
20 £39.06 £334.80
£41.85
VAT included
In Store

Share on

Product Description

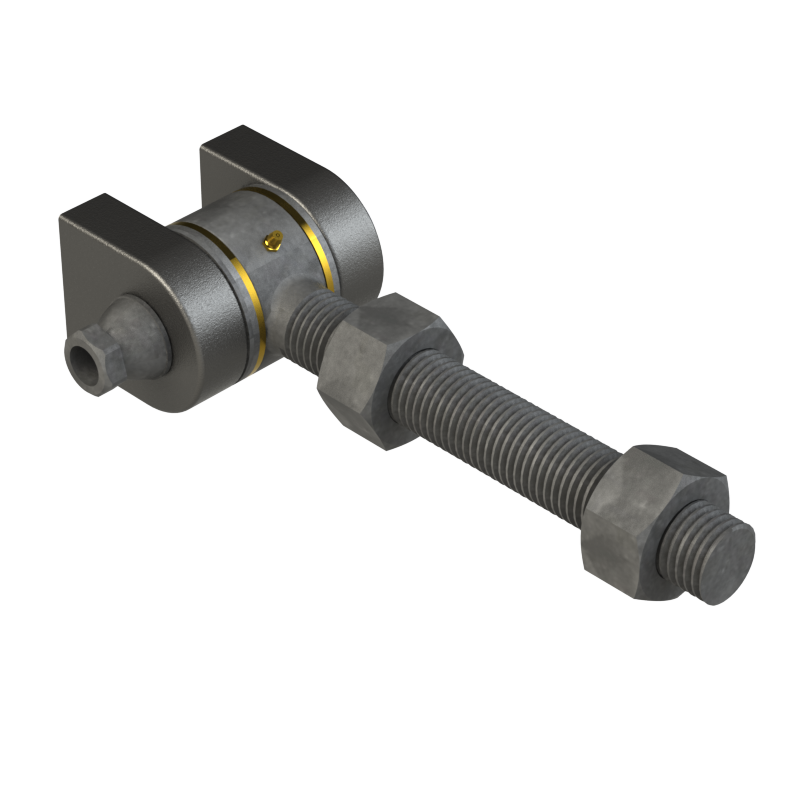

GATEMASTER SUPERHINGE 25MM SH25

DESCRIPTION
We designed our new Superhinge to survive constant heavy wear. As a result you won’t need to replace your hinges due to wear from constant use saving both money and time long term. The hinge incorporates an integral brass bearing and requires little or no maintenance once fitted other being greased every 6 months. Simply weld the brackets onto the post and drill a hole in the gate frame to receive the adjustable bolt.

KEY FEATURES
Suitable for all gates up to 900kg
500,000 openings with no wear – 50 years at an average of 25 openings a day!
Low friction, ideal for use with automated gates
PRODUCT OPTIONS
There are 4 sizes available, weight guidance on the hinges assumes a relationship between the width and height of the gate of 1 to 1.6.

SH16 – M16 thread size – 150kg per pair of hinges
SH20 – M20 thread size – 300kg per pair of hinges
SH25 – M24 thread size – 450kg per pair of hinges
SH30 – M30 thread size – 900kg per pair of hinges
Please note the products are sold individually, not in pairs

IMPORTANT NOTES
The manufacturers proved these hinges have exceptional wear resistance and guarantee to replace any hinge which shows excessive wear. Hinges must be re-greased every 6 months for this guarantee to apply.

INSTALLATION
Download the product spec sheet above (see: Product Download). Simply weld the brackets onto the post and drill a hole in the gate for the adjustable bolt.

What comes in the box
QuantityItem
1 GATEMASTER SUPERHINGE 25MM SH25 M25

Product Details

Reference SH25 Category Gate Hinges Brand GATEMASTER

Product Specifics

Shipping Index 1
Metric Size M25
Category Gate Hinge

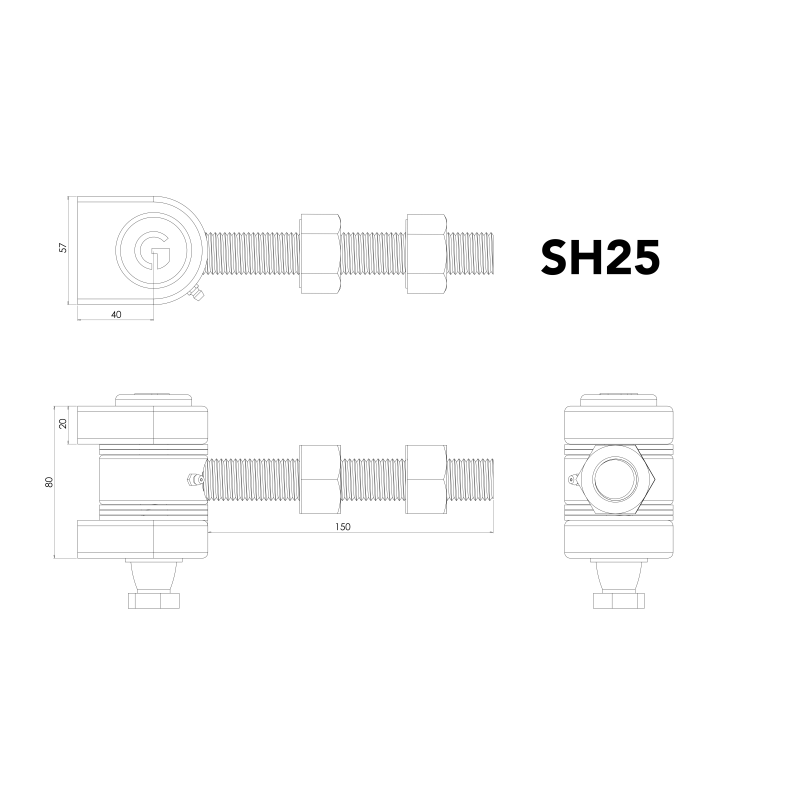

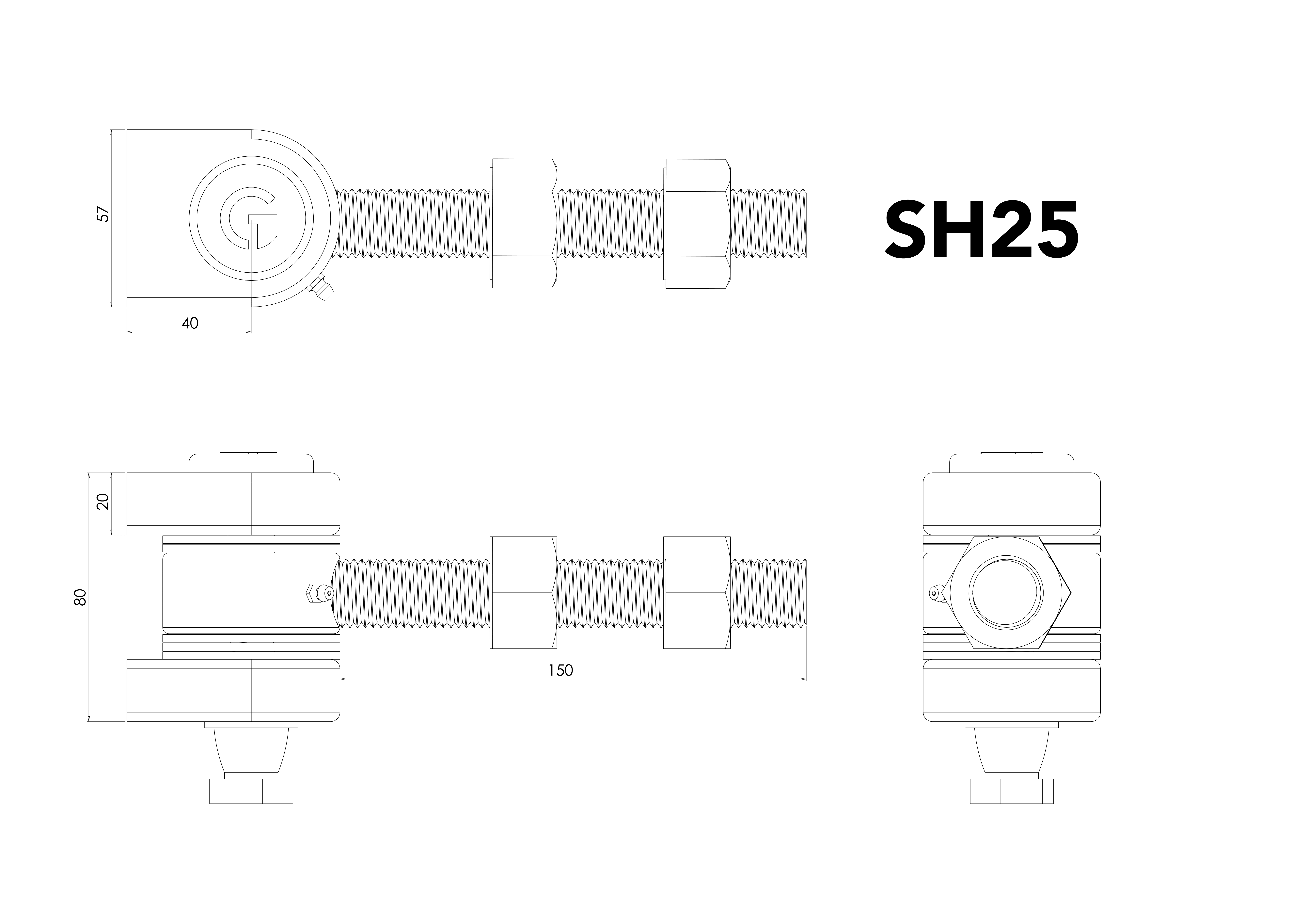

Superhinge Spec Sheet

Superhinge Spec Sheet
