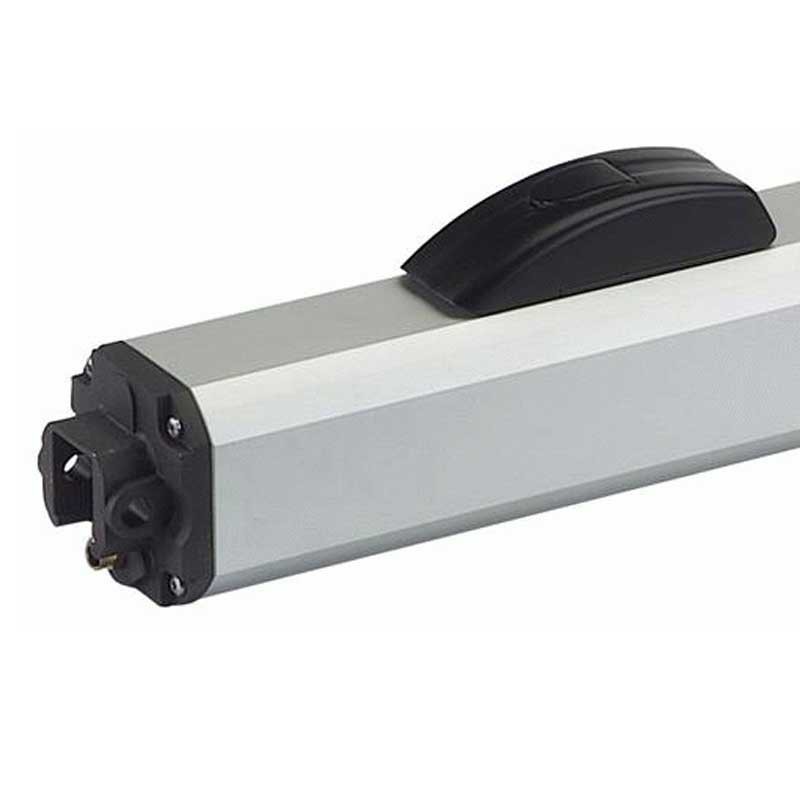

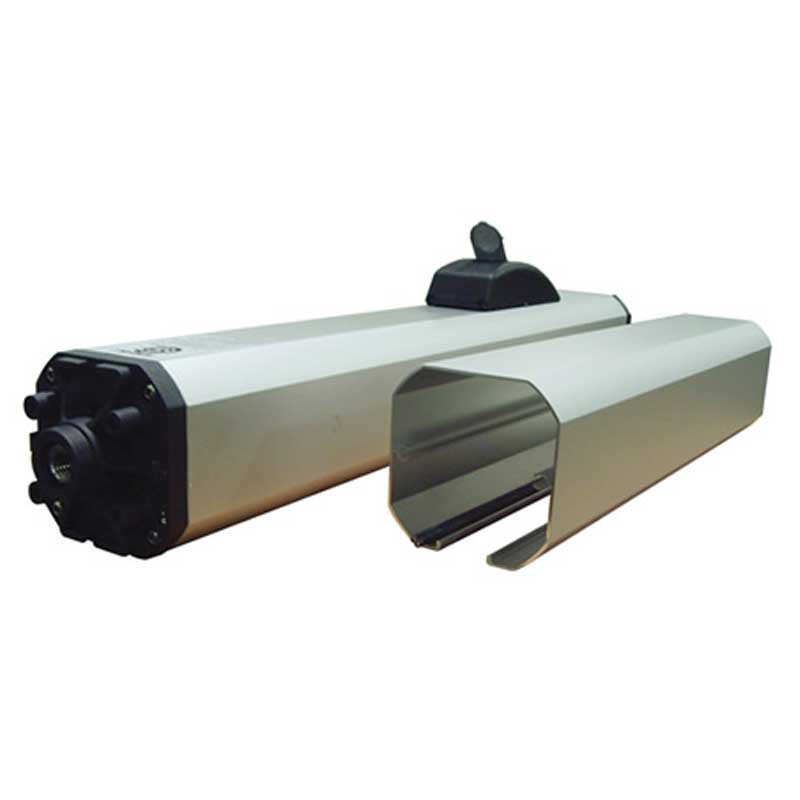

400 CBC 104205
  • 400 CBC 104205

FAAC 400 CBC 104205

400 CBC 104205
£804.00 (Includes VAT at 20%)
Single gate motor. 230v. Max 2200mm. 590kg. Per gate.
Quantity



Security policy



Delivery & Return policy



Warranty

Average votes for this product
0 / 5
Average : 0 / 5
Based on 0 customer reviews.

FAAC 400 CBC 104205

Looking to replace a broken FAAC 400 CBC 104205. This item can be used as a direct replacement for your broken or damaged gate motor.

If you are confident that you have the correct part and model buy before 2pm for next working day delivery. subject to stock.

All of our gate motors are brand new. genuine and direct from the manufacturer here in the UK with full advice and techincal support to aid you in getting your installation back up and running.

Our friendly staff are ready to answer any questions you may have. use our live chat at the bottom of the page or call us now on 01302 327172

What comes in the box
QuantityItem
1FAAC 400 CBC 104205 230v Motor
Motor ModelMains Power SupplyMotor VoltageMax Weight per GateMax Length per GateLocking MethodMotorGate SpeedDuty CycleNotesKITSINGLE KIT
FAAC 400 CBA 104215230v230v590kg2200mmOpening hydraulic lockHydraulic20 seconds 90 DegreesIntensiveFAAC 400 CBA KITFAAC 400 CBA KIT S
FAAC 400 CBAC 104201230v230v590kg2200mmOpening and closing hydraulic lockHydraulic20 seconds 90 DegreesIntensiveFAAC 400 UK KIT-CBACFAAC 400 UK KIT S-CBAC
FAAC 400 CBAC LONG 104202230v230v650kg2200mmRequires solenoid lockHydraulic18 seconds 90 DegreesSemi-intensiveLong Stroke.FAAC 400 CBAC LONG KITFAAC 400 CBAC LONG KIT S
FAAC 400 CBACR 104207230v230v410kg2200mmOpening and closing hydraulic lockHydraulic14 seconds 90 DegreesIntensiveFast Motor.FAAC 400 CBACR KITFAAC 400 CBACR KIT S
FAAC 400 CBC 104205230v230v590kg2200mmClosing hydraulic lockHydraulic20 seconds 90 DegreesIntensiveFAAC 400 CBC KITFAAC 400 CBC KIT S
FAAC 400 SB 104206230v230v590kg4000mmRequires solenoid lockHydraulic20 seconds 90 DegreesIntensiveFAAC 400 SB KITFAAC 400 SB KIT S
FAAC 400 SB LONG 104204230v230v650kg2500mmRequires solenoid lockHydraulic18 seconds 90 DegreesSemi-intensiveLong Stroke.FAAC 400 SB LONG KITFAAC 400 SB LONG KIT S
FAAC 400 SBS 104203230v230v590kg5000mmRequires solenoid lockHydraulic28 seconds 90 DegreesIntensiveMore Torque for Heavy or Pannelled Leaves.FAAC 400 SBS KITFAAC 400 SBS KIT S
FAAC 400 SBS LONG 104220230v230v650kg7000mmRequires solenoid lockHydraulic24 seconds 90 DegreesSemi-intensiveLong Stroke. More Torque for Heavy or Pannelled Leaves.FAAC 400 SBS LONG KITFAAC 400 SBS LONG KIT S
400 CBC 104205

Data sheet

Shipping Index
General
Power Input
220w
Gate type
Swing gate
Max weight per gate
590kg
Max length per gate
2200mm
Above or underground
Above ground
Max opening angle
115 Degrees
Motor
Hydraulic
Locking method
Closing hydraulic lock
Power Supply Voltage
230v
Motor voltage
230v
Gate Speed
20 seconds 90 Degrees
Duty Cycle
Intensive
Protection Rating
IP 55
Motor Range
400
Category
Swing Gate Motor

Download

faac 400 manual 2008

Download (1.65M)

faac 400 positive stop diagram

Download (838.99k)
