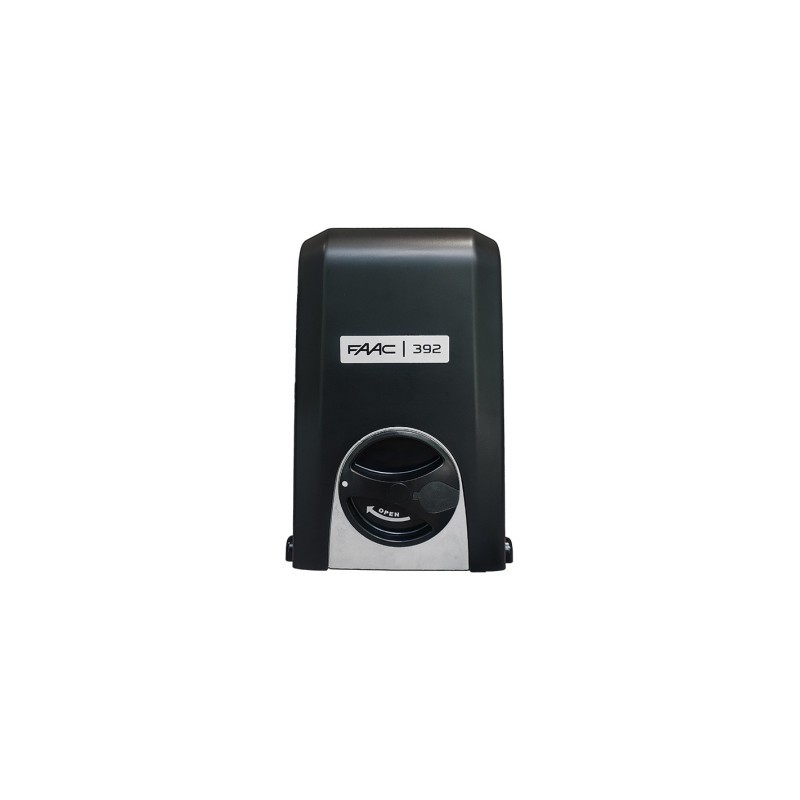

FAAC 392 Swing Gate Operator with Articulated Arm (No Control Board) (104584)

SKU 104584
Swing Gate Motor Above ground 2500 mm 300 kg 24v 80 cycles/day
Price: £438.00
Tax included

Reveal your customer price

Sign in or create a free account to see your lower price for this FAAC product.

No purchase required.

1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

Overview & suitability

FAAC 392 articulated arm motor for single residential swing gates up to 2.0m (2.5m with lock). Without control board. Successor to the FAAC 391 range.

FAAC 391 24v 104577

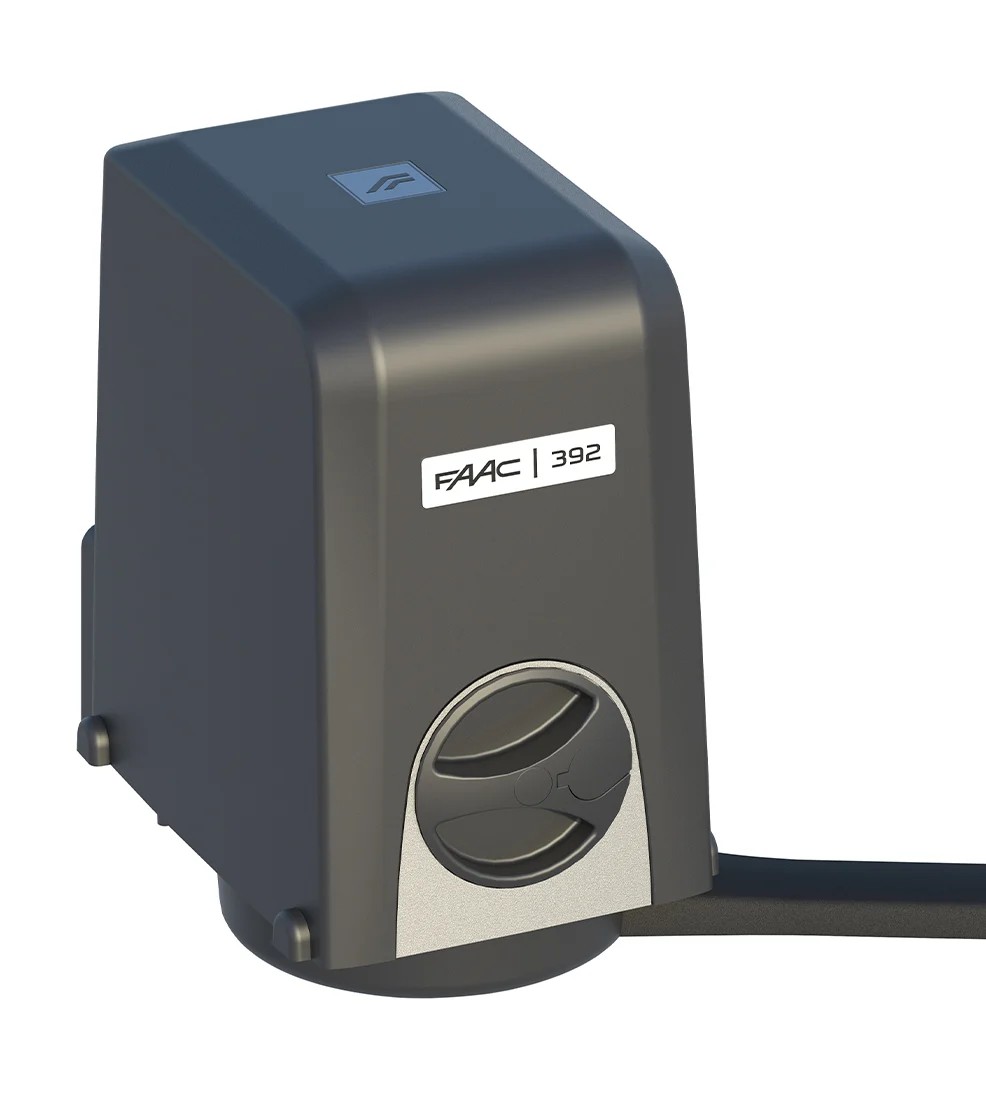

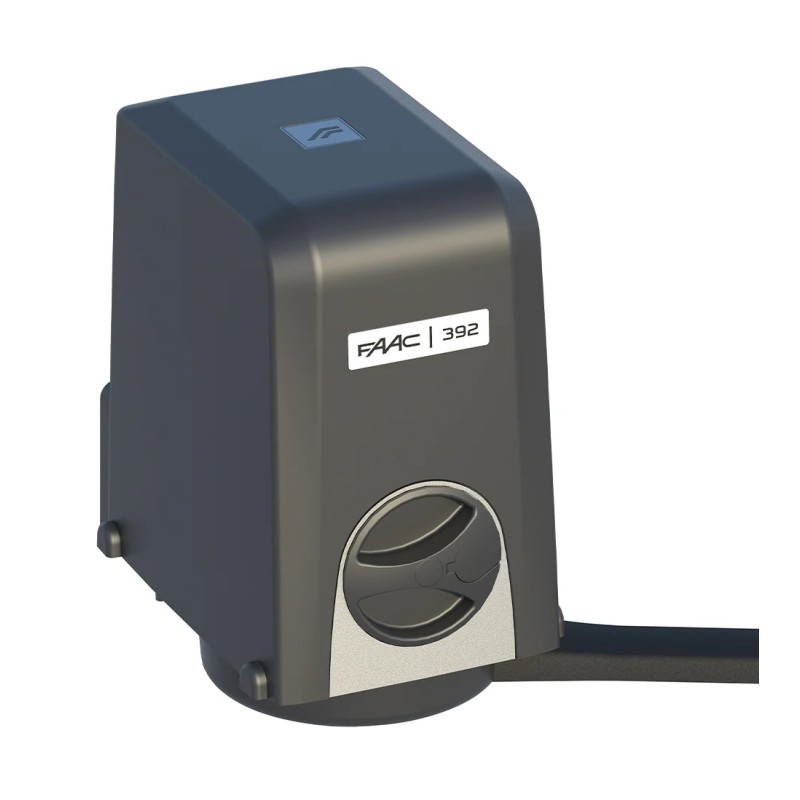

The FAAC 392 Operator (without control board) is a robust articulated arm swing gate motor designed for residential gates. It succeeds the older FAAC 391 series, offering the same trusted performance with updated compatibility in the FAAC 392 range.

This model is supplied without an integrated control board, making it ideal as:

  • The secondary/slave motor in a double gate automation system, or

  • A replacement operator where a compatible FAAC controller is already in place.

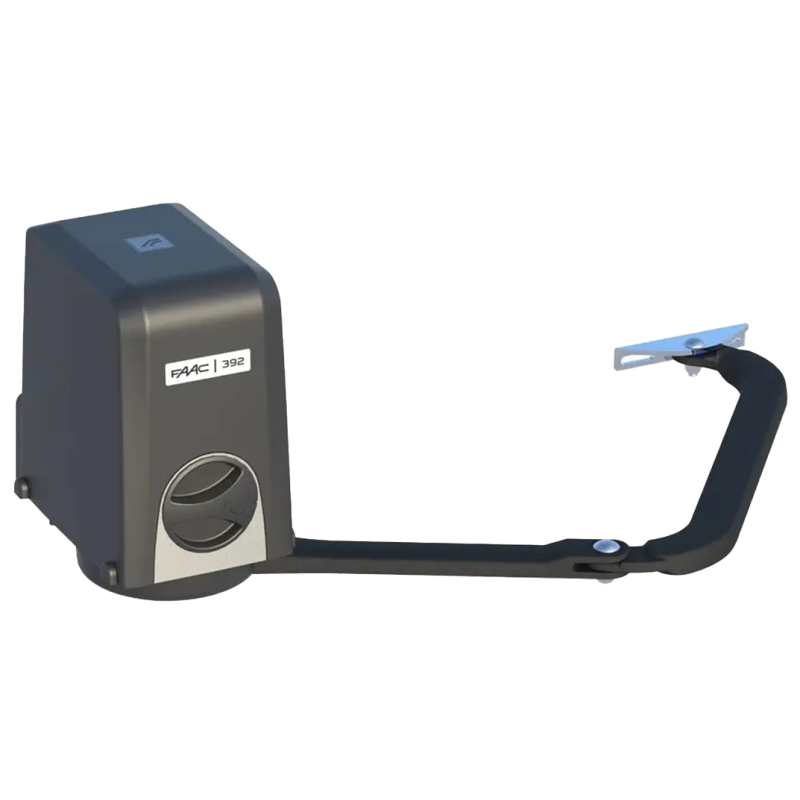

The articulated arm design makes the 392 especially suitable for gates mounted on wide pillars or posts, providing smooth travel and avoiding clearance issues typical of linear actuators.

Capacity: up to 2.0m per leaf, or 2.5m per leaf when an electric lock is fitted.


Specifications

  • Max gate leaf width: 2.0m (standard) / 2.5m (with electric lock)

  • Operator type: Articulated arm

  • Application: Single residential swing gates

  • Power supply: 230 V AC

  • Control board: Not included

  • Successor to: FAAC 391 series


What’s Included

  • 1 × FAAC 392 Operator with articulated arm (Part 104584)

(Note: This operator does not include a control board. For versions with integrated control, see the FAAC 392 C Operator or the complete FAAC 392 Kits.)

Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Motor Gate Speed Duty Cycle Notes KIT SINGLE KIT
FAAC 391 24v 104577 230v 24v 300kg 2500mm Mechanically locking motor Electromechanical 7 seconds 90 Degrees 80 cycles/day Slave motor. FAAC 391 UK KIT FAAC 391 UK KIT S
FAAC 391 E 24v 104576 230v 24v 300kg 2500mm Mechanically locking motor Electromechanical 7 seconds 90 Degrees 80 cycles/day Master Motor with Control Board. Obstacle Detection. FAAC 391 UK KIT FAAC 391 UK KIT S

Technical specifications

Shipping Index 1
Power Input 110w
Gate type Swing gate
Max weight per gate 300
Max length per gate 2500
Above or underground Above ground
Max opening angle 120 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 24v
Gate Speed Adjustable
Duty Cycle 80 cycles/day
Protection Rating IP 44
Motor Range 391
Product Type Swing Gate Motor
Catalogue Faac_Price_List_FEB_23.pdf
Page 17
