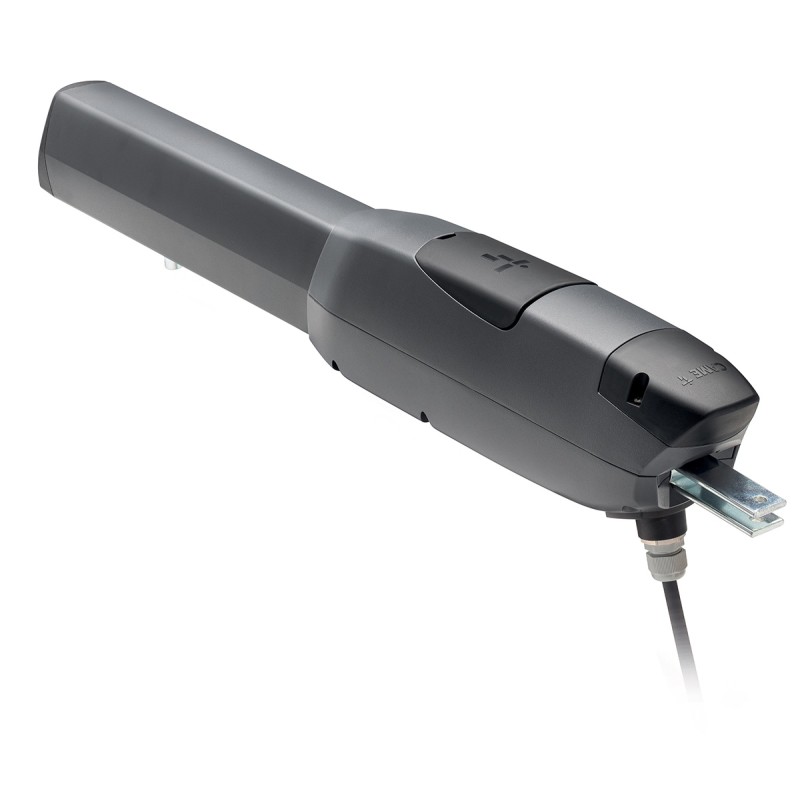

CAME ATI ATI50AGF 5m 230V Swing Gate Motor (801MP-0200)
Buy now pay later
Quick Overview
The CAME ATI50AGF is a 230V electromechanical swing gate motor for leaves up to 5m. It provides robust linear drive with integrated encoder feedback and is intended to be used with a separate CAME control panel.
Reduced price:
£382.20
Save 30%
Tax included
Reduced price:
£382.20
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price:
£382.20
Tax included
Share on
Product Description
CAME Ati ATI50AGF 5m 230V Swing Gate Motor (801MP-0200)
The ATI50AGF 5m 230V motor is part of CAME’s NEW ATI range of electromechanical operators for swing gates. It is designed to automate a single gate leaf up to 5m in length, within the specified weight limits, delivering up to 4000 N of thrust and a 90° opening in approximately 19 seconds.
Its structure is entirely in metal, using a die-cast aluminium body and extruded aluminium protective casing. This construction helps protect the internal worm screw from dirt and weather while limiting vibration during movement. A protected manual release with trilobe key allows the gate to be disengaged and moved by hand in the event of a power cut or fault. The operator is supplied with a pre-welded multi-hole tail bracket to simplify positioning on different post sizes and geometries.
An integrated encoder provides position feedback to a compatible CAME control panel, which handles all logic, safety, and accessory management. On its own, this product is the motor/operator only and must be combined with a suitable control board and accessories to form a complete gate automation system.

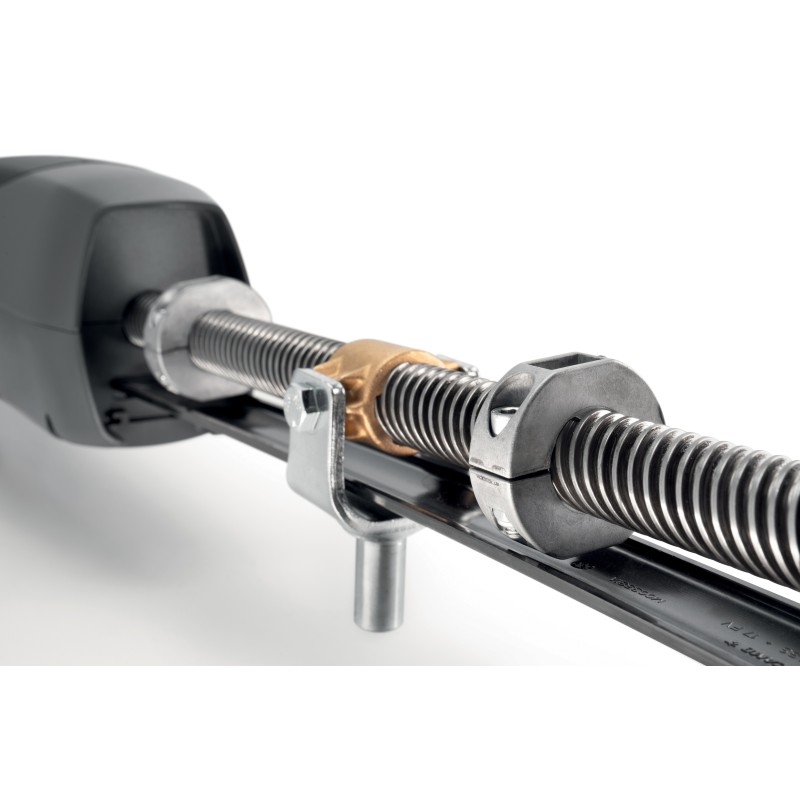

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.
✅ Key Features
-
Electromechanical linear swing gate operator for leaves up to 5m.
-
230V AC motor rated at 220 W with thrust from 400 to 4000 N.
-
Integrated encoder for precise positional feedback to the control panel.
-
Die-cast aluminium body with extruded aluminium casing to protect the drive screw.
-

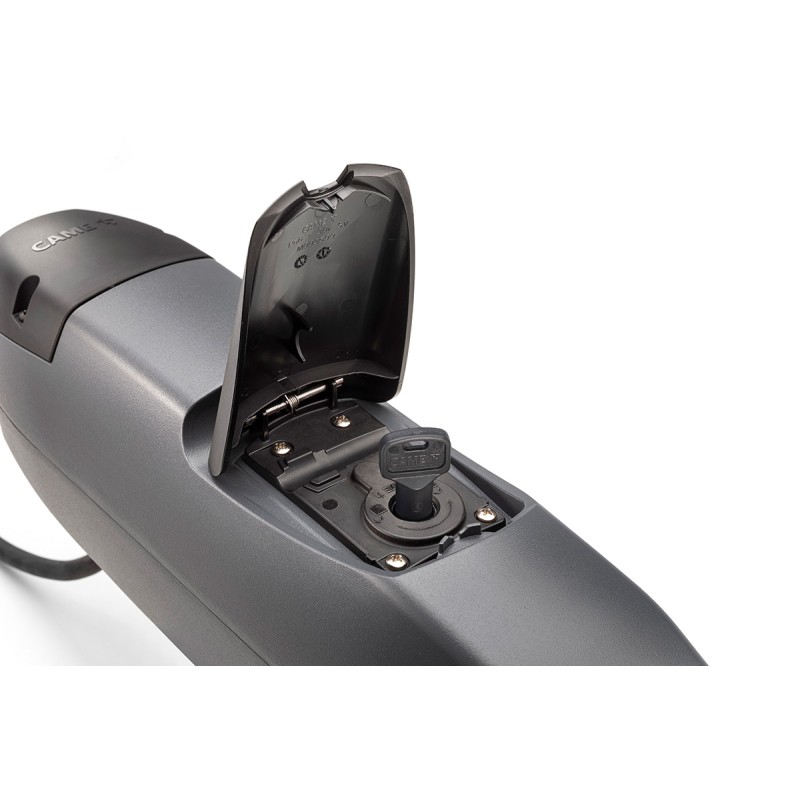

Manual release with trilobe key in a protected compartment for emergency operation.
-
Supplied pre-welded multi-hole tail bracket for flexible installation geometry.
-
IP54 protection rating and -20 °C to +55 °C operating temperature range.
| Parameter | Value |
|---|---|
| Part code | 801MP-0200 |
| Model | ATI50AGF |
| Motor type | Electromechanical swing gate operator |
| Motor power supply | 230 V AC 50/60 Hz |
| Rated power | 220 W |
| Thrust | 400 – 4000 N |
| Maximum gate leaf length | 5 m |
| Maximum leaf weight at 5 m | 400 kg |
| Maximum leaf weight at 4 m | 500 kg |
| Maximum leaf weight at 3 m | 600 kg |
| Maximum leaf weight at 2.5 m | 800 kg |
| Maximum leaf weight at 2 m | 1000 kg |
| Maximum opening angle | 120° |
| Opening time to 90° | 19 s |
| Duty cycle | 23 cycles/hour |
| Protection rating | IP54 |
| Operating temperature | -20 °C to +55 °C |
| Colour | RAL 7024 |
| Application dimension E | 920 mm |
| Maximum dimension C | 155 mm |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Max weight per gate | 1000 |
| Max length per gate | 5000 |
| Above or underground | Above ground |
| Max opening angle | 120 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Motor voltage | 230v |
| Gate Speed | 19 seconds 90 Degrees |
| Duty Cycle | Semi-intensive |
| Protection Rating | IP 54 |
| Motor Range | Ati |
| Product Type | Swing Gate Motor |
