Product Description

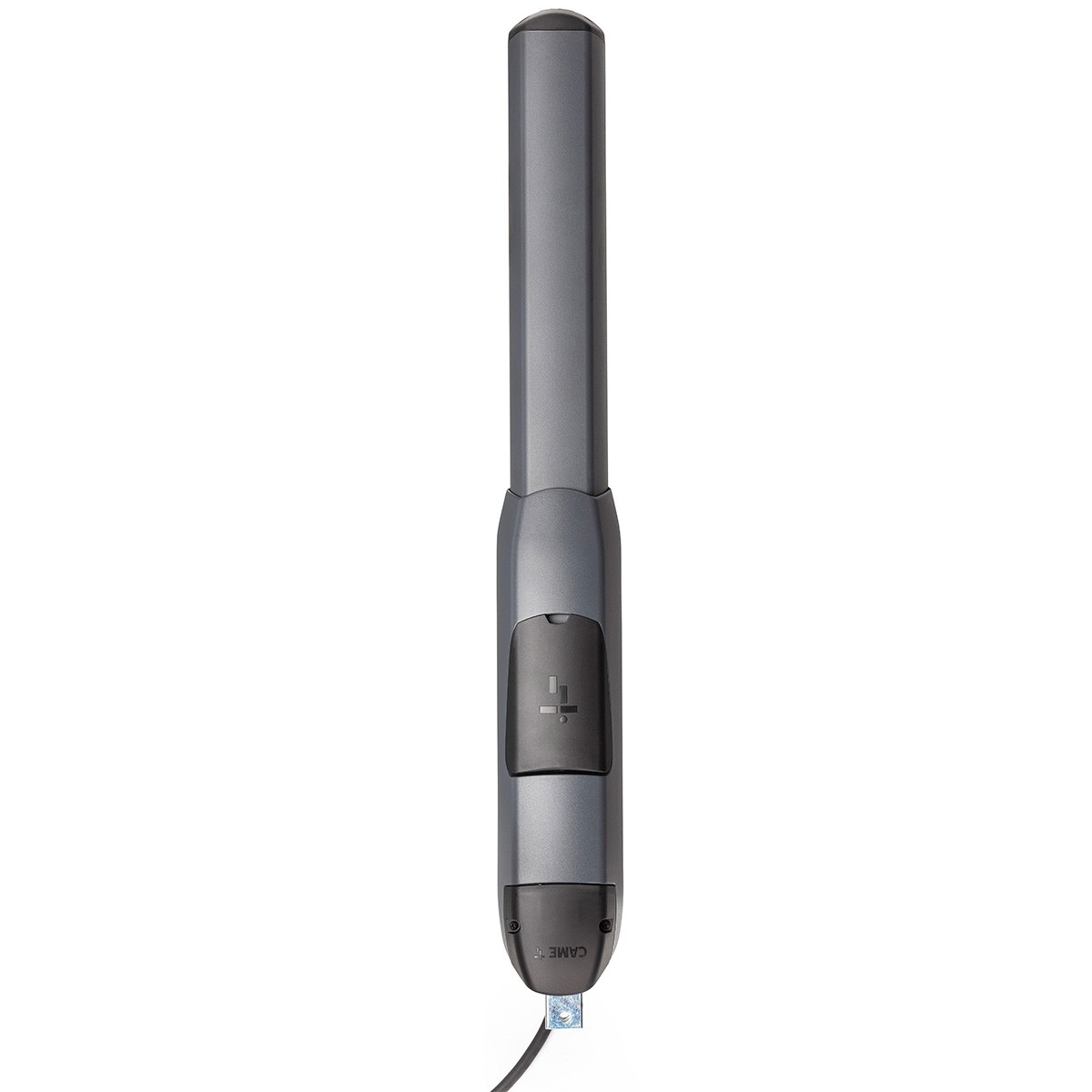

CAME Ati ATI30DGF 3m 24V Swing Gate Motor (801MP-0210)
The ATI30DGF 3m 24V motor is part of CAME’s NEW ATI range of electromechanical operators for swing gates. It is designed to automate a single gate leaf up to 3m in length, within the specified weight limits, delivering up to 4000 N of thrust with an opening time of around 13 seconds for 90°.
The motor features a metal structure with a die-cast aluminium body and extruded aluminium protective casing that helps shield the internal worm screw from impurities and weather while limiting vibration. A protected manual release with trilobe key allows the gate to be disengaged and operated manually in the event of a power cut or system fault. A pre-welded multi-hole tail bracket is supplied to simplify positioning of the operator on different post sizes and hinge geometries.
As a 24V model, the ATI30DGF is rated for continuous-duty operation and includes an encoder for positional feedback to a suitable CAME 24V control panel. On 24V NEW ATI systems the control panel manages speed, acceleration, deceleration and current consumption, and can employ adaptive control of speed and torque (AST) and optional battery-powered emergency operation. This product is the motor/operator only and must be combined with an appropriate control board and accessories to create a complete automation system.

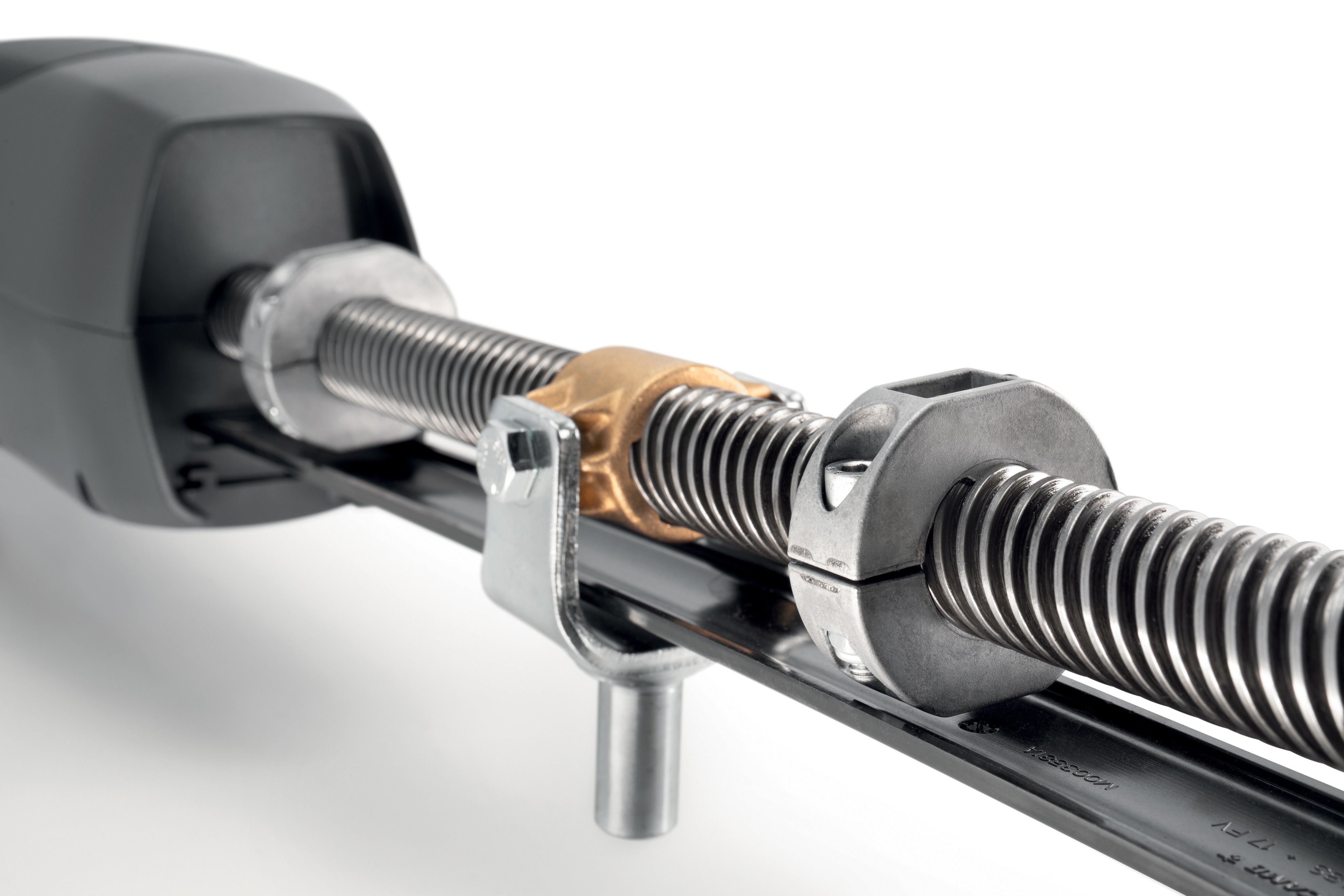

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.
✅ Key Features
-
Electromechanical linear swing gate operator for leaves up to 3m.
-
24V DC motor rated at 120 W with thrust from 400 to 4000 N.
-
Continuous-duty rated (suitable for intensive operation when correctly installed).
-
Integrated encoder for positional feedback to a compatible 24V control panel.
-
Die-cast aluminium body with extruded aluminium casing to protect the drive screw.
-
Manual release with trilobe key in a protected compartment for emergency operation.
-
Supplied pre-welded multi-hole tail bracket for flexible installation geometry.
-
IP54 protection rating and -20 °C to +55 °C operating temperature range.
-
Compatible with 24V NEW ATI system functions such as adaptive speed/torque control and battery back-up when used with the appropriate CAME control panel and accessories.
| Parameter | Value |
|---|---|
| Part code | 801MP-0210 |
| Model | ATI30DGF |
| Motor type | Electromechanical swing gate operator |
| Motor power supply | 24 V DC |
| Rated power | 120 W |
| Thrust | 400 – 4000 N |
| Maximum gate leaf length | 3 m |
| Maximum leaf weight at 3 m | 400 kg |
| Maximum leaf weight at 2.5 m | 600 kg |
| Maximum leaf weight at 2 m | 800 kg |
| Maximum opening angle | 120° |
| Opening time to 90° | 13 s |
| Duty cycle | Continuous duty |
| Protection rating | IP54 |
| Operating temperature | -20 °C to +55 °C |
| Colour | RAL 7024 |
| Application dimension E | 720 mm |
| Maximum dimension C | 75 mm |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Max weight per gate | 800 |
| Max length per gate | 3000 |
| Above or underground | Above ground |
| Max opening angle | 120 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Motor voltage | 24v |
| Gate Speed | 13 seconds 90 Degrees |
| Duty Cycle | Semi-intensive |
| Protection Rating | IP 54 |
| Motor Range | Ati |
| Product Type | Swing Gate Motor |
