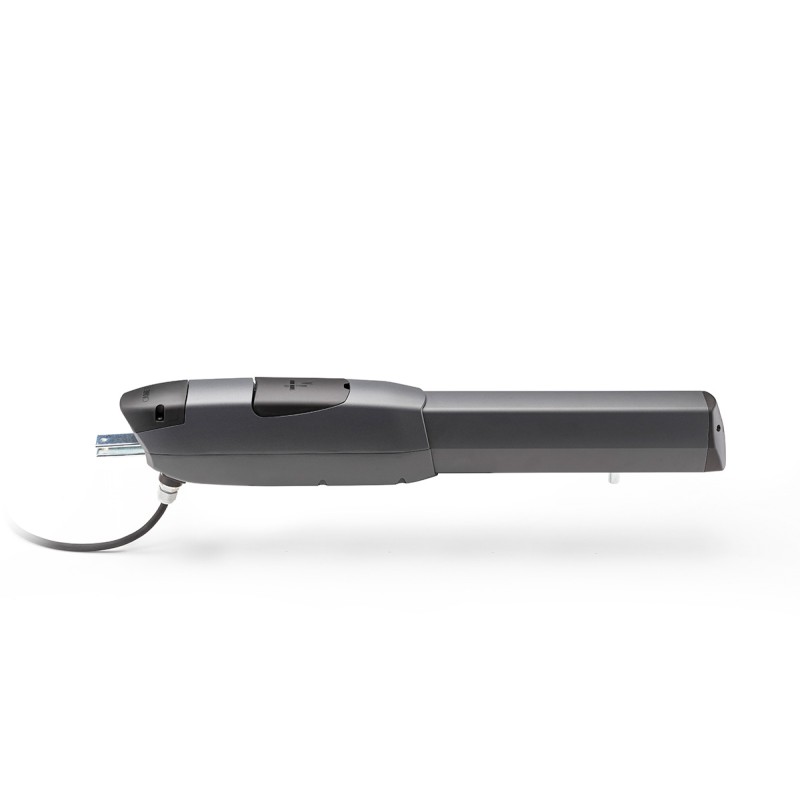

CAME ATI ATI50DGF 5m 24V Swing Gate Motor (801MP-0220)
Buy now pay later
Quick Overview
The CAME ATI50DGF is a 24V electromechanical swing gate motor for leaves up to 5m. It is a continuous-duty linear operator with encoder feedback, designed to be used with a separate CAME 24V control panel.
Reduced price:
£382.20
Save 30%
Tax included
Reduced price:
£382.20
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price:
£382.20
Tax included
Share on
Customers who bought this product also bought:
-41.92%
Reduced price:£38.40
Reduced price:£38.40
(9)
In Store
Product Description
CAME Ati ATI50DGF 5m 24V Swing Gate Motor (801MP-0220)
The ATI50DGF 5m 24V motor is part of CAME’s NEW ATI range of electromechanical operators for swing gates. It is intended to automate a single gate leaf up to 5m in length, within the specified weight limits, providing up to 4000 N of thrust and an opening time of around 19 seconds for 90°.
The operator has a fully metal structure with a die-cast aluminium body and extruded aluminium protective casing, which shields the internal worm screw from impurities and weather while helping to limit vibration during movement. A protected manual release with trilobe key allows the gate to be disengaged and moved manually in the event of a power failure or maintenance. The unit is supplied with a pre-welded multi-hole tail bracket to simplify alignment on different post sizes and geometries.
As a 24V model, the ATI50DGF is rated for continuous-duty operation and incorporates an encoder for positional feedback to a compatible 24V CAME control panel. On 24V NEW ATI systems the control panel manages speed, acceleration, deceleration and current consumption, and can provide adaptive control of speed and torque (AST) and optional battery-powered emergency operation. This product is the motor/operator only and must be combined with an appropriate control board and accessories to form a complete automation system.

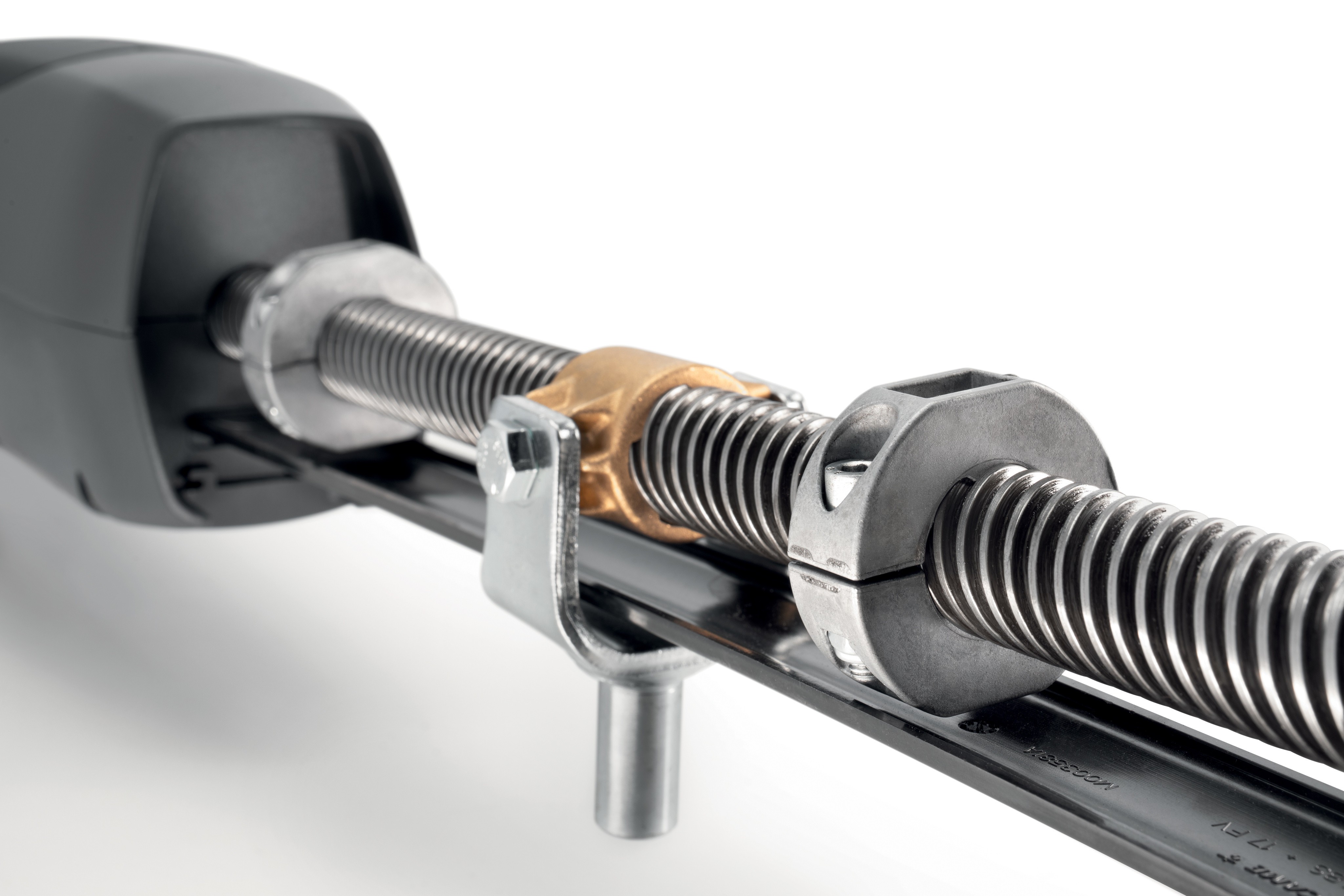

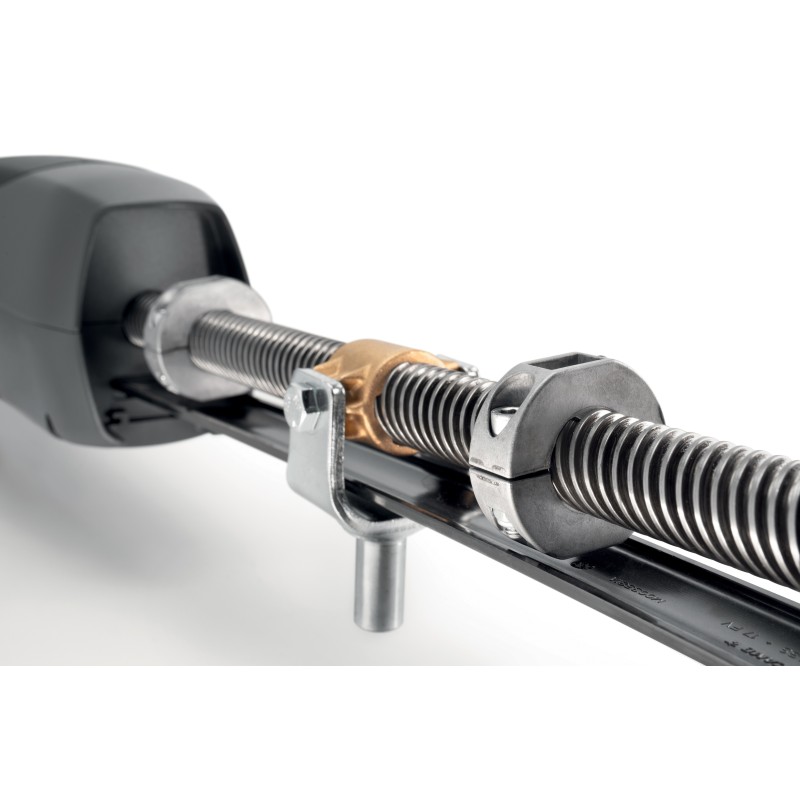

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.
✅ Key Features
-
Electromechanical linear swing gate operator for gate leaves up to 5m.
-
24V DC motor rated at 120 W with thrust from 400 to 4000 N.
-
Continuous-duty rated for intensive use when correctly installed.
-
Integrated encoder for positional feedback to a compatible 24V control panel.
-
Die-cast aluminium structure with extruded aluminium casing to protect the drive screw.
-
Manual release with trilobe key in a protected compartment for emergency operation.
-
Supplied pre-welded multi-hole tail bracket for flexible installation geometry.
-
IP54 protection rating and -20 °C to +55 °C operating temperature range.
-
Compatible with 24V NEW ATI system features such as adaptive speed/torque control and battery back-up when used with suitable CAME electronics and accessories.
| Parameter | Value |
|---|---|
| Part code | 801MP-0220 |
| Model | ATI50DGF |
| Motor type | Electromechanical swing gate operator |
| Motor power supply | 24 V DC |
| Rated power | 120 W |
| Thrust | 400 – 4000 N |
| Maximum gate leaf length | 5 m |
| Maximum leaf weight at 5 m | 400 kg |
| Maximum leaf weight at 4 m | 500 kg |
| Maximum leaf weight at 3 m | 600 kg |
| Maximum leaf weight at 2.5 m | 800 kg |
| Maximum leaf weight at 2 m | 1000 kg |
| Maximum opening angle | 120° |
| Opening time to 90° | 19 s |
| Duty cycle | Continuous duty |
| Protection rating | IP54 |
| Operating temperature | -20 °C to +55 °C |
| Colour | RAL 7024 |
| Application dimension E | 920 mm |
| Maximum dimension C | 155 mm |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Max weight per gate | 1000 |
| Max length per gate | 5000 |
| Above or underground | Above ground |
| Max opening angle | 120 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Motor voltage | 24v |
| Gate Speed | 19 seconds 90 Degrees |
| Duty Cycle | Semi-intensive |
| Protection Rating | IP 54 |
| Motor Range | Ati |
| Product Type | Swing Gate Motor |
