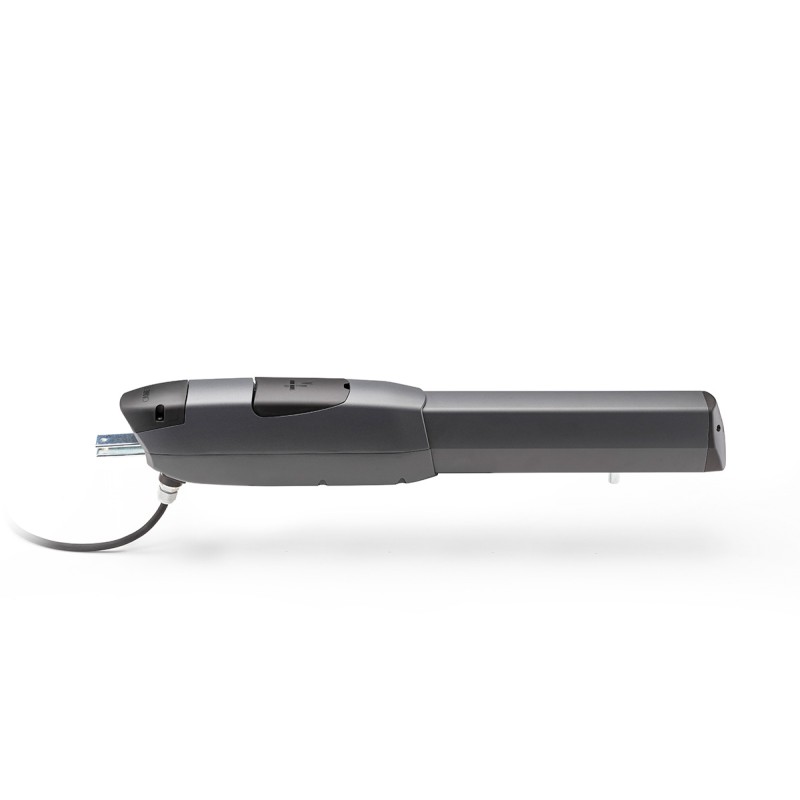

CAME ATI ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)

Reference 801MP-0180
Rating:
(0)
New
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)
CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)

Quick Overview

The CAME ATI50AGS is a 230V electromechanical swing gate motor for leaves up to 5m. It provides robust linear drive with integrated encoder feedback and is intended to be used with a separate CAME control panel. This model is specifically for replacing an older A5000A operator.

Regular price: £484.80
Reduced price: £339.36 Save 30%
Tax included
Reduced price: £339.36
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £339.36
Tax included
Add to basket
Buy Now
1-2 Business Days *Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Product Description

CAME Ati ATI50AGS 5m 230V Swing Gate Motor (801MP-0180) (a5000a replacement)

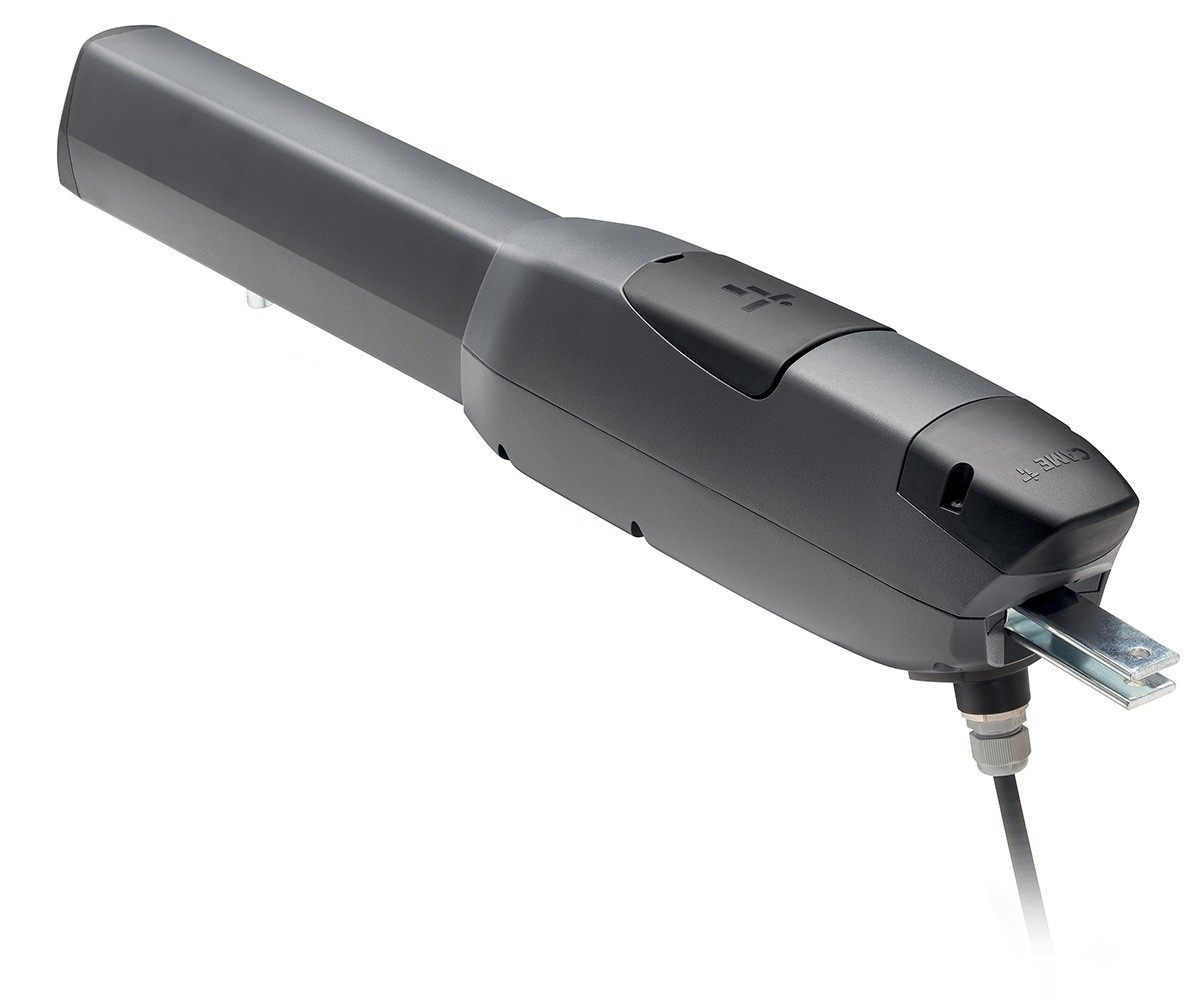

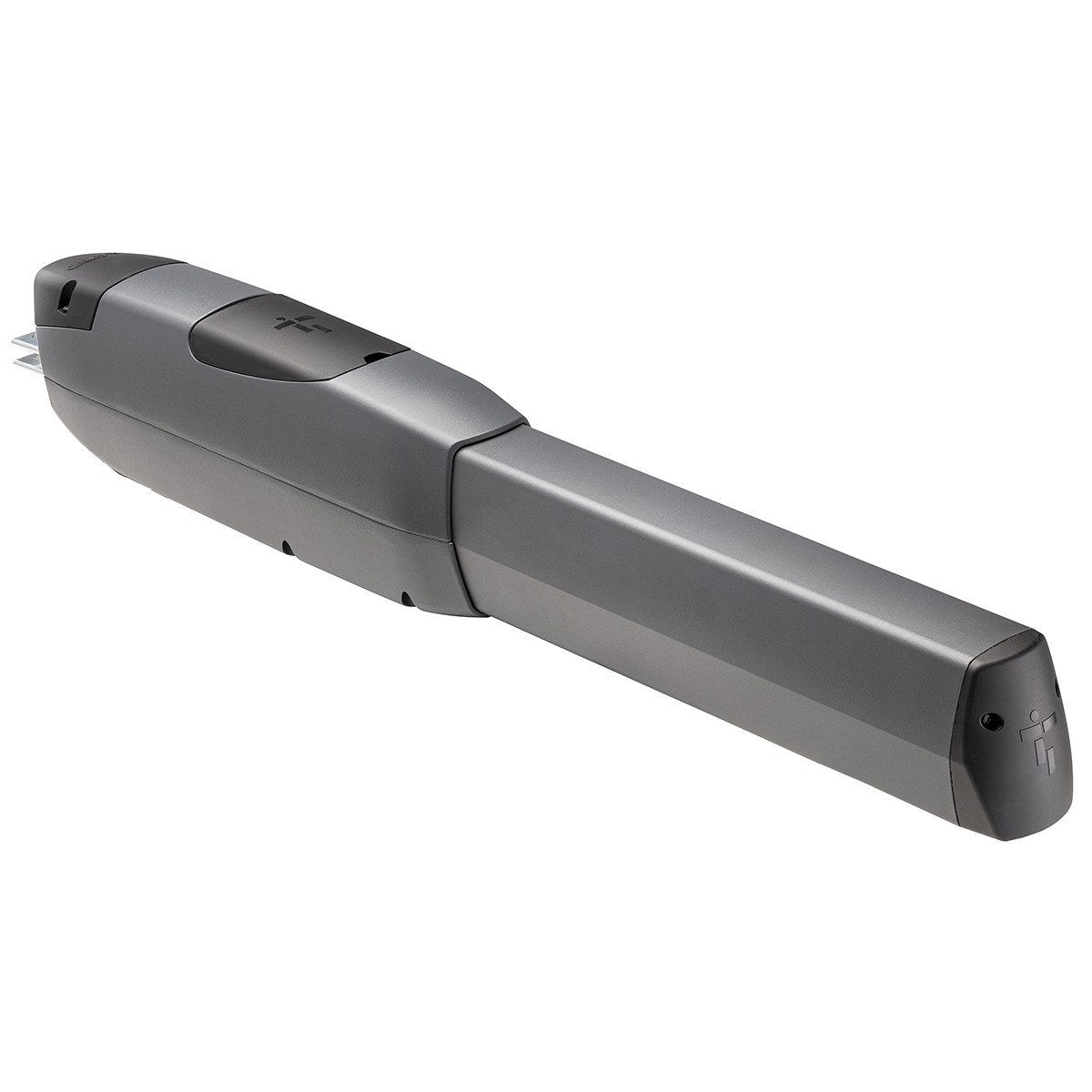

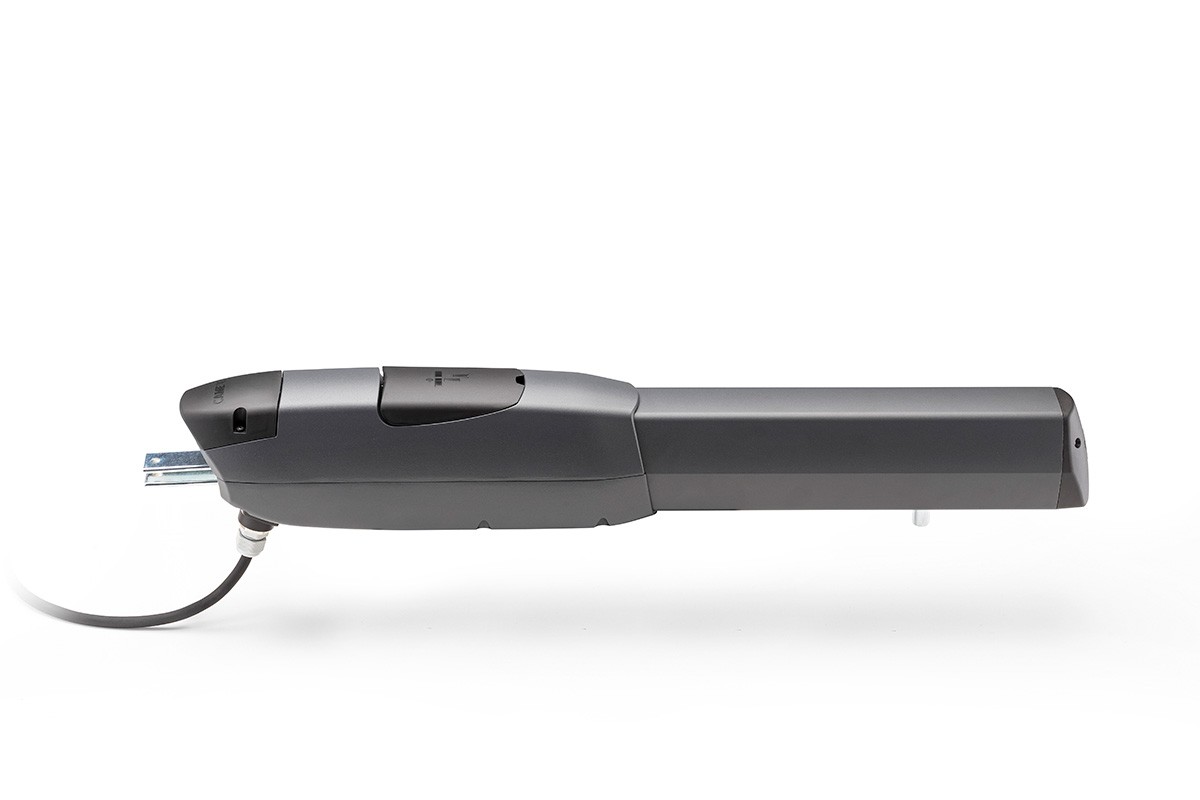

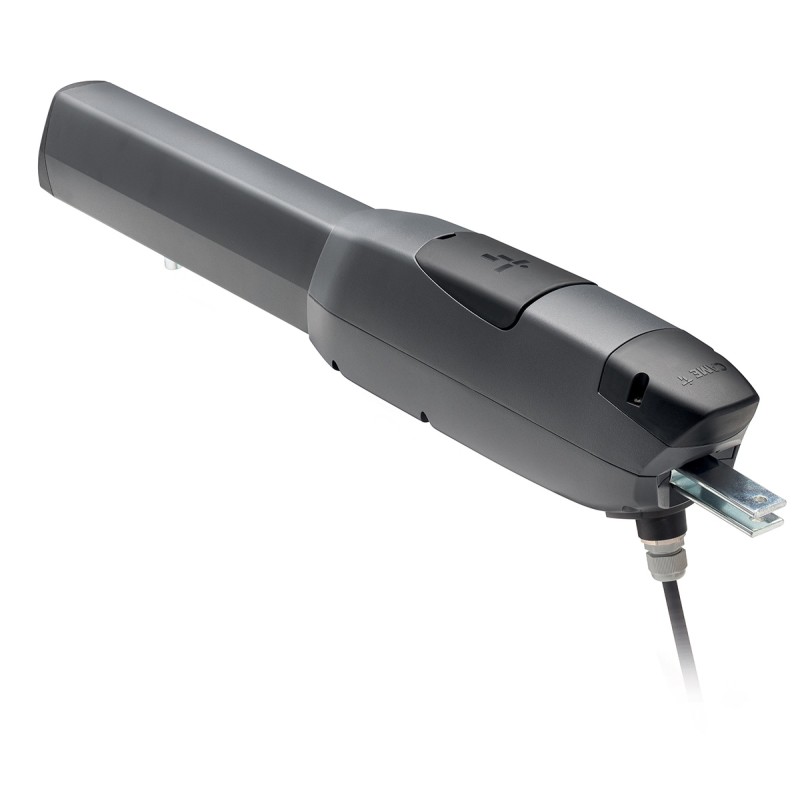

The ATI50AGS 5m 230V motor is part of CAME’s NEW ATI range of electromechanical operators for swing gates. It is designed to automate a single gate leaf up to 5m in length, within the specified weight limits, delivering up to 4000 N of thrust and a 90° opening in approximately 19 seconds.

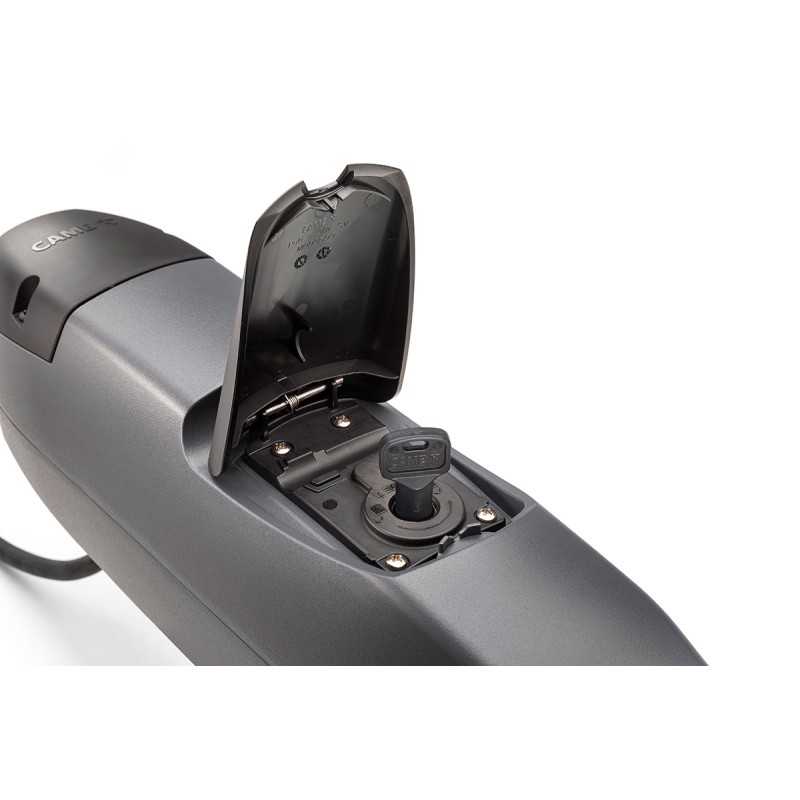

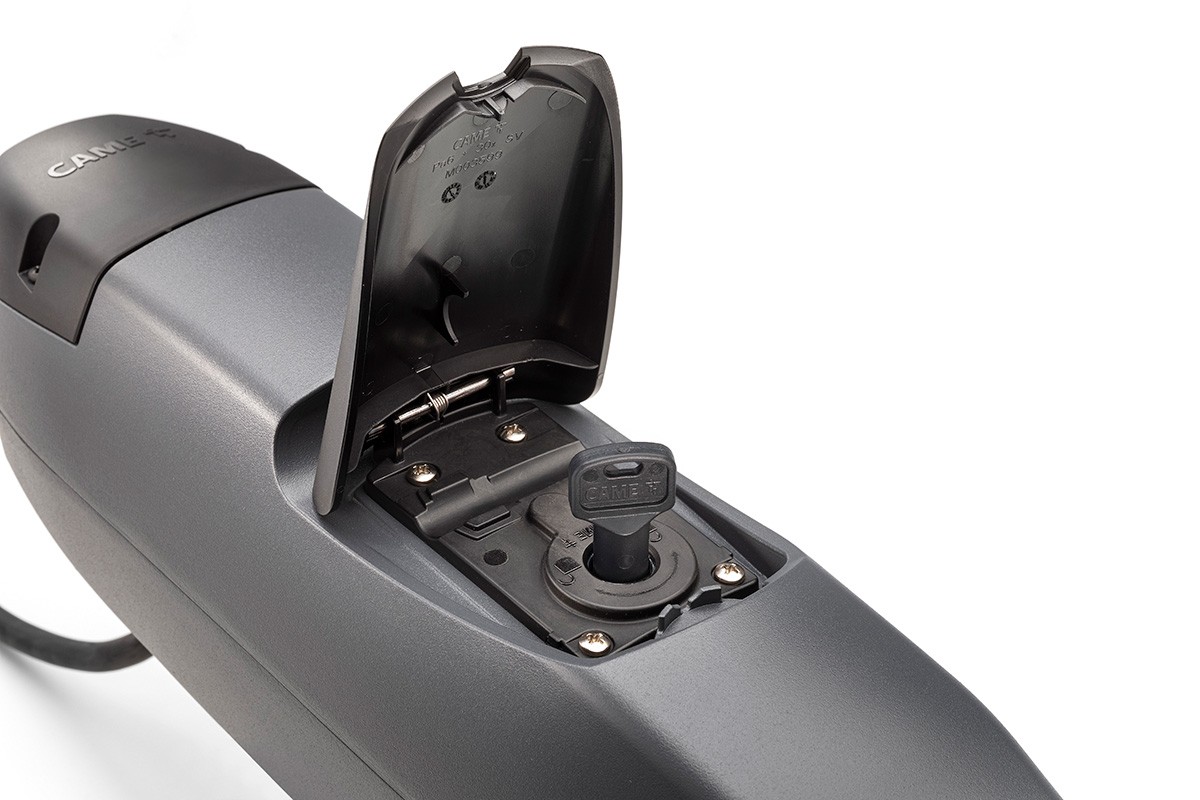

Its structure is entirely in metal, using a die-cast aluminium body and extruded aluminium protective casing. This construction helps protect the internal worm screw from dirt and weather while limiting vibration during movement. A protected manual release with trilobe key allows the gate to be disengaged and moved by hand in the event of a power cut or fault. The operator is supplied with a pre-welded multi-hole tail bracket to simplify positioning on different post sizes and geometries.

An integrated encoder provides position feedback to a compatible CAME control panel, which handles all logic, safety, and accessory management. On its own, this product is the motor/operator only and must be combined with a suitable control board and accessories to form a complete gate automation system.

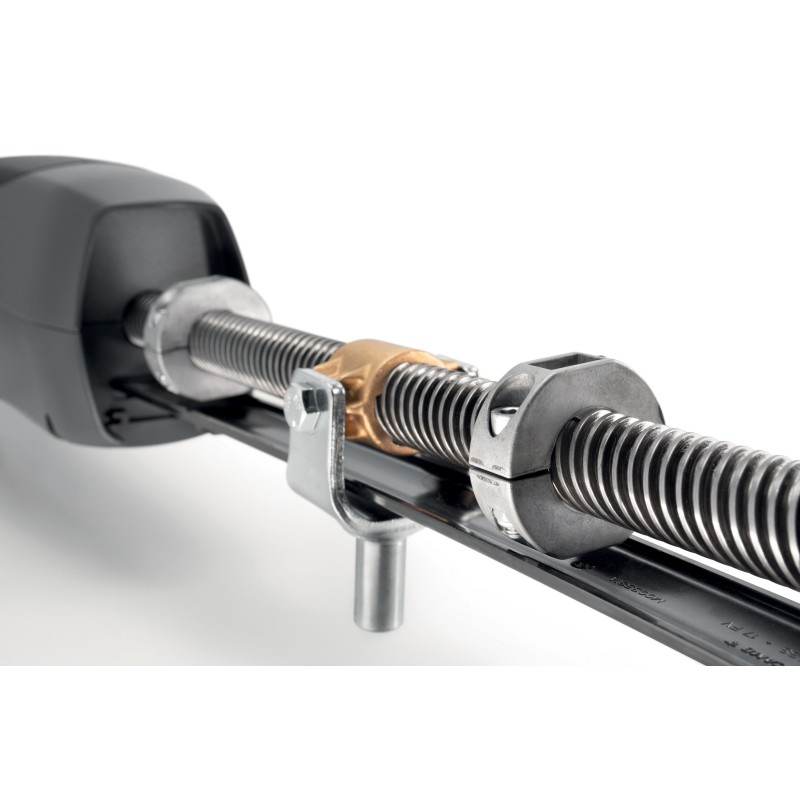

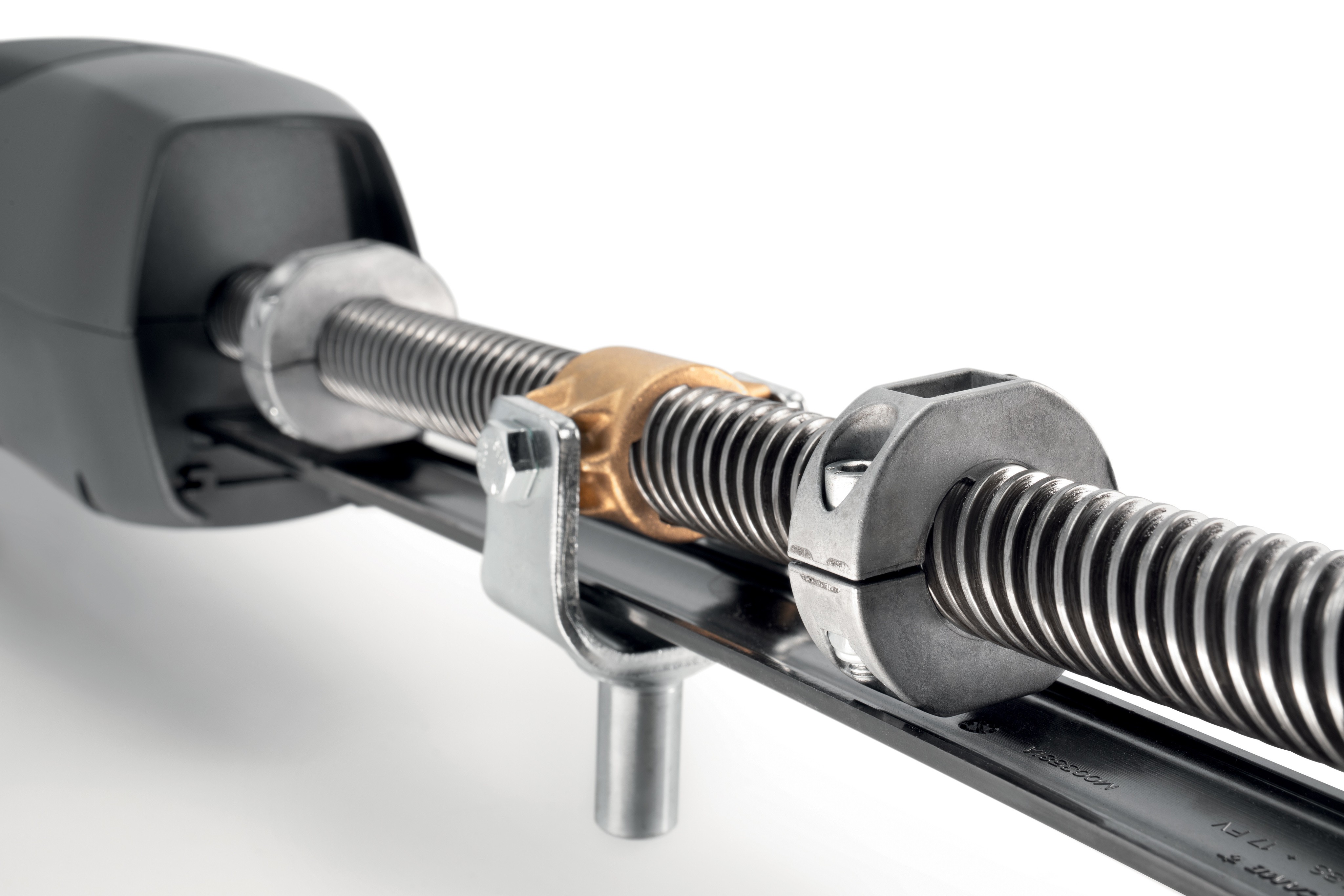

Mechanical limit stops on the worm screw


NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.

✅ Key Features

  • Electromechanical linear swing gate operator for leaves up to 5m.

  • 230V AC motor rated at 220 W with thrust from 400 to 4000 N.

  • Integrated encoder for precise positional feedback to the control panel.

  • Die-cast aluminium body with extruded aluminium casing to protect the drive screw.

  • Manual release with trilobe key in a protected compartment for emergency operation.

  • Supplied pre-welded multi-hole tail bracket for flexible installation geometry.

  • IP54 protection rating and -20 °C to +55 °C operating temperature range.

Parameter Value
Part code 801MP-0180
Model ATI50AGS
Motor type Electromechanical swing gate operator
Motor power supply 230 V AC 50/60 Hz
Rated power 220 W
Thrust 400 – 4000 N
Maximum gate leaf length 5 m
Maximum leaf weight at 5 m 400 kg
Maximum leaf weight at 4 m 500 kg
Maximum leaf weight at 3 m 600 kg
Maximum leaf weight at 2.5 m 800 kg
Maximum leaf weight at 2 m 1000 kg
Maximum opening angle 120°
Opening time to 90° 19 s
Duty cycle 23 cycles/hour
Protection rating IP54
Operating temperature -20 °C to +55 °C
Colour RAL 7024
Application dimension E 920 mm
Maximum dimension C 155 mm

Product Details

Reference 801MP-0180 Category Gate Motors Brand CAME
CAME

Product Specifics

Shipping Index 1
Gate type Swing gate
Max weight per gate 1000
Max length per gate 5000
Above or underground Above ground
Max opening angle 120 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Motor voltage 230v
Gate Speed 19 seconds 90 Degrees
Duty Cycle Semi-intensive
Protection Rating IP 54
Motor Range Ati
Product Type Swing Gate Motor
ATI 230v Manual
