CAME MSMF-LOOP / MRMF-REC Magnetic Vehicle Detection System [MSMF-LOOP / MRMF-REC]

SKU CAME MSMF Non-Rechargeable battery kit
Loop Detector Magnetometer Presence / direction Wireless
Price: £438.00
Tax included
1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

MSMF Battery Type

Overview & suitability

Magnetic vehicle detection system designed for safety and precision in vehicle detection, including in adverse environmental conditions. The system uses magnetic technology with bidirectional wireless communication at 868 MHz.

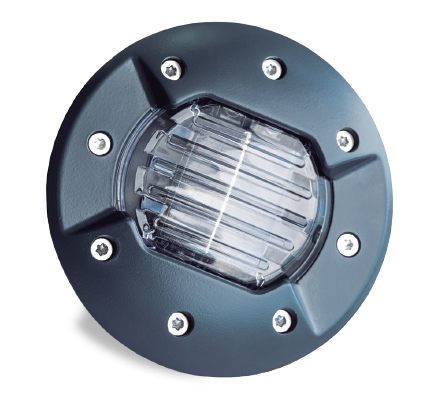

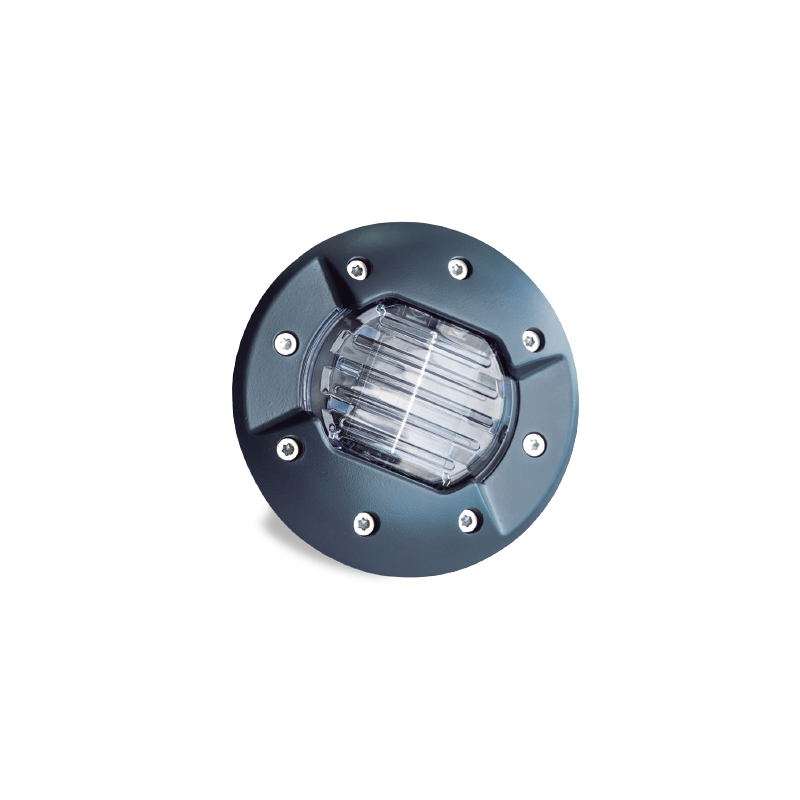

The MSMF-LOOP / MRMF-REC system is designed for vehicle detection in a range of environmental conditions, including rain, snow and fog. The MSMF-LOOP sensor uses magnetic technology and is designed to maintain performance while providing vehicle detection.

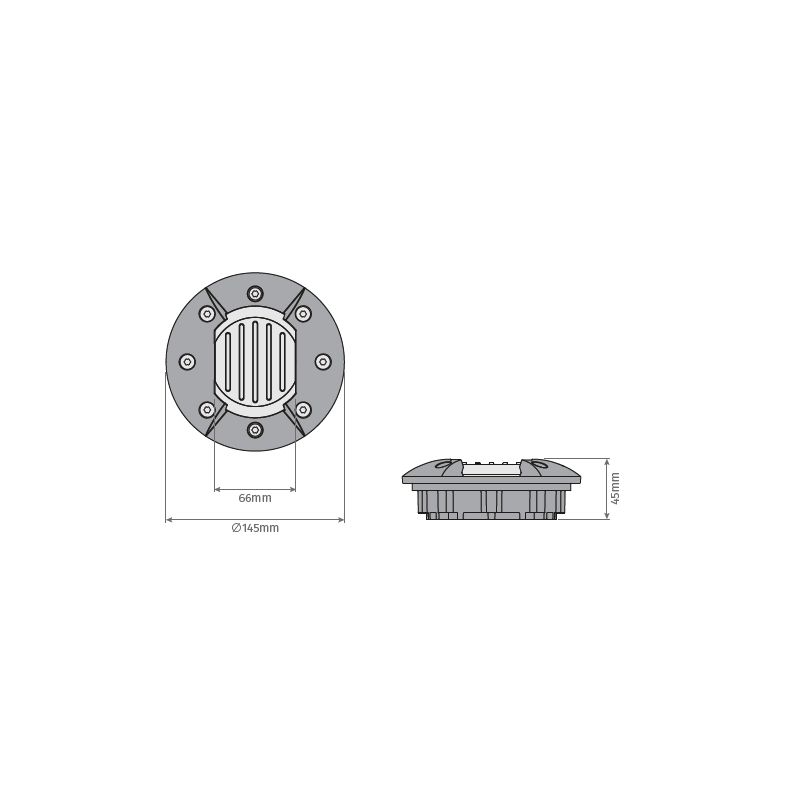

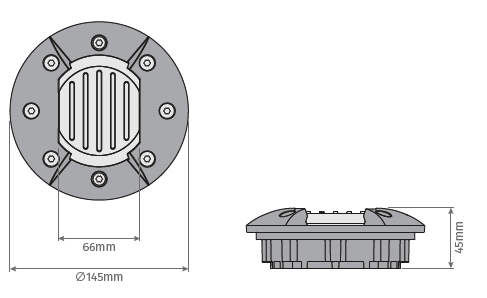

The sensor has a practical design requiring 3 small holes for installation and is fixed with two screws. The MSMF-LOOP is powered by rechargeable batteries with an integrated solar panel, allowing operation without a direct connection to the electrical grid.

Communication between the sensor and receiver is carried out at 868 MHz. The system provides bidirectional wireless communication, low power consumption and eliminates the need for unnecessary cabling, making it suitable for hard-to-reach or difficult-to-install areas.

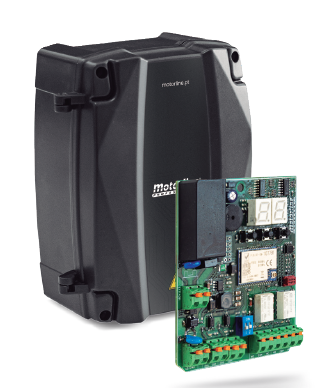

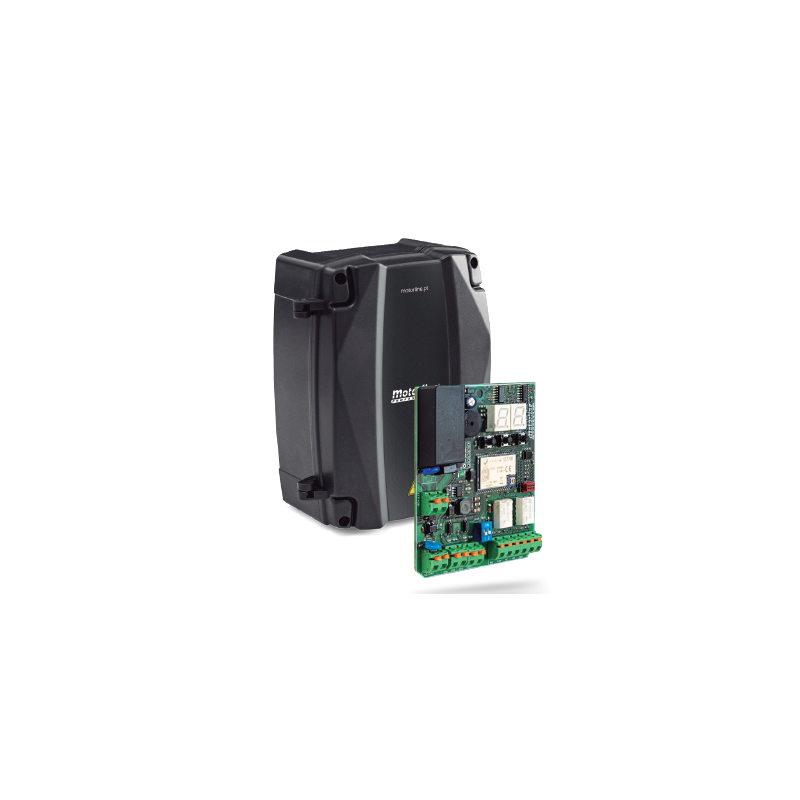

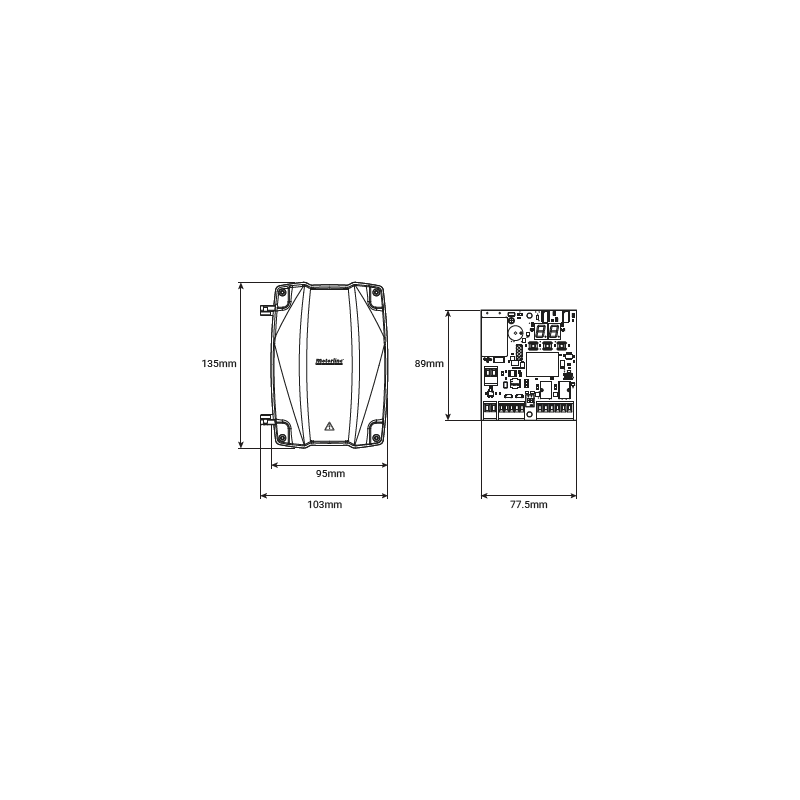

The MRMF-REC allows up to 8 MSMF-LOOP sensors to be connected using bidirectional communication at 868 MHz. It supports multiple operating modes, including Free Mode, Anti-Crash, AND logic and Two barriers.

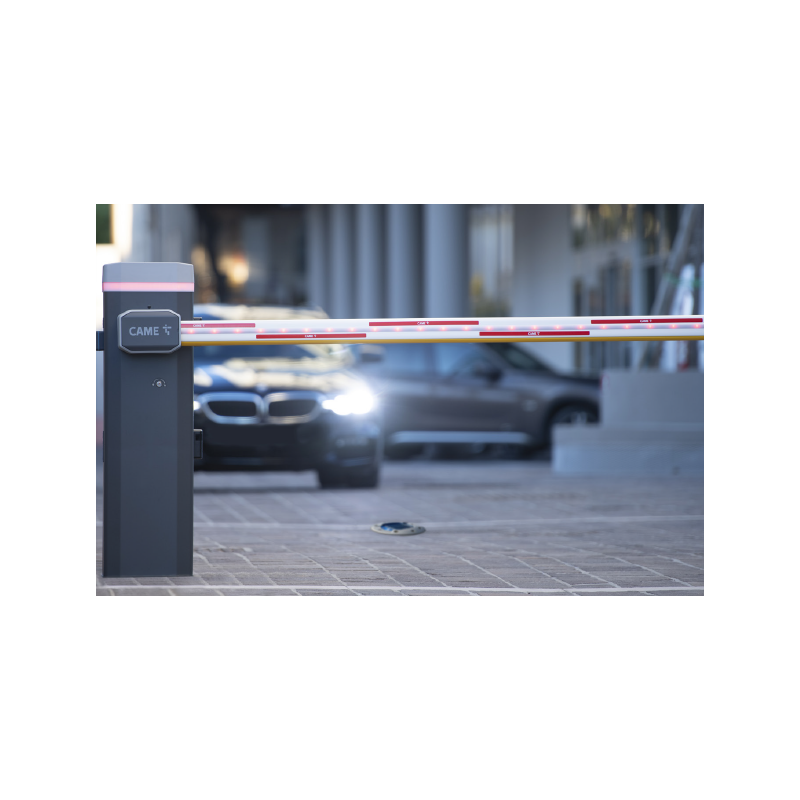

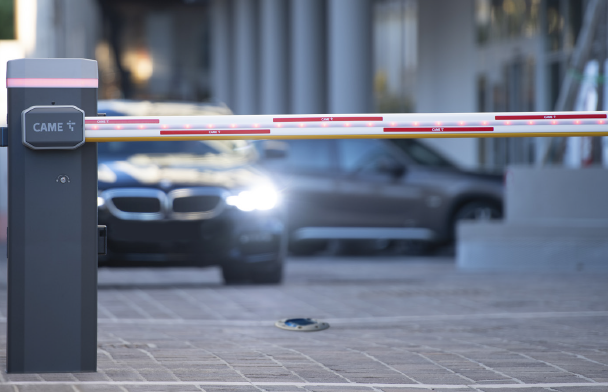

The MRMF-REC manages communication channels and synchronises the sending and receiving of signals, activating or deactivating relays according to vehicle movement. The system is designed to provide control of entrances and exits and support collision avoidance systems.

✅ Key Features

  • Magnetic vehicle detection system
  • MSMF-LOOP sensor and MRMF-REC receiver
  • Bidirectional wireless communication
  • 868 MHz communication frequency
  • Communication range up to 50 metres
  • Up to 8 MSMF-LOOP sensors can be connected to one MRMF-REC
  • Rechargeable battery with integrated solar panel
  • Protection class IP68
  • Vehicle compatibility up to 40 tonnes
  • Indicator light for sensor presence
  • Designed for use in rain, snow and fog
  • Requires 3 small holes for installation
  • Fixed with two screws
  • Operating modes: Free Mode, Anti-Crash, AND logic and Two barriers
  • Detection height of up to 400 mm, depending on vehicle mass value
  • Unidirectional/low detection and good detection areas shown in the supplied documentation

⚙ Technical Data

Technical Data Specification
Product MSMF-LOOP / MRMF-REC
Product type Magnetic vehicle detection system
Communication frequency 868 MHz
Communication Bidirectional wireless
Communication range Up to 50 metres
Maximum connected sensors Up to 8 MSMF-LOOP sensors
Protection class IP68
Vehicle compatibility Up to 40 tonnes
Power Rechargeable batteries with integrated solar panel
Operating modes Free Mode; Anti-Crash; AND logic; Two barriers
Detection height Maximum 400 mm, depending on vehicle mass value
Installation 3 small holes; fixed with two screws

The optional LOOP-RMP base allows the MSMF-LOOP sensor to be installed directly on the ground without drilling into the floor or carrying out roadworks. LOOP-RMP is as an optional accessory.

Technical specifications

Shipping Index 1
Wired or wireless Wireless
Product Type Loop Detector
Vehicle Detection Technology Magnetometer
Vehicle Detection Mode Presence / direction
