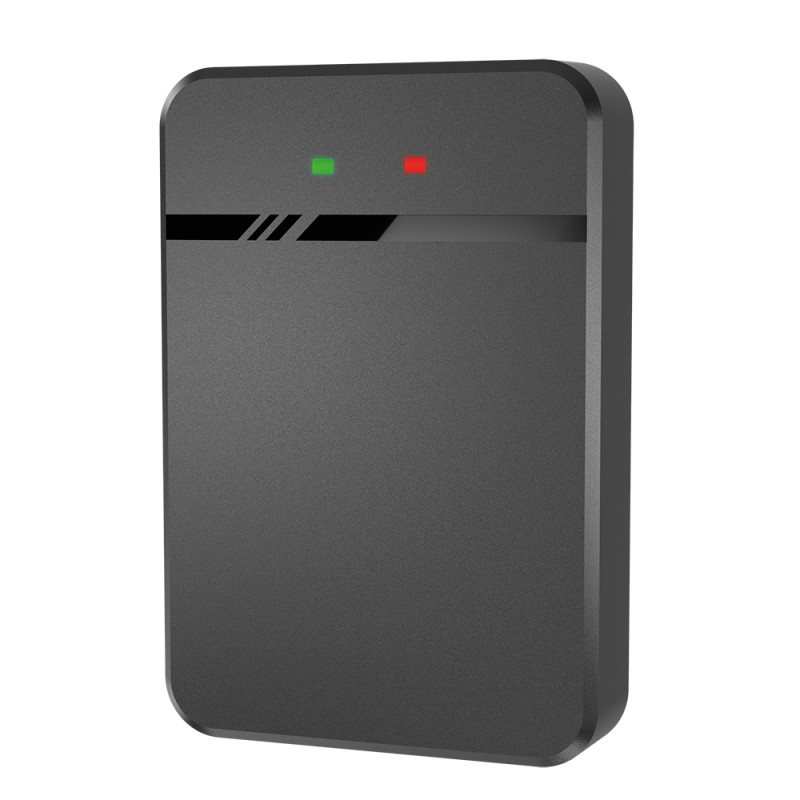

Bircher EasyLoop Virtual Loop Radar Sensor for Vehicle Detection [EasyLoop]

Reference EasyLoop D
New

Quick Overview

The Bircher EasyLoop is a virtual loop radar sensor for vehicle detection at entrances and exits. It uses 79 GHz FMCW radar technology for activation and presence detection without requiring induction loops.

Price: £302.40
Tax included
Price: £302.40
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price: £302.40
Tax included

Share on

Product Description

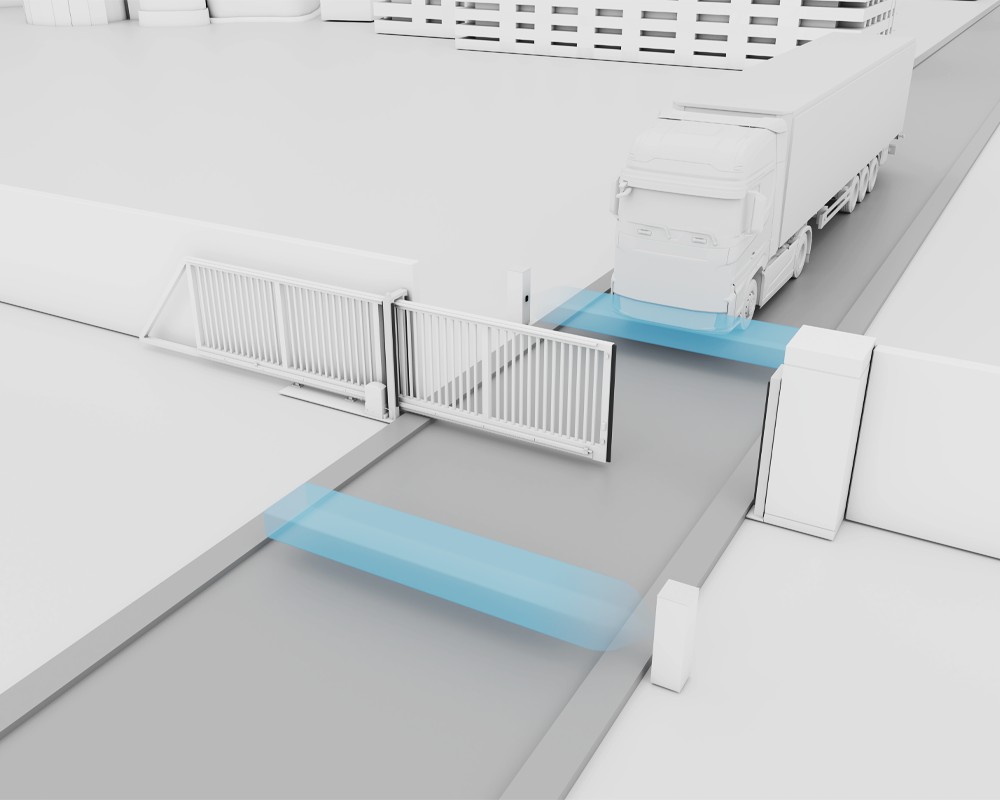

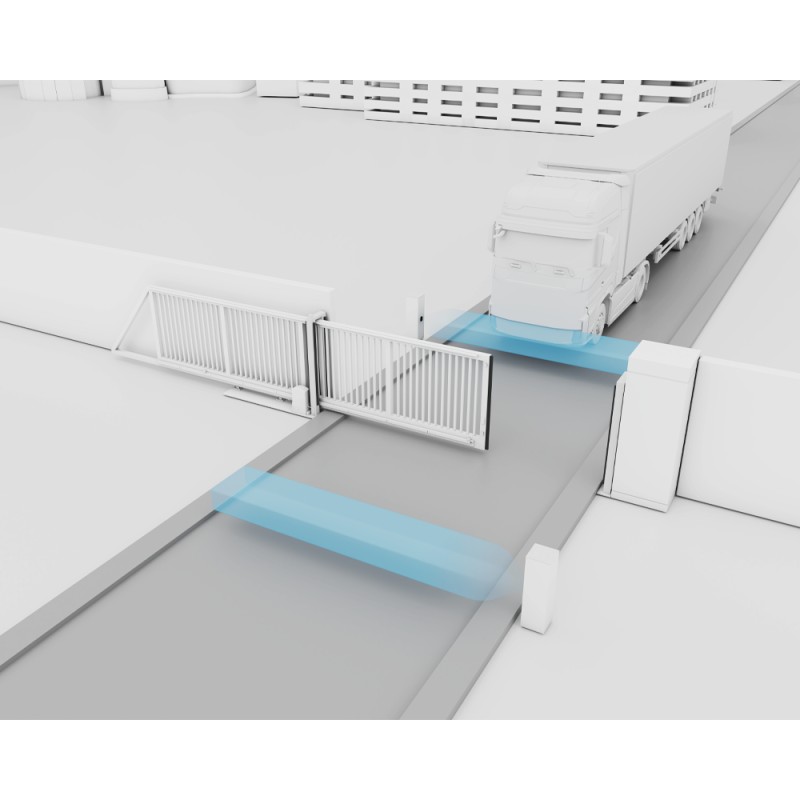

The Bircher EasyLoop is a virtual loop sensor designed for vehicle detection in parking lots, commercial areas, toll stations, industrial plants and sliding gate applications. It uses FMCW (Frequency-Modulated Continuous Wave) radar technology and a 79 GHz millimetre wave radar sensor.

EasyLoop provides activation or presence detection and can distinguish between pedestrians and other objects in accordance with EN 12453 Type D. It supports both unidirectional and bidirectional detection with a single sensor.

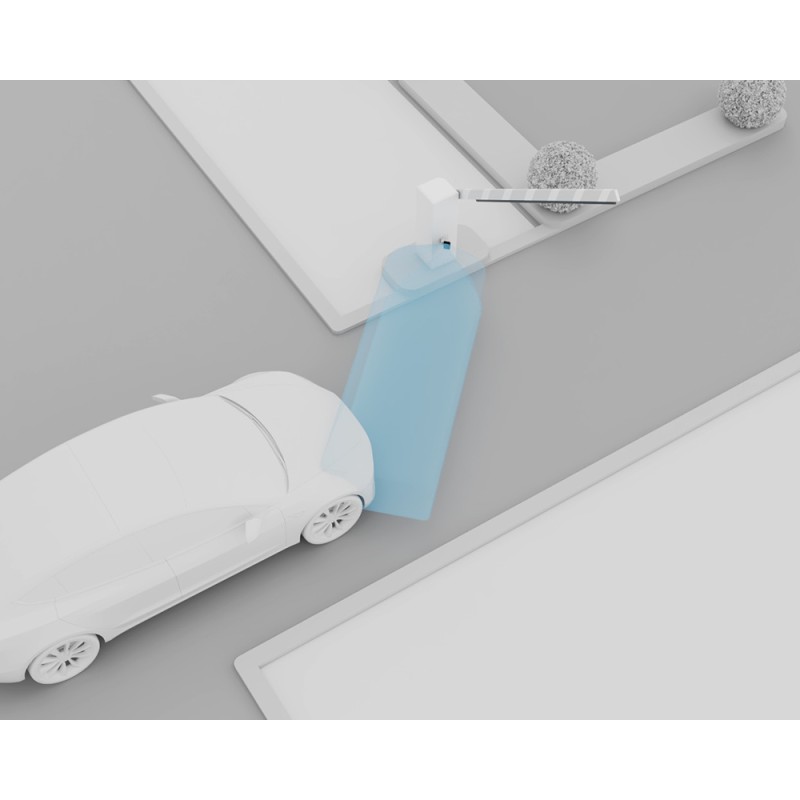

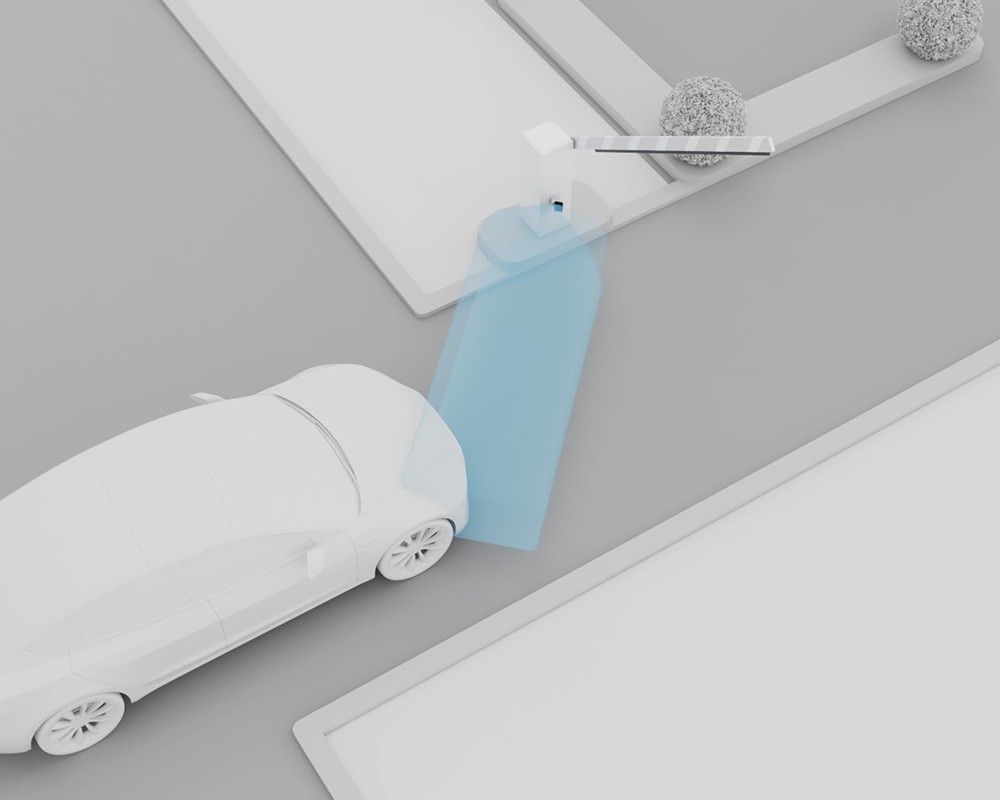

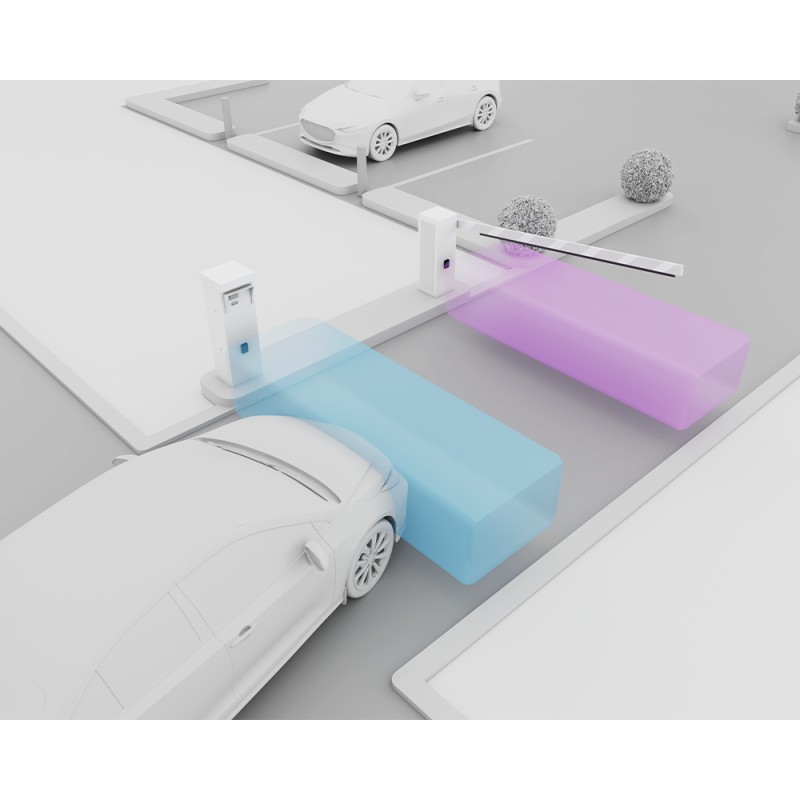

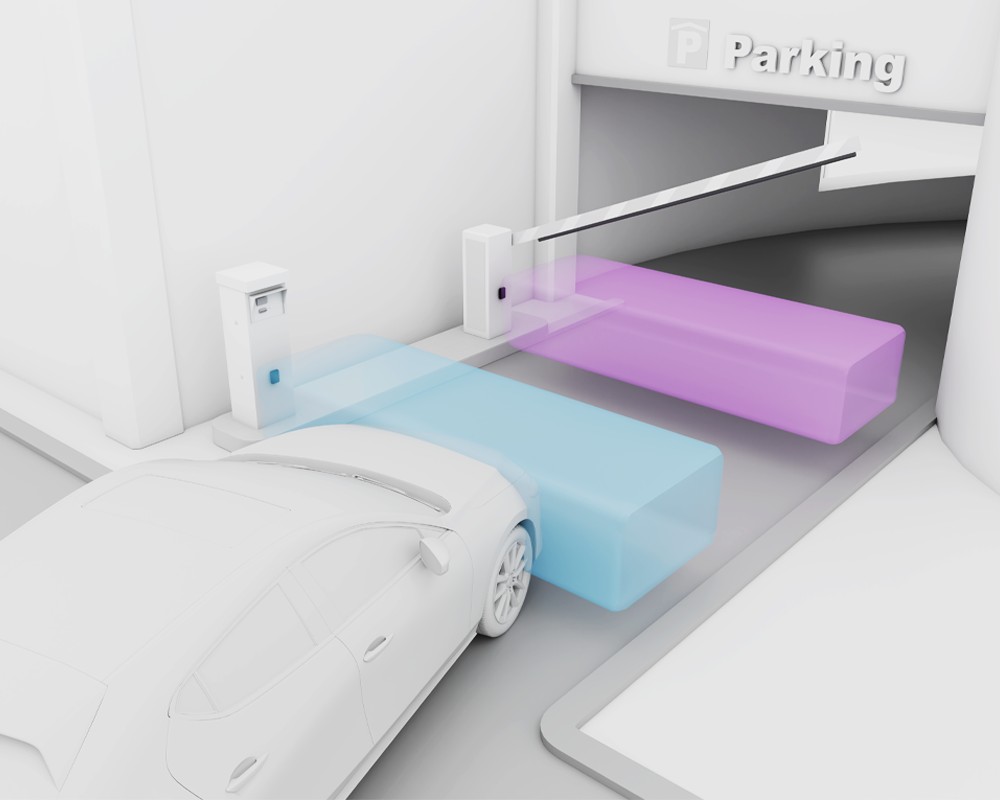

The sensor uses a customisable radar field instead of an induction loop, with a detection field of 300 cm wide, 160 cm high and up to 600 cm deep. It can be mounted on posts or directly on a barrier housing, with standard 90° installation or 45° mode.

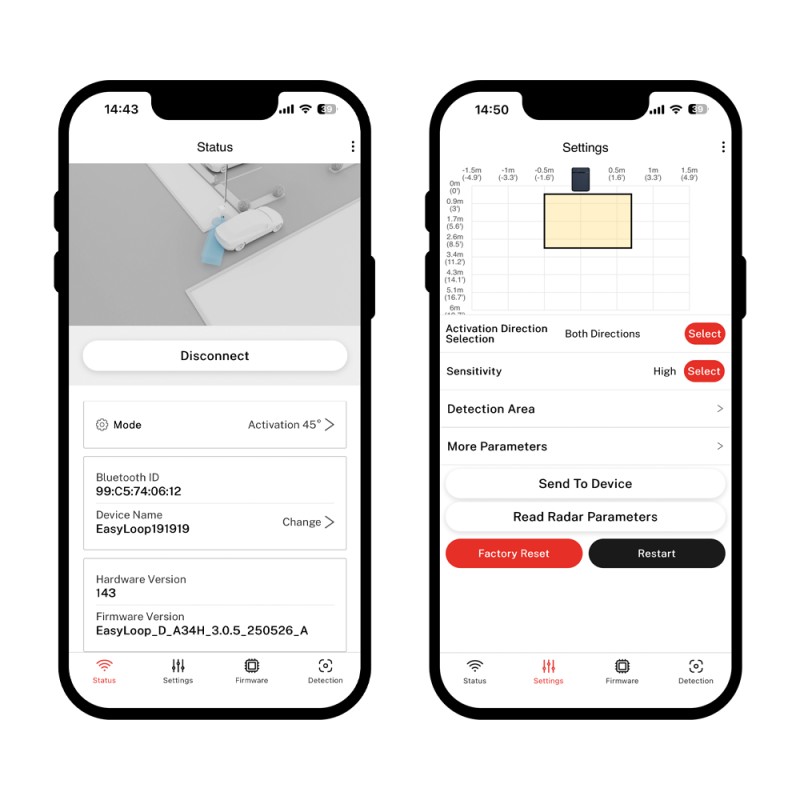

Configuration of sensitivity, detection area and operating modes is carried out through the EasyLoop Mobile app. The app also provides access to product documentation, firmware updates, remote maintenance and real-time adjustments.

✅ Key Features

  • Virtual loop radar sensor for vehicle detection
  • 79 GHz millimetre wave radar
  • FMCW (Frequency-Modulated Continuous Wave) radar technology
  • Activation and presence detection
  • Vehicle and pedestrian detection

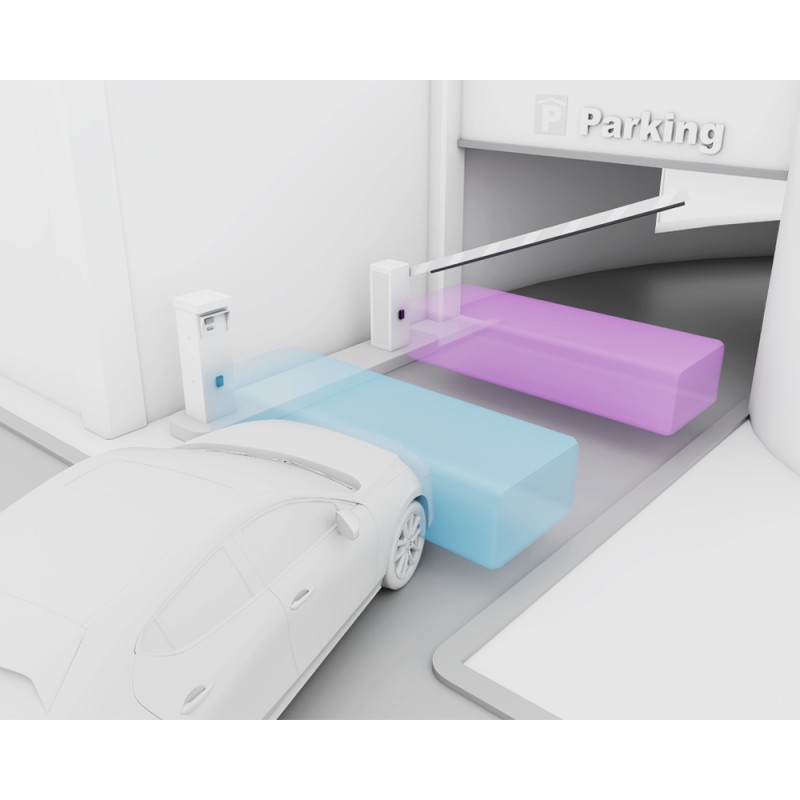

  • Unidirectional and bidirectional detection
  • Detection according to EN 12453 Type D
  • Detection field of 300 cm wide, 160 cm high and up to 600 cm deep
  • No induction loops required
  • Above-ground installation
  • Standard 90° installation
  • 45° mode
  • IP66 protection class
  • Detection in rain, snow, fog and dust
  • Automatic environmental learning
  • Adjustable sensitivity and detection area
  • EasyLoop Mobile app configuration
  • Remote maintenance and remote debugging
  • Real-time adjustments
  • Firmware updates through the mobile app
  • Protection in the event of a power failure

⚙ Technical Data

Parameter Value
Brand Bircher
Product EasyLoop
Product type Virtual loop radar sensor
Technology FMCW (Frequency-Modulated Continuous Wave) radar
Radar frequency 79 GHz
Detection Vehicle and pedestrian
Detection modes Unidirectional and bidirectional
Detection field 300 cm wide, 160 cm high and up to 600 cm deep
Protection class IP66
Standard installation 90° angle
Alternative installation 45° mode
Installation height 0.8 m
Application Activation or presence detection
Standard EN 12453 Type D

⚠️ Important Notes

  • No induction loops are required.

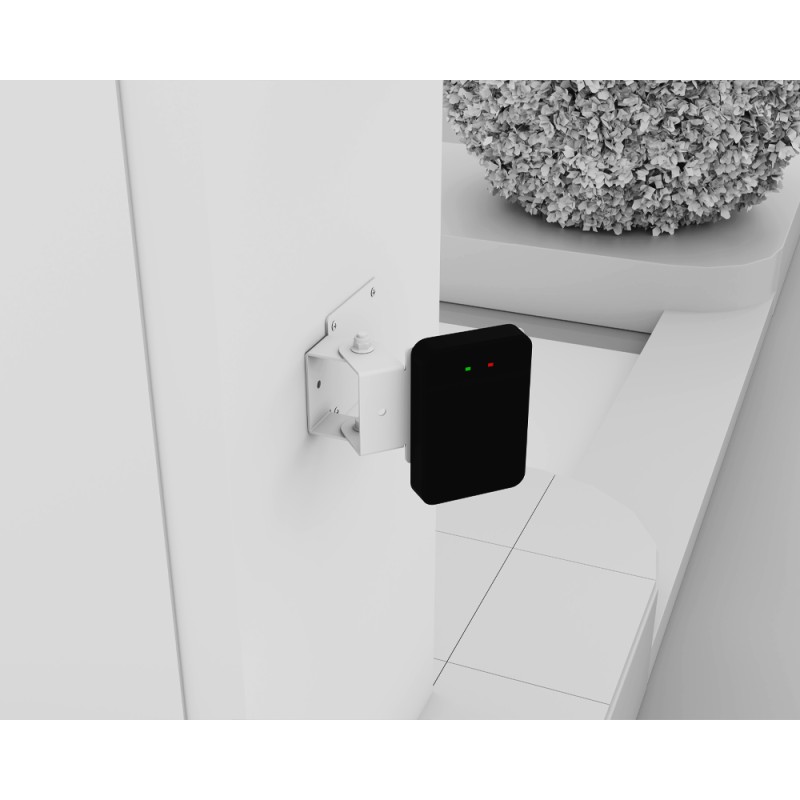

  • The sensor can be mounted on posts or directly on the barrier housing.
  • The detection field can be adjusted through the EasyLoop Mobile app.
  • A mounting bracket enables flexible applications.
  • The EasyLoop Mobile app provides access to product documentation and firmware updates.

Product Details

Reference EasyLoop D Category Laser Curtain Safety Edges Brand BIRCHER
BIRCHER

Product Specifics

Shipping Index 1
Product Type Safety Sensor
