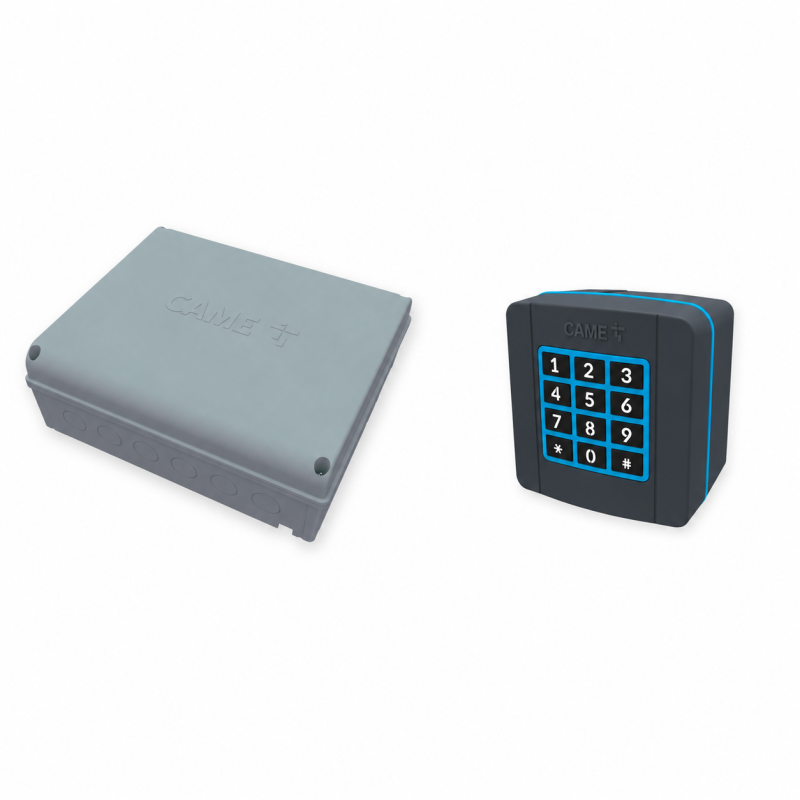

CAME RBE Plus Access Control Panel [806RV-0060 / 806RV-0070]

SKU 0U1BCA0024
Control Boards 230Vac IP 54 433.92 MHz and 868.35 MHz
Regular price: £704.40
Reduced price: £457.86
Tax included
1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

Control Panel
Accessory
Number of Accessories

Overview & suitability

CAME RBE Plus is an access control panel designed for use with transmitters and CAME CXN BUS accessories. It can manage up to 5,000 users and provides four digital inputs, four relay outputs and an integrated clock for time slot management.

RBE Plus is a control panel for access control, specifically designed for use with transmitters and CAME CXN BUS accessories. Two models are available, with power supplies of 24 AC/DC or 120–230 AC.

The control panel can manage up to 5,000 users, including radio controls, access codes and badges. It can connect up to 8 CXN BUS accessories, such as digital keypads, transponders and key selectors.

RBE Plus has four digital inputs for reading states or controlling relay outputs and/or CAME automations. Four output relays, with a load capacity of up to 5 A, can be used for direct control of electric locks, lights or automations. CAME automations can be controlled directly through the CRP protocol, with up to four CRP connections.

The control panel has a connector for CAME KEY for local setting via CAME KEY or for connecting a Wi-Fi gateway and using CAME CONNECT technology. It also incorporates a clock for time slot management and has a 7-segment display for setting parameters and functions.

The 806XG-0110 RCXN module enables simultaneous management of up to 8 CAME CXN BUS selectors. Code keypads, transponders and key selectors can be integrated into the system, with up to 5,000 codes and badges managed. The 806XG-0110 RCXN module is listed separately as an accessory for managing CXN BUS accessories.

RBE Plus includes password programming with a 4-digit password option and an Auto-Discovery function that can automatically configure connected CAME selectors and automations.

The system includes integrated traffic light management and car park capacity control functions. These include vehicle counting, maximum capacity settings, full car park signalling, presence monitoring, Anti Passback and configurable operating modes.

RBE Plus is compatible with CAME CONNECT for cloud supervision and access control functions. It also supports CAME QUICK&EASY ACCESS, allowing temporary access codes to be generated for guests and used through enabled gates, keypads or smartphones.

✅ Key Features

  • Access control panel

  • Two models available

  • 24 AC/DC or 120–230 AC power supply

  • Up to 5,000 users

  • Up to 8 CXN BUS accessory connections

  • Four digital inputs

  • Four relay outputs

  • Relay load up to 5 A

  • Up to 4 CRP connections for CAME automations

  • 7-segment programming display

  • Integrated clock for time slot management

  • CAME KEY connector

  • CAME CONNECT compatibility

  • 4-digit password programming

  • Auto-Discovery function

  • Radio controls, access codes and badges management

  • Traffic light management

  • Car park capacity control

  • Vehicle counting

  • Presence monitoring

  • Anti Passback

  • QUICK&EASY ACCESS integration

  • DIN rail installation

  • ABS container

  • IP54 protection rating

⚙ Technical Data

Technical Data Specification
Models 806RV-0060 / 806RV-0070
Model 806RV-0060 RBE24 Plus
Model 806RV-0070 RBE230 Plus
Product type Multifunction control panel
Protection rating IP54
Display 7 segments
Power supply 806RV-0060 24 AC - DC
Power supply 806RV-0070 120 - 230 AC
Operating temperature -20 to +55 °C
Container material ABS
Maximum radio users 5000
Inputs 4
Outputs 4
Connections via CRP 4
CXN BUS accessory connections 8
Password programming access YES (4 digits)
Connector for AF radio card YES
CAME CONNECT compatibility YES
Built-in clock function YES
Simultaneous management of numeric keypads and transponders YES
Automation connections via CRP protocol YES
Event log YES
Integration as a QUICK&EASY ACCESS system YES

Technical specifications

Shipping Index 1
Range 150m
Frequency 433.92 MHz and 868.35 MHz
Power Supply Voltage 230Vac
Protection Rating IP 54
Product Type Control Boards
