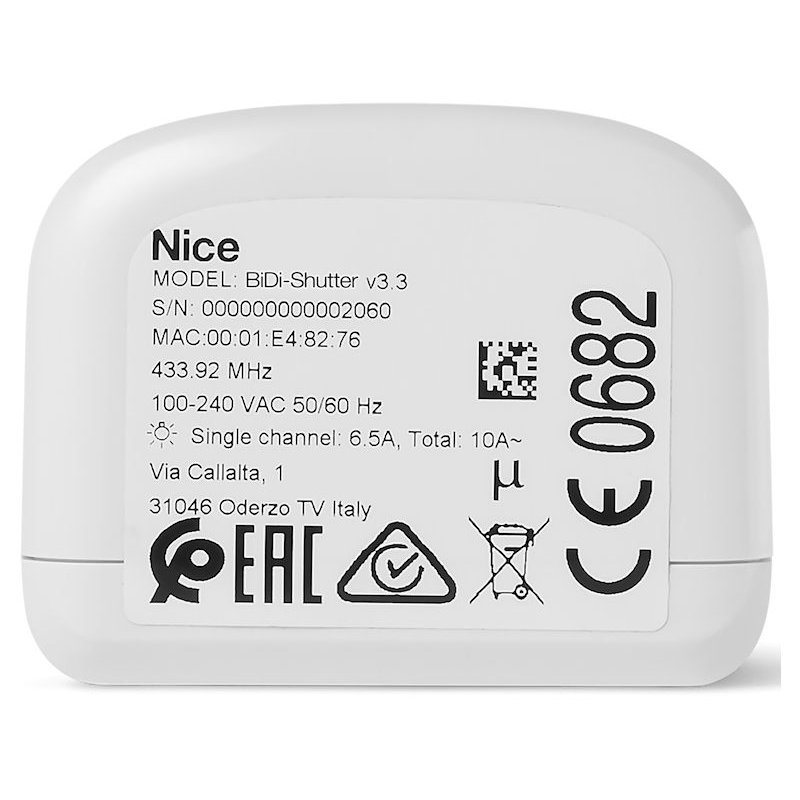

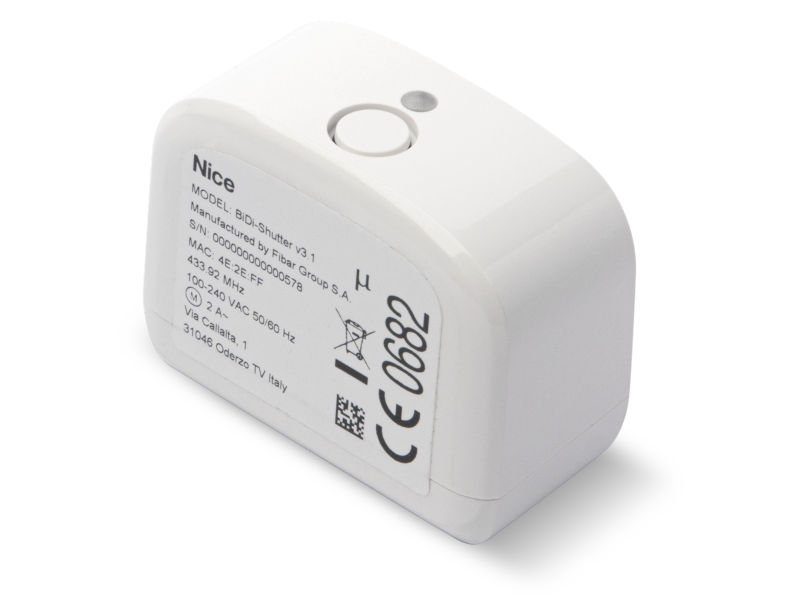

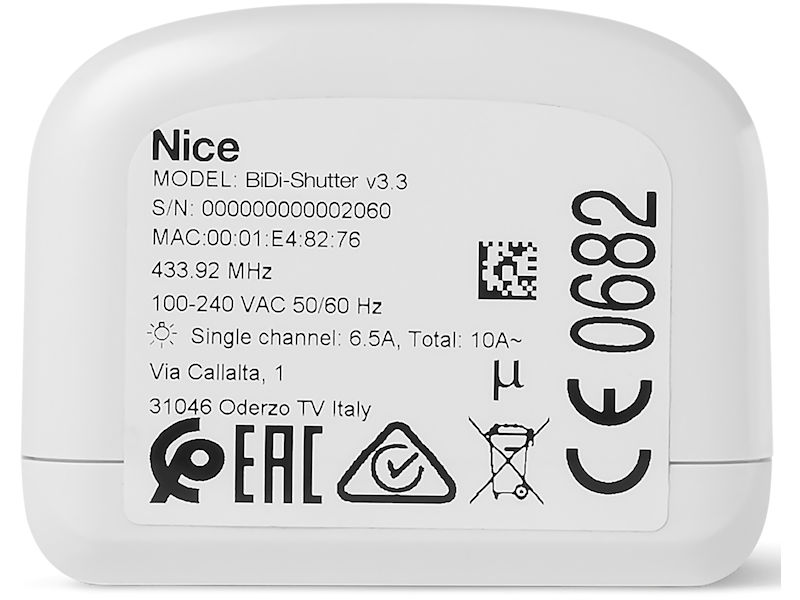

Yubii BiDi SHUTTER (BIDI-SHUTTER) Smart Home Shutter Control

Reference BIDI-SHUTTER
Previous
Next

Quick Overview

Unidirectional and bidirectional miniaturised multipurpose interface for blinds, awnings, rollingshutters and Venetian blinds.

£62.30
Tax included
Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
£62.30
Tax included

Share on

Product Description

With BiDi-Shutter, you can also manage
mechanical tubular motors by integrating
them into your smart home system; it can
work without a gateway and with unidirectional transmitters.


With BiDi-Shutter you can:
• Control the connected motors individually, in
groups or in scenarios.
• Reduce energy waste by controlling consumption and managing electrical loads.
• Check automation status.
• Use Amazon Alexa, Google Home and Siri
Shortcuts voice commands to control the
connected automations.
• Manage the devices remotely via smartphone,
smartwatch or car infotainment.


Smart programming
With BiDi-Shutter, you can also programme and
adjust the limit switches from the transmitter by
performing two complete manoeuvres, guaranteeing continuous automatic calibration during
operation.
Two intermediate positions can be set for rolling
shutters or Venetian blinds: the well-being position to regulate air exchange in the room.


Compact and practical
BiDi-Shutter can be installed in junction boxes,
wall plates or the box near the motor.


Wired Input
It can manage a number of tubular motors, including via the wall switch, or be integrated into
the Building Management System.


Backward compatible
If you replace the TT2N unidirectional control unit with the BiDi-Shutter, the transmitter
doesn't need not be replaced and the connected devices can be turned on and off even
without a gateway.


Nice Mesh technology: extension of radio
range to 150m (max. 5 Hops) under optimal
conditions. Each bidirectional product acts as a
radio signal repeater to extend signal coverage.



Code BIDI-SHUTTER
Power supply (VAC/Hz 100–240, 50/60
Rated load current (A) 2
Type of load supported single-phase AC
Radio frequency (Mhz) 433.05–434.04
Max. transmitted power (dBm) 10
Protection class (IP) 20
Operating temperature (°C Min/Max 0-35
Dimensions (mm) 45 x 36 x 23 h



Product Details

Reference BIDI-SHUTTER Category Smart Home Brand Yubii Home
