Yubii MH5-2A Fan 2 control (MH5-2A) Smart Home Climate Control
Buy now pay later
Quick Overview
Thermostat for temperature controlof three-speed radiators.
Price:
£142.56
Tax included
Price:
£142.56
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price:
£142.56
Tax included
Share on
Product Description
Fan-Control is an innovative thermostat designed to measure and manage the internal
temperature of convector heaters, also ideal
for the office or holiday home, as it automatically
adjusts fan speed according to temperature differences, programmed heating times or manual
input.
Fan Control is available in two versions, created
for the most common fan coil unit installations:
Fan2-Control and Fan4-Control for 2 and 4
pipe convector heaters.
Main features:
• Capacitive touch buttons.
• Tempered glass panel, PC alloy housing.
• Precise temperature calibration function.
• Non-volatile memory, operating status saved
even in the event of power failure.
• Electric (ball) valve or air valve with smart on/
off control.

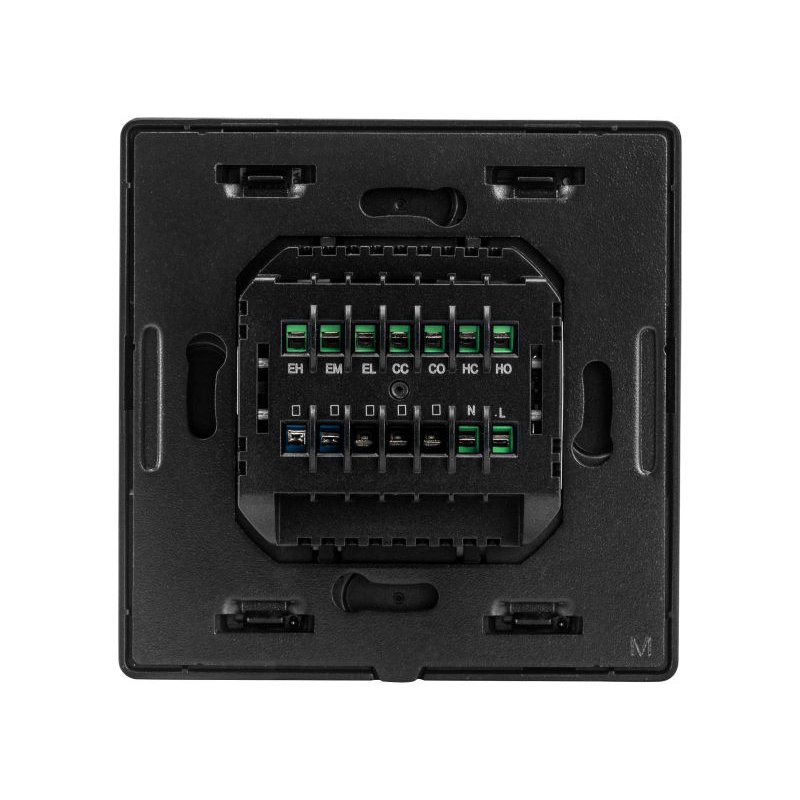

• Simple installation of the steel frame back
plate.
| Code | FAN-CONTROL |
| Power supply | AC85–260V~50/60Hz |
| Rated load current (A) | <= 3 |
| Type of load supported | resistive |
| Self-consumption (W) | <= 1 |
| Overcurrent protection | external 10 A circuit breaker required |
| Operating temperature (°C Min/Max | 0 - 55 |
| Temperature set range (°C Min/Max) | 5 - 37 |
| Temperature sensor | NTC 10K |
| Operating humidity (RH) | < 95% (without condensation) |
| Radio protocol | Z-Wave (700 series) |
| Radio frequency (MHz) | all frequencies available |
| Hole pitch (mm) | 60-65 (standard junction box 60 or 86) |
| Dimensions (mm) | 86 x 86 x 14 h |
