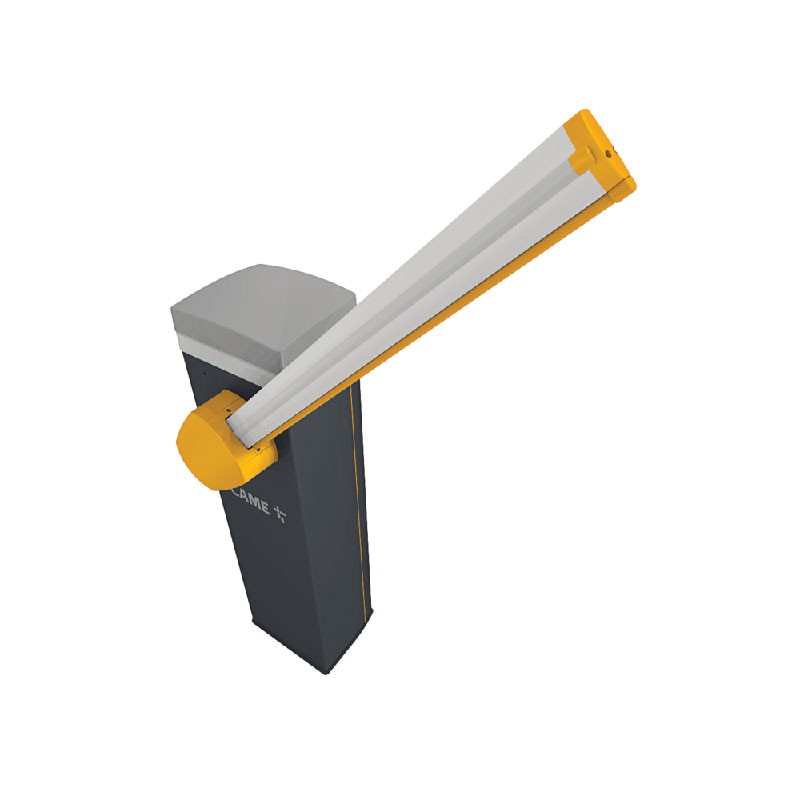

CAME GARD PX 36 V Brushless Barrier Deluxe Kit — 3m Boom (8K01RB-0730)

Reference 8K01RB-0730

Quick Overview

Premium CAME GARD PX automatic barrier kit with 36 V brushless motor for intensive service. Includes 3 m boom, LED crown light, boom LED strip, reflective strips, and safety photocells. Cloud monitoring supported via optional CAME Connect module.

Regular price: £4,218.00
Reduced price: £2,741.70 Save 35%
Tax included
Reduced price: £2,741.70
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £2,741.70
Tax included

Share on

Product Description

CAME GARD PX 36 V Brushless Barrier Deluxe Kit — 3m Boom (8K01RB-0730)

The CAME GARD PX Deluxe Barrier Kit (8K01RB-0730) is a high-end automation solution for entrances up to 3 m wide. With its 36 V DC brushless gearmotor, the PX is engineered for intensive duty, providing whisper-quiet movement, durability, and extremely low maintenance.

The heart of the system is the ZLB30B control board, with an intuitive graphical display. It is CAME Connect–ready, meaning you can add the optional CAME Connect module to enable remote cloud monitoring and configuration.

For safety and visibility, the deluxe version comes fully equipped with:

  • LED luminous crown on top of the cabinet

  • LED boom strip lighting for high visibility

  • Reflective red strips for night visibility

  • DIR10 photocells to detect obstacles

The 3 m aluminium boom includes a shock-proof rubber profile and groove cover strip, supported by a balancing spring and fixed boom rest.


⚙ Technical / Performance Features

  • Motor: 36 V DC brushless irreversible gearmotor (GPX40MGS)

  • Boom: 3 m aluminium (90×35 mm) with groove cover strip and rubber safety profile

  • Duty rating: Continuous service, intensive use

  • Control board: ZLB30B with graphical display — CAME Connect–compatible (module required)

  • Opening time (90°): ~1.2–2.4 seconds adjustable

  • Safety devices: DIR10 photocells (12/24 V AC-DC, 10 m range)

  • Signaling: LED crown, LED boom strip, reflective red strips

  • Boom support: Fixed rest included

  • Power supply: 100–230 V AC input; 36 V DC motor supply

  • Protection: IP54

  • Operating temp: −20 °C to +55 °C (−40 °C with optional heater)


📦 What’s in the Box

  • GPX40MGS GARD PX barrier body (painted steel cabinet)

  • ZLB30B control board with display

  • 3 m aluminium boom with groove cover strip and rubber profile

  • Balancing spring Ø 50 mm

  • Fixed boom rest

  • LED red/green strip for boom

  • LED luminous crown

  • Pack of 20 reflective strips

  • DIR10 photocells (pair)

Product Details

Reference 8K01RB-0730 Category Traffic Barrier Kits Brand CAME
CAME

Product Specifics

Shipping Index 1
Max Boom Length 3.8m
Opening Time 1.2 to 2.4 seconds
Boom Length 3M
Motor Electromechanical
Power Supply Voltage 230v
Motor voltage 36v
Duty Cycle continuous
Product Type Automatic Barrier Kit
