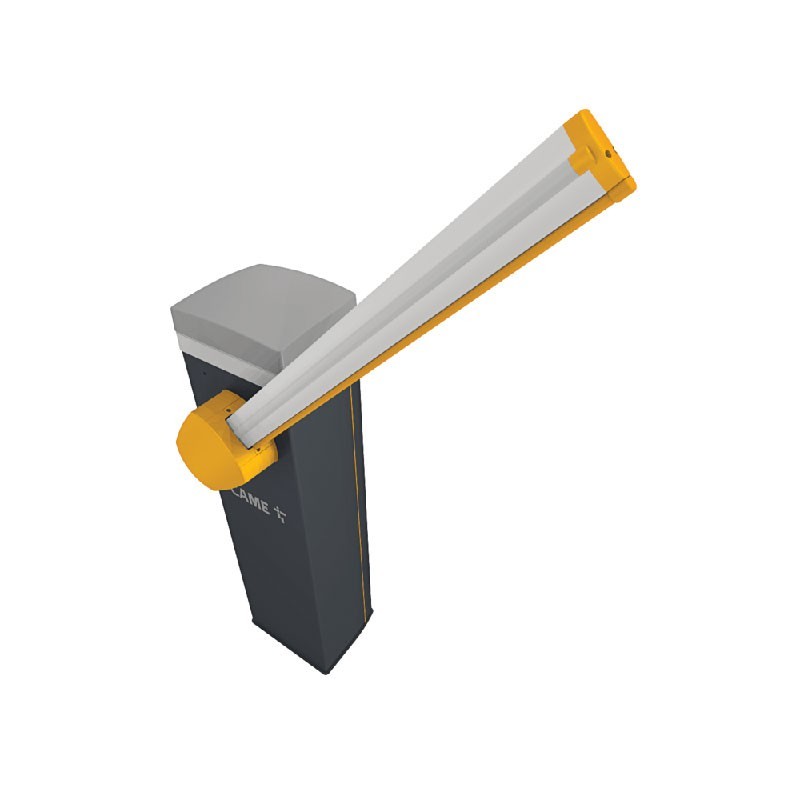

CAME GARD PX 36 V Brushless Barrier Deluxe Kit — 4 m Semi-Oval Boom (8K01RB-0731)

Reference 8K01RB-0731

Quick Overview

Premium GARD PX automatic barrier with 36 V brushless motor, designed for intensive and continuous use. Equipped with a 4 m semi-oval boom, LED signaling, safety photocells, and accessories for visibility. Cloud control possible with optional CAME Connect module.

Regular price: £4,281.60
Reduced price: £2,783.04 Save 35%
Tax included
Reduced price: £2,783.04
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Reduced price: £2,783.04
Tax included

Share on

Product Description

CAME GARD PX 36 V Brushless Barrier Deluxe Kit — 4 m Semi-Oval Boom (8K01RB-0731)

The CAME GARD PX Deluxe Barrier Kit (8K01RB-0731) is made for wide entrances, high usage, and demanding environments. With its 4 m semi-oval aluminium boom, it’s ideal for driveways, parking entries, or zones with higher clearance requirements.

It features a GPX40MGS brushless irreversible motor delivering quiet, reliable performance, housed in a painted steel cabinet with rugged protection (IP54). The control board included is ZLB30B, with graphical interface and compatibility with CAME Connect (module required) to enable remote monitoring and configuration.

Safety is front and centre: a pair of DIR10 photocells, balancing spring, boom rest, LED crown, LED boom-strip, and reflective strips are all included to ensure both compliance and high visibility.


⚙ Technical / Performance Features

Feature Details
Boom length & type 4 m semi-oval aluminium boom, groove cover strip, shock-proof rubber profile, 90×35 mm cross-section
Max net clearance width Up to 3.8 m
Motor 36 V DC brushless irreversible motor (GPX40MGS)
Duty rating Continuous service — suitable for frequent open/close cycles
Control board ZLB30B with graphical display; CAME Connect-ready (module not included)
Signaling & visibility LED luminous crown on cabinet, LED strip on boom, red/green boom lighting, reflective red-strip pack
Safety devices DIR10 outdoor photocells (12-24 V AC/DC, 10 m range)
Power Supply 100-230 V AC input; 36 V DC output to motor
Opening time (90°) ~1.2–2.4 seconds
Protection rating IP54
Operating temperature

−20 °C to +55 °C (with optional heater, down to −40 °C)


📦 What’s in the Box

  • GPX40MGS barrier body in painted steel housing

  • ZLB30B control board with graphical display

  • 4 m semi-oval aluminium boom (90×35 mm) with groove cover strip and rubber profile

  • Balancing spring Ø 50 mm

  • Fixed boom rest

  • LED luminous crown indicator

  • LED strip for boom lighting (red/green)

  • Pack of 20 adhesive reflective red strips

  • Pair of DIR10 outdoor photocells (12-24 V AC/DC)

Product Details

Reference 8K01RB-0731 Category Traffic Barrier Kits Brand CAME
CAME

Product Specifics

Shipping Index 1
Max Boom Length 3.8m
Opening Time 1.2 to 2.4 seconds
Boom Length 4M
Motor Electromechanical
Power Supply Voltage 230v
Motor voltage 36v
Duty Cycle continuous
Product Type Automatic Barrier Kit
