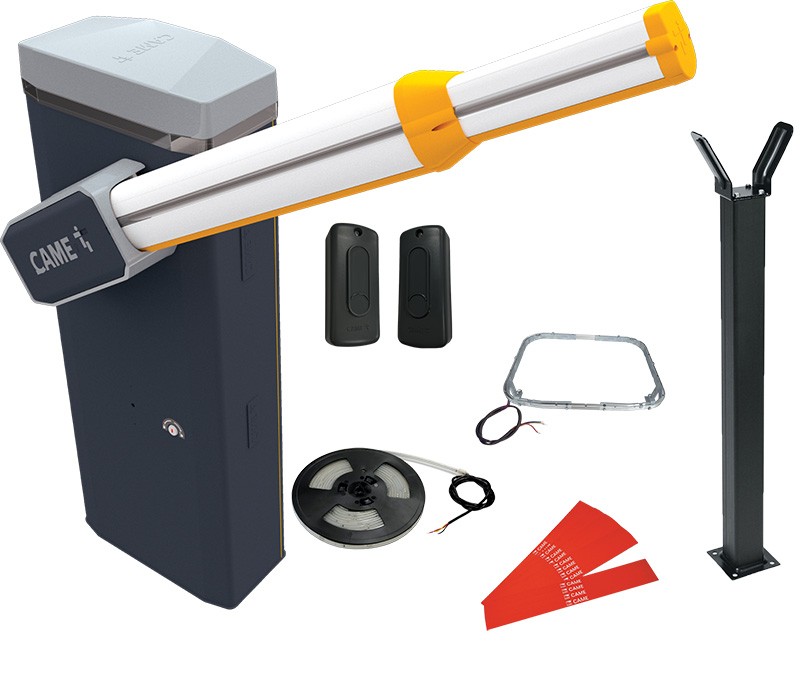

CAME GARD GT 6m GT8 Barrier kit 8K01RB-0741

Passage width clearance from 4m to 7.8m

MCBF 3 million cycles - Tested for intensive use up to 160 cycles/hours

Resistant - Cabinet in galvanised and painted steel or in AISI 304 or AISI 316 stainless steel

Reliable - 24 V DC operator, ENCODER and ADVANCED SPEED CONTROL for controlling the forces applied to the boom.

Practical - Built-in LED traffic lights and safety accessories.

Safe - EN12453 - Shockproof rubber profile and efficient obstacle detection system.

Perfectly Integratable - Advanced control board with digital inputs, CXN BUS inputs, MODBUS protocol and CONNECT technology.

Efficient - with opening and closing speed from 4 to 8 seconds depending on the length of the boom.

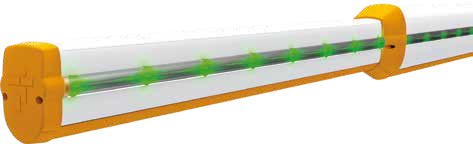

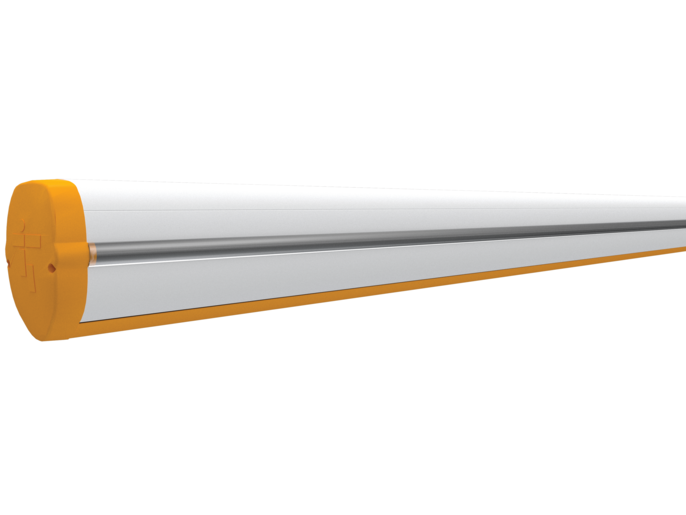

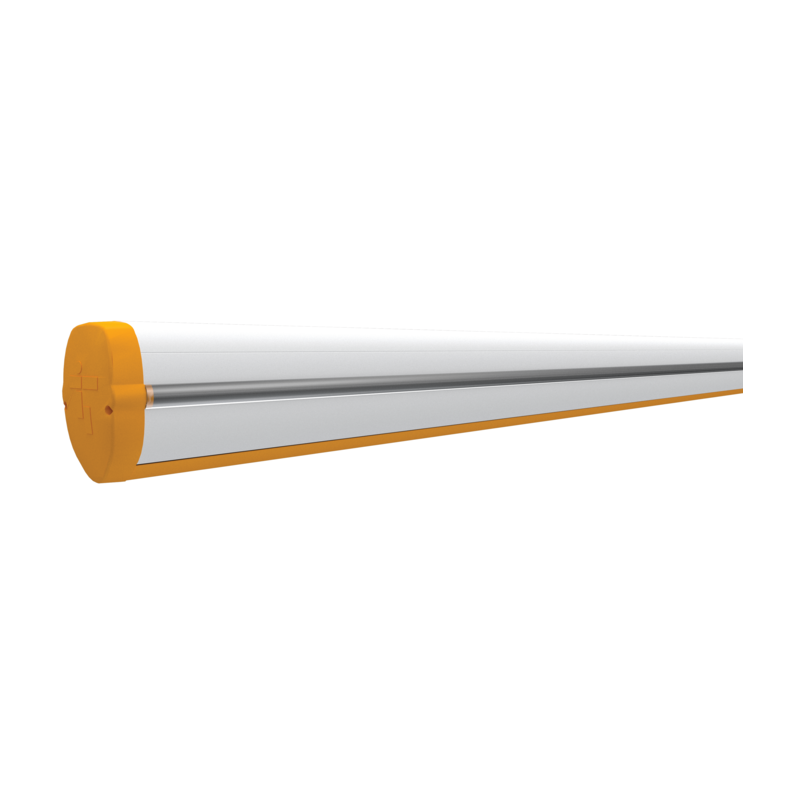

• Innovative Modular Boom
• In order to solve the traditional critical aspects caused by the boom length, CAME has developed an innovative boom divided into two sections of different diameters, which are inserted one inside the other, without the need for external joints or additional reinforcing components. The first section, the one connected to the body of the barrier, acts as the supporting element. The second section, with a smaller diameter and a variable length of up to 4 meters, is inserted about 30 cm inside the first one, and firmly fixed with special screws.
  • Easier and more economical transport.
  • Better boom resistance to stress.
  • Less weight to lift and therefore less stress for the motor.

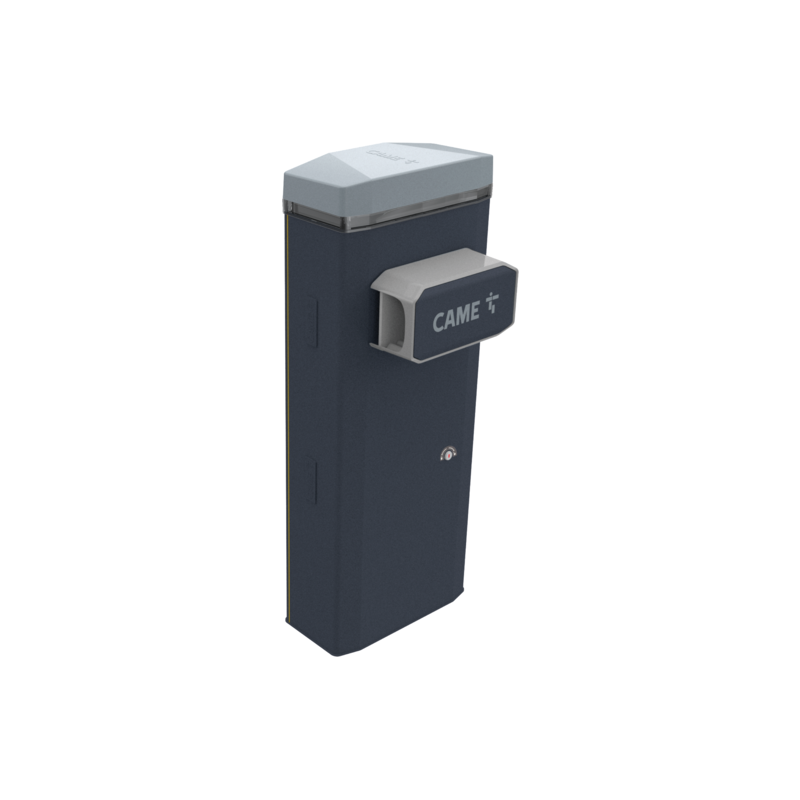

• Customisable Colour
• GARD GT8 has been developed for use on medium and large access gates. The elegantly designed cabinet is designed for the integration of safety accessories. Standard in RAL 7024 finish, it can be painted in any RAL color on request.

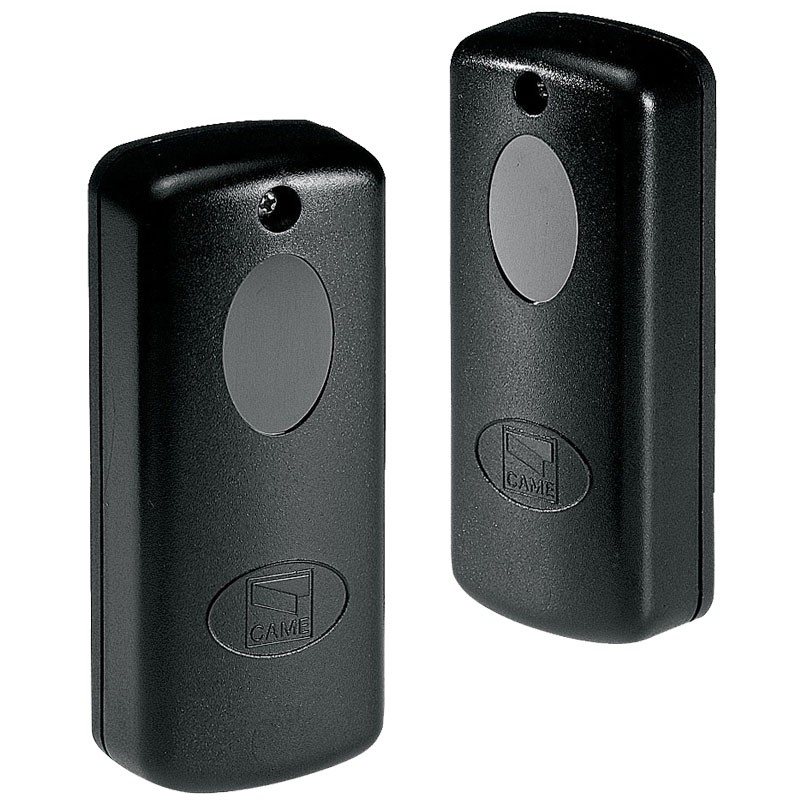

• INTEGRATABLE BUS ACCESSORIES AND PHOTOCELLS

  CXN

• The photocells and control accessories can be installed directly on the barrier structure. Moreover, the advanced control board of GARD GT8 is also able to manage CAT.2 safety systems such as laser sensors, in addition to CXN accessories, the new line of BUS devices, practical and quick to install.

• Integrated Signal Light
• The Red/Green LED lighting system eliminates the traditional flashing light, and offers traffic light signaling for greater safety. It can be installed both on the crown and on the boom on both sides, and regulates access by means of red, flashing red or green signaling.
• *Crown sold seperately

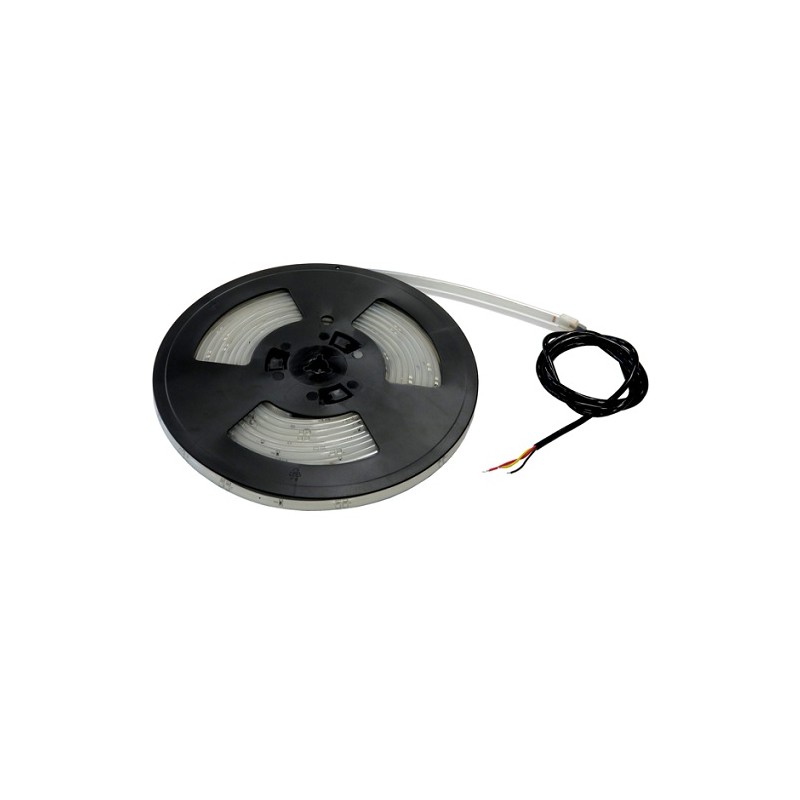

• *LED strip for the Boom included in kit

Simple Programming

The control board is positioned directly under the cabinet cover. All the configuration and maintenance phases can therefore be carried out comfortably standing upright, with the cabinet closed, in total safety.The practical 7-segment display and the control keys allow to navigate through the menu and configure the barrier in a few simple steps. The advanced control board of Gard GT4 includes:
• Inputs for safety accessories configurable both as N.C. contacts and resistive contacts (8k2)
• Control inputs
• Inputs for CXN BUS accessories
• Output for safety electric lock at the boom tip.
• Connector for fixed code radio receiver and rolling codes up to 250 users (AF435/AF868)
• Connector for external keyboard or RFID reader (R800/R700)
• Serial port for CONNECT gateway for remote management of the barrier.
• Connector for CAME KEY for configuration from smartphone.
• MEMORY ROLL for saving the configurations
• Serial port with MODBUS protocol

Advanced Speed Control

The modern 24V AC motor equipped with Encoder implements an advanced boom speed management solution. Thanks to this innovative function the movement is smooth and constant both when opening and when closing, without annoying oscillations that would compromise the integrity of the mechanical system and the boom itself. The control board continuously analyses the forces acting on the boom, adjusting the speed according to the parameters measured, guaranteeing durability and reliability in all climatic conditions.

Battery-Powered Emergency System *sold seperately

In the occurrence of a blackout or in any emergency situation where an electrical problem occurs, Gard GT4 is able to operate in complete safety thanks to an auxiliary battery power supply system (optional). During normal operation with mains power supply, the system keeps the batteries fully charged in order to guarantee maximum reliability as soon as an emergency occurs.

TECHNICAL SPECIFICATIONS
