The CAME GARD LT4 is an automatic barrier designed for passage widths from 2.5 to 4 metres. It uses a 24 V DC motor with encoder and Advanced Speed Control to monitor the forces applied to the boom and adjust movement during opening and closing.

The barrier is tested for intensive use up to 300 cycles per hour and has a mean number of cycles between failures (MCBF) of 1.5 million cycles. The maximum opening and closing speed is between 2 and 4 seconds, depending on the boom length.

The ZL392-C control board is positioned beneath the upper cabinet cover and protected by an ABS cover. It provides configurable command and safety inputs, accessory and LED strip outputs, a radio receiver connector and terminals for an external keyboard or RFID reader. The board also includes a CAME KEY slot, MEMORY ROLL support and serial ports for CONNECT technology, combined or interlocked barriers, and Modbus protocol integration.

The barrier uses a single balancing spring that can be connected at different predefined points to accommodate different boom lengths. A folding aluminium downside skirt is available in modular 1,721 mm sections, with a rubber stopper and two connection brackets.

✅ Key Features

• Passage width clearance from 2.5 to 4 metres

• 24 V DC motor with encoder

• Advanced Speed Control

• Tested for intensive use up to 300 cycles per hour

• MCBF of 1.5 million cycles

• Opening and closing speed of 2–4 seconds, depending on boom length

• ZL392-C control board

• Command and safety inputs configurable for N.C. contacts and 8k2 resistive contacts

• Output for accessories and LED strip

• Radio receiver connector for fixed-code and rolling-code receivers, up to 250 users

• Terminals for external keyboard or RFID reader

• CAME KEY slot for smartphone configuration

• MEMORY ROLL for saving configurations

• Serial ports for CONNECT technology and Modbus integration

• Single variable-position balancing spring

• Compatible with a folding aluminium downside skirt available separately

• Compliant with EN 12453

⚙ Technical Data

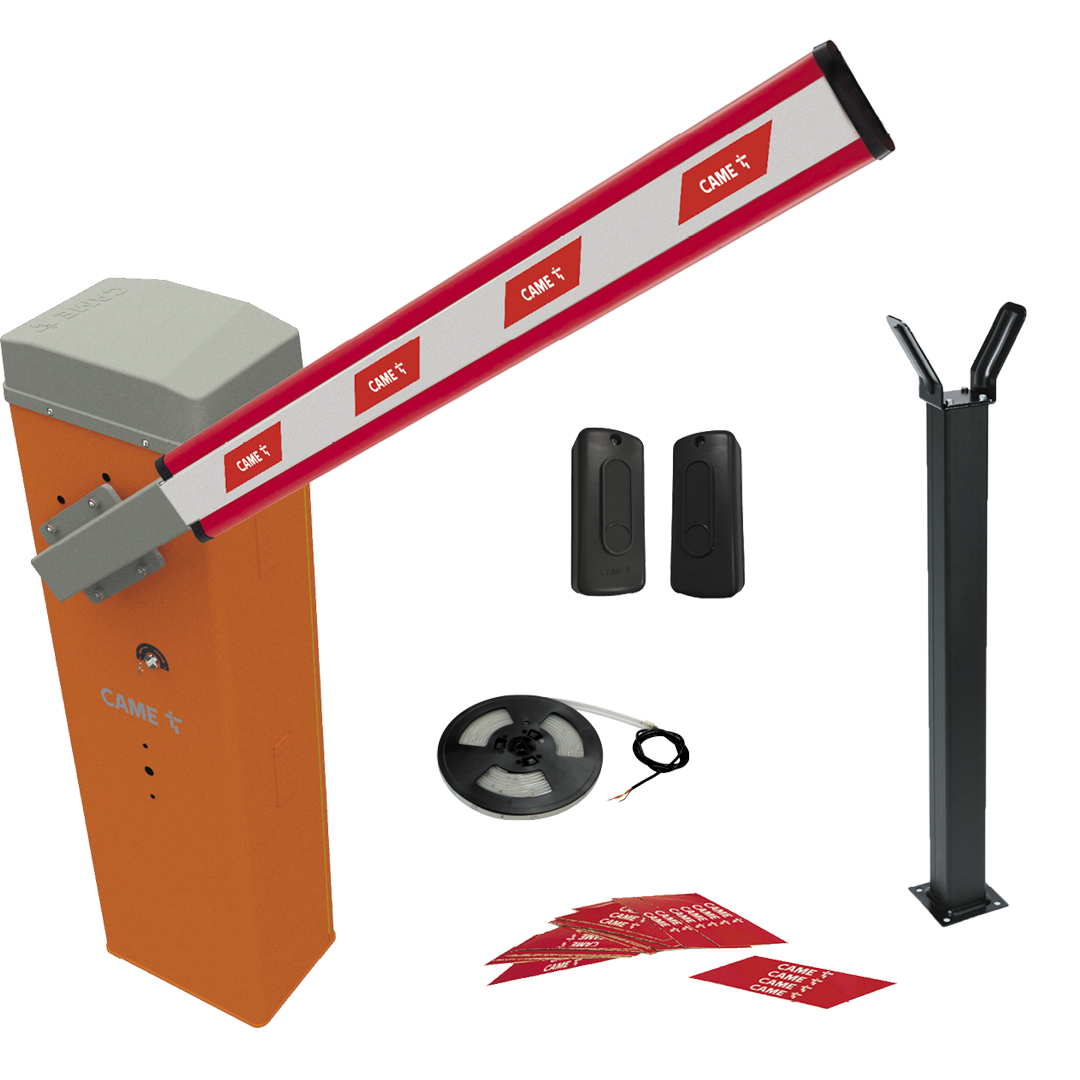

📦 What’s in the Box

• Barrier with built-in control panel

• Choice of G0401 rectangular boom, 60 × 40 mm, 4.2 m long, or G0402 round boom, 60 mm diameter, 4.2 m long

• Fixed rest

• White LED strips (rectangular boom kit only)

• Red shockproof rubber edge (rectangular boom kit)

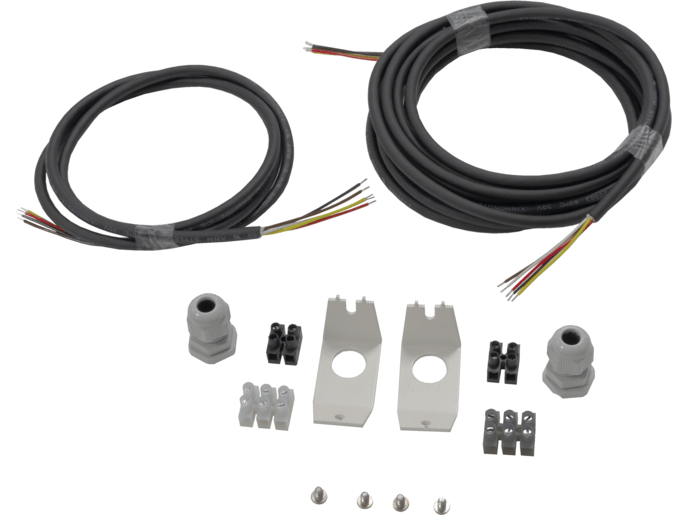

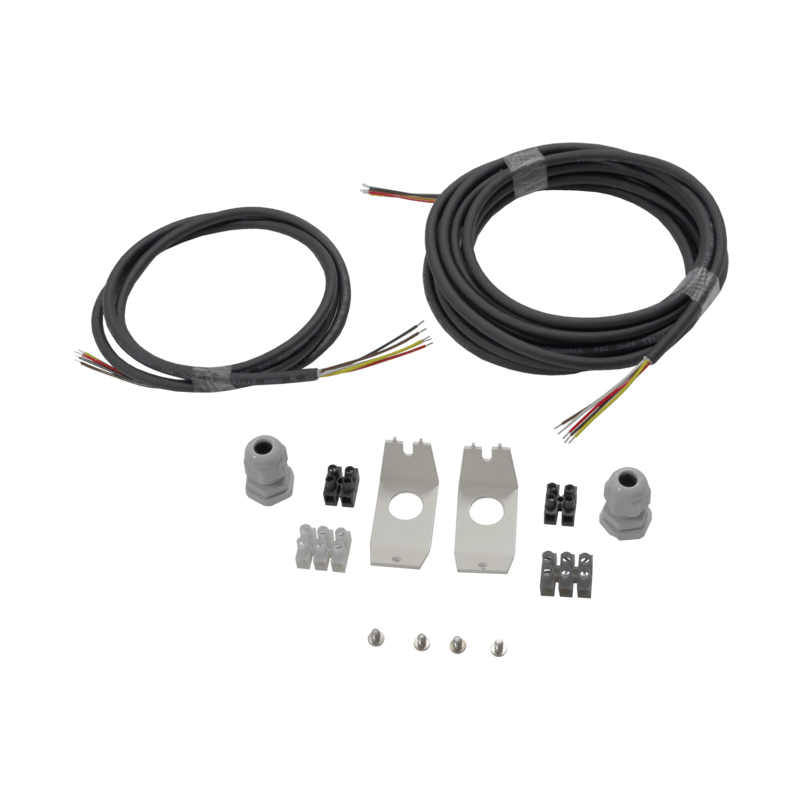

• Connecting cable

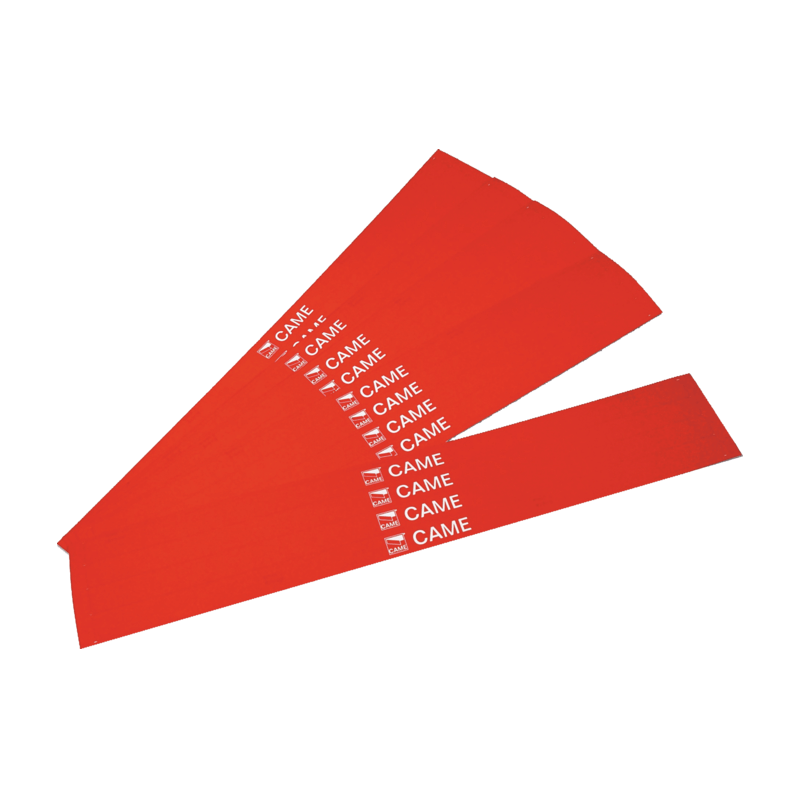

• Pack of 20 red reflective adhesive strips

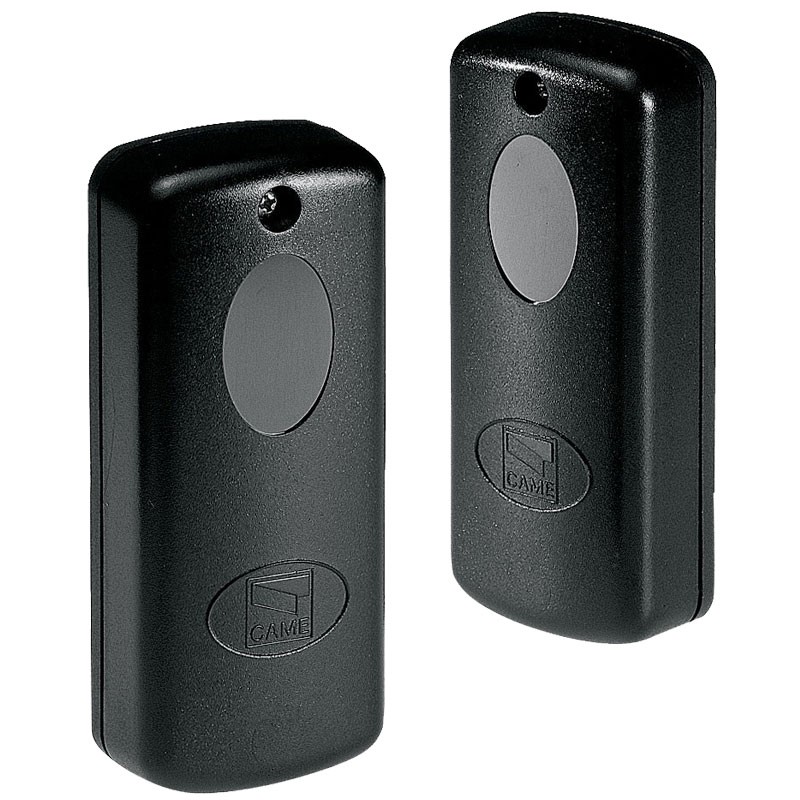

• Pair of photocells

• Full instruction manual and setup guide
