FAAC 770 UK (UPGRADE) KIT S ELECTRIC GATE KIT

SKU 770 UK (UPGRADE) KIT S
Swing Gate Kit Single gate kit Underground 3500 mm 500 kg 230v
Price: £1,382.40
Tax included

Reveal your customer price

Sign in or create a free account to see your lower price for this FAAC product.

No purchase required.

1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.

Overview & suitability

2024 Updated Kit with E145s & New FDS Transmitters

  • Swing Gate Kit
  • Single gate kit
  • 230v 20 cycles/hour
  • 3500mm or 500kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 15 seconds 90 Degrees

FAAC 770 UK KIT S

Complete kit for a single residential swing gate up to a maximum of 3.5m each leaf.

*NEW 2024 Updated kit*

+Benefits of the E145S

Compatible with both Simply Connect and FDS technologies

The BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.

Safety edges can be wired directly on to dedicated terminals, with either one or two resistive edges working in each direction.

There are two configurable outputs which allow detailed control of accessories, such as a locks or traffic lights.

This smart board has onboard diagnostic, which will speed up fault finding by having access to both error and alarm codes.

The configuration file of all the setting can be downloaded, saved and uploaded. This is possible either via a USB stick or through Simply Connect, saving time when installing similar systems on multiple gates.

+Benefits of the FDS Transmitters

Bidirectionality The FDS BD transmitter provides haptic feedback to confirm the open command was received and it is also possible to check if the gate is closed by holding down the button and checking the colour of the remotes LED.

Bidirectional transmitters are equipped with a built in TAG compatible with FAAC XTR B readers

+Benefits of the BUS Photocells

Simplified wiring and the BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.

Ultimate Choice in Aesthetical Appearance

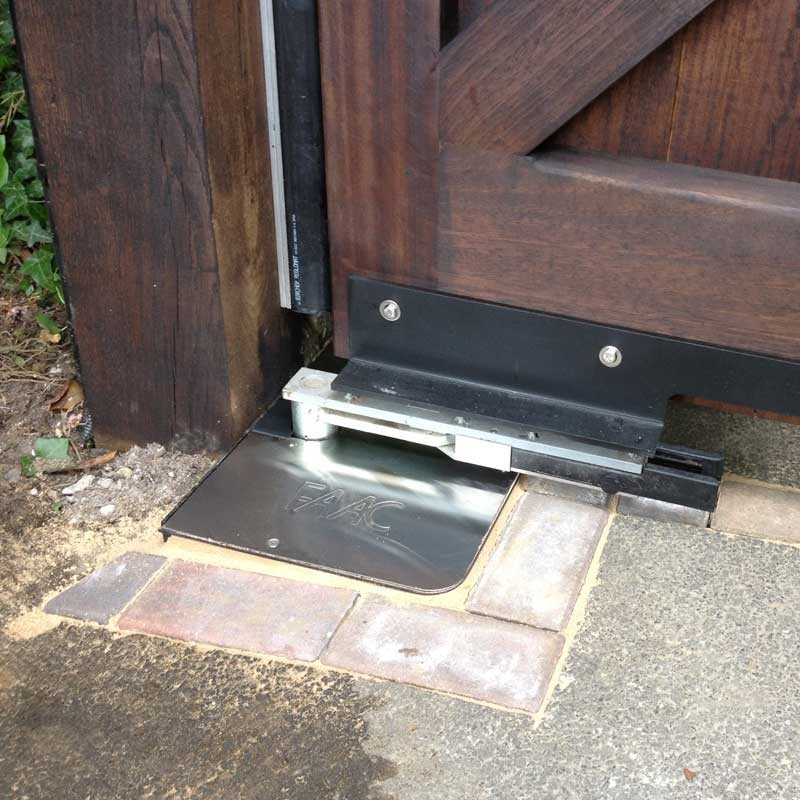

This underground equipment is specifically designed so that the motor is concealed in a load bearing foundation box beneath the pivot point of your hinged swing gates Giving you the very best in aesthetics while further reducing hazards by removing more trapping points above ground level.

LCD Display

Control Panel with LCD display for simplified programming.

What comes in the box
Quantity Item

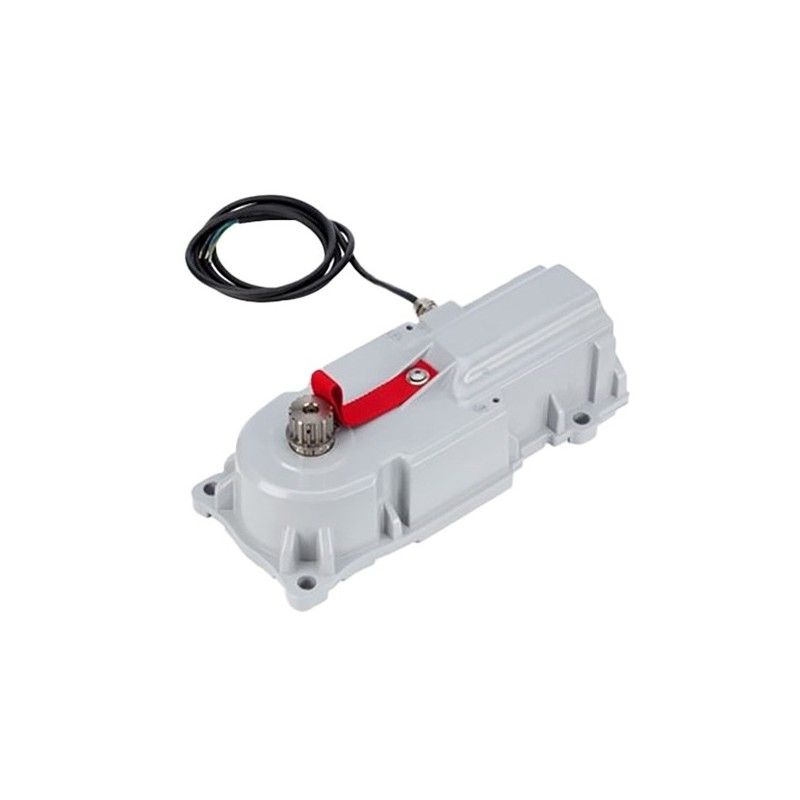

1 FAAC 770N 230v Operator

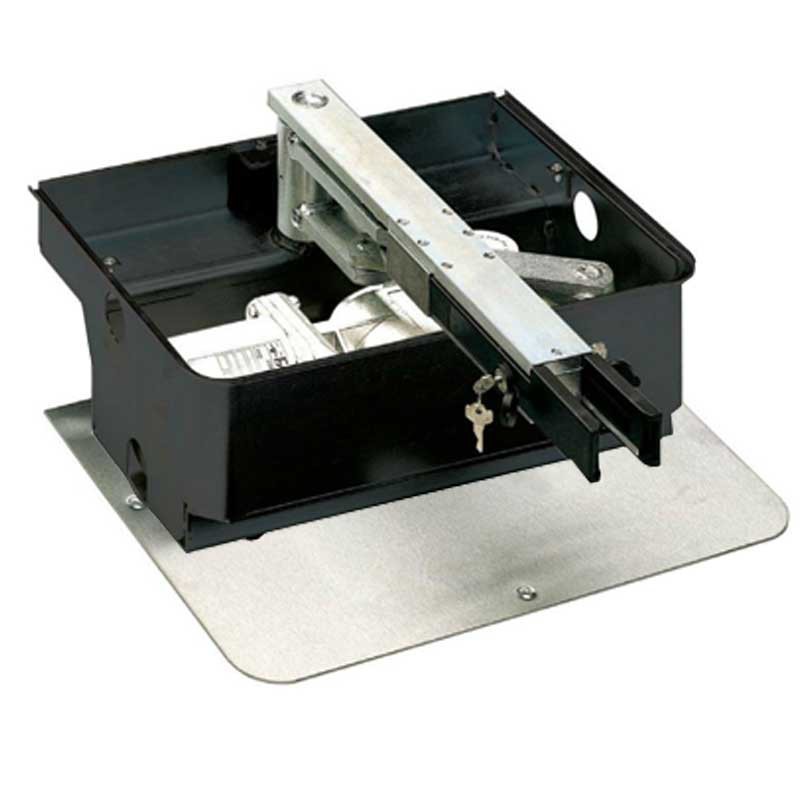

1 FAAC Underground Foundation Box
1 FAAC E145S Control Board
1 FAAC Control Board Housing

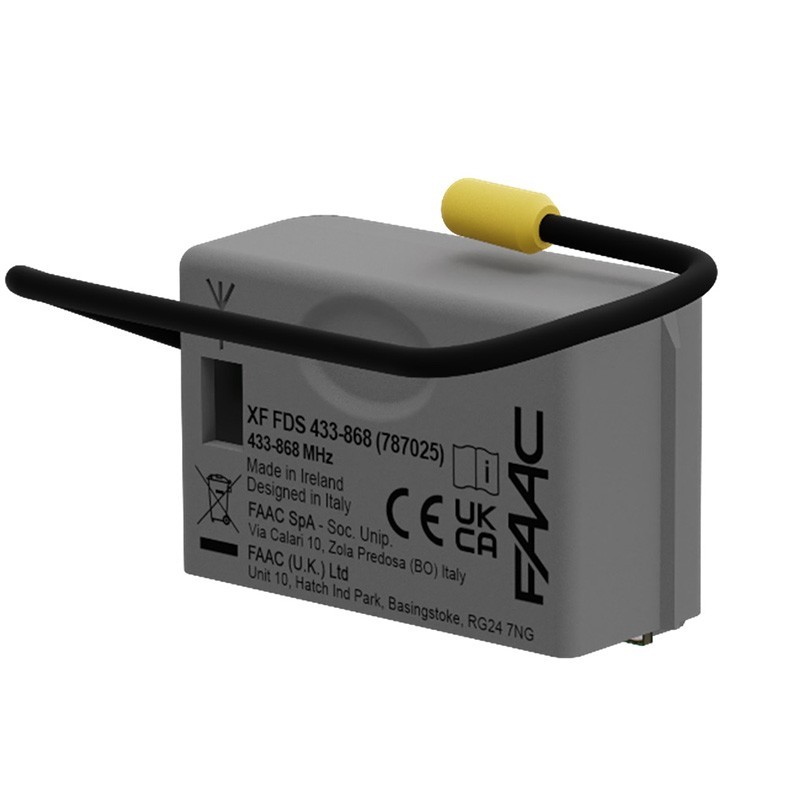

1 FAAC XF FDS Plug in receiver/decoder

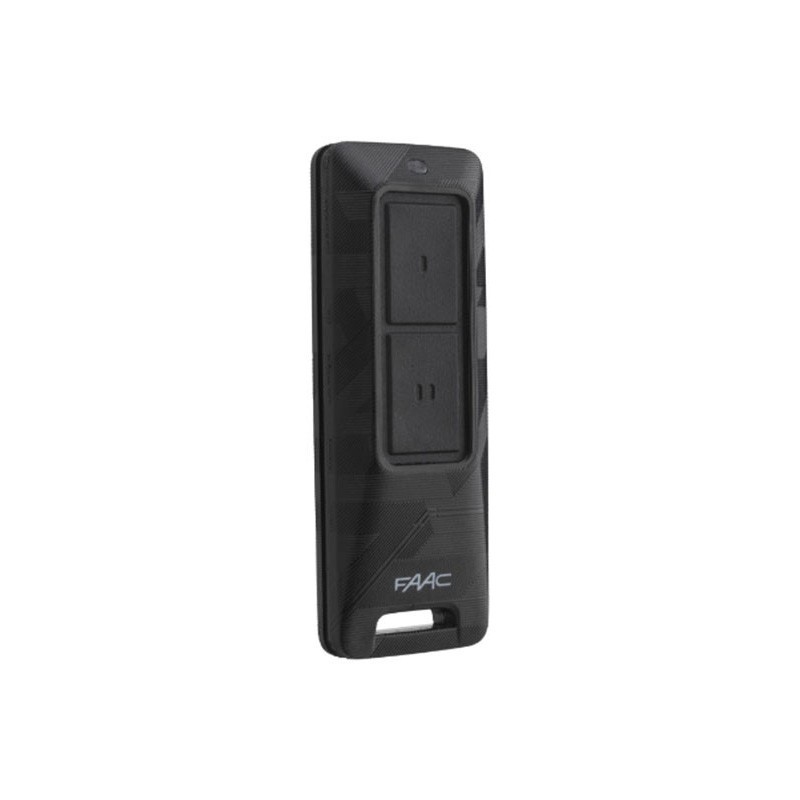

2 FAAC 868 FDS 2 Channel Transmitter's

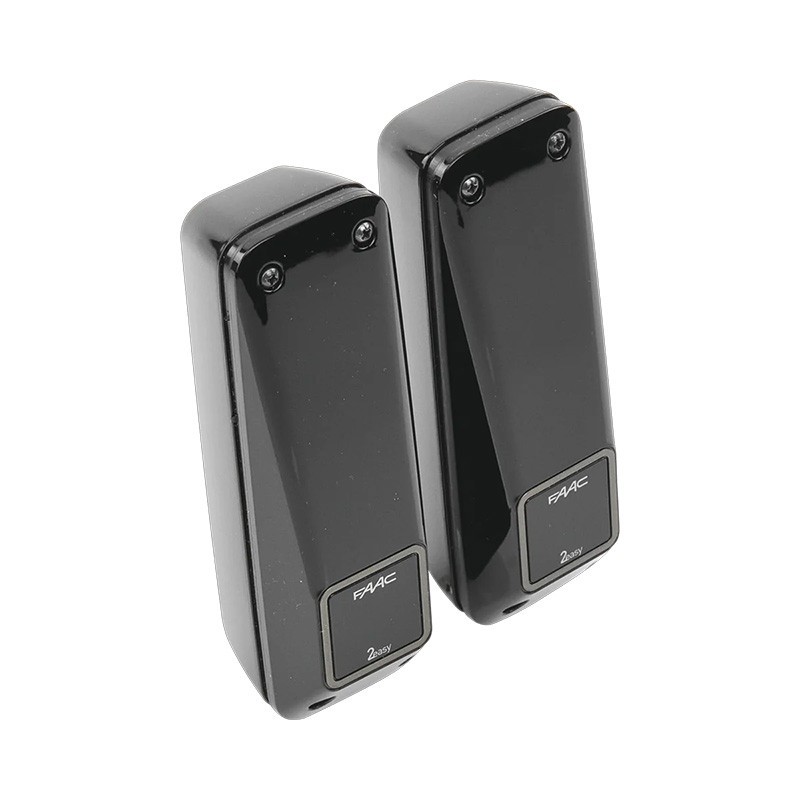

1 FAAC XP 20B D Pair of Photocells
Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Motor Gate Speed Duty Cycle Notes KIT SINGLE KIT
FAAC 770N 10675201 230v 230v 500kg 3500mm Mechanically locking motor Electromechanical 15 seconds 90 Degrees 20 cycles/hour FAAC 770 UK KIT FAAC 770 UK KIT S
FAAC 770N 24V 10675301 230v 24v 500kg 3500mm Mechanically locking motor Electromechanical 15 seconds 90 Degrees Very-intensive Obstacle Detection. FAAC 770 24V KIT FAAC 770 24V KIT S

Technical specifications

Shipping Index 1
Gate type Swing gate
Single or twin kit Single gate kit
Max weight per gate 500
Max length per gate 3500
Above or underground Underground
Max opening angle 110 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 230v
Gate Speed 15 seconds 90 Degrees
Duty Cycle 20 cycles/hour
Protection Rating IP 67
Product Type Swing Gate Kit
