FAAC 392 UK Double Swing Gate Automation Kit with Articulated Arms (392 UK KIT)

SKU 392 UK KIT
Swing Gate Kit Twin gate kit Above ground 2500 mm 350 kg 24v
Price: £1,161.60
Tax included

Reveal your customer price

Sign in or create a free account to see your lower price for this FAAC product.

No purchase required.

1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.

Overview & suitability

Complete FAAC 392 articulated-arm double kit for residential swing gates — 2.0 m per leaf (2.5 m with electric lock) — with control board, XF FDS 868 receiver, 2× SLH868-LR remotes, and XP20B photocells.

FAAC 392 UK Double Swing Gate Automation Kit with Articulated Arms (392 UK KIT)

The FAAC 392 UK Kit for Double Gates is a complete automation package designed for residential swing gates. Using articulated arms, it is especially suitable where gates are mounted on wide pillars or posts, providing smooth operation without the clearance issues that can affect linear actuators.

This kit is rated for gates up to 2.0m per leaf, or 2.5m per leaf when an electric lock is installed to secure the closed position.

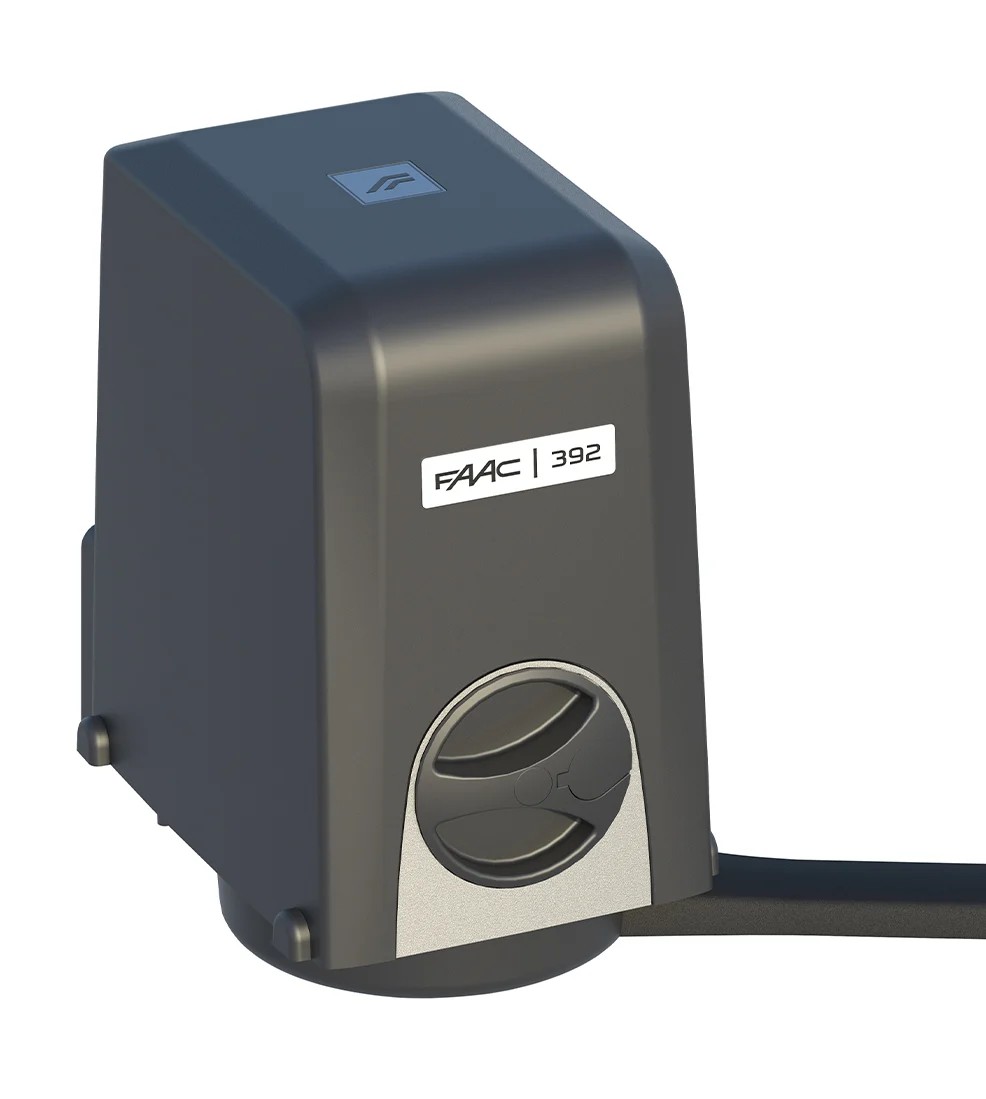

At its core is the 392 C operator with integrated control board, providing dependable motor management and smooth operation. The second operator completes the double gate setup, ensuring consistent and reliable performance.

The package also includes FAAC’s FDS radio system, which offers advanced encrypted communication and secure user access:

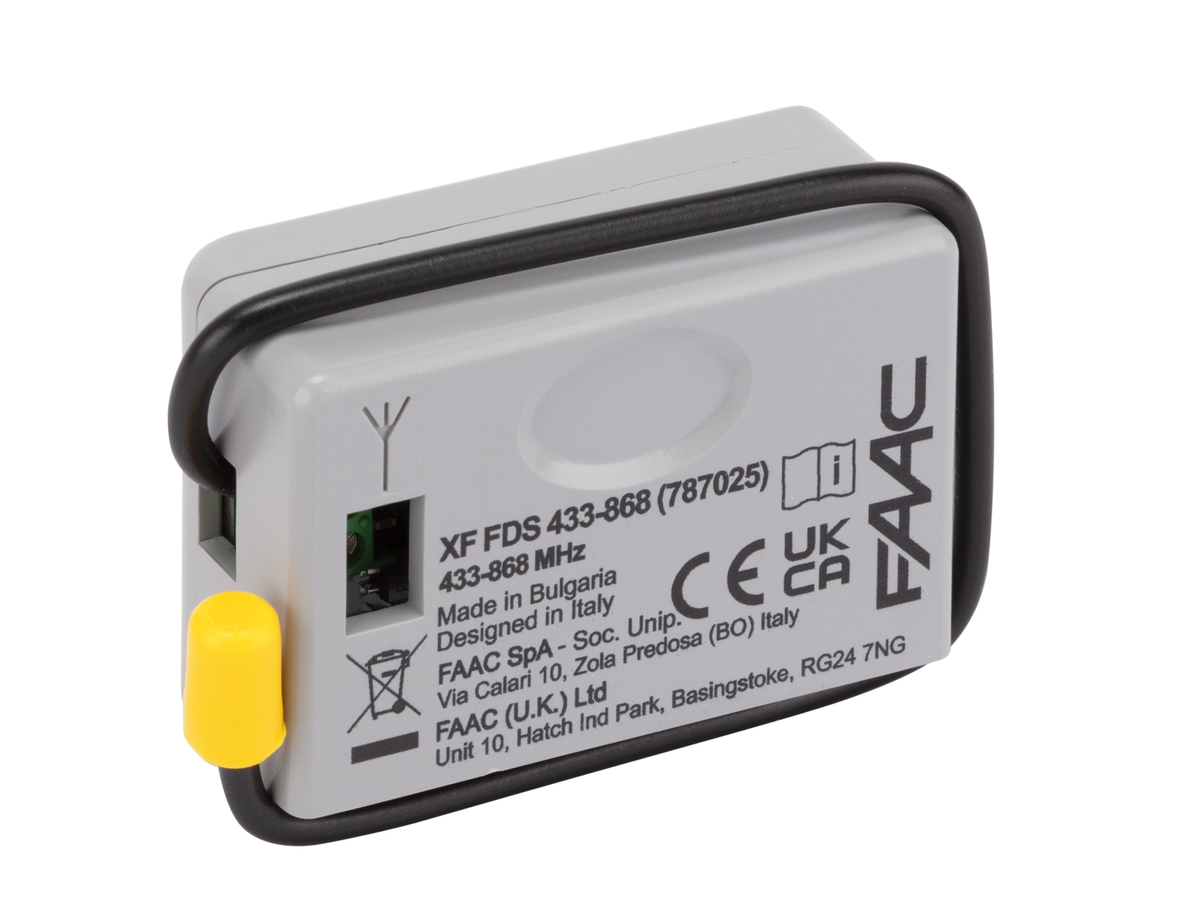

  • XF FDS 868 Receiver – dual-band operation (433/868 MHz)

  • Two SLH868-LR Two-Channel Transmitters – long-range remotes featuring FAAC Digital Signature (AES-128 encryption, Secure Vault™ protection, TrustZone® hardware, and SLH compatibility)

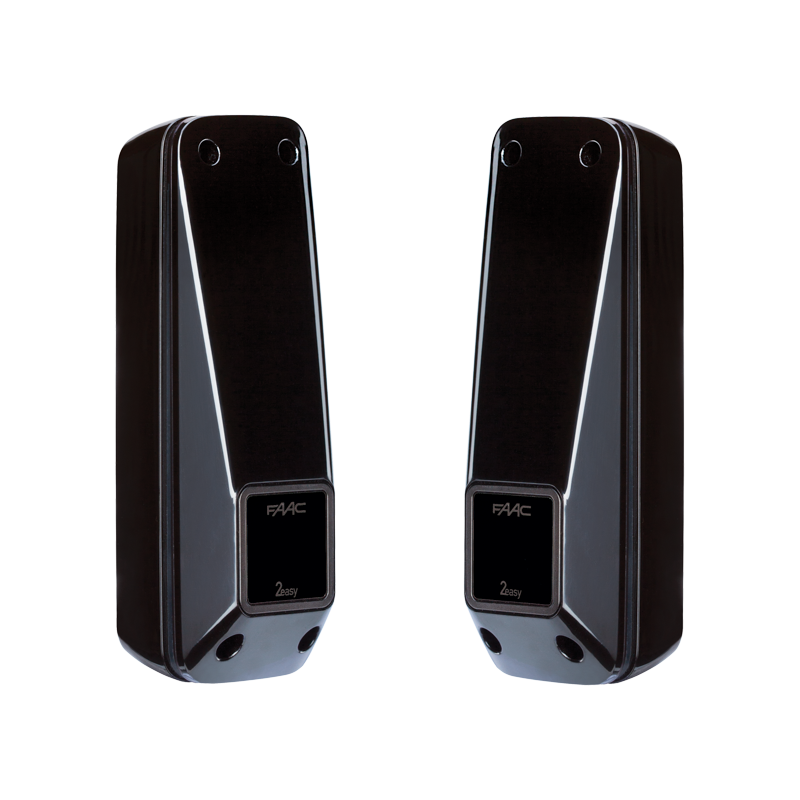

A pair of XP20B photocells is included, allowing obstacle detection to be integrated into the installation.

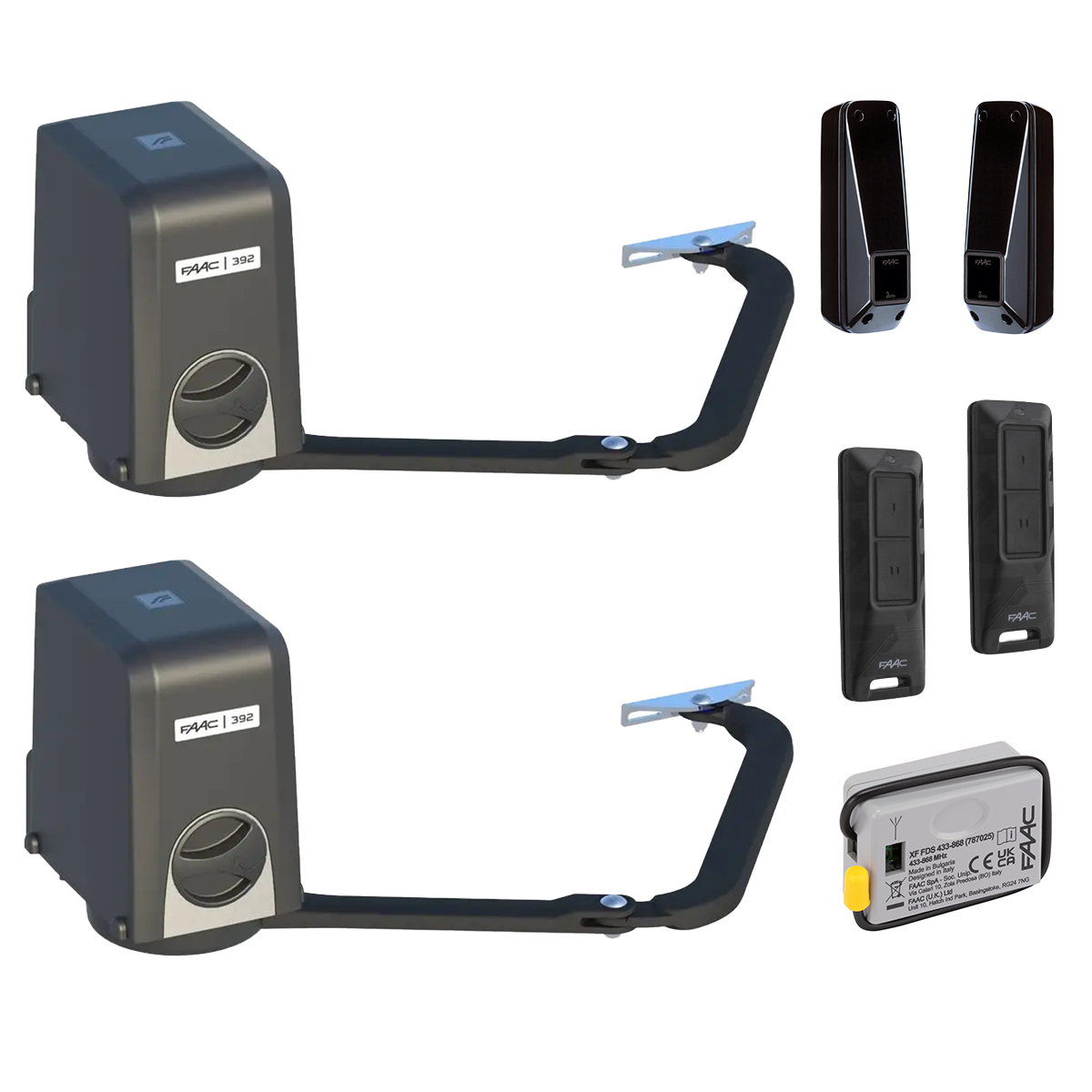

Kit Contents

  • 1 × FAAC 392 C Operator with control board & articulated arm (104583)

  • 1 × FAAC 392 Operator with articulated arm (104584)

  • 1 × XF FDS 868 Receiver (787025)

  • 2 × Two-channel SLH868-LR transmitters (787019)

  • 1 × Pair of XP20B safety photocells (785103)


Technical Specifications

  • Max gate leaf width: 2.0m (standard) / 2.5m (with electric lock)

  • Operator type: Articulated arm

  • Application: Residential swing gates

  • Power supply: 230 V AC

  • Radio system: FDS dual-band 433/868 MHz with AES-128 encryption, SLH compatible

  • Transmitters: SLH868-LR, 2-channel, long-range, bi-directional (BD models)

  • Included accessory: 1 × pair of XP20B photocells (installer to assess integration)

Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Motor Gate Speed Duty Cycle Notes KIT SINGLE KIT
FAAC 391 24v 104577 230v 24v 300kg 2500mm Mechanically locking motor Electromechanical 7 seconds 90 Degrees 80 cycles/day Slave motor. FAAC 391 UK KIT FAAC 391 UK KIT S
FAAC 391 E 24v 104576 230v 24v 300kg 2500mm Mechanically locking motor Electromechanical 7 seconds 90 Degrees 80 cycles/day Master Motor with Control Board. Obstacle Detection. FAAC 391 UK KIT FAAC 391 UK KIT S

Technical specifications

Shipping Index 1
Gate type Swing gate
Single or twin kit Twin gate kit
Max weight per gate 350
Max length per gate 2500
Above or underground Above ground
Max opening angle 120 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 24v
Gate Speed Adjustable
Duty Cycle 80 cycles/day
Obstacle Detection Built-In Obstacle Detection
Protection Rating IP 44
Motor Range 392
Product Type Swing Gate Kit
Catalogue Faac_Price_List_FEB_23.pdf
Page 17
