Product Description
This CAME NEW ATI 3m 230V double swing gate kit is designed for automating two gate leaves up to 3m each, using twin ATI30AGF electromechanical operators. It brings together the mechanical operators, safety photocells and radio remotes needed to form a practical automation package for residential or similar entrances when combined with suitable CAME control electronics.

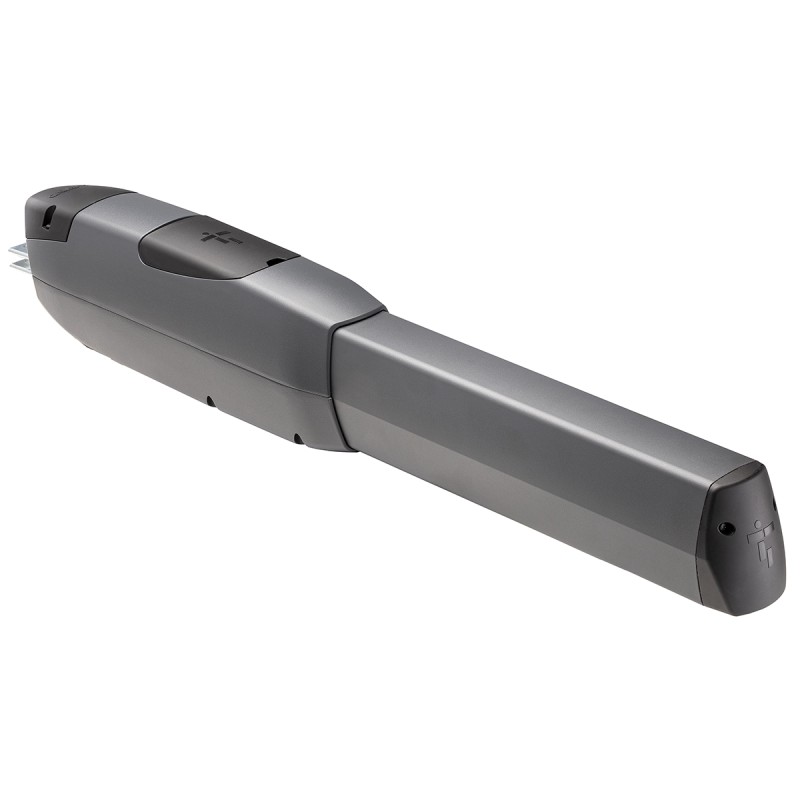

Each ATI30AGF operator is a 230V linear actuator with a fully metal structure, die-cast aluminium half-cases and an extruded aluminium protective casing that shields the worm screw from impurities while helping to reduce vibration. The motors provide up to 4000 N of thrust with a 90° opening time of around 13 seconds, within the specified gate length and weight limits. A protected manual release with trilobe key allows each gate leaf to be operated by hand when required.

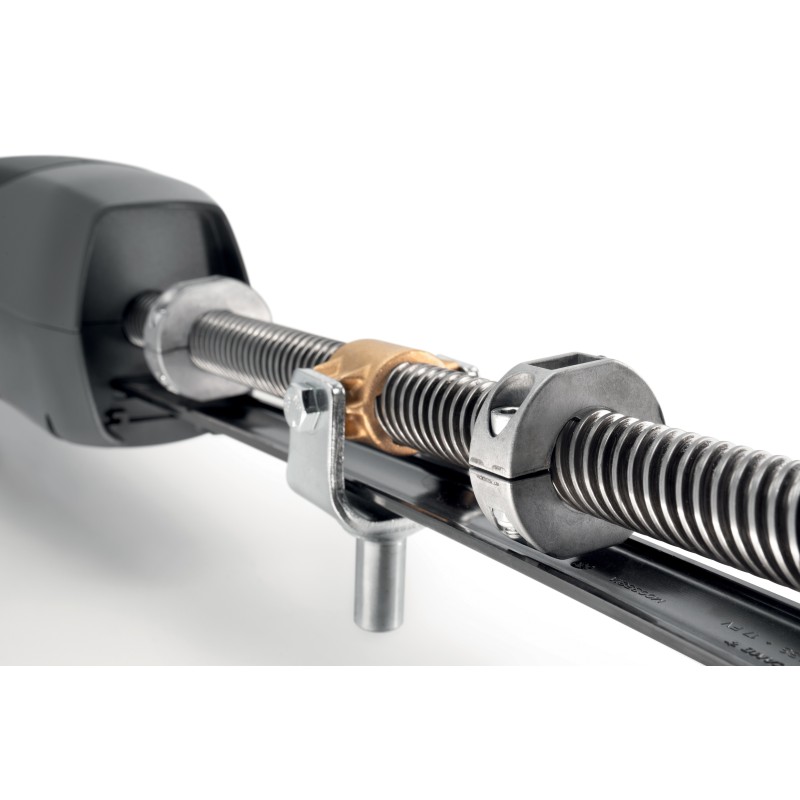

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.
Photocell options

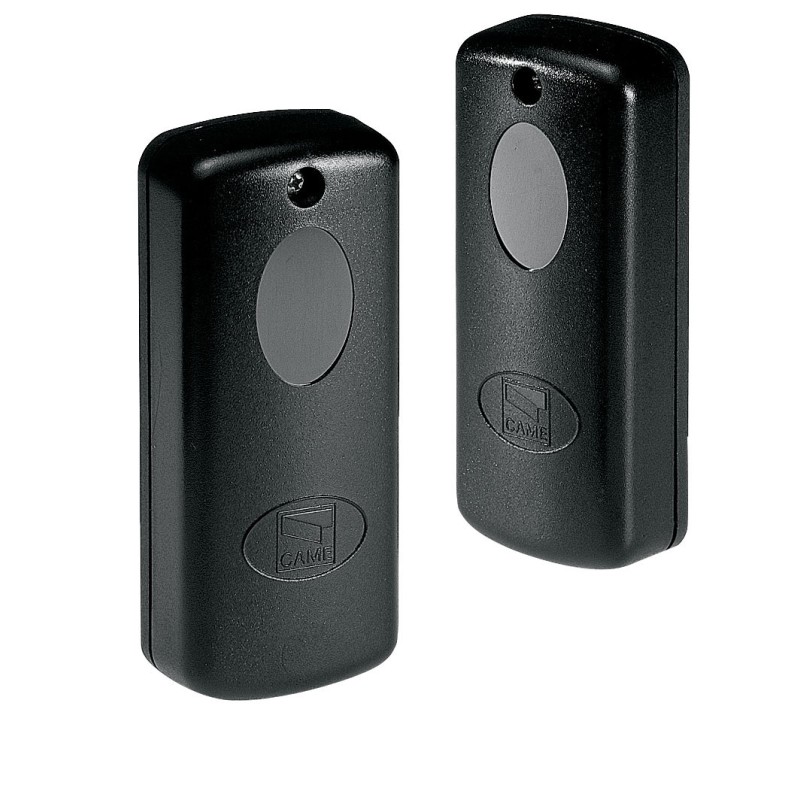

Kits with DIR photocells use traditional surface-mount safety beams with a 10 m range and 12–24 V AC–DC supply, suitable where standard wiring is available. Kits with DXR wired photocells upgrade to swivel photocells with an adjustable infrared beam (up to 20 m range) and synchronisation of multiple pairs, making alignment easier on awkward posts. Kits with DXR BUS photocells provide the same adjustable DXR hardware but connect via the CAME CXN BUS two-wire system, simplifying cabling and integration with compatible control panels.
Remote control options

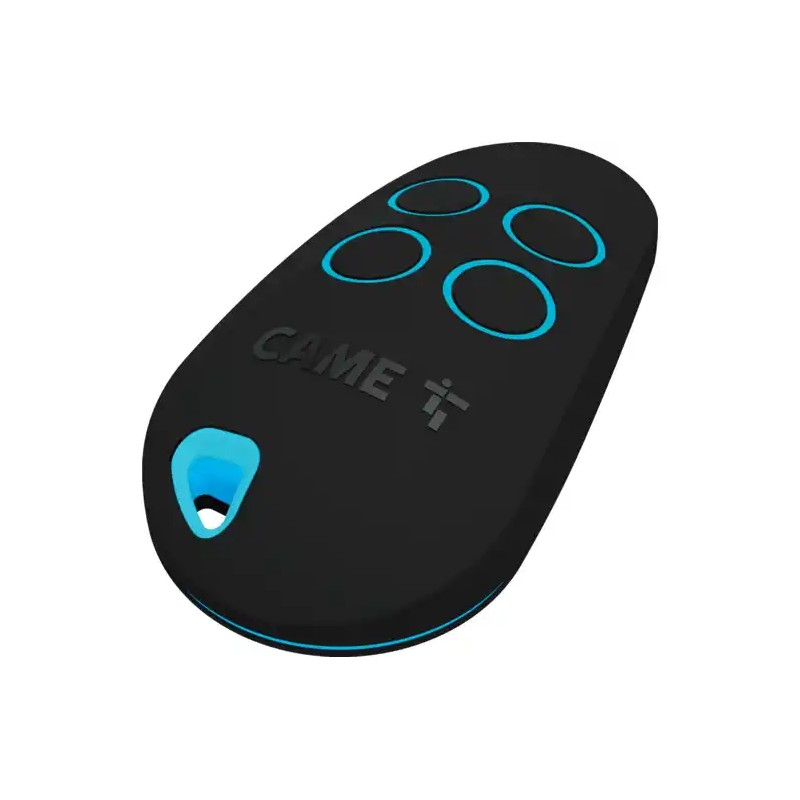

Kits with TOP remotes include compact CAME transmitters with rolling-code radio technology and self-learning from existing TOP, TAM or TWIN handsets, providing straightforward, secure keyfob control. Kits with TTS remotes use a more refined transmitter with a metal-detail front and removable battery compartment, combining rolling-code security with a more premium look and feel.
Kit variants covered on this page
-
8K01MP-0525 – Pair 3m 230V ATI kit with DIR photocells & TOP remotes (standard).
-
8K01MP-0526 – Pair 3m 230V ATI kit with DXR wired photocells & TOP remotes.
-
8K01MP-0527 – Pair 3m 230V ATI kit with DXR wired photocells & TTS remotes.
-
8K01MP-0528 – Pair 3m 230V ATI kit with DXR BUS photocells & TOP remotes.
-
8K01MP-0529 – Pair 3m 230V ATI kit with DXR BUS photocells & TTS remotes.
✅ Key Features
-
Double swing gate automation kit for two leaves up to 3m each.
-
Includes twin 230V ATI30AGF operators with encoder-based motion control.
-
High-thrust linear actuators (up to 4000 N) with die-cast aluminium body and protective casing.
-
Mechanical limit stops mounted directly on the worm screw for precise, reliable end-of-travel adjustment.
-
Manual release with trilobe key for emergency operation of each leaf.
-
Available with DIR, DXR wired or DXR BUS photocells, depending on kit code.
-
Available with TOP or TTS radio remotes, depending on kit code.
-

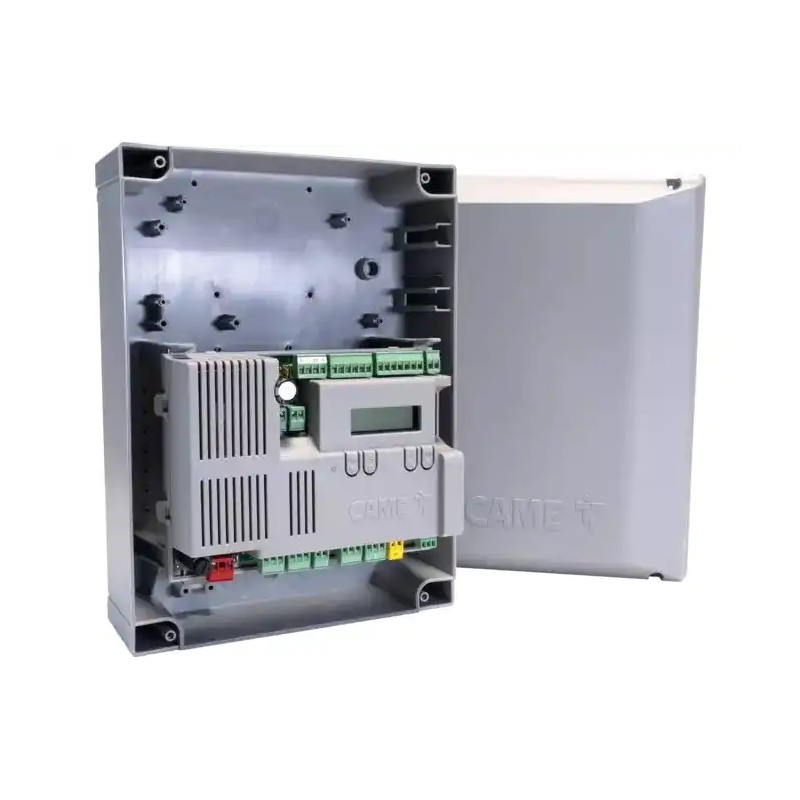

Designed for use with compatible CAME control panels for NEW ATI operators.
| Parameter | Value |
|---|---|
| Kit codes | 8K01MP-0525 / 0526 / 0527 / 0528 / 0529 |
| Motor model | ATI30AGF |
| Motor part code | 801MP-0190 |
| Motor power supply | 230 V AC 50/60 Hz |
| Rated motor power | 220 W (per operator) |
| Number of operators | 2 |
| Maximum gate leaf length | 3 m per leaf |
| Max leaf weight at 3 m | 400 kg |
| Max leaf weight at 2.5 m | 600 kg |
| Max leaf weight at 2 m | 800 kg |
| Maximum opening angle | 120° |
| Opening time to 90° | 13 s (per operator) |
| Duty cycle | 32 cycles/hour (per operator) |
| Thrust | 400 – 4000 N |
| Protection rating (operators) | IP54 |
| Operating temperature (operators) | -20 °C to +55 °C |
| Operator colour | RAL 7024 |
| Application dimension E (operators) | 720 mm |
| Maximum dimension C (operators) | 75 mm |
| Photocell options | DIR, DXR wired or DXR BUS photocells (per kit code) |
| Radio control | TOP or TTS series remotes (per kit code) |
Accessories & Related Products
-35%
CAME DIR-L ALUMINIUM COLUMN FOR DIR PHOTOCELLS
-41.92%
CAME DIR10 10m PHOTOCELLS
-18%
BIRCHER Clickline Safety Edge
-32.5%
CAME SELT1BDG SURFACE MOUNTED BUS CXN KEYPAD - 806SL-0280
-35%
CAME 4G GSM Cloud Connectivity Kit with 480mb Sim-card (RGSM-1NCE)
-40%
CAME TOP44RBN - 806TS-0270 ROLLING CODE 433mhz TRANSMITTER
-30%
BPT MTM CONNECT 4G GSM AUDIO INTERCOM KIT (MTMSA4G)
-30%
CAME DXR CXN BUS Photocells 20m (DXR20SAP) (806TF-0110)
Product Details
Product Specifics
| Gate type | Swing gate |
|---|---|
| Single or twin kit | Twin gate kit |
| Max weight per gate | 800 |
| Max length per gate | 3000 |
| Above or underground | Above ground |
| Max opening angle | 120 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Power Supply Voltage | 230v |
| Motor voltage | 230v |
| Gate Speed | 13 seconds 90 Degrees |
| Duty Cycle | Semi-intensive |
| Protection Rating | IP 54 |
| Product Type | Swing Gate Kit |
