Quick Overview

Complete CAME NEW ATI 230V automation kit for a pair of swing gate leaves up to 5m each. Uses twin ATI50AGF operators with a choice of DIR, DXR wired or DXR BUS photocells and TOP or TTS radio remotes, depending on the selected kit variant.

Submit a Free Gate Automation Survey
Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
Regular price: £1,692.00
Reduced price: £1,150.56 Save 32%
Tax included
Reduced price: £1,150.56
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Kit Options (required)
Reduced price: £1,150.56
Tax included
Add to basket
Buy Now
1-2 Business Days *Not guaranteed
Subject to stock & selected shipping service, Order by midday Mon-Fri

Share on

Product Description

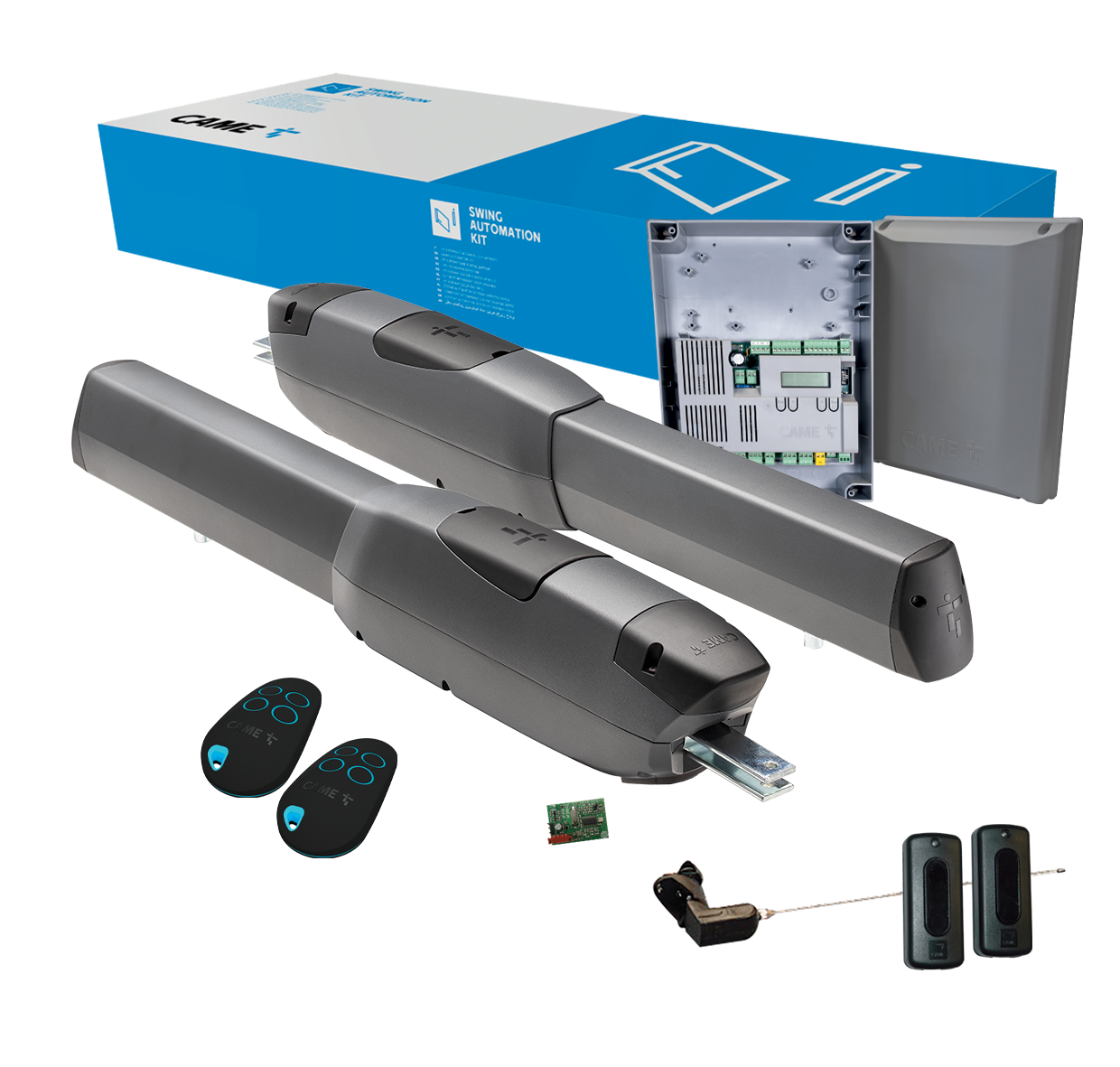

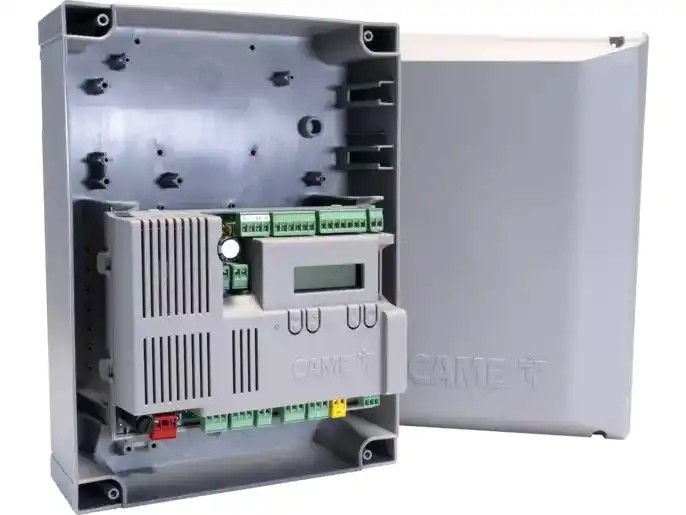

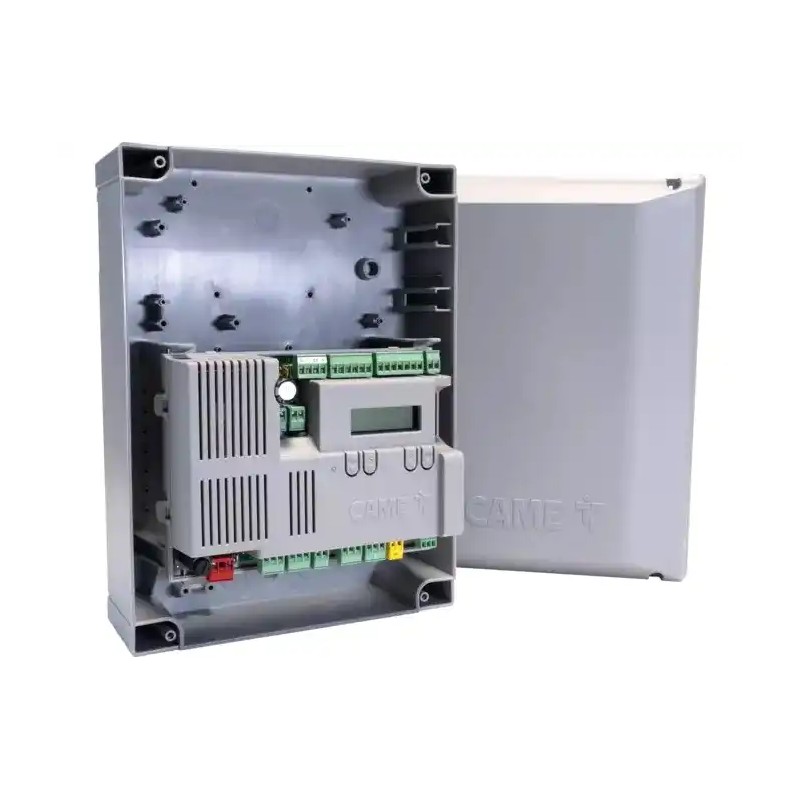

This CAME NEW ATI 5m 230V double swing gate kit is designed for automating two gate leaves up to 5m each, using twin ATI50AGF electromechanical operators. It brings together the mechanical operators, safety photocells and radio remotes required to create a practical automation package for residential or similar entrances when used with suitable CAME control electronics.

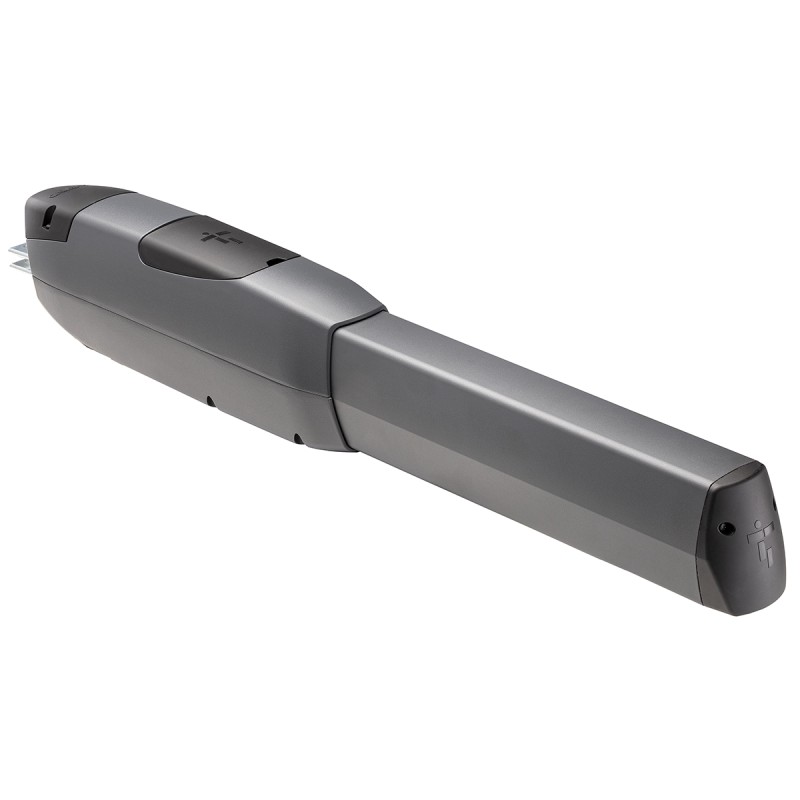

Each ATI50AGF operator is a 230V linear actuator with a fully metal structure, die-cast aluminium half-cases and an extruded aluminium protective casing that shields the worm screw from impurities while helping to reduce vibration. The motors provide up to 4000 N of thrust with a 90° opening time of around 19 seconds, within the specified gate length and weight limits. A protected manual release with trilobe key allows each gate leaf to be operated by hand when needed.

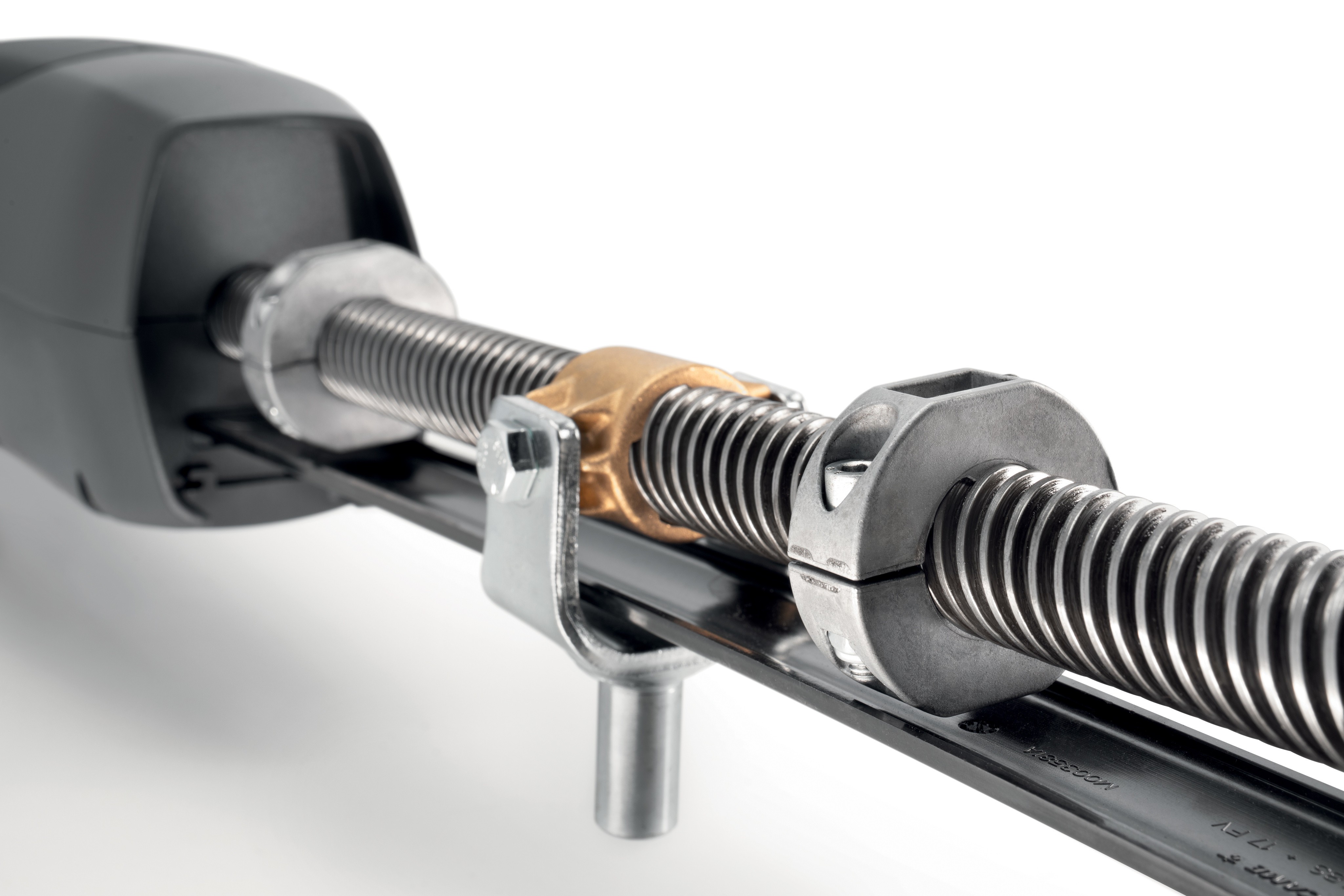

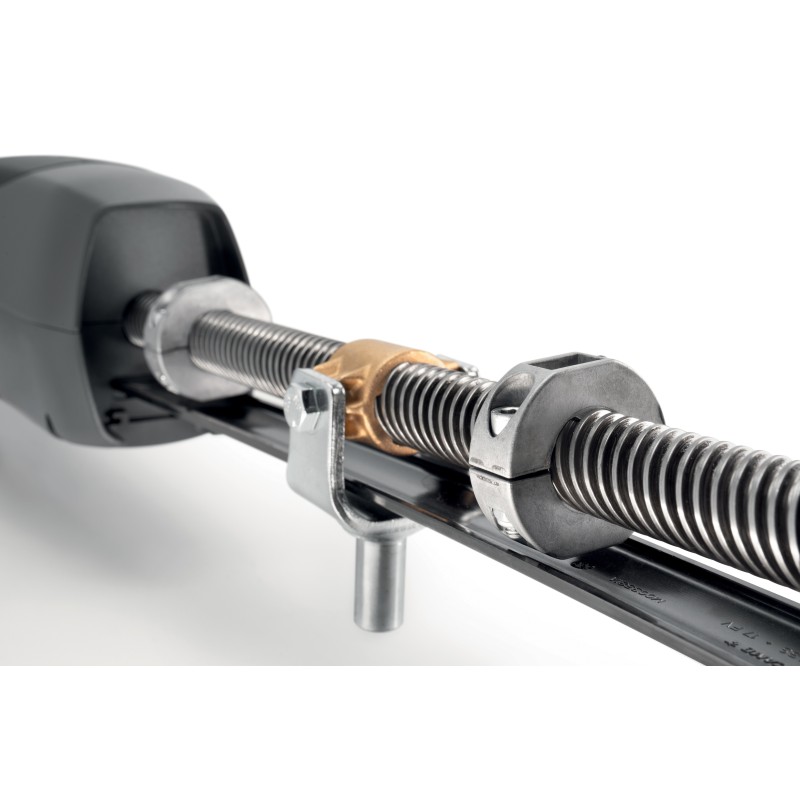

Mechanical limit stops on the worm screw
NEW ATI features sturdy mechanical limit switches mounted directly on the worm screw. Metal elements on the screw allow the maximum opening and closing positions to be adjusted precisely, improving reliability over time. Adjustment is simple and quick: the aluminium casing is removed and the limit switches are fixed in the desired position along the screw.

Photocell options

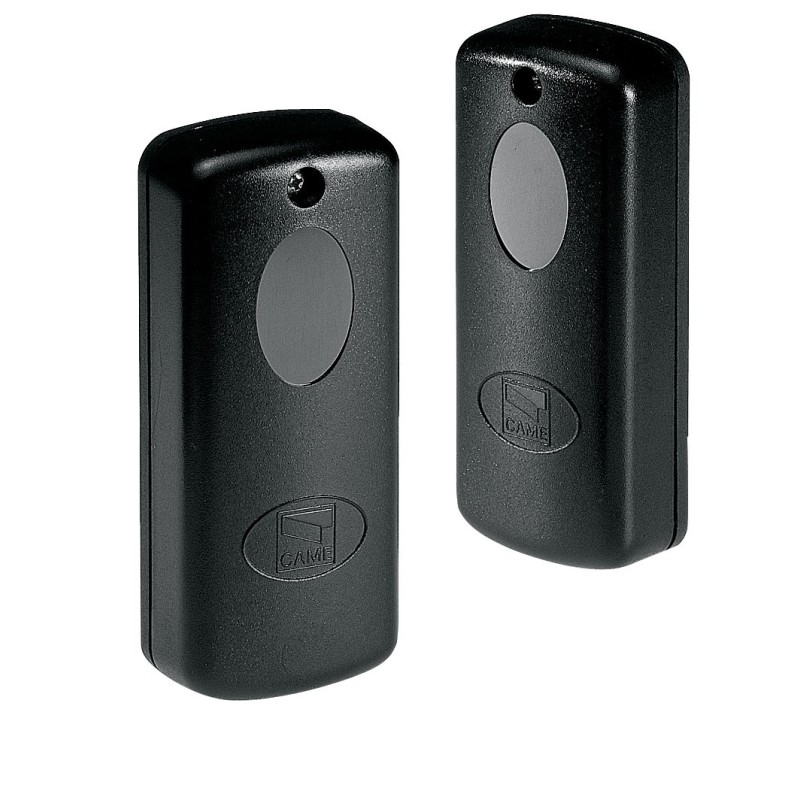

Kits with DIR photocells use traditional surface-mount safety beams with a 10 m range and 12–24 V AC–DC supply, suitable where standard wiring is available. Kits with DXR wired photocells upgrade to swivel photocells with an adjustable infrared beam (up to 20 m range) and synchronisation of multiple pairs, making alignment easier on awkward posts. Kits with DXR BUS photocells provide the same adjustable DXR hardware but connect via the CAME CXN BUS two-wire system, simplifying cabling and integration with compatible control panels.

Remote control options

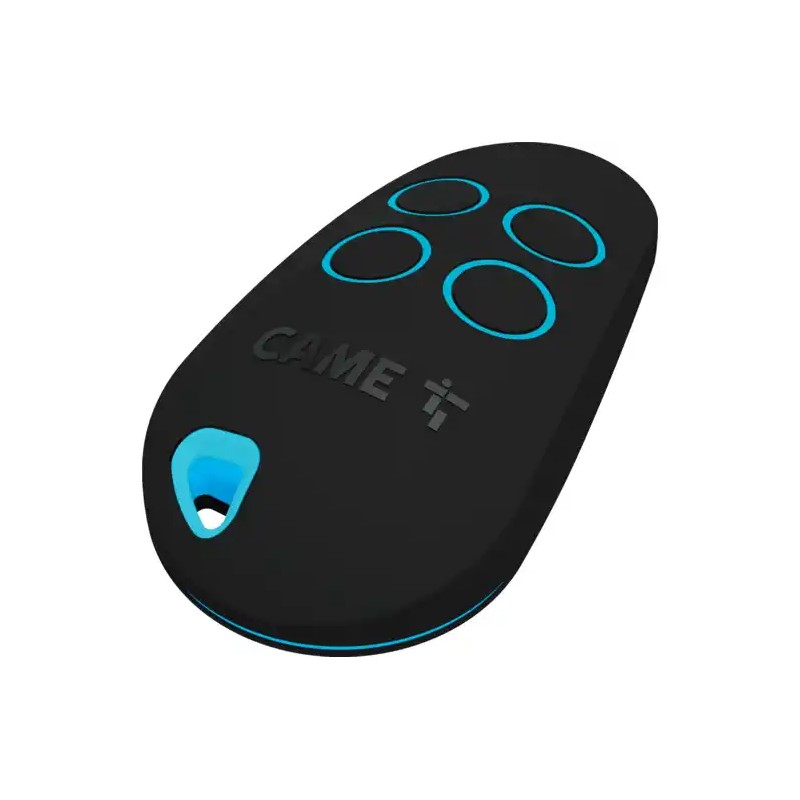

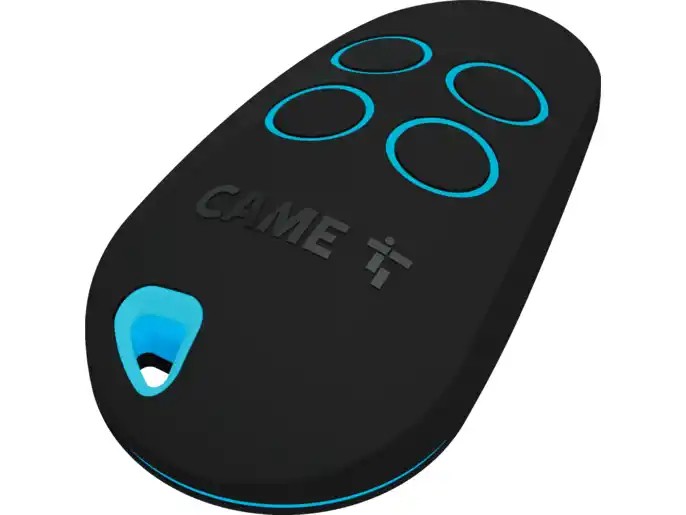

Kits with TOP remotes include compact CAME transmitters with rolling-code radio technology and self-learning from existing TOP, TAM or TWIN handsets, providing straightforward, secure keyfob control. Kits with TTS remotes use a more refined transmitter with a metal-detail front and removable battery compartment, combining rolling-code security with a more premium look and feel.

Kit variants covered on this page

  • 8K01MP-0535 – Pair 5m 230V ATI kit with DIR photocells & TOP remotes (standard).

  • 8K01MP-0536 – Pair 5m 230V ATI kit with DXR wired photocells & TOP remotes.

  • 8K01MP-0537 – Pair 5m 230V ATI kit with DXR wired photocells & TTS remotes.

  • 8K01MP-0538 – Pair 5m 230V ATI kit with DXR BUS photocells & TOP remotes.

  • 8K01MP-0539 – Pair 5m 230V ATI kit with DXR BUS photocells & TTS remotes.

✅ Key Features

  • Double swing gate automation kit for two leaves up to 5m each.

  • Includes twin 230V ATI50AGF operators with encoder-based motion control.

  • High thrust linear actuators (up to 4000 N) with die-cast aluminium body and protective casing.

  • Mechanical limit stops mounted directly on the worm screw for precise, reliable end-of-travel adjustment.

  • Manual release with trilobe key for emergency operation of each leaf.

  • Available with DIR, DXR wired or DXR BUS photocells, depending on kit code.

  • Available with TOP or TTS radio remotes, depending on kit code.

  • Designed for use with compatible CAME control panels for NEW ATI operators.

Parameter Value
Kit codes 8K01MP-0535 / 0536 / 0537 / 0538 / 0539
Motor model ATI50AGF
Motor part code 801MP-0200
Motor power supply 230 V AC 50/60 Hz
Rated motor power 220 W (per operator)
Number of operators 2
Maximum gate leaf length 5 m per leaf
Max leaf weight at 5 m 400 kg
Max leaf weight at 4 m 500 kg
Max leaf weight at 3 m 600 kg
Max leaf weight at 2.5 m 800 kg
Max leaf weight at 2 m 1000 kg
Maximum opening angle 120°
Opening time to 90° 19 s (per operator)
Duty cycle 23 cycles/hour (per operator)
Thrust 400 – 4000 N
Protection rating (operators) IP54
Operating temperature (operators) -20 °C to +55 °C
Operator colour RAL 7024
Application dimension E (operators) 920 mm
Maximum dimension C (operators) 155 mm
Photocell options DIR, DXR wired or DXR BUS photocells (per kit code)
Radio control TOP or TTS series remotes (per kit code)

Accessories & Related Products

DIR-L Quick view
-35%

CAME DIR-L ALUMINIUM COLUMN FOR DIR PHOTOCELLS

£42.12 £27.38
Came DIR10 Photocells New Style Quick view
-40.11%

CAME DIR10 10m PHOTOCELLS

£66.12 £39.60
CLICKLINE SAFETY EDGE Quick view
-18%

BIRCHER Clickline Safety Edge

£146.08 £119.78
SELT1BDG - 806SL-0280 Digital Keypads | CAME Quick view
-32.5%

CAME SELT1BDG SURFACE MOUNTED BUS CXN KEYPAD - 806SL-0280

£106.68 £72.01
RGSM-1NCE Quick view
-35%

CAME 4G GSM Cloud Connectivity Kit with 480mb Sim-card (RGSM-1NCE)

£241.20 £156.78
CAME TOP44RBN - 806TS-0270 ROLLING CODE 433mhz Quick view
-40%

CAME TOP44RBN - 806TS-0270 ROLLING CODE 433mhz TRANSMITTER

£40.80 £24.48
BPT MTM CONNECT 4G GSM AUDIO INTERCOM KIT (MTMSA4G1NP) (SURFACE) Quick view
-30%

BPT MTM CONNECT 4G GSM AUDIO INTERCOM KIT (MTMSA4G)

£767.52 £537.26
CAME DXR CXN BUS Photocells 20m (DXR20SAP) (806TF-0110) Quick view
-30%

CAME DXR CXN BUS Photocells 20m (DXR20SAP) (806TF-0110)

£130.80 £91.56

Product Details

Reference 8K01MP-0535 Category Electric Gate Kits Brand CAME
CAME

Product Specifics

Gate type Swing gate
Single or twin kit Twin gate kit
Max weight per gate 1000
Max length per gate 5000
Above or underground Above ground
Max opening angle 120 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 230v
Gate Speed 19 seconds 90 Degrees
Duty Cycle Semi-intensive
Protection Rating IP 54
Product Type Swing Gate Kit
CAME Ati One-Pager

CAME ATI 2025 Manual
