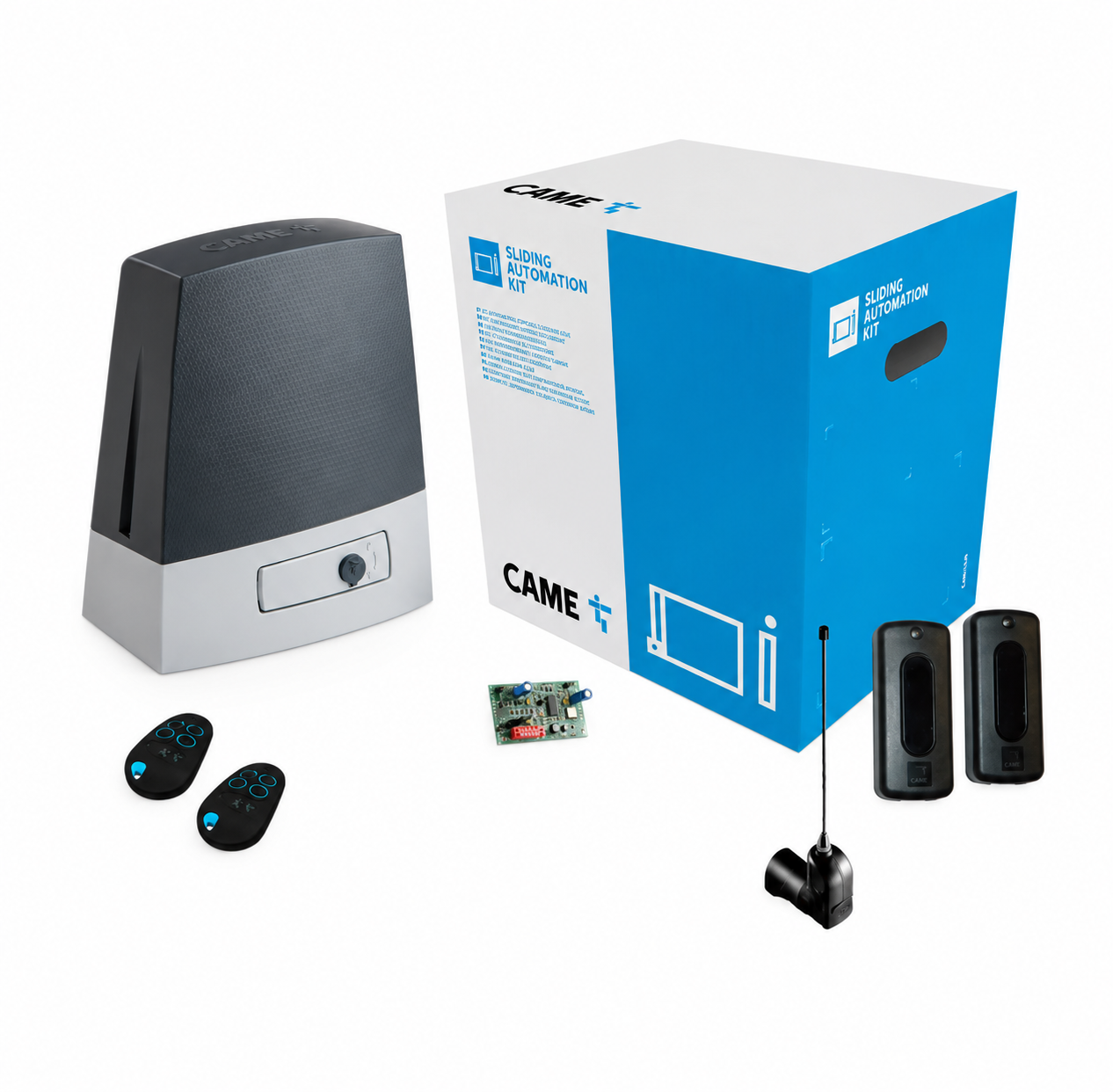

CAME BKX 1200 Brushless Sliding Gate Kit

Reference 0U1BCN0058
New

Quick Overview

The CAME BKX 1200 comprises 24 V brushless sliding gate automations designed for continuous operation. Max weight gate of 1,200 kg with a maximum gate length of 20 m and speeds of up to 24 m/min.

Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
Regular price: £1,479.60
Reduced price: £917.35 Save 38%
Tax included
Reduced price: £917.35
Tax included
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Came Kit Choices (BKX 24v)
Reduced price: £917.35
Tax included
Came Connect Available

Share on

Product Description

The CAME BKX range uses a brushless motor platform and an electronic control board with BUS CXN technology. The control board includes a graphic display for installation, four configurable safety inputs for resistive safety edges and storage for up to 1,000 users.

Adaptive Speed and Torque Technology adjusts motor operation according to gate feedback to maintain smooth and consistent movement. The range supports speeds of up to 24 m/min and has a stated mean number of cycles between failures (MCBF) of 250,000 cycles.

The automation includes a manual release lever, an integrated clock card supporting up to eight opening and closing programmes, and an IP54 protection rating. It is compatible with CAME CONNECT for remote digital control via a gateway or local control through CAME KEY. The system is ready for magnetic limit switches, reference 001RSDN002, and supports CAME CXN BUS accessories.

BKX Models

  • BKX08AGF — 801MS-0690: For sliding gates up to 800 kg and 20 m in length.

  • BKX12AGM — 801MS-0700: For sliding gates up to 1,200 kg and 20 m in length.

✅ Key Features

  • 24 V brushless motor

  • model 1,200 kg

  • Maximum gate length of 20 m

  • Maximum speed of 24 m/min

  • BUS CXN control board with graphic display

  • Four configurable safety inputs

  • Supports 8k2Ω resistive sensitive safety edges

  • Stores up to 1,000 users

  • Adaptive Speed and Torque Technology

  • MCBF of 250,000 cycles

  • Manual release lever

  • Integrated clock card supporting up to eight opening and closing programmes

  • IP54 protection rating

  • Ready for magnetic limit switches 001RSDN002

  • Compatible with CAME CONNECT and CAME KEY

  • Compatible with CXN BUS accessories

  • Compliant with Regulation (EU) 2023/826

⚙ Technical Data

Specification

Details

Brand

CAME

Product range

BKX

Product type

Brushless sliding gate automation

Motor supply voltage

24 V

Power supply

230 V

Maximum gate length

20 m

Maximum gate weight — BKX12AGM

1,200 kg

Maximum speed — BKX12AGM

20 m/min

Power — BKX12AGM

360 W

Thrust

800 N

Standby consumption

0.8 W

Cycles/hour with 4 m gate leaf

Continuous duty

Cycles/hour with 10 m gate leaf — BKX12AGM

38

Protection rating

IP54

Operating temperature

Not specified clearly in the source table

MCBF

250,000 cycles

Safety inputs

4 configurable

User storage

Up to 1,000 users

Magnetic limit switches

001RSDN002

Model BKX12AGM

801MS-0700

Accessories & Related Products

-41.92%

CAME DIR10 10m PHOTOCELLS

£66.12 £38.40
-40%

CAME TOP44RBN - 806TS-0270 ROLLING CODE 433mhz TRANSMITTER

£41.16 £24.70

Product Details

Reference 0U1BCN0058 Category Electric Gate Kits Brand CAME
CAME

Product Specifics

Gate type Sliding gate
Single or twin kit Single gate kit
Max weight per gate 1200
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 24v
Gate Speed 12 m/min
Duty Cycle Intensive
Obstacle Detection Built-In Obstacle Detection
Protection Rating IP 44
Product Type Sliding Gate Kit
