FAAC 412 230V Double Electric Swing Gate Kit

SKU 412 UK KIT
Swing Gate Kit Twin gate kit Above ground 1800 mm 230v
Price: £998.11
Tax included

Reveal your customer price

Sign in or create a free account to see your lower price for this FAAC product.

No purchase required.

1-2 Business Days

Delivery estimates are not guaranteed. Subject to stock and selected shipping service. Order by midday Monday–Friday.

Kit package
Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.

Overview & suitability

Automate a pair of residential swing gates with the FAAC 412 230V kit, suitable for leaves up to 1.8m each. Choose 455D + SLH, E145S + FDS, or E145S with Simply Connect smartphone control.

All three packages include right- and left-hand operators, a control board and enclosure, two remotes and a pair of photocells. The selected package determines the included electronics.

FAAC 412 230V double swing gate kit

A straight-arm gate automation kit for a pair of residential swing gates, with leaves up to 1.8m each. Every package includes one right-hand and one left-hand 412 operator, with handedness viewed from inside the property.

Three packages to suit your installation

The 455D + SLH package offers the lowest-priced starting point, with SLH remote controls and relay photocells. Choose E145S + FDS for the upgraded control board, bidirectional FDS remotes and BUS 2easy photocells. The connected E145S package adds the Simply Connect module and antenna.

Open your gates from your smartphone with Simply Connect

Choose the E145S + FDS + Simply Connect package to control your gates through the FAAC Simply Connect app and manage access for other users. Its XMBX4 module connects to the mobile network, so suitable signal coverage is required at the gate. The module and antenna are included only in this connected package.

Compare what comes in each kit

Match the package selected above to its contents below. All choices include two remote controls and one photocell pair.

Included equipment455D + SLH (without Simply Connect)E145S + FDS (without Simply Connect)E145S + FDS + Simply Connect
Right-hand operator1 × 412 right-hand 230V operator (104470)1 × 412 right-hand 230V operator (104470)1 × 412 right-hand 230V operator (104470)
Left-hand operator1 × 412 left-hand 230V operator (104471)1 × 412 left-hand 230V operator (104471)1 × 412 left-hand 230V operator (104471)
Control board1 × 455D control board (790917)1 × E145S control board (790306)1 × E145S control board (790306)
Control enclosure1 × Model E control board enclosure (720119)1 × Model E control board enclosure (720119)1 × Model E control board enclosure (720119)
Radio receiver1 × RP 868 SLH-DS receiver (787854)1 × XF FDS LC receiver (787860)1 × XF FDS LC receiver (787860)

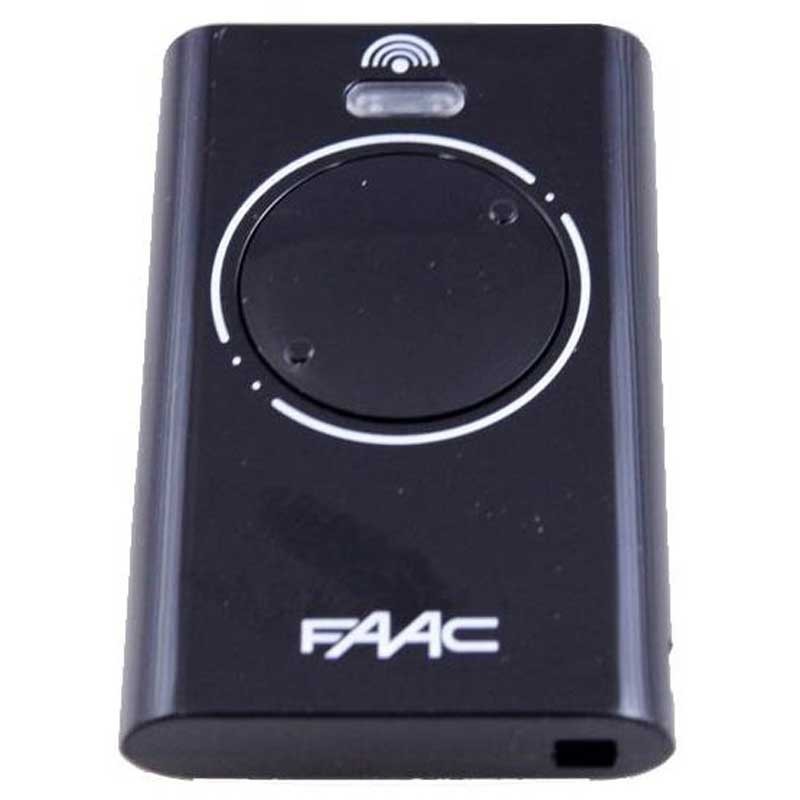

Remote controls2 × XTO2 SLH-DS remote control (787030)2 × XT2 FDS BD remote control (787019)2 × XT2 FDS BD remote control (787019)
Photocells1 × XP20 D relay photocell pair (785102)1 × XP20B D LC BUS photocell pair (785120)1 × XP20B D LC BUS photocell pair (785120)
Simply ConnectNot includedNot included1 × XMBX4 Simply Connect module and antenna (787510)

Gate suitability and manual release

The non-reversing operators hold the gates in position when the motors stop. A keyed manual release allows each leaf to be moved during a power cut. The 412 suits residential use, with a rated duty of up to 18 cycles per hour.

Check the gate-post mounting dimensions before ordering. Opening angle depends on the mounting geometry; the manual gives arrangements for 90° and 110° opening. Mechanical travel stops are required. The typical 90° opening time is approximately 19 seconds and varies with installation dimensions.

Optional SAFEcoder for E145S packages

Add the 412 SAFEcoder LC encoder (404048) to either E145S package. It is sold individually; order two for a double kit. Encoders are not included in the standard packages. This accessory requires E145S controls and is not compatible with the 455D package.

Useful accessories

Technical specifications

Shipping Index 2
Gate type Swing gate
Single or twin kit Twin gate kit
Max length per gate 1800
Above or underground Above ground
Max opening angle 110 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 230v
Gate Speed 19 seconds 90 Degrees
Duty Cycle 18 cycles/hour
Protection Rating IP 44
Motor Range 412
Product Type Swing Gate Kit
Catalogue Faac_Price_List_FEB_23.pdf
Page 23
