BFT PHOBOS BT B40 4M 24V ELECTRIC GATE KIT

Reference PHOBOS BT A40 4M 24V KIT

Quick Overview

2024 Model Twin gate kit 24v Intensive 4000mm or 700kg Max each leaf Above ground Motor 130 Degrees Max opening angle Mechanically locking motor Speed 16 seconds 90 Degrees Built-In Obstacle Detection

Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
£1,409.50
£845.70 Save 40%
Tax included
Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Upgrade the Control Board
£845.70
Tax included

Share on

Product Description

BFT PHOBOS BT B40 4M 24V KIT

Complete kit for a pair of residential or multi-residence swing gates up to a maximum of 4m in width or 700kg in weight each leaf.

Intensive Use

The motor is specifically designed for intensive use. Enjoy the comfort of an electric gate that can open and close for numerous visitors throughout the day. Particularly useful for shared entrance gates to a large number of residences.

Built in obstacle detection

This equipment features built in obstacle detection. Implemented correctly this can stop and reverse upon detection of an obstacle. Obstacles are detected when the gate experiences an increase in resistance that can be caused by a person or a vehicle or an object or even wind obstructing the path of the gate. Although this safety feature can be very effective it is strongly advised that all installations undergo an impact force test to ensure the safety of anyone who may come in to contact with the gate. Further safety can be added with the addition of safety edges.

Quick & Easy Installation

Equipment designed for the quick & easy installation to existing hinged swing gates. Can be easily fitted to gates and pillars with minimal excavation needed for the supply of mains power to the control board & low voltage cabling to the motors.

Solar Ready

This equipment can be solar powered. Whether you are looking for a low cost eco-friendly installation or want to cut down the cost of installation by removing the need to excavate for mains power or you simply cant get mains power to the gate for whatever reason. This equipment is the ideal choice.

What comes in the box
Quantity Item
2 BFT PHOBOS BT B40 24v Motor's

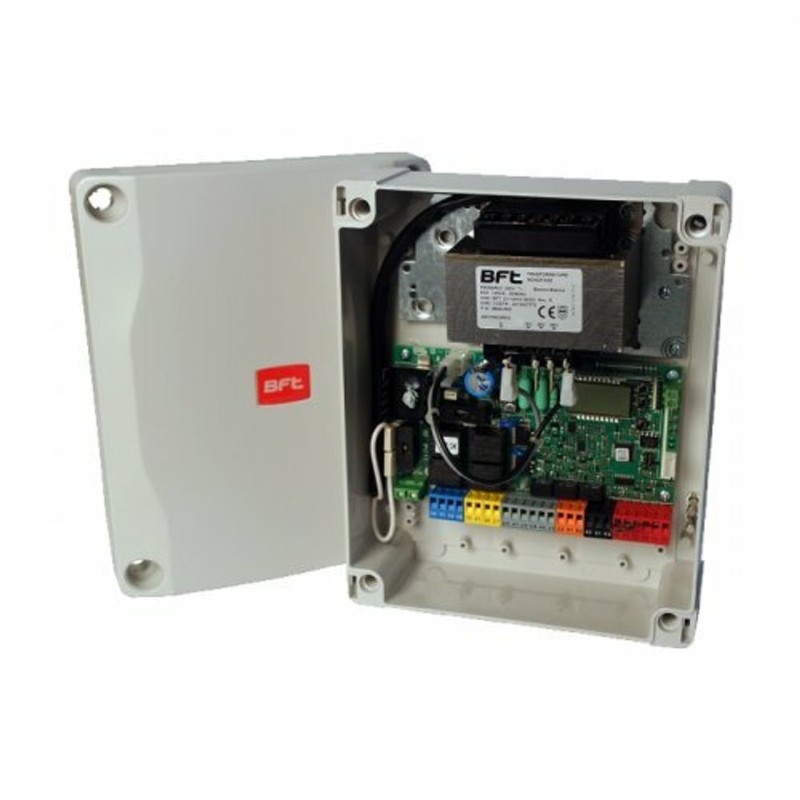

1 BFT THALIA L Control Panel

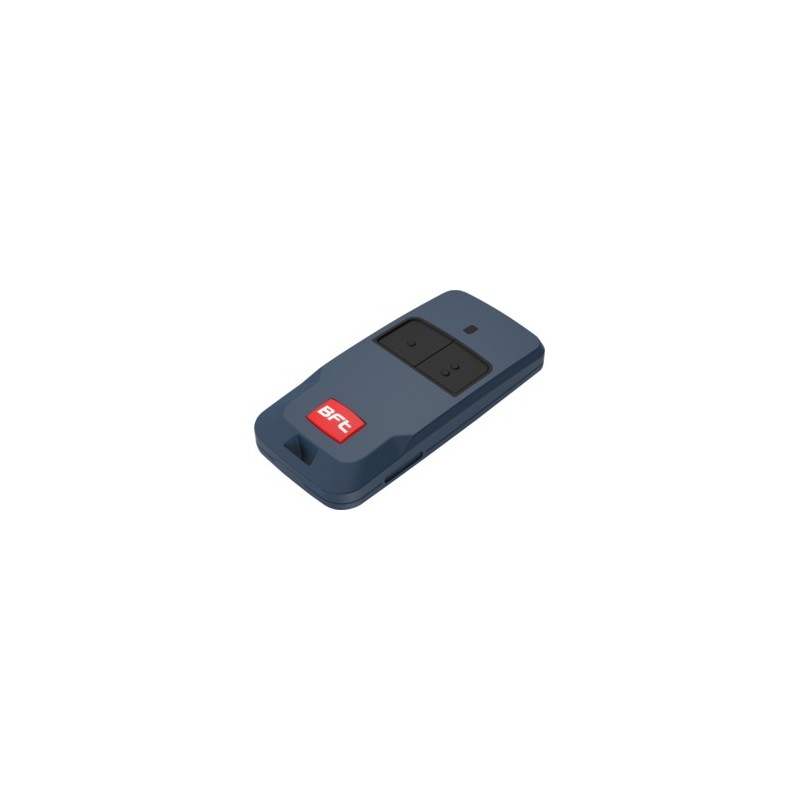

2 BFT Mitto Cool 2 Button Transmitter's

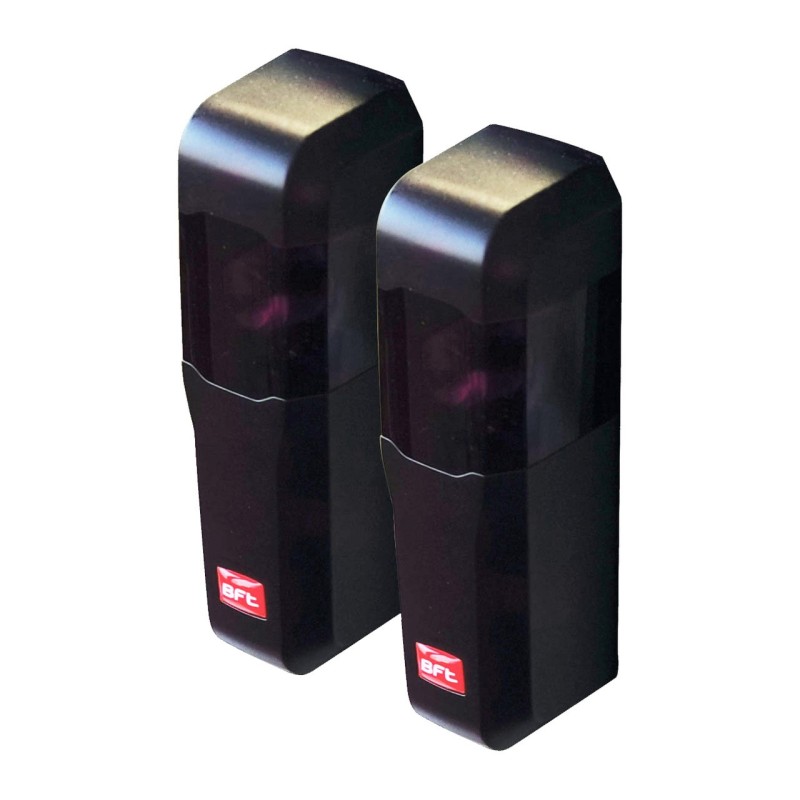

1 BFT Compacta Pair of safety photocells

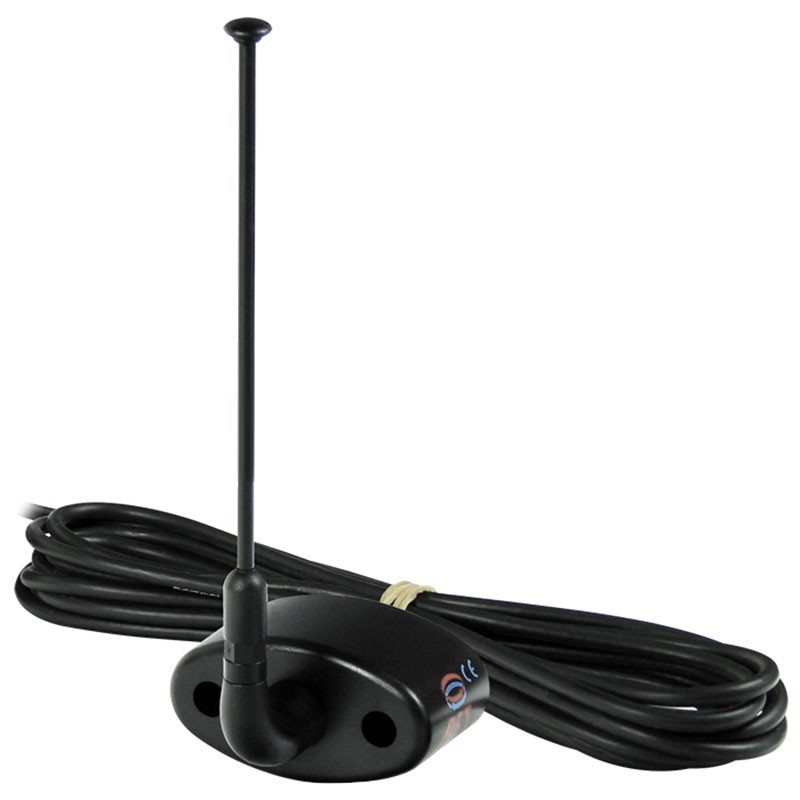

1 BFT Antenna
Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Gate Speed Max Opening Angle Notes KIT SINGLE KIT
BFT PHOBOS AC A25 230v 230v 400kg 2500mm Mechanically locking motor 14 seconds 90 Degrees 120 Degrees BFT PHOBOS AC A25 KIT BFT PHOBOS AC A25 KIT S
BFT PHOBOS AC A50 5M 230v 230v 500kg 5000mm Mechanically locking motor 18 seconds 90 Degrees 129 Degrees BFT PHOBOS AC A50 5M KIT BFT PHOBOS AC A50 5M KIT S
BFT PHOBOS BT A25 24v 230v 24v 250kg 2500mm Mechanically locking motor 15 seconds 90 Degrees 116 Degrees BFT PHOBOS BT A25 24v KIT BFT PHOBOS BT A25 24v KIT S
BFT PHOBOS BT A40 4M 24V 230v 24v 250kg 4000mm Mechanically locking motor 20 seconds 90 Degrees 124 Degrees BFT PHOBOS BT A40 4M 24V KIT BFT PHOBOS BT A40 4M 24V KIT S
BFT PHOBOS BT B40 4M 24V 230v 24v 700kg 4000mm Mechanically locking motor 16+ seconds 90 Degrees 130 Degrees 2024 Model
BFT PHOBOS BT B25 2.5M 24V 230v 24v 400kg 2500mm Mechanically locking motor 13+ seconds 90 Degrees 119 Degrees 2024 Model
BFT PHOBOS AC B40 5M 230v 230v 500kg 5000mm Mechanically locking motor 22 seconds 90 Degrees 130 Degrees 2024 Model
BFT PHOBOS AC B25 2.5M 230v 230v 400kg 2500mm Mechanically locking motor 18 seconds 90 Degrees 119 Degrees 2024 Model

Accessories & Related Products

Product Details

Reference PHOBOS BT A40 4M 24V KIT Category Electric Gate Kits Brand BFT

Product Specifics

Shipping Index 1
Power Input 50w
Gate type Swing gate
Single or twin kit Twin gate kit
Gate Style Barred
Max weight per gate 700
Max length per gate 4000
Max C Dimension 180
Post Configuration corner hung front hung side hung
Above or underground Above ground
Max opening angle 130 degrees
Motor Electromechanical
Locking method Mechanically locking motor
Power Supply Voltage 230v
Motor voltage 24v
Gate Speed 16 seconds 90 Degrees
Duty Cycle Intensive
Stops Required none
Obstacle Detection Built-In Obstacle Detection
Protection Rating IP X4
Category Swing Gate Kit
