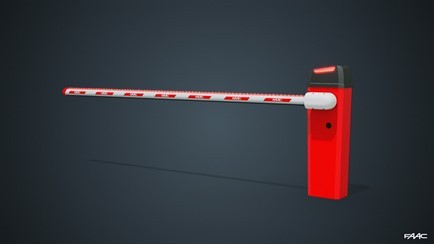

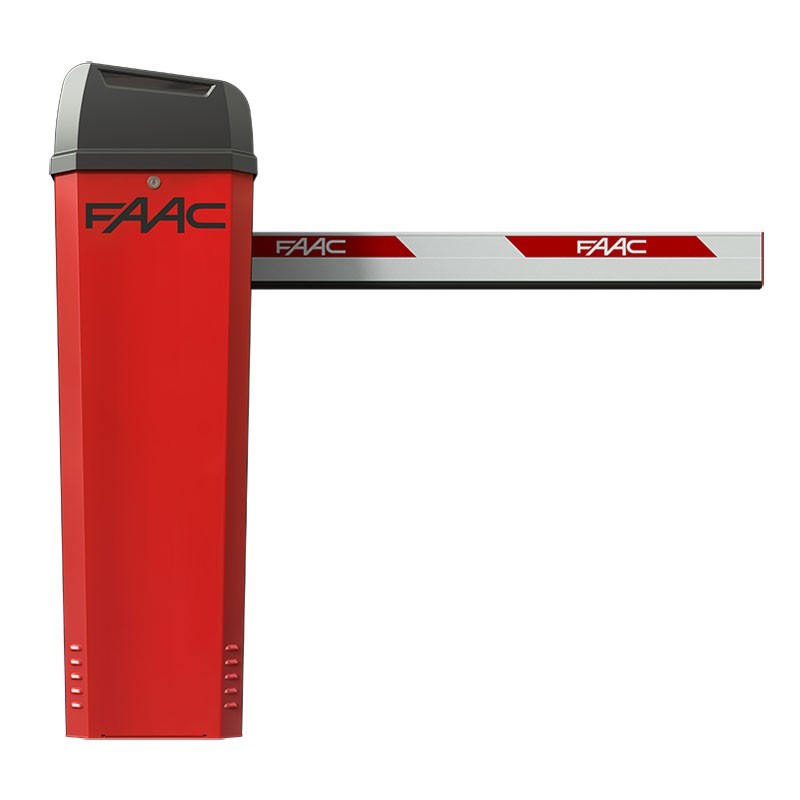

FAAC B614 5m Standard Rectangular Beam Barrier Kit (B614 5M REC KIT)

Reference B614 5M REC KIT

Quick Overview

The FAAC B614 5 m rectangular beam barrier is a high-performance automatic barrier for light-commercial and residential entrances. It features programmable control electronics, a 24 V motor with integrated encoder, and a dual-spring counterbalance system for smooth, reliable operation with longer beams.

£1,665.60
Tax included

Shopping as a Guest?

Log in to reveal your special price, or continue as a guest.

No extra forms—secure, private & instant.

Login with email to view discounted pricing

Spread the cost with finance from 0% interest
Finance options
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
£1,665.60
Tax included

Share on

Product Description

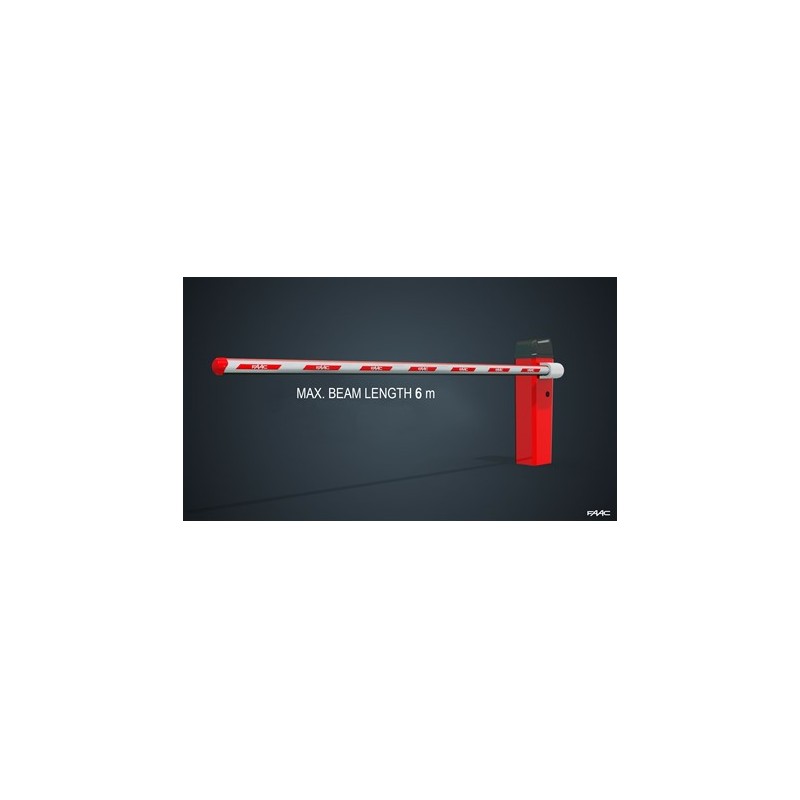

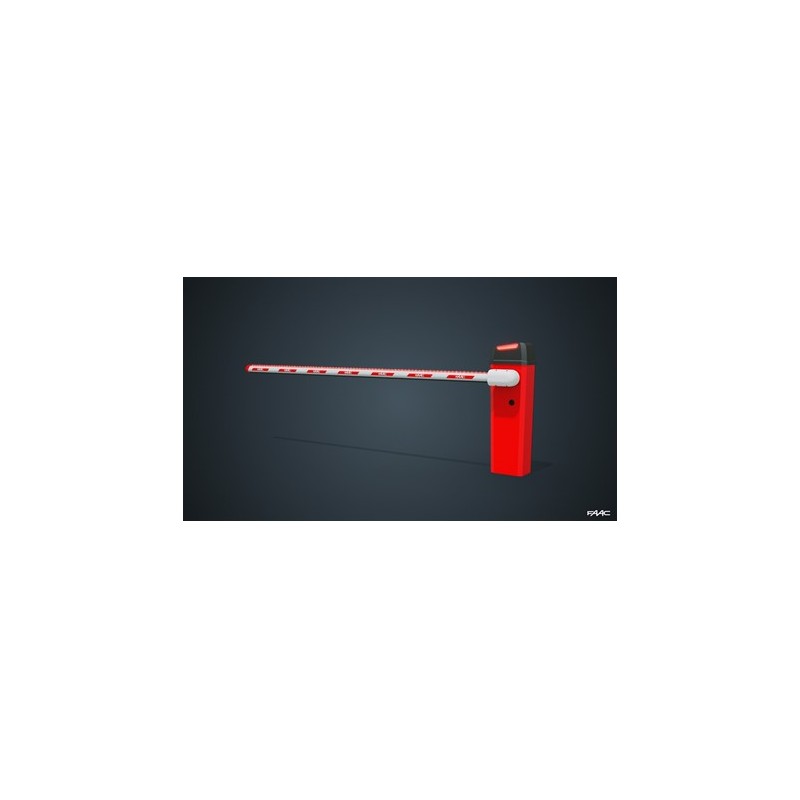

The FAAC B614 5 m rectangular beam barrier kit provides reliable, safe, and efficient control for driveways, private car parks, and light-commercial entrances. It combines FAAC’s advanced modular control electronics with a robust mechanical design built for long-term service.

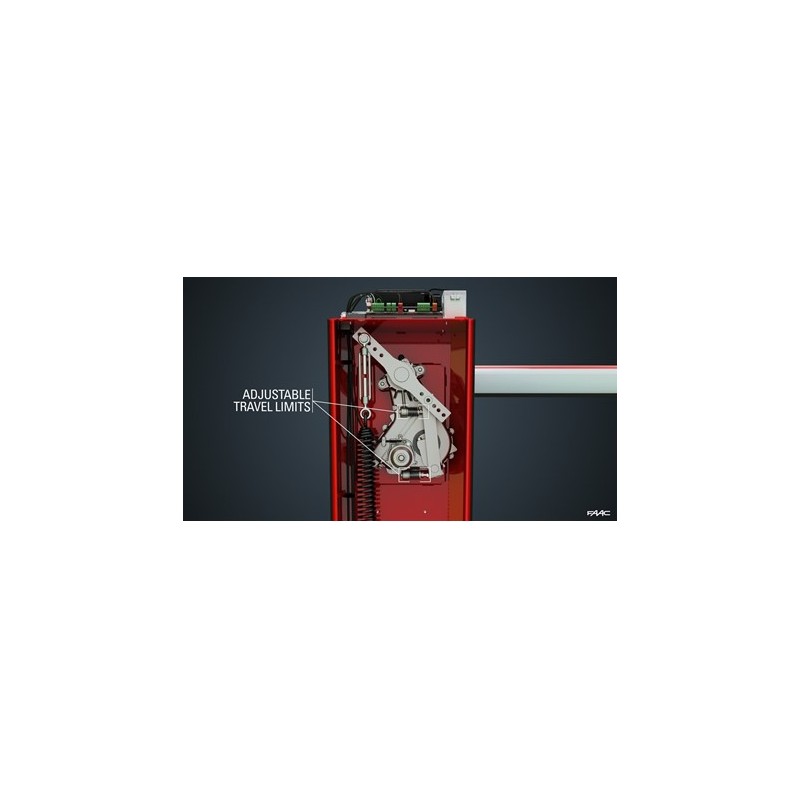

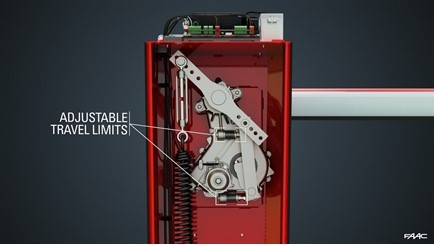

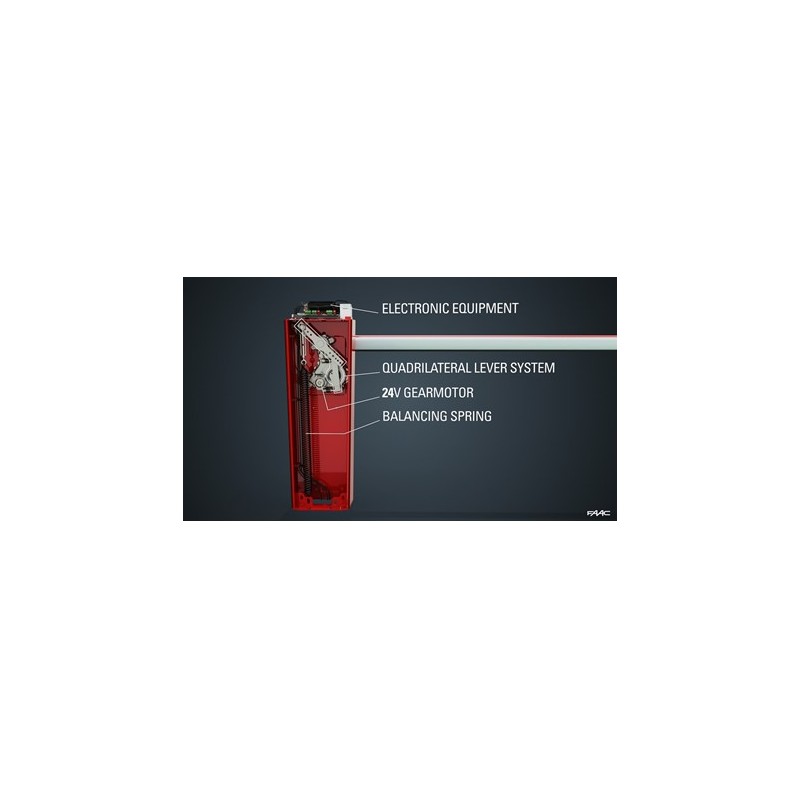

The barrier uses a 24 V DC motor with integrated encoder, providing precise motion control and built-in anti-crush safety. The dual-spring counterbalance system ensures smooth opening and closing of the longer 5 m beam, maintaining consistent performance and reduced motor strain.

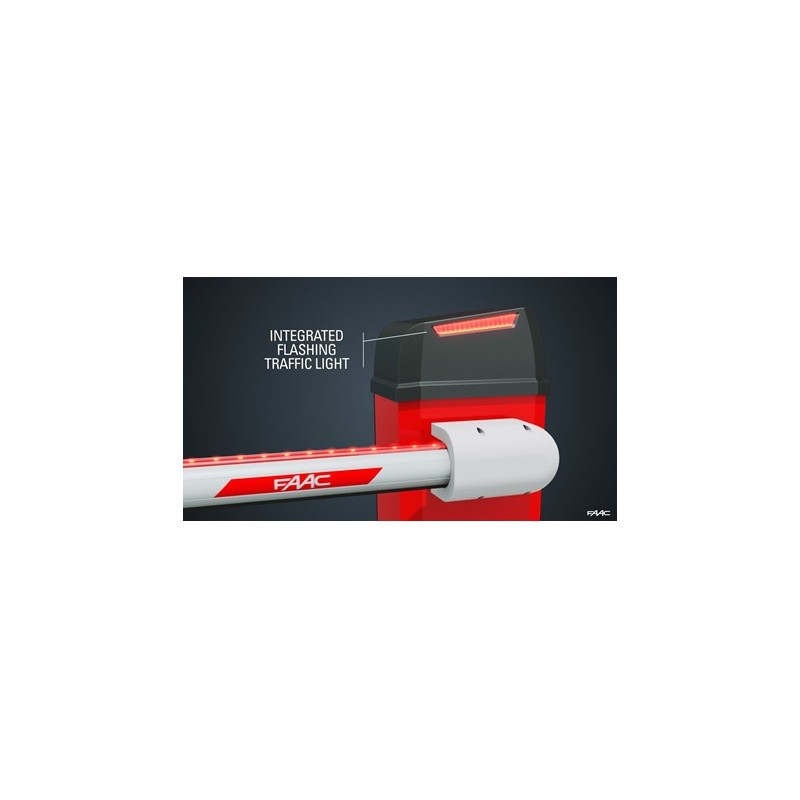

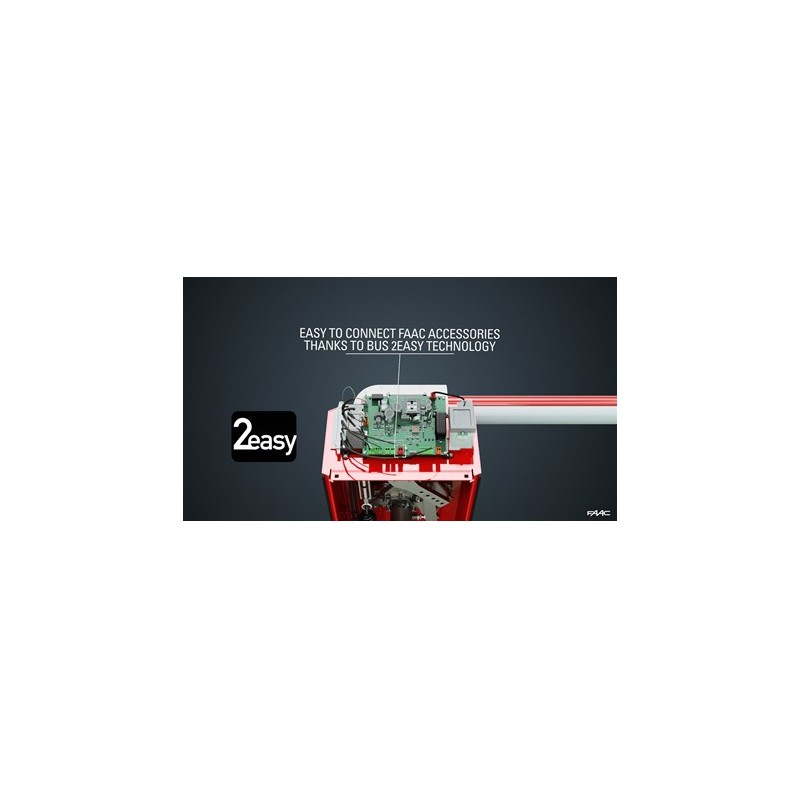

The unit’s LED-lit top cover enhances visibility of operating status, while BUS 2Easy compatibility simplifies wiring and connection to FAAC safety and access accessories. The beam can be fitted with optional LED lighting, beam support fork, reflective strips, or traffic lights to tailor each installation.


✅ Key Features

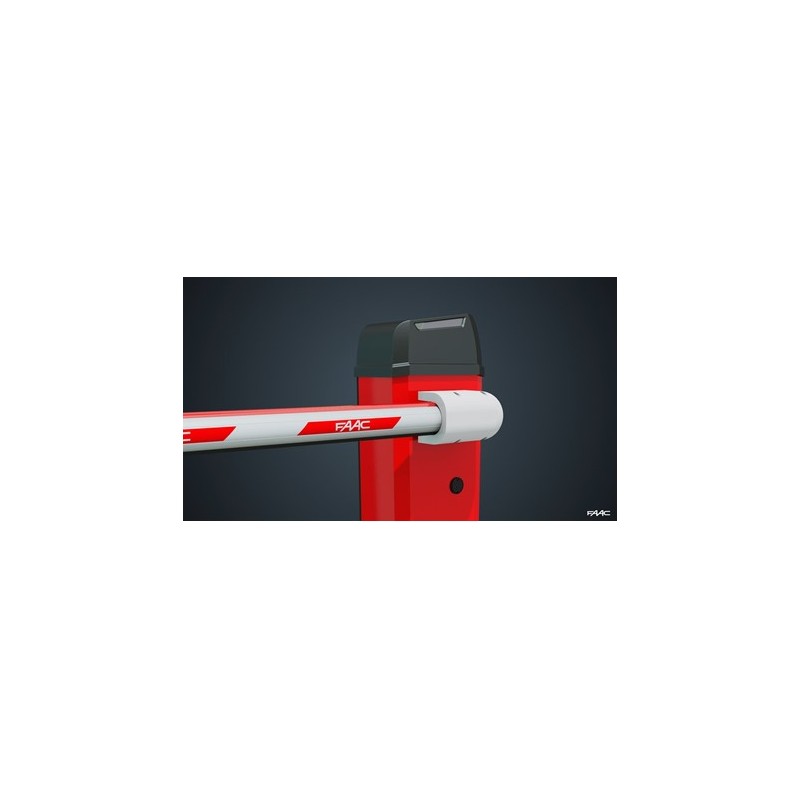

  • 5 m rectangular beam with rubber anti-impact profile

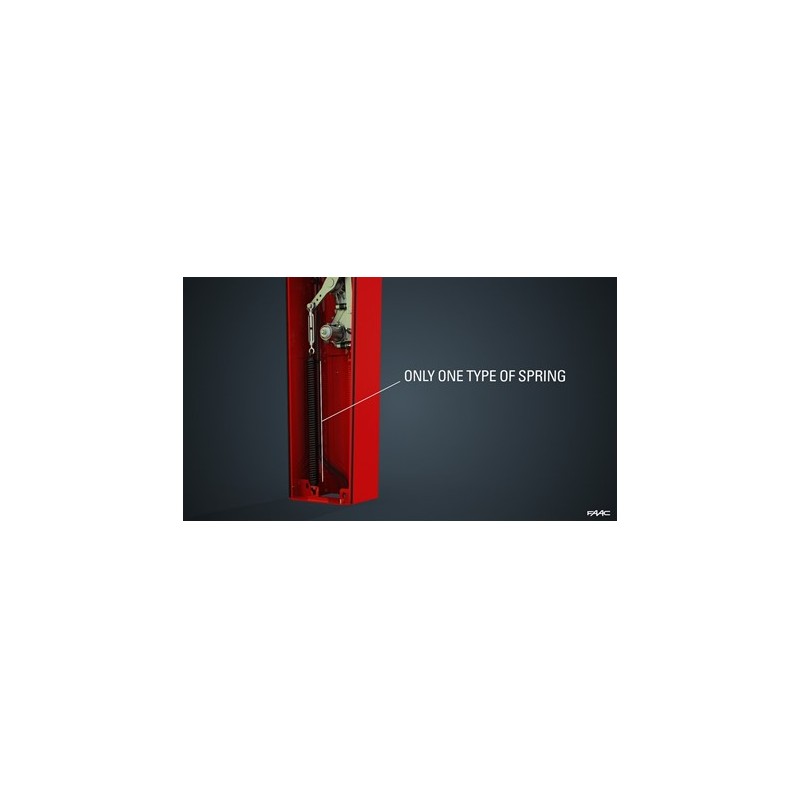

  • Dual-spring counterbalance system for long beam stability

  • 24 V motor with integrated encoder for accurate, safe movement

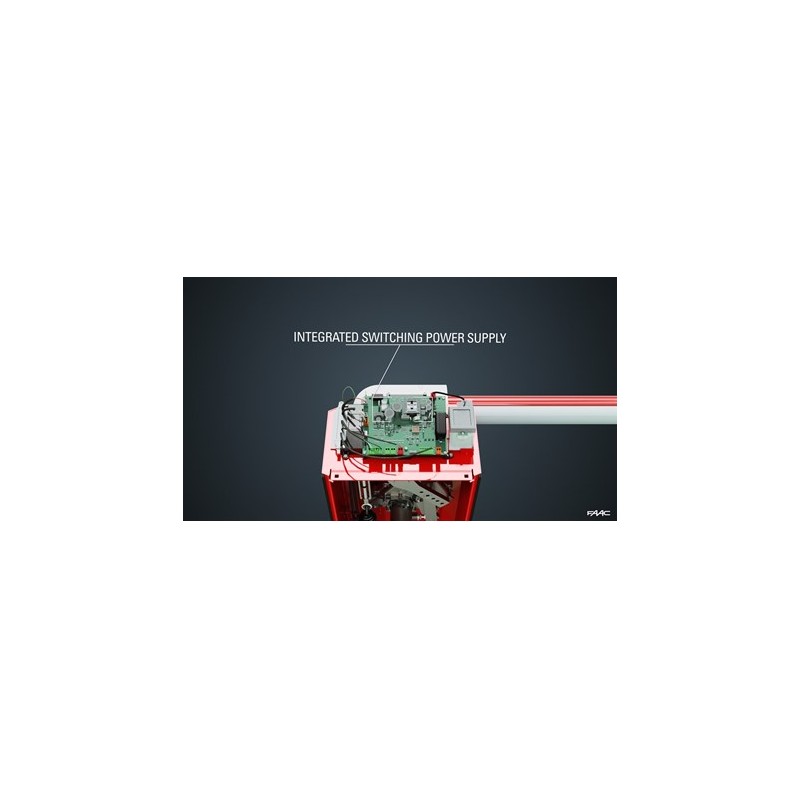

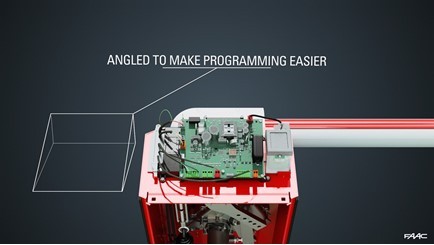

  • Programmable control board with display and LED indicators

  • Built-in universal radio decoder (OMNIDEC)

  • BUS 2Easy compatible for simplified accessory wiring

  • Suitable for light-commercial or residential entrances

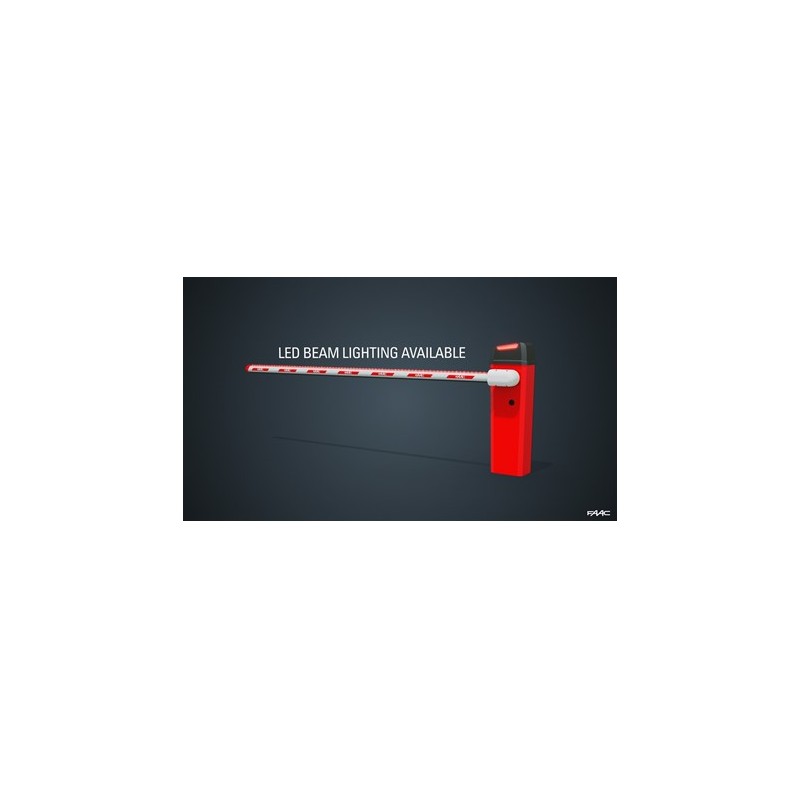

  • Optional LED beam lighting, support fork, and traffic light accessories


⚙ Technical Data

Specification Detail
Model / SKU FAAC B614 (5 m kit)
Beam length 5.00 m (rectangular)
Motor voltage 24 V DC
Application Light commercial / residential
Drive unit Electromechanical with dual counterbalance springs
Operating cycle Continuous
Encoder Integrated
Safety Anti-crushing via encoder logic
System decoder OMNIDEC integrated
Expansion bus BUS 2Easy compatible
Protection rating
Operating temperature −20 °C to +55 °C

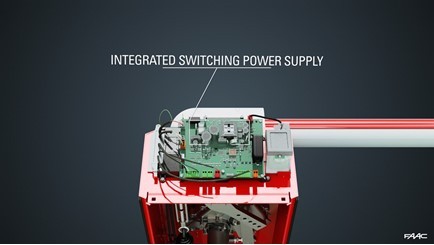

Power supply 230 V AC primary / 24 V DC motor
Finish Powder-coated body with LED top cover

(See FAAC datasheet for full dimensions and accessory specifications.)

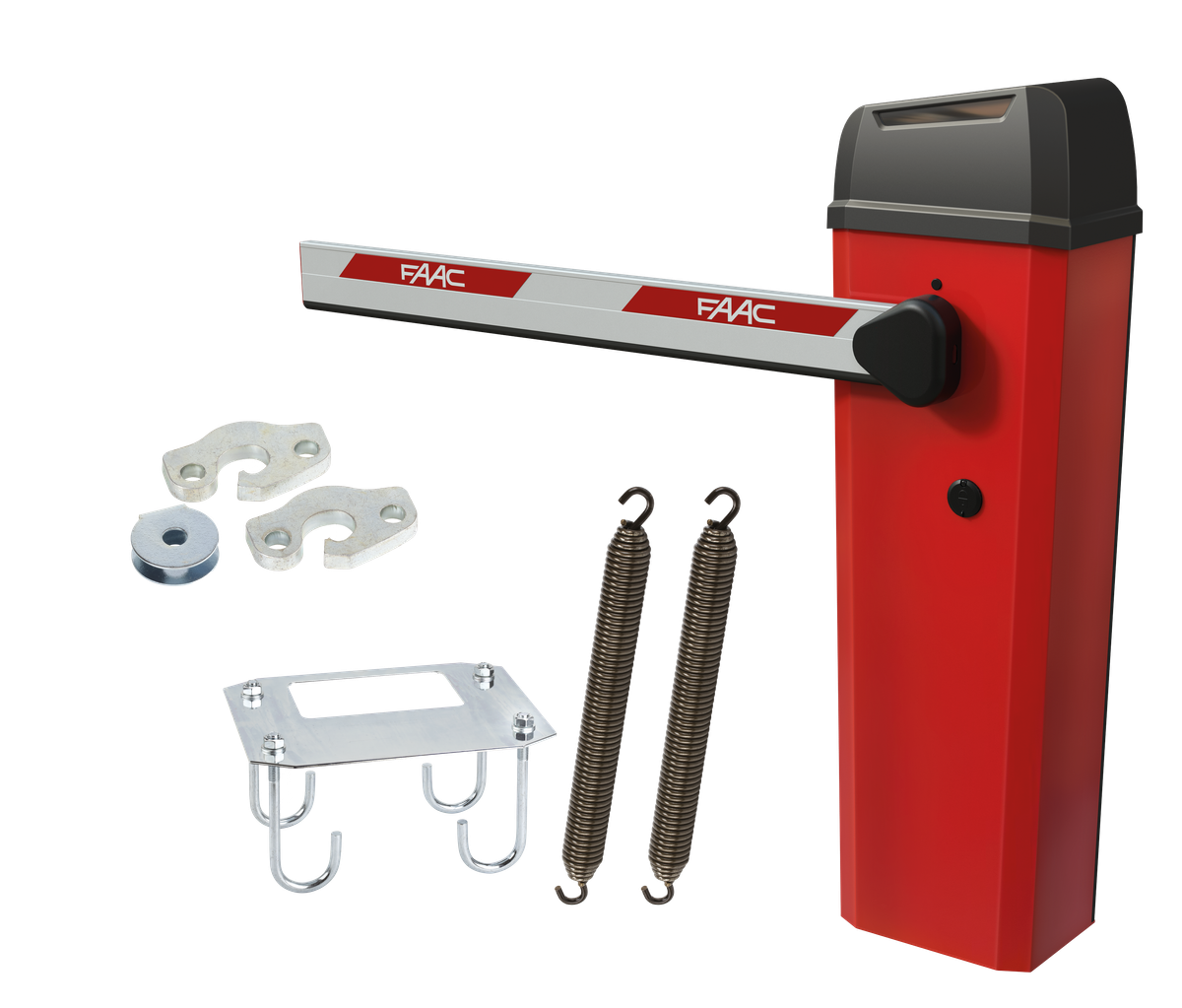

📦 What’s in the Box

  • FAAC B614 barrier operator

  • 5 m rectangular beam with rubber anti-impact profile

  • Additional counterbalance spring (dual-spring system)

  • Mounting hardware

  • Installation manual


🔩 Fixings Included

Not specified by manufacturer.


⚠️ Important Notes

  • The 5 m version includes an additional counterbalance spring to support the longer beam.

  • For installations above 4 m, always use the beam support fork accessory.

  • Optional beam lighting, reflective strips, and end-rest kits available separately.

  • Ensure compliance with local safety and obstacle-detection standards.


📌 Identifiers

  • Model: B614 (5 m Rectangular Beam Kit)

  • Brand: FAAC

  • Part Code: B614-5M-RECT

  • Type: Automatic barrier kit

Product Details

Reference B614 5M REC KIT Category Traffic Barrier Kits Brand FAAC

Product Specifics

Shipping Index 1
Max Boom Length 5M 8.3M

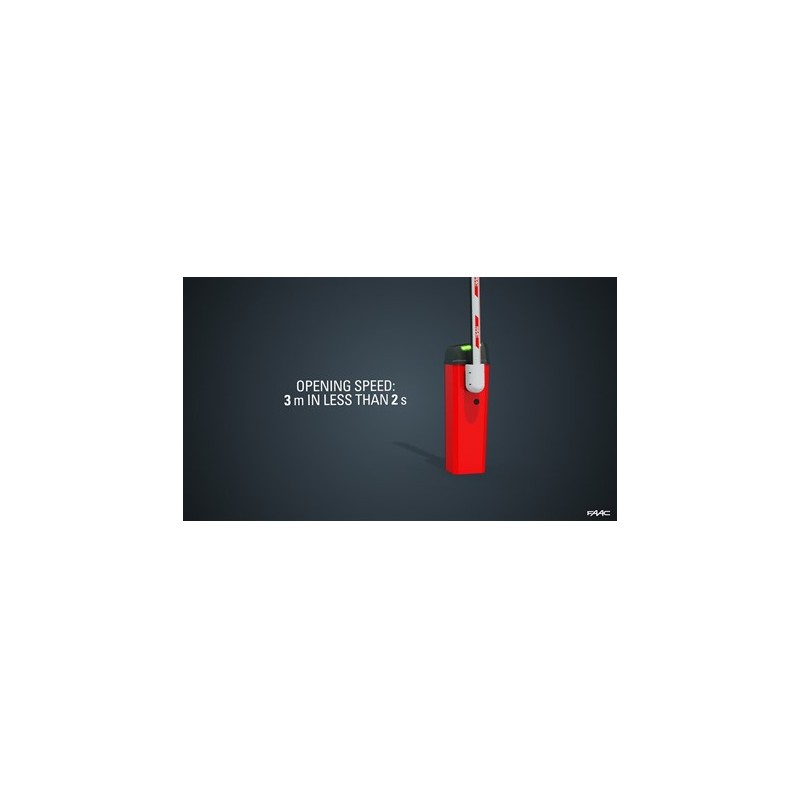

Opening Time 2 seconds over 2 seconds
Boom Length 3M 5M
Motor Electromechanical
Power Supply Voltage 230v
Motor voltage 24v
Duty Cycle continuous
Obstacle Detection Built-In Obstacle Detection
Category Automatic Barrier Kit
