FAAC B614 5m Round Beam Barrier Kit (B614 5M RND KIT)
Buy now pay later
Quick Overview
The FAAC B614 5 m round beam barrier is a high-performance automatic barrier for light-commercial and residential entrances. It features programmable control electronics, a 24 V motor with integrated encoder, and a dual-spring counterbalance system for smooth, reliable operation with longer beams.
Price:
£1,803.60
Tax included
Price:
£1,803.60
Tax included
Shopping as a Guest?
Log in to reveal your special price, or continue as a guest.
No extra forms—secure, private & instant.
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price:
£1,803.60
Tax included
Share on
Product Description

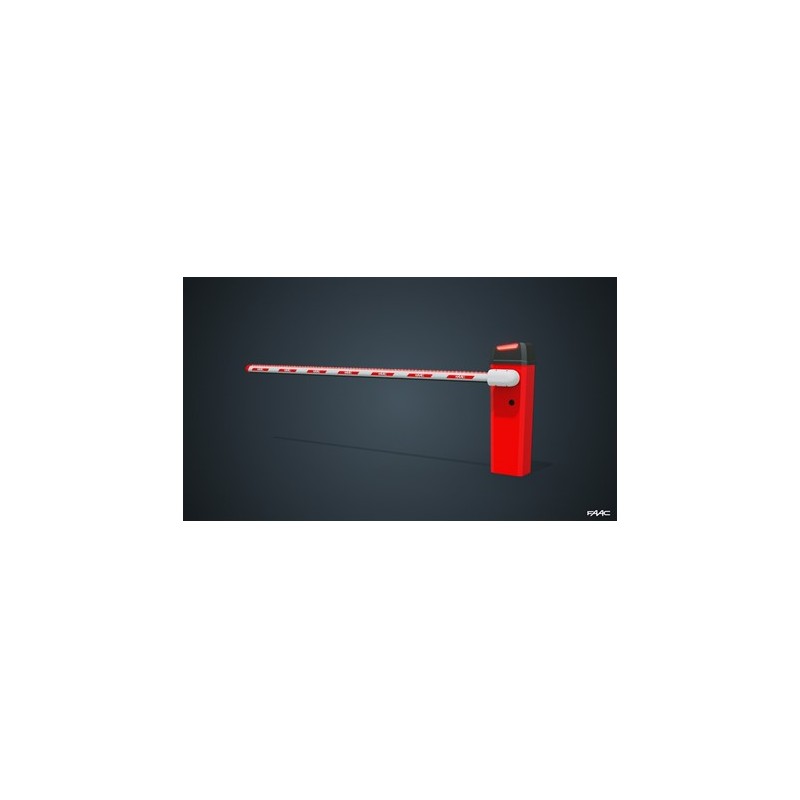

The FAAC B614 5 m round beam barrier kit provides reliable, safe, and efficient control for driveways, private car parks, and light-commercial entrances. It combines FAAC’s advanced modular control electronics with a robust mechanical design built for long-term service.

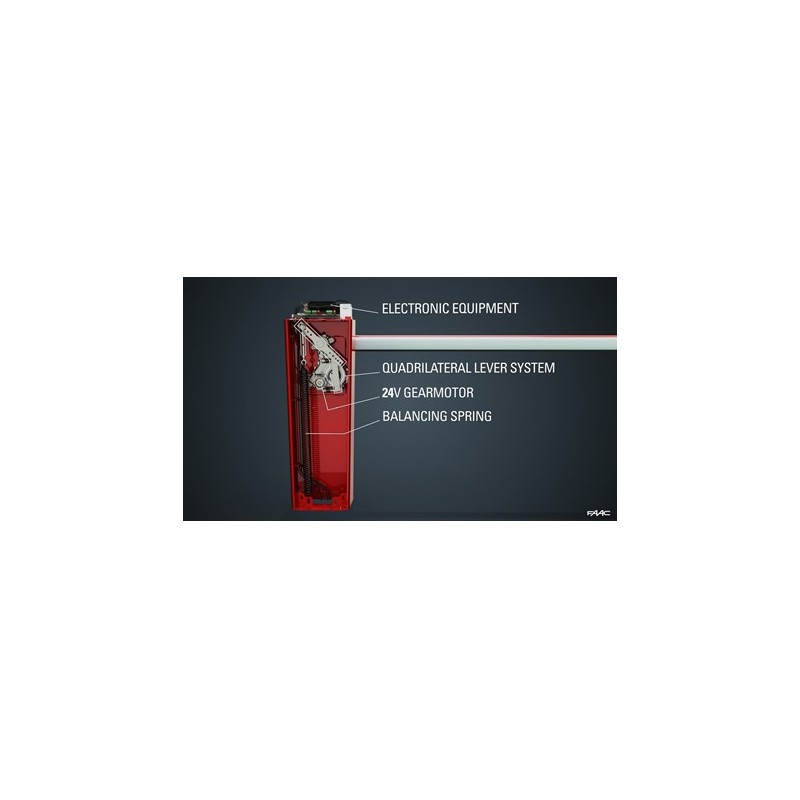

The barrier uses a 24 V DC motor with integrated encoder, providing precise motion control and built-in anti-crush safety. The dual-spring counterbalance system ensures smooth opening and closing of the longer 5 m beam, maintaining consistent performance and reduced motor strain.
The unit’s LED-lit top cover enhances visibility of operating status, while BUS 2Easy compatibility simplifies wiring and connection to FAAC safety and access accessories. The beam can be fitted with optional LED lighting, beam support fork, reflective strips, or traffic lights to tailor each installation.
✅ Key Features
-
5 m round beam with rubber anti-impact profile
-
Dual-spring counterbalance system for long beam stability
-
24 V motor with integrated encoder for accurate, safe movement
-

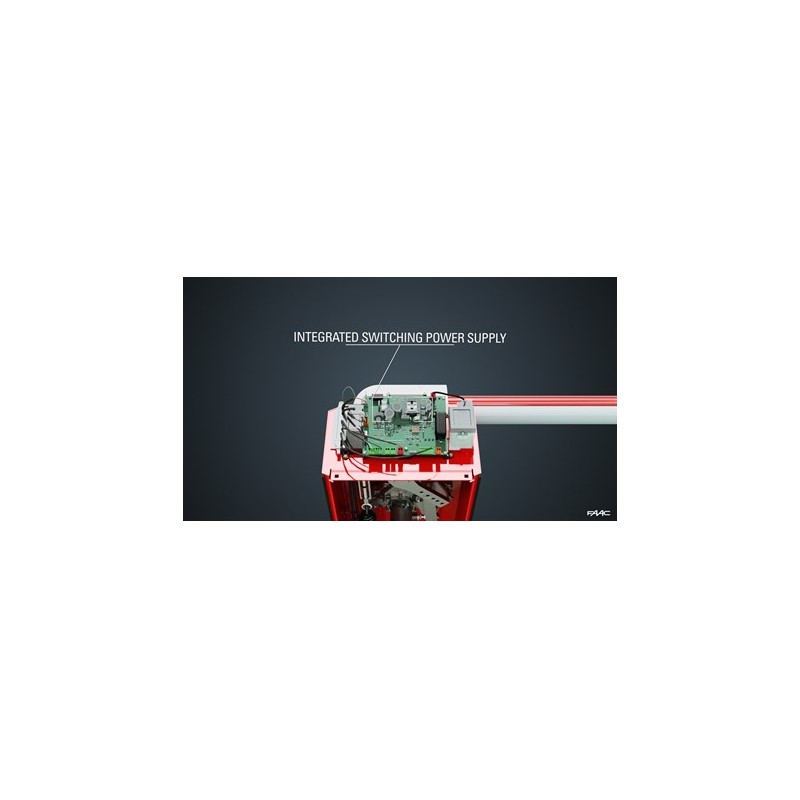

Programmable control board with display and LED indicators
-
Built-in universal radio decoder (OMNIDEC)
-

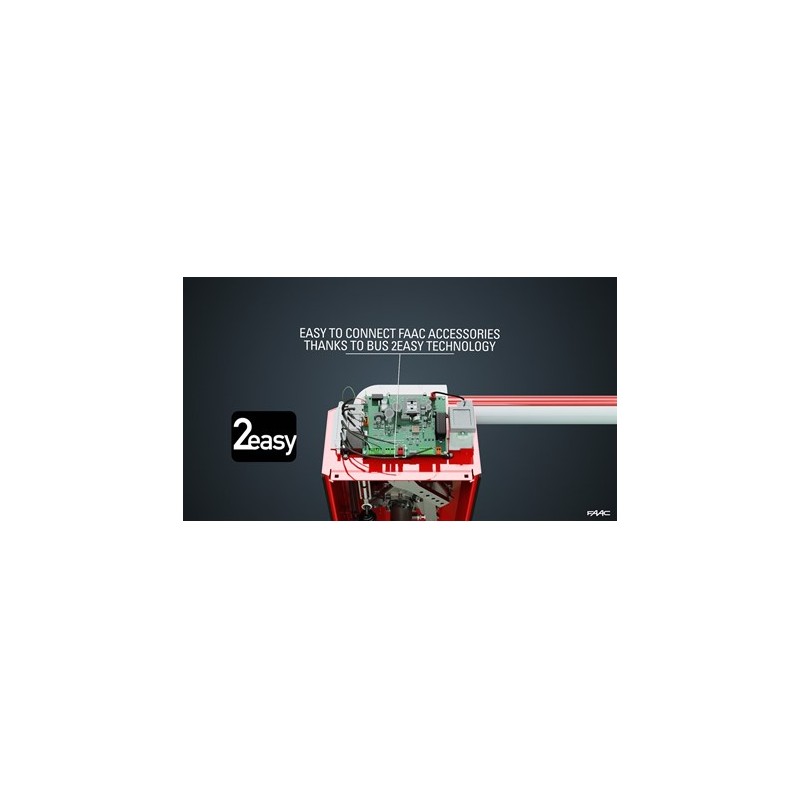

BUS 2Easy compatible for simplified accessory wiring
-
Suitable for light-commercial or residential entrances
-

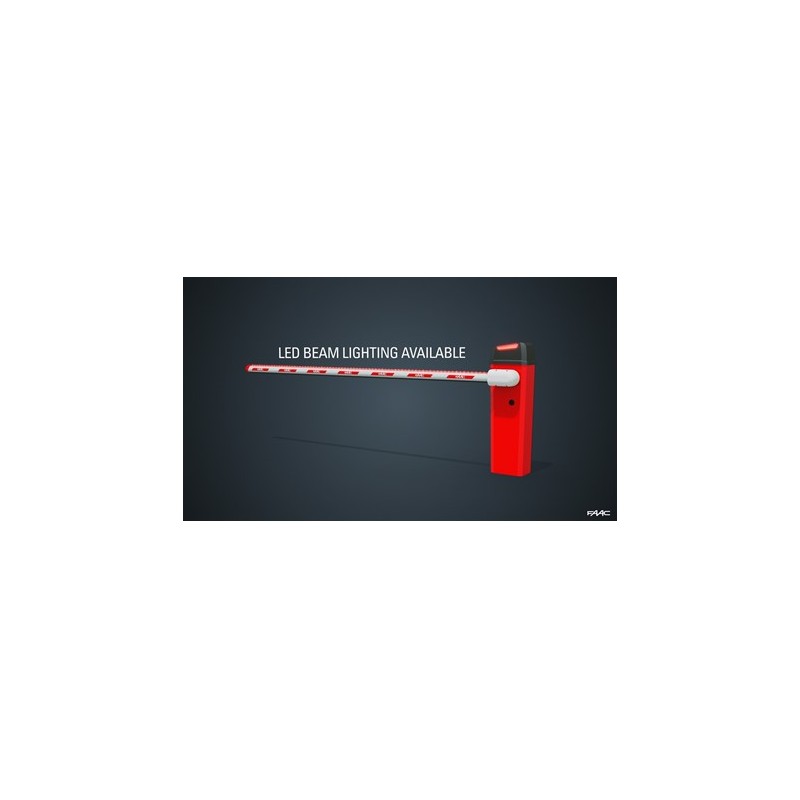

Optional LED beam lighting, support fork, and traffic light accessories
⚙ Technical Data
| Specification | Detail |
|---|---|
| Model / SKU | FAAC B614 (5 m kit) |
| Beam length | 5.00 m (round) |
| Motor voltage | 24 V DC |
| Application | Light commercial / residential |
| Drive unit | Electromechanical with dual counterbalance springs |
| Operating cycle | Continuous |
| Encoder | Integrated |
| Safety | Anti-crushing via encoder logic |
| System decoder | OMNIDEC integrated |
| Expansion bus | BUS 2Easy compatible |
| Protection rating | – |
| Operating temperature | −20 °C to +55 °C |
| Power supply | 230 V AC primary / 24 V DC motor |
| Finish | Powder-coated body with LED top cover |
(See FAAC datasheet for full dimensions and accessory specifications.)
📦 What’s in the Box
-
FAAC B614 barrier operator
-
5 m round beam with rubber anti-impact profile
-
Additional counterbalance spring (dual-spring system)
-
Mounting hardware
-
Installation manual
🔩 Fixings Included
Not specified by manufacturer.
⚠️ Important Notes
-
The 5 m version includes an additional counterbalance spring to support the longer beam.
-
For installations above 4 m, always use the beam support fork accessory.
-
Optional beam lighting, reflective strips, and end-rest kits available separately.
-
Ensure compliance with local safety and obstacle-detection standards.
📌 Identifiers
-
Model: B614 (5 m Round Beam Kit)
-
Brand: FAAC
-
Part Code: B614-5M-RND
-
Type: Automatic barrier kit
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|

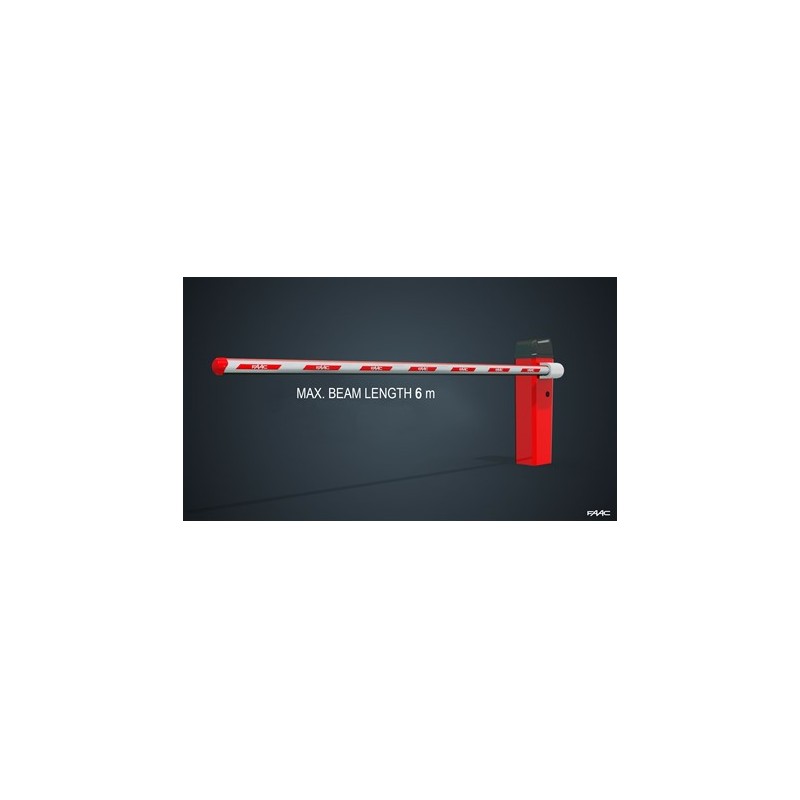

| Max Boom Length | 6M 8.3M |
| Opening Time | 2 seconds over 2 seconds |
| Boom Length | 3M 5M |
| Motor | Electromechanical |
| Power Supply Voltage | 230v |
| Motor voltage | 24v |
| Duty Cycle | continuous |
| Obstacle Detection | Built-In Obstacle Detection |
| Product Type | Automatic Barrier Kit |
