THE CAME FROG

CAME AUTOMATION provides a complete range of concealed underground automation motors and kits for residential and commercial applications.

View a brief overview of the range of CAME FROG models and kits

Motor Model Mains Power Supply Motor Voltage Max Weight per Gate Max Length per Gate Locking Method Motor Gate Speed Duty Cycle Notes KIT SINGLE KIT
CAME FROG-J 24v 200kg 1800mm Mechanically locking motor Electromechanical Adjustable Intensive CAME FROGJ-P KIT CAME FROGJ-S KIT
CAME FROG-A 230v 800kg 3500mm Mechanically locking motor Electromechanical 18 seconds 90 Degrees Semi-intensive CAME FROG-P KIT CAME FROG-S KIT
CAME FROG-A24 24v 800kg 3500mm Mechanically locking motor Electromechanical Adjustable Intensive
CAME FROG-A24E 24v 800kg 3500mm Mechanically locking motor Electromechanical Adjustable Intensive CAME FROGAE-P24 KIT CAME FROGAE-S24 KIT
CAME FROG-AE 230v 800kg 3500mm Mechanically locking motor Electromechanical 18 seconds 90 Degrees Semi-intensive CAME FROGAE-P KIT CAME FROGAE-S KIT
CAME FROG-PM4 230v 1100kg 5500mm Mechanically locking motor Electromechanical 30 seconds 90 Degrees Semi-intensive CAME FROGPLUS-P5 KIT CAME FROGPLUS-S5 KIT
CAME FROG-PM6 230v 1000kg 7000mm Mechanically locking motor Electromechanical 30 seconds 90 Degrees Semi-intensive CAME FROGPLUS-P7 KIT CAME FROGPLUS-S7 KIT
CAME FROG-MD 230-400v AC 3-Phase 1500kg 8000mm Mechanically locking motor Electromechanical 45 seconds 90 Degrees Semi-intensive High Power. Right-Handed.
CAME FROG-MS 230-400v AC 3-Phase 1500kg 8000mm Mechanically locking motor Electromechanical 45 seconds 90 Degrees Semi-intensive High Power. Left-Handed.
CAME FROG-AV 230v 300kg 1300mm Mechanically locking motor Electromechanical 9 seconds 90 Degrees 30 cycles/hour Rapid Motor. CAME FROG-PAV KIT CAME FROG-SAV KIT

Construction Illustrations

Technical Characteristics

MODELSFROG-AEFROG-AFROG-AVFROG-A24FROG-A24E
Protection rating (IP) 67 67 67 67 67
Power supply (V - 50/60 Hz) 230 AC 230 AC 230 AC - -
Power supply to motor (V) 230 AC 230 AC 230 AC 24 DC 24 DC
Absorption (A) 1,9 1,9 2,5 15 Max. 15 Max.
Power (W) 460 460 300 180 180
Maneuvering time at 90° (s) 18 18 9 ADJUSTABLE ADJUSTABLE
Duty/cycle (%) 30 30 30 HEAVY-DUTY SERVICE HEAVY-DUTY SERVICE
Cycles/Hour 11 MAX 11 MAX - - -
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Motor’s heat protection (°C) 150 150 150 - -

DOWNLOADS

CAME FROG 230v Manual

Download (3.5M)

CAME FROG KITS

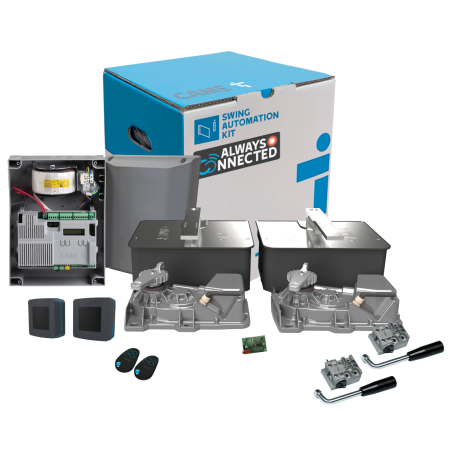

FROG-P KIT
Twin gate kit. 230v. Max 3500mm. 800kg. Per gate.
  • Swing Gate Kit
  • Twin gate kit
  • 230v 30 cycles/hour
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 18 seconds 90 Degrees

CAME FROG-P KIT

Regular price £1,650.96 -40.42% From Price £983.68
  • -40.42%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROG-S KIT
Single gate kit. 230v. Max 3500mm. 800kg. Per gate.
  • Swing Gate Kit
  • Single gate kit
  • 230v 30 cycles/hour
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 18 seconds 90 Degrees

CAME FROG-S KIT

Regular price £1,053.12 -42.63% From Price £604.17
  • -42.63%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROG-PAV KIT

Twin gate kit. 230v. Max 1300mm. 300kg. Per gate. Rapid Version.

  • Swing Gate Kit
  • Twin gate kit
  • 230v 30 cycles/hour
  • 1300mm or 300kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 9 seconds 90 Degrees
  • Rapid Version.

CAME FROG-PAV KIT

Regular price £1,926.12 -40.01% From Price £1,155.48
  • -40.01%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROG-SAV KIT
Single gate kit. 230v. Max 1300mm. 300kg. Per gate. Rapid Version.
  • Swing Gate Kit
  • Single gate kit
  • 230v 30 cycles/hour
  • 1300mm or 300kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 9 seconds 90 Degrees
  • Rapid Version.

CAME FROG-SAV KIT

Regular price £1,311.65 -40% From Price £786.99
  • -40%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGJ-P KIT
DISCONTINUED PRODUCT
  • Swing Gate Kit
  • Twin gate kit
  • 24v Intensive
  • 1800mm or 250kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed Adjustable

CAME FROGJ-P KIT

Quick view
FROGJ-S KIT
DISCONTINUED PRODUCT
  • Swing Gate Kit
  • Single gate kit
  • 24v Intensive
  • 1800mm or 250kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed Adjustable

CAME FROGJ-S KIT

Quick view
FROGAE-P KIT

Twin gate kit. 230v. Max 3500mm. 800kg. Per gate. Encoder. EN Tested.

  • Swing Gate Kit
  • Twin gate kit
  • 230v 30 cycles/hour
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 18 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGAE-P KIT

Regular price £1,788.60 -41.03% From Price £1,054.74
  • -41.03%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGAE-S KIT
Single gate kit. 230v. Max 3500mm. 800kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Single gate kit
  • 230v 30 cycles/hour
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 18 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGAE-S KIT

Regular price £1,197.24 -40.01% From Price £718.22
  • -40.01%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGAE-P24 KIT

Twin gate kit. 24v. Max 3500mm. 800kg. Per gate. Encoder. EN Tested.

  • Swing Gate Kit
  • Twin gate kit
  • 24v Intensive
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed Adjustable
  • Built-In Obstacle Detection

CAME FROGAE-P24 KIT

Regular price £2,030.64 -42.85% From Price £1,160.47
  • -42.85%
Quick view
DD-1KA LOCK81 Two Aluminium Photocell Columns BAT2PK with Connection Card S5000 Wired Keypad S9000 Wireless Keypad DD-1KB LOCK82 One Aluminium Photocell Column CAME SELT1NDG Wired Keypad No Lock CAME SELT1W4G 433.92MHz Wireless Keypad MAGLOCK - EM10010ME CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGAE-S24 KIT
Single gate kit. 24v. Max 3500mm. 800kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Single gate kit
  • 24v Intensive
  • 3500mm or 800kg Max each leaf
  • Underground Motor
  • 110 Degrees Max opening angle
  • Mechanically locking motor
  • Speed Adjustable
  • Built-In Obstacle Detection

CAME FROGAE-S24 KIT

Regular price £1,332.24 -40.01% From Price £799.21
  • -40.01%
Quick view
DD-1KA LOCK81 Two Aluminium Photocell Columns BAT2PK with Connection Card S5000 Wired Keypad S9000 Wireless Keypad DD-1KB LOCK82 One Aluminium Photocell Column CAME SELT1NDG Wired Keypad No Lock CAME SELT1W4G 433.92MHz Wireless Keypad MAGLOCK - EM10010ME CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGPLUS-P5 KIT
Twin gate kit. 230v. Max 5500mm. 1800kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Twin gate kit
  • 230v 50 cycles/hour
  • 5500mm or 1800kg Max each leaf
  • Underground Motor
  • 95 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 30 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGPLUS-P5 KIT

Regular price £9,506.28 -45.01% From Price £5,227.50
  • -45.01%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGPLUS-S5 KIT
Single gate kit. 230v. Max 5500mm. 1800kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Single gate kit
  • 230v 50 cycles/hour
  • 5500mm or 1800kg Max each leaf
  • Underground Motor
  • 95 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 30 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGPLUS-S5 KIT

Regular price £5,027.04 -45% From Price £2,764.87
  • -45%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGPLUS-P7 KIT
Twin gate kit. 230v. Max 7000mm. 1000kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Twin gate kit
  • 230v 50 cycles/hour
  • 7000mm or 1000kg Max each leaf
  • Underground Motor
  • 95 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 45 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGPLUS-P7 KIT

Regular price £9,506.28 -40% From Price £5,703.77
  • -40%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS
FROGPLUS-S7 KIT
Single gate kit. 230v. Max 7000mm. 1000kg. Per gate. Encoder. EN Tested.
  • Swing Gate Kit
  • Single gate kit
  • 230v 50 cycles/hour
  • 7000mm or 1000kg Max each leaf
  • Underground Motor
  • 95 Degrees Max opening angle
  • Mechanically locking motor
  • Speed 45 seconds 90 Degrees
  • Built-In Obstacle Detection

CAME FROGPLUS-S7 KIT

Regular price £5,027.04 -40% From Price £3,016.22
  • -40%
Quick view
LOCK81 S5000 Wired Keypad DD-1KA Two Aluminium Photocell Columns DD-1KB One Aluminium Photocell Column LOCK82 S9000 Wireless Keypad CAME SELT1NDG Wired Keypad No Lock MAGLOCK - EM10010ME CAME SELT1W4G 433.92MHz Wireless Keypad CAME SELB1SDG1 Bluetooth Selector CAME SELD1FDG Key Switch CAME SELR1NDG TAG Reader with 4 TAGS

230v CAME FROG MOTORS

tested in compliance with regulatory standards EN 12453 - EN 12445

230v CAME FROG CONTROL PANELS

tested in compliance with regulatory standards EN 12453 - EN 12445

ZM3EZ
Single control board. Max two 230v motors. Per unit. Self diagnosis. LCD Display. EN Tested.

CAME ZM3EZ

Regular price £342.72 -35.01% Price £222.73
  • -35.01%
Quick view

230v CAME FROG MOTORS

230v CAME FROG CONTROL PANELS

ZA3P
Single control board. Max two 230v motors Per Unit. Limit Switch Control. Slow Down Speed Adjustment. Includes Enclosure.

CAME ZA3P

Regular price £210.36 -35.01% Price £136.71
  • -35.01%
Quick view

24v CAME FROG MOTORS

tested in compliance with regulatory standards EN 12453 - EN 12445

24v CAME FROG CONTROL PANELS

For the CAME FROG-A24E

CAME FROG ACCESSORIES

For ZLJ14 BOARDS

CAME FROG ACCESSORIES

For ZLJ24 BOARDS

CAME FROG ACCESSORIES

CAME FROG SPARES & PARTS
