FAAC 415 LLS (UPGRADE) KIT S ELECTRIC GATE KIT
Buy now pay later
Quick Overview
2024 Updated Kit with E145s & New FDS Transmitters Swing Gate Kit Single gate kit 230v 25 cycles/hour 4000mm or 300kg Max each leaf Above ground Motor 110 Degrees Max opening angle Mechanically locking motor Speed 20 seconds 90 Degrees
Let us handle the planning. Tell us about your swing or sliding gate project — we’ll recommend the right automation kit and accessories for a smooth, professional installation.
Price:
£1,004.40
Tax included
Price:
£1,004.40
Tax included
Shopping as a Guest?
Log in to reveal your special price, or continue as a guest.
No extra forms—secure, private & instant.
Found it cheaper? We can price match...
Need this in a hurry? Contact us...
Price:
£1,004.40
Tax included
Share on
Product Description
FAAC 415 LLS KIT S
Complete kit for a single residential and light commercial swing gate up to a maximum of 4m each leaf.
*NEW 2024 Updated kit*
+Benefits of the E145S
Compatible with both Simply Connect and FDS technologies
The BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.
Safety edges can be wired directly on to dedicated terminals, with either one or two resistive edges working in each direction.
There are two configurable outputs which allow detailed control of accessories, such as a locks or traffic lights.
This smart board has onboard diagnostic, which will speed up fault finding by having access to both error and alarm codes.
The configuration file of all the setting can be downloaded, saved and uploaded. This is possible either via a USB stick or through Simply Connect, saving time when installing similar systems on multiple gates.
+Benefits of the FDS Transmitters
Bidirectionality The FDS BD transmitter provides haptic feedback to confirm the open command was received and it is also possible to check if the gate is closed by holding down the button and checking the colour of the remotes LED.
Bidirectional transmitters are equipped with a built in TAG compatible with FAAC XTR B readers
+Benefits of the BUS Photocells
Simplified wiring and the BUS 2Easy terminal allows multiple BUS devices to be connected, which all consume less power than the standard equivalent. The BUS activation devices are more secure and the BUS safety devices are inherently failsafe tested.
Slow Down on Open and Close
With this equipment you can adjust the speed of your gate as it approaches the open and closed positions. Further improving on the overall installation and provides a personallised and refined touch to each application.
LCD Display
Control Panel with LCD display for simplified programming.
Quick & Easy Installation
Equipment designed for the quick & easy installation to existing hinged swing gates.

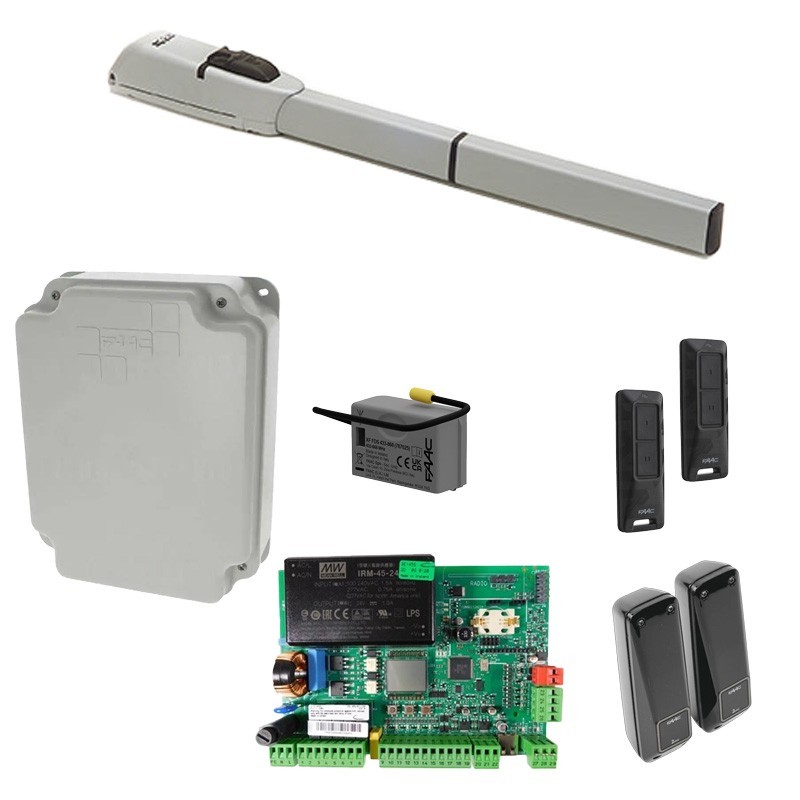

| What comes in the box | |
|---|---|
| Quantity | Item |
| 1 | FAAC 415 LLS 230v Operator |
| 1 | FAAC E145S Control Board |
| 1 | FAAC Control Board Housing |

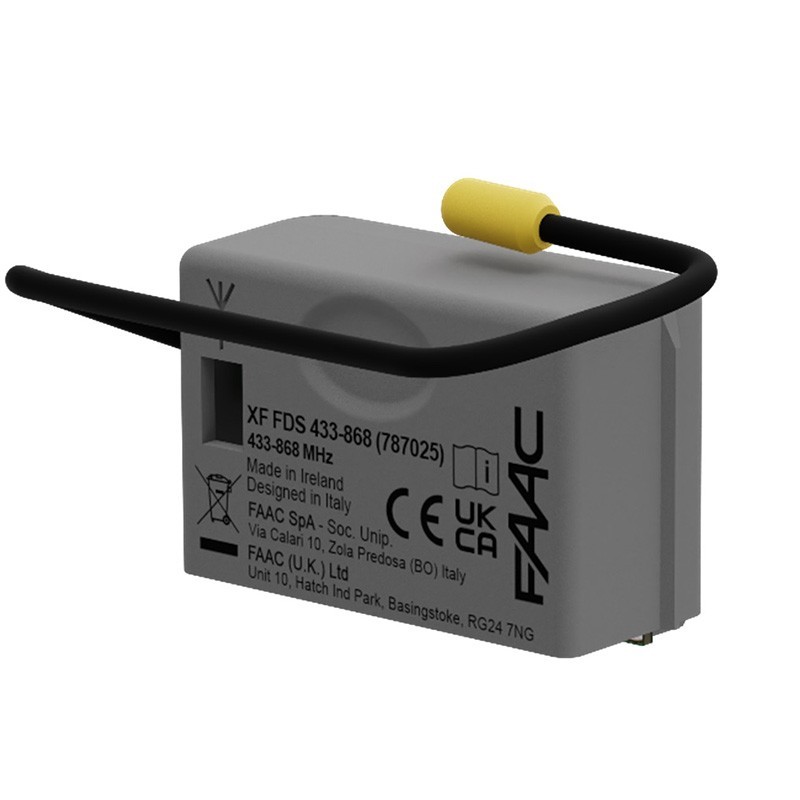

| 1 | FAAC XF FDS Plug in receiver/decoder |

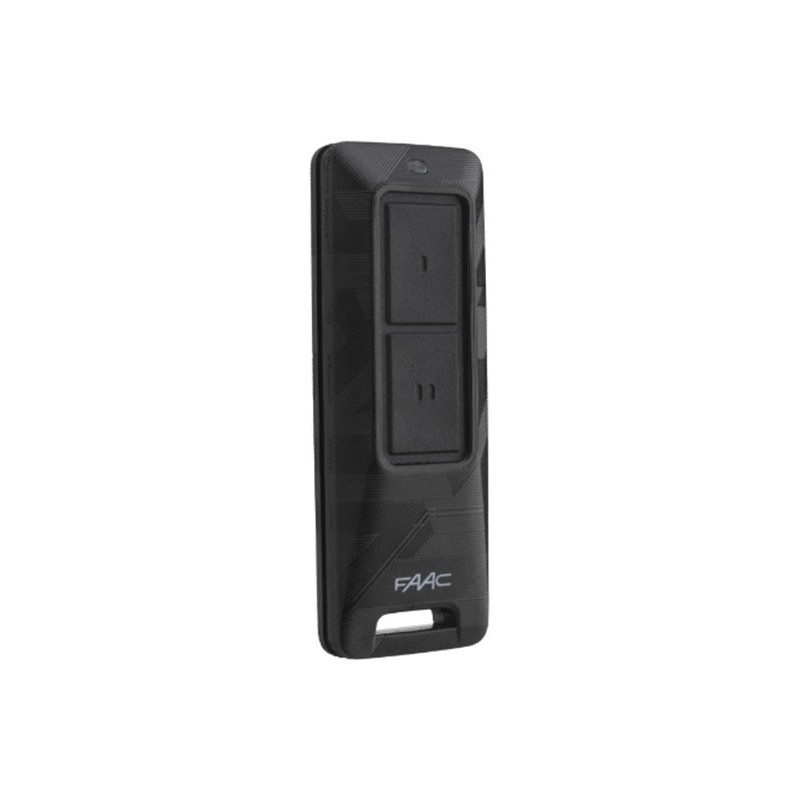

| 2 | FAAC 868 FDS 2 Channel Transmitter's |

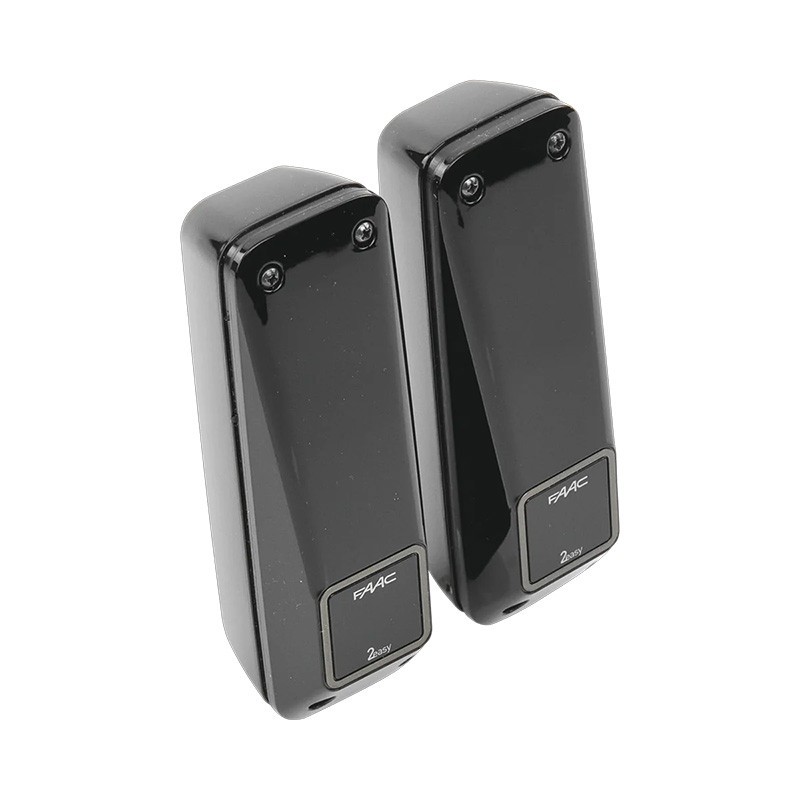

| 1 | FAAC XP 20B D Pair of Photocells |
| Motor Model | Mains Power Supply | Motor Voltage | Max Weight per Gate | Max Length per Gate | Locking Method | Motor | Gate Speed | Duty Cycle | Notes | KIT | SINGLE KIT |
| FAAC 415 104415 | 230v | 230v | 300kg | 3000mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | 30 cycles/hour | FAAC 415 UK KIT | FAAC 415 UK KIT S | |
| FAAC 415 24v 1044151 | 230v | 24v | 300kg | 3000mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | Very-intensive | Obstacle Detection. | FAAC 415 24V KIT | FAAC 415 24V KIT S |
| FAAC 415 L 104417 | 230v | 230v | 300kg | 4000mm | Mechanically locking motor | Electromechanical | 20 seconds 90 Degrees | 25 cycles/hour | Long Stroke. | FAAC 415 L KIT | FAAC 415 L KIT S |
| FAAC 415 L 24V 1044171 | 230v | 24v | 300kg | 4000mm | Mechanically locking motor | Electromechanical | 20 seconds 90 Degrees | Very-intensive | Obstacle Detection. Long Stroke. | FAAC 415 L 24V KIT | FAAC 415 L 24V KIT S |
| FAAC 415 L LS 104418 | 230v | 230v | 300kg | 4000mm | Mechanically locking motor | Electromechanical | 20 seconds 90 Degrees | 25 cycles/hour | Long Stroke. Limit Switches with Slow Down. | FAAC 415 LLS KIT | FAAC 415 LLS KIT S |
| FAAC 415 L LS 24V 1044181 | 230v | 24v | 300kg | 4000mm | Mechanically locking motor | Electromechanical | 20 seconds 90 Degrees | Very-intensive | Obstacle Detection. Long Stroke. Limit Switches with Slow Down. | FAAC 415 L LS 24V KIT | FAAC 415 L LS 24V KIT S |
| FAAC 415 LS 104416 | 230v | 230v | 300kg | 3000mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | 30 cycles/hour | Limit Switches with Slow Down. | FAAC 415 LS KIT | FAAC 415 LS KIT S |
| FAAC 415 LS 24V 1044161 | 230v | 24v | 300kg | 3000mm | Mechanically locking motor | Electromechanical | 15 seconds 90 Degrees | Very-intensive | Obstacle Detection. Limit Switches with Slow Down. | FAAC 415 LS 24V KIT | FAAC 415 LS 24V KIT S |
Product Details
Product Specifics
| Shipping Index | 1 |
|---|---|
| Gate type | Swing gate |
| Single or twin kit | Single gate kit |
| Max weight per gate | 300 |
| Max length per gate | 4000 |
| Above or underground | Above ground |
| Max opening angle | 110 degrees |
| Motor | Electromechanical |
| Locking method | Mechanically locking motor |
| Power Supply Voltage | 230v |
| Motor voltage | 230v |
| Gate Speed | 20 seconds 90 Degrees |
| Duty Cycle | 25 cycles/hour |
| Protection Rating | IP 44 |
| Motor Range | 415 |
| Product Type | Swing Gate Kit |
